Datasheet

Twelve Port Multi-Band Antenna

TPA45R-KE8A

Eight foot (2.5 m) multiband, twelve port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies
Eight wide high band ports covering 1695-2690 MHz and four wide low band ports covering 698-960 MHz in a single antenna enclosure
New Enclosure, allowing for 15.4” (391mm) width. Narrowest Enclosure in the Industry for a 45° Antenna of this configuration
Full Spectrum Compliance 698-960 MHz / 1695-2690 MHz
Innovative Low and High Band Array configuration allows for 4T4R (4x4 MIMO) on Low Band and Dual 4T4R (4x4 MIMO) High Band Arrays, all in a 15.4” (391mm) width enclosure, an Industry First
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
Ordering options for External RET Controllers (Type 1) or Internally Integrated RET Controllers (Type 17)

Overview

The CCI 12-Port multiband array is a twelve port antenna, with eight wide high band ports covering 1695-2690 MHz and four wide low band ports covering 698-960 MHz. The antenna provides the capability to deploy Dual 4×4 Multiple-input Multiple-output (MIMO) in the high band and 4X4 Multiple-input Multiple-output (MIMO) across low band ports.

The CCI 12-Port allows independent tilt control between the low band ports and high band ports. With the use of two independent RET controllers in the High Band, the Top and Bottom paired high band ports can be tilted independently, enabling maximum flexibility in network deployment.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

Dual 4×4 MIMO for the High Band and 4X4 MIMO Low Band ports
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s multiband antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	4 × Low Band Ports for 698-960 MHz
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain	14.9 dBi	15.5 dBi	15.8 dBi	16.3 dBi
Azimuth Beamwidth (-3dB)	51°	49°	47°	44°
Elevation Beamwidth (-3dB)	18.3°	16.0°	15.2°	14.1°
Electrical Downtilt	2° to 16°	2° to 16°	2° to 16°	2° to 16°
Elevation Sidelobes (1st Upper)	< -18 dB	< -18 dB	< -18 dB	< -17 dB
Front-to-Back Ratio @180°	> 30 dB	> 30 dB	> 30 dB	> 30 dB
Cross-Polar Discrimination (at Peak)	> 25 dB	> 25 dB	> 25 dB	> 24 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio(VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain over all Tilts (dBi)	14.4	14.7	15.1	15.4
Gain over all Tilts Tolerance (dB)	0.4	0.5	0.6	0.7
Gain at Low-Tilt (dBi)	14.6	14.9	15.2	15.7
Gain at Mid-Tilt (dBi)	14.4	14.8	15.2	15.6
Gain at High-Tilt (dBi)	14.2	14.6	14.8	14.9
Azimuth Beamwidth Tolerance (°)	1.7	3.4	3.6	2.4
Elevation Beamwidth Tolerance (°)	1.8	1.4	1.3	1.3
Electrical Downtilt Deviation (°)	1.9	2.0	2.0	1.9
First Upper Sidelobe Suppression (dB)	13.1	14.4	14.7	13.8
Upper Sidelobe Suppression Peak to 20°(dB)	19.9	18.6	18.3	17.9
Front-to-Back Ratio over ±20° (dB)	22.4	21.6	21.8	22.8
Cross-polar Discrimination at 3 dB (dB)	18.4	17.1	15.9	15.1
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Ports	8 × High Band Ports for 1695-2690 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain¹	17.1 dBi	17.7 dBi	18.0 dBi	18.3 dBi	18.8 dBi
Azimuth Beamwidth (-3dB)	43°	43°	42°	41°	35°
Elevation Beamwidth (-3dB)	8.6°	7.8°	7.4°	6.5°	5.7°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	< -18 dB	< -18 dB	< -18 dB	< -18 dB	< -16 dB
Front-to-Back Ratio @180°	> 32 dB	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination (at Peak)	> 18 dB	> 18 dB	> 18 dB	> 25 dB	> 24 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio(VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands.

BASTA Electrical Specifications
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain over all Tilts (dBi)	16.2	16.8	17.1	17.1	17.7
Gain over all Tilts Tolerance (dB)	0.6	0.6	0.5	0.8	0.9
Gain at Low-Tilt (dBi)	16.4	17.0	17.3	17.3	18.1
Gain at Mid-Tilt (dBi)	16.2	16.8	17.3	17.3	17.9
Gain at High-Tilt (dBi)	15.9	16.6	16.8	16.7	17.1
Azimuth Beamwidth Tolerance (°)	4.0	3.5	3.9	5.4	3.6
Elevation Beamwidth Tolerance (°)	0.7	0.4	0.6	0.3	0.5
Electrical Downtilt Deviation (°)	1.1	1.1	1.1	1.1	1.1
First Upper Sidelobe Suppression (dB)	13.6	15.1	14.8	14.0	12.2
Upper Sidelobe Suppression Peak to 20°(dB)	11.6	11.1	10.1	9.5	8.8
Front-to-Back Ratio over ±20° (dB)	20.3	21.8	23.5	26.3	26.9
Cross-polar Discrimination at 3 dB (dB)	12.5	13.7	13.8	14.6	14.9
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	98.7×15.4×8.2 in (2507×391×208 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	371 lbs (1650 N) @ 100 mph (161 kph)
Side Wind Load	225 lbs (1002 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	14.5 ft² (1.3 m²)
Weight *	67.6 lbs (30.7 kg)
Connector	12 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting

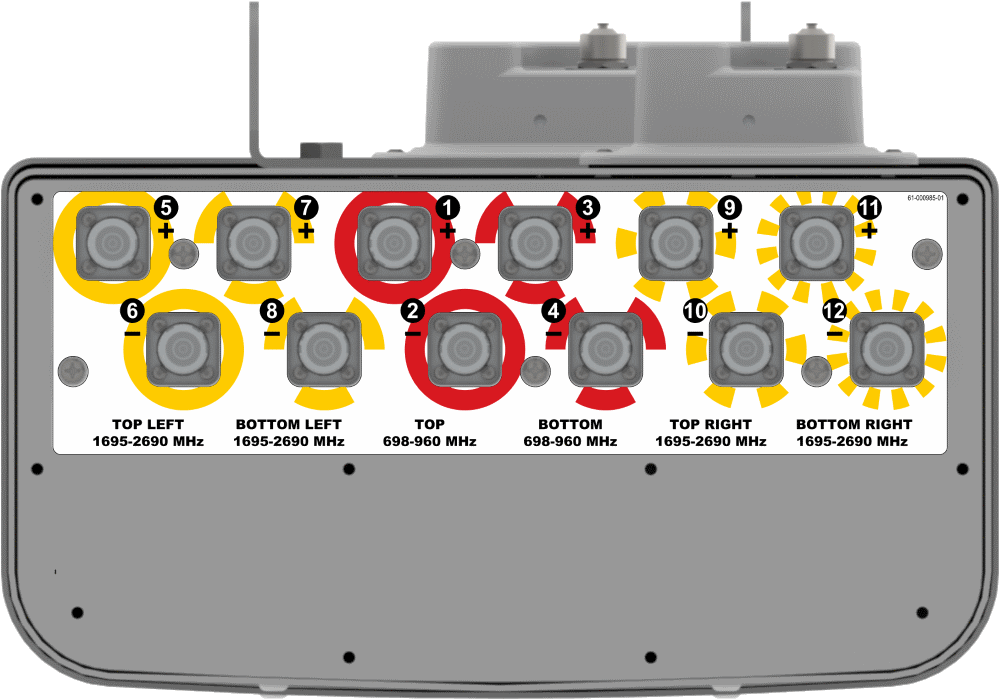

Bottom View

Connector Spacing

RET to Array Configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

All Ports shown in Azimuith

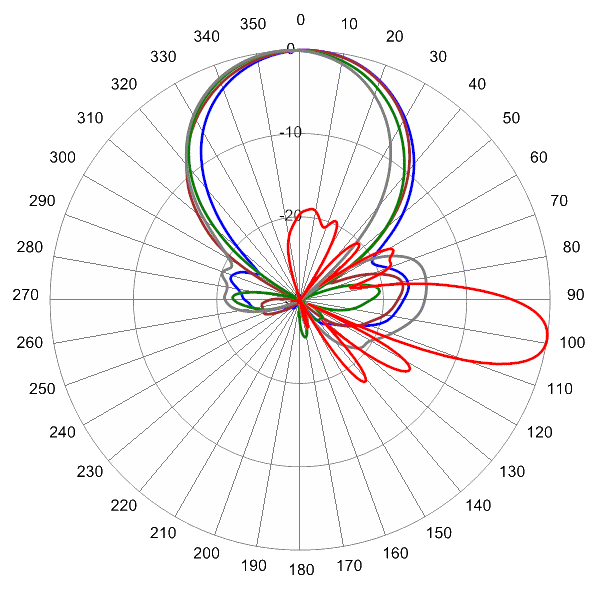

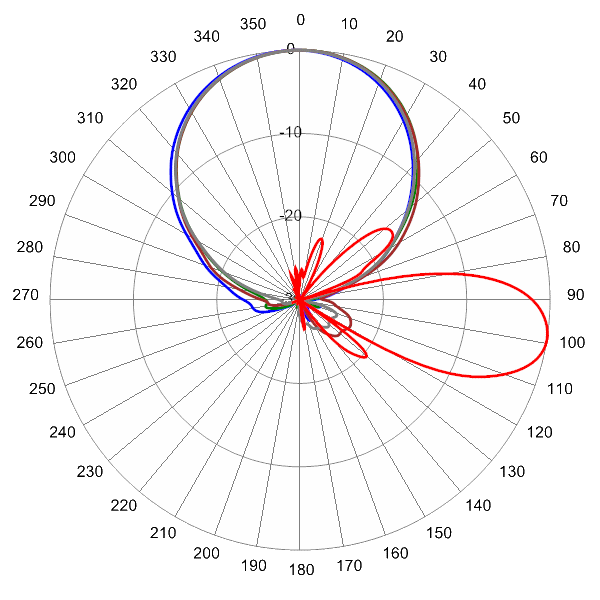

	704 MHz Azimuth / Elevation 9°	889 MHz Azimuth / Elevation 9°
All Ports shown in Azimuith

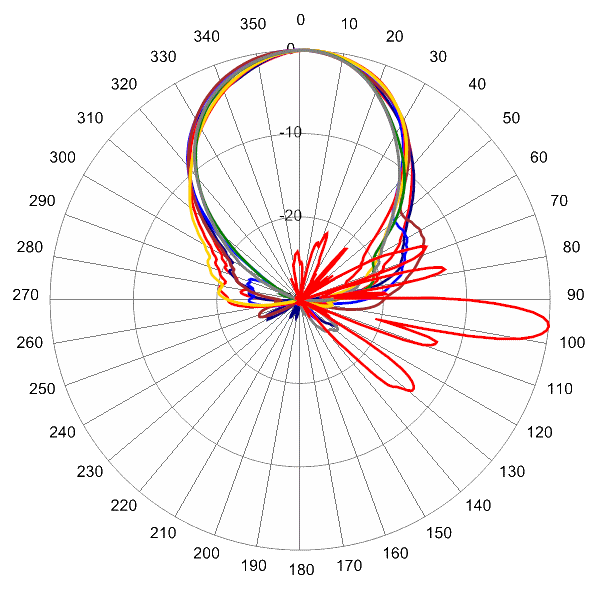

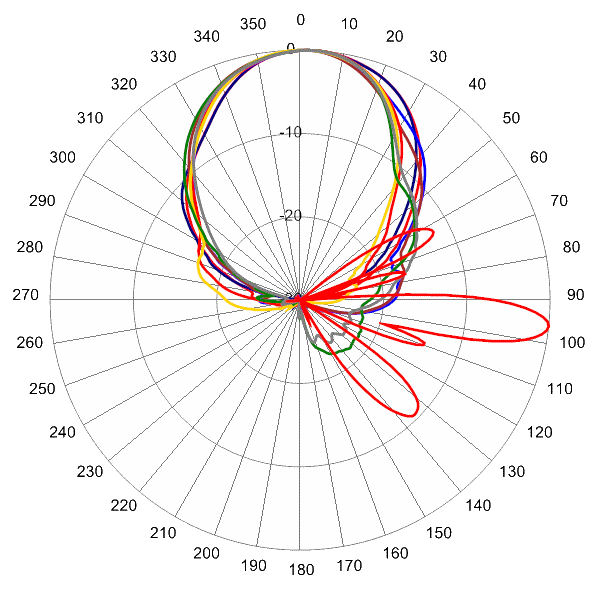

	1850 MHz Azumth / Elevation 6°	2110 MHz Azumth / Elevation 6°
All Ports shown in Azimuith

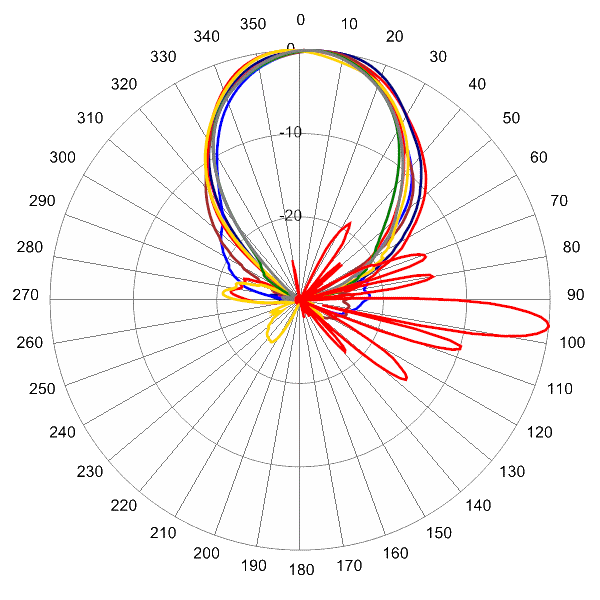

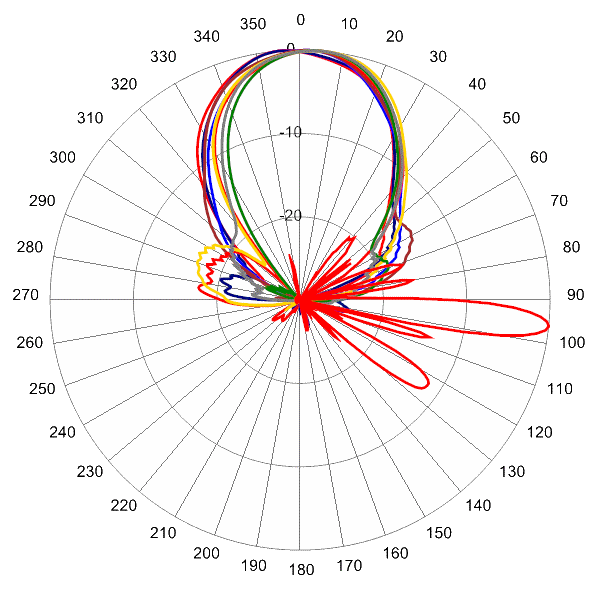

	2380 MHz Azumth / Elevation 6°	2500 MHz Azumth / Elevation 6°

MBK-01		MBK-01 Mounting Kit with 0° - 10° mechanical tilt
MBK-16		MBK-16 Mounting Kit with fixed 0° mechanical tilt
DM-02		DM-02 Dual Mount Mast Bracket Kit
TM-01		TM-01 Dual Mount Mast Bracket Kit
BSA-RET200		Remote Electrical Tilt System (RET) (Type 1)
BSA-RET400		Remote Electrical Tilt System (RET) (Type 17)
TPA-CBK-AG-RRU		AISG Cable set for three RET antenna
TPA-CBK-RA-AG-RRU		AISG Right Angle Cable set for three RET Antenna
AISGC-M-F-10FT		10 Ft (3 m) Male/Female RRU to Antenna AISG cable For Type 17 RET
SCU-AISG-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	TPA45R-KE8A Connector Spacing Diagram
	TPA45R-KE8AA RET to Element Configuration Diagram
	MBK-01 Installation Guide
	MBK-16 Installation Guide
	DM-02 Installation Guide
	TM-01 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

TPA45RKE8A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0401E
Configuration File	Version
TPA45-KE8-YK-01.BIN	01
TPA45-KE8-YE-01.BIN	01

Parts & Accessories

TPA45R-KE8AA-K	8 foot (2.5 m) Twelve Port antenna with 45° azimuth beamwidth, 4.3-10 female connectors, three factory installed BSA-RET200 RET actuators (Type 1 external) and MBK-01 mounting bracket
TPA45R-KE8AB-K	8 foot (2.5 m) Twelve Port antenna with 45° azimuth beamwidth, 4.3-10 female connectors, three factory installed BSA-RET400 RET actuators (Type 17 internal) and MBK-01 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
MBK-16	Mounting bracket kit (top and bottom) with fixed 0° mechanical tilt
DM-02	Dual mount mast bracket for side by side antenna mounting
TM-01	Triple antenna pole mounting mast bracket
BSA-RET200	Type 1 remote electrical tilt actuator
BSA-RET400	Type 17 remote electrical tilt actuator
TPA-CBK-AG-RRU	Three RET antenna to RRU AISG cable kit
TPA-CBK-RA-AG-RRU	Three RET antenna to RRU AISG right angle cable kit
AISGC-M-F-10FT	0 Ft (3 m) Male/Female RRU to Antenna AISG cable

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
