      Site Control Unit SCU-AISG2-P

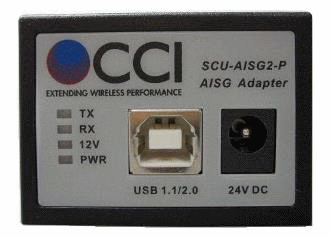

  SCU AISG2 PFront

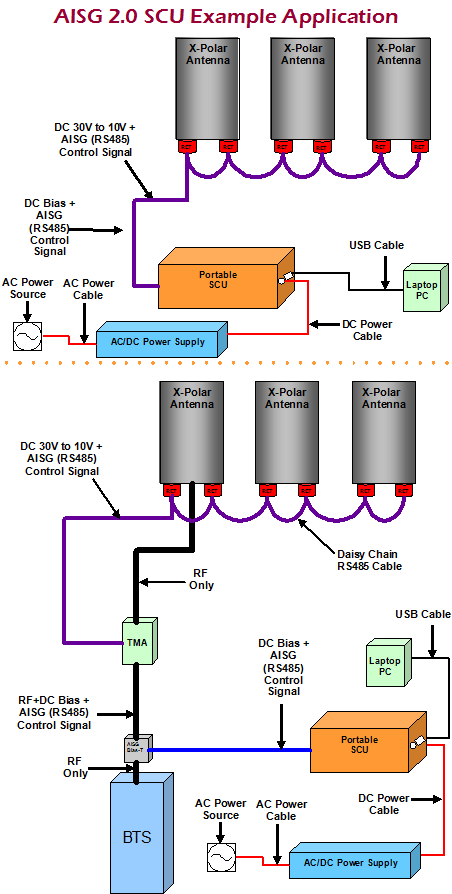

CCI’s Portable AISG 2.0 Site Control Unit (SCU) is part of our suite of antenna products. This portable controller will enable operation of an AISG 1.1 or AISG 2.0 compliant device such as TMA’s or antennas with RETs. The Remote Tilt Antenna function enables optimization (tilts) of the sector coverage pattern. The SCU interfaces directly with the CCI Tilt Actuator mounted at the Antenna via coax. No home run or additional cable is required. The continuous adjustment capability allows changes to the BTS coverage to suit network optimization, changing traffic patterns or seasonal changes such as foliage absorption.
The Portable SCU can be controlled by a Laptop PC (with Driver and Software Application loaded from a CD-ROM) and is accessed via a USB 2.0 port. Additionally, the Portable SCU Supports AISG Device Software Download to the RET/TMA Device (via .bin or .hex file types).
