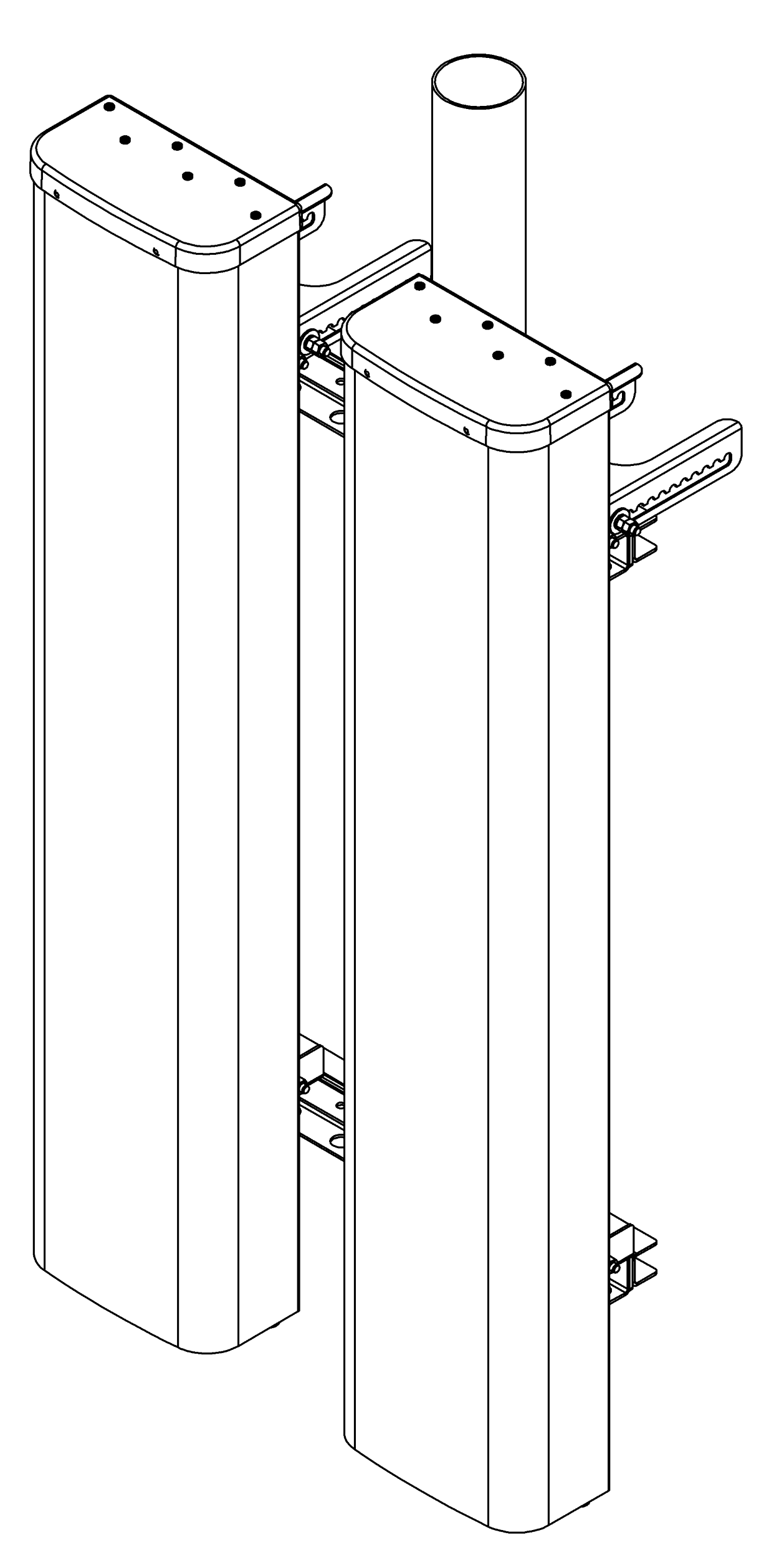

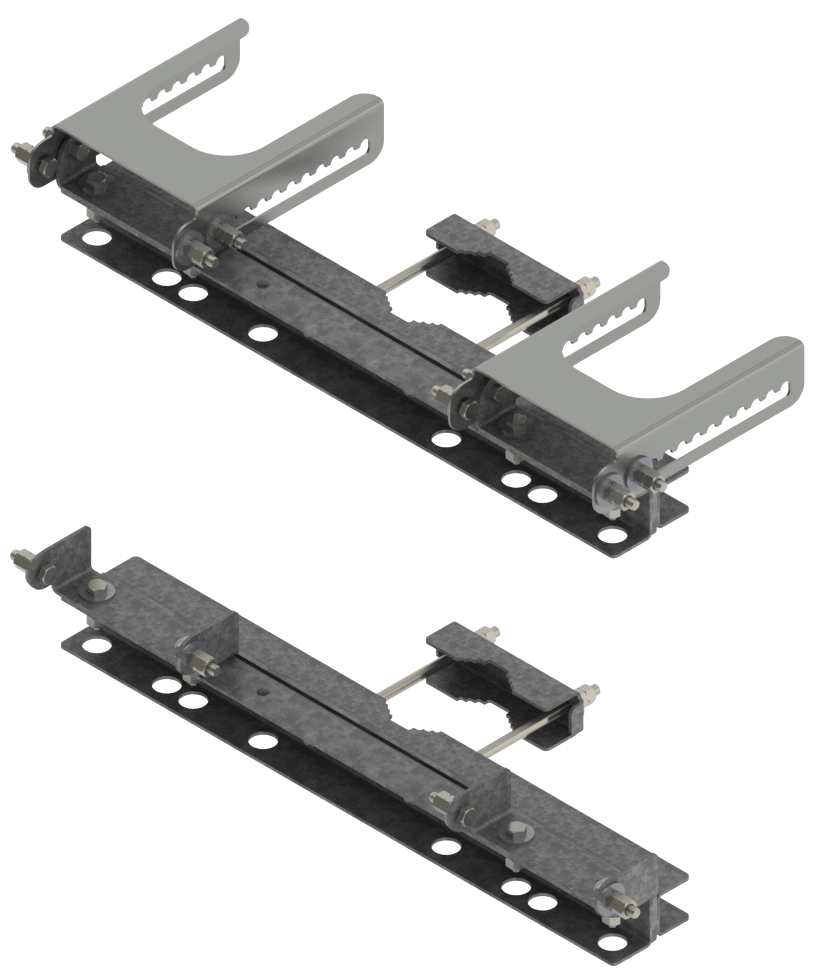

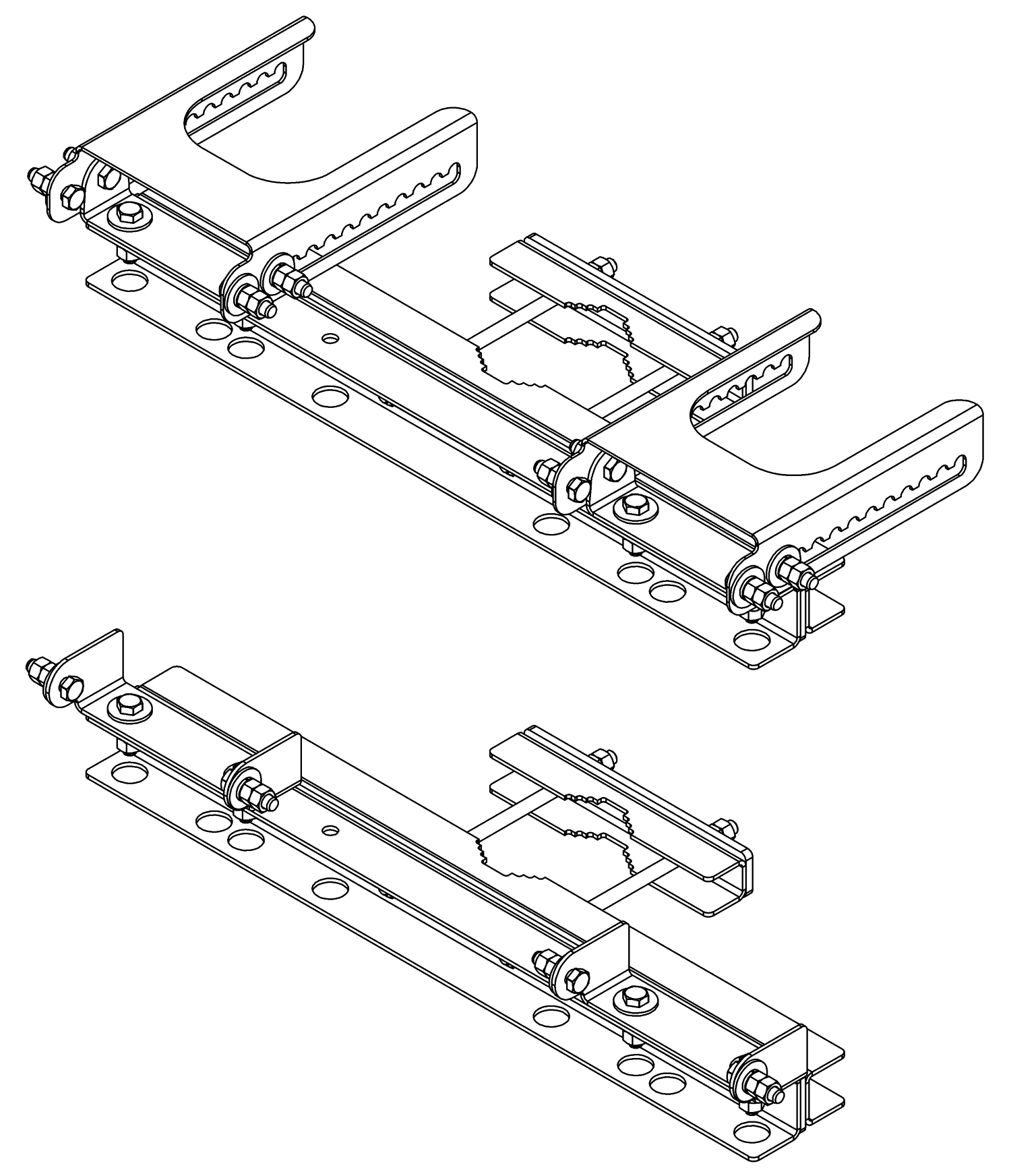

- Unique bracket system, DM-02, allows for two antennas to be mounted and installed in “side by side” configuration on a single pipe mast
- Each antenna mount has a separate mechanical downtilt function, allowing for maximum deployment flexibility of 0° to 10°

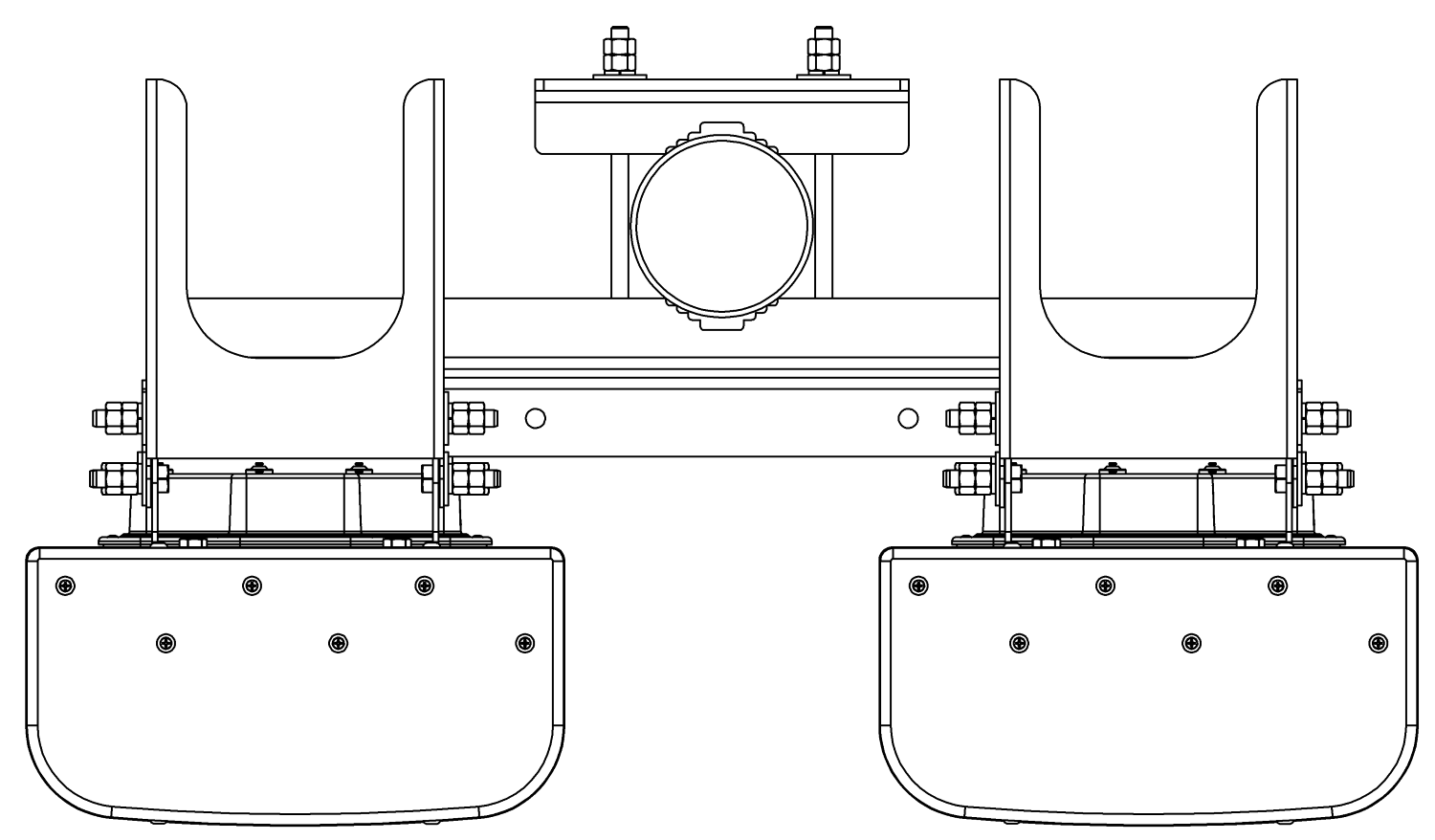

- The bracket system has two installation/separation widths of 15.6” (396 mm) or 23.4” (594 mm), allowing for a 1 lambda and up to >1.5 lambda spacing
- For spacing of 15.6” (396mm), CCI antennas up to 14.8" (376 mm) in width can be installed
- For spacing of 23.4” (594mm), CCI antenna up to 22.6" (574 mm) in width can be installed
- The bracket system is designed to work with many of CCI’s 6’ and 8’ multiport antennas.
- Rugged design and weather resistant Hot Dipped Galvanized Steel finish

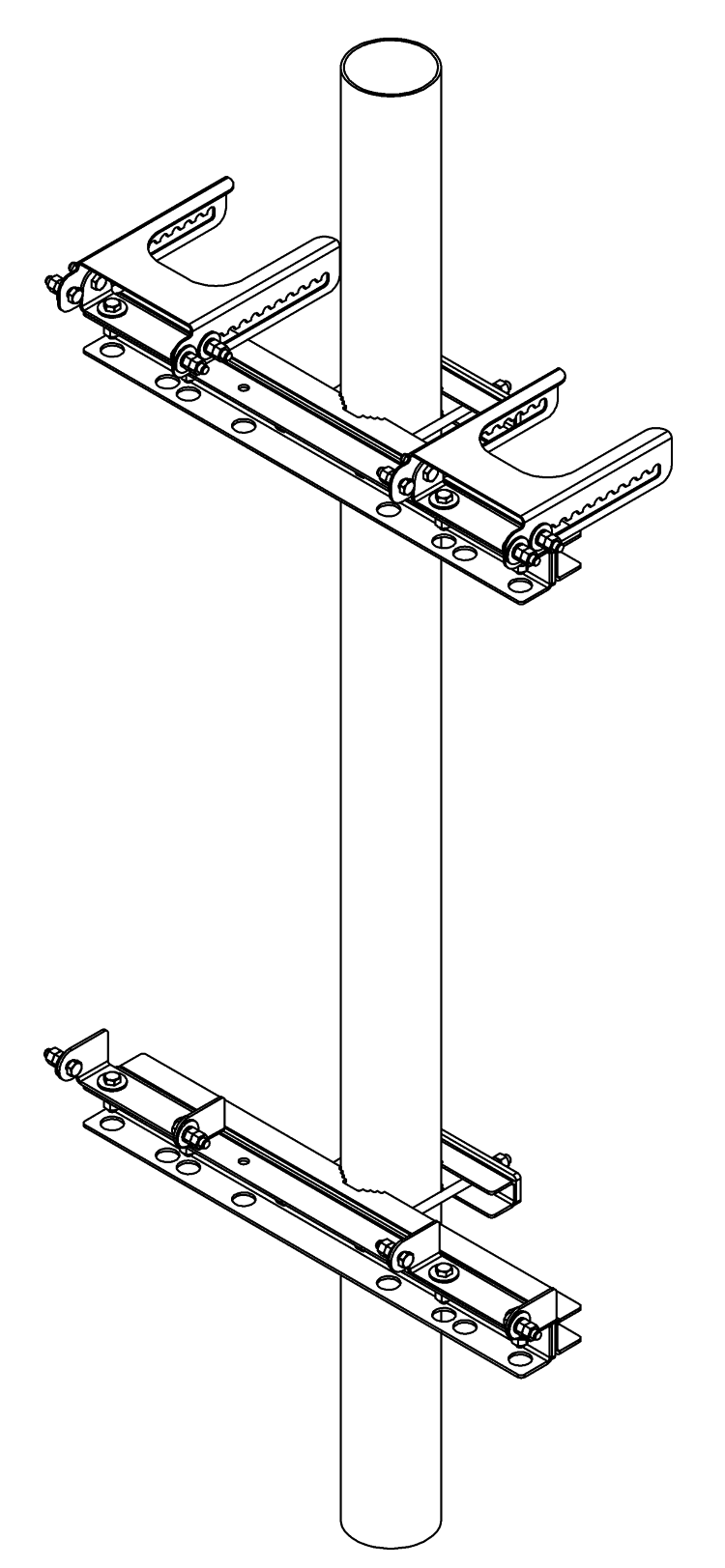

- Adjustable clamps fit poles from Ø2 – 5 inches (Ø51 – 127 mm)
|
