Datasheet

OctoPort Multi-Band Antenna

OPA45R-BU4A

				Four foot (1.3 m) multiband, eight port antenna with a 45° azimuth beamwidth covering 698-798, 824-896 MHz and 1695-2360 MHz frequencies Four wide high band ports covering 1695-2360 MHz and four frequency specific low band ports covering 698-798 MHz and 824-896 MHz (over a distributed diplexer) in a single antenna Full Spectrum Compliance for WCS and AWS-3 frequencies and upcoming Band 14 Operations LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance Exceeds minimum PIM performance requirements Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector Equipped with 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers (Type 1 External)

Overview

The CCI OctoPort multiband array is an eight port antenna, with four wide high band ports covering 1695-2360 MHz and four frequency specific low band ports covering 698-798 MHz and 824-896 MHz. The antenna provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output across each of the paired low band ports.

The CCI OctoPort allows independent tilt control between the low band ports and high band ports, in a three RET Controller (Type 1 External) configuration. The 1st RET is dedicated for the 700 MHz Low Band ports and the 2nd RET is dedicated for the 850 MHz Low Band ports. The 3rd RET is dedicated for the High Band ports. With the use of a single RET in the High Band, equal tilt is achieved across all four High Band ports, which ensures optimal 4x4 MIMO performance.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the high band and 2×2 MIMO for each the low band ports
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s multiband antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × Low Band Ports for 698-798 MHz	2 × Low Band Ports for 824-896 MHz
Gain¹	14.5 dBi	14.8 dBi
Gain (Average)²	14.0 dBi	14.1 dBi
Azimuth Beamwidth (-3dB)	51°	45°
Elevation Beamwidth (-3dB)	17.8°	15.1°
Electrical Downtilt	0° to 14°	0° to 14°
Elevation Sidelobes (1st Upper)	<-17 dB	<-16 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB
Cross-Polar Discrimination over 10 dB²	14.8 dB	10.6 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -150 dBc	≤ -150 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6.

Ports	4 × High Band Ports for 1695-2360 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2305-2360 MHz
Gain¹	17.3 dBi	17.5 dBi	17.6 dBi	17.8 dBi
Gain (Average)²	16.4 dBi	17.0 dBi	17.1 dBi	17.0 dBi
Azimuth Beamwidth (-3dB)	50°	48°	48°	40°
Elevation Beamwidth (-3dB)	10.2°	9.4°	9.0°	8.3°
Electrical Downtilt	0° to 10°	0° to 10°	0° to 10°	0° to 10°
Elevation Sidelobes (1st Upper)	<-17 dB	<-17 dB	<-17 dB	<-17 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 24 dB	> 25 dB	> 25 dB	> 25 dB
Cross-Polar Discrimination over 10 dB²	11.0 dB	10.2 dB	9.9 dB	11.1 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6.

Mechanical

Dimensions (L×W×D)	50.2×18.6×8.2 in (1275×472×210 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	200 lbs (891 N) @ 100 mph (161 kph)
Side Wind Load	100 lbs (445 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	7.8 ft² (0.7 m²)
Weight *	49.4 lbs (22.4 kg)
RET Weight	5.0 lbs (2.3 kg)
Connector	8 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting and RET

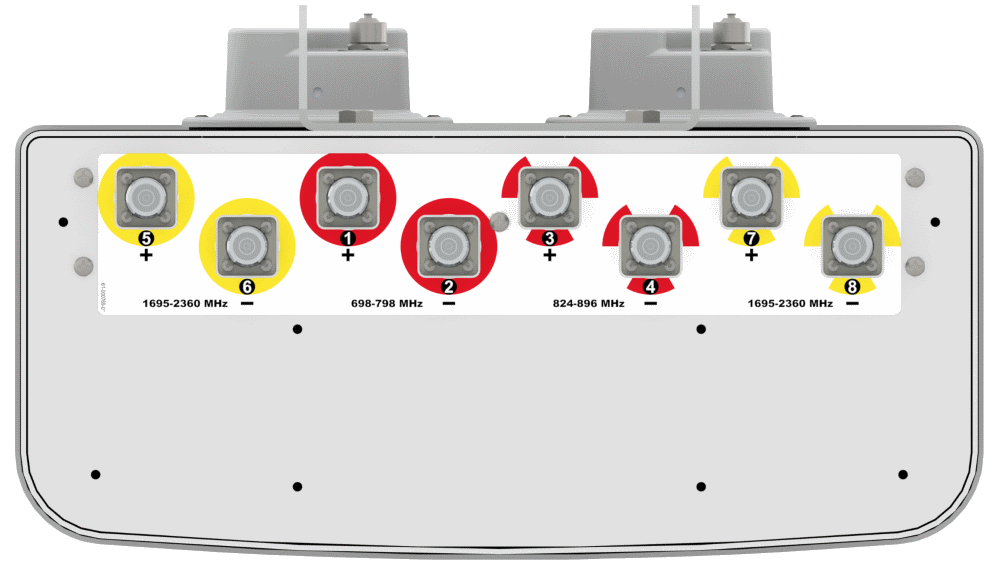

Bottom View	OPA45R-BU4A

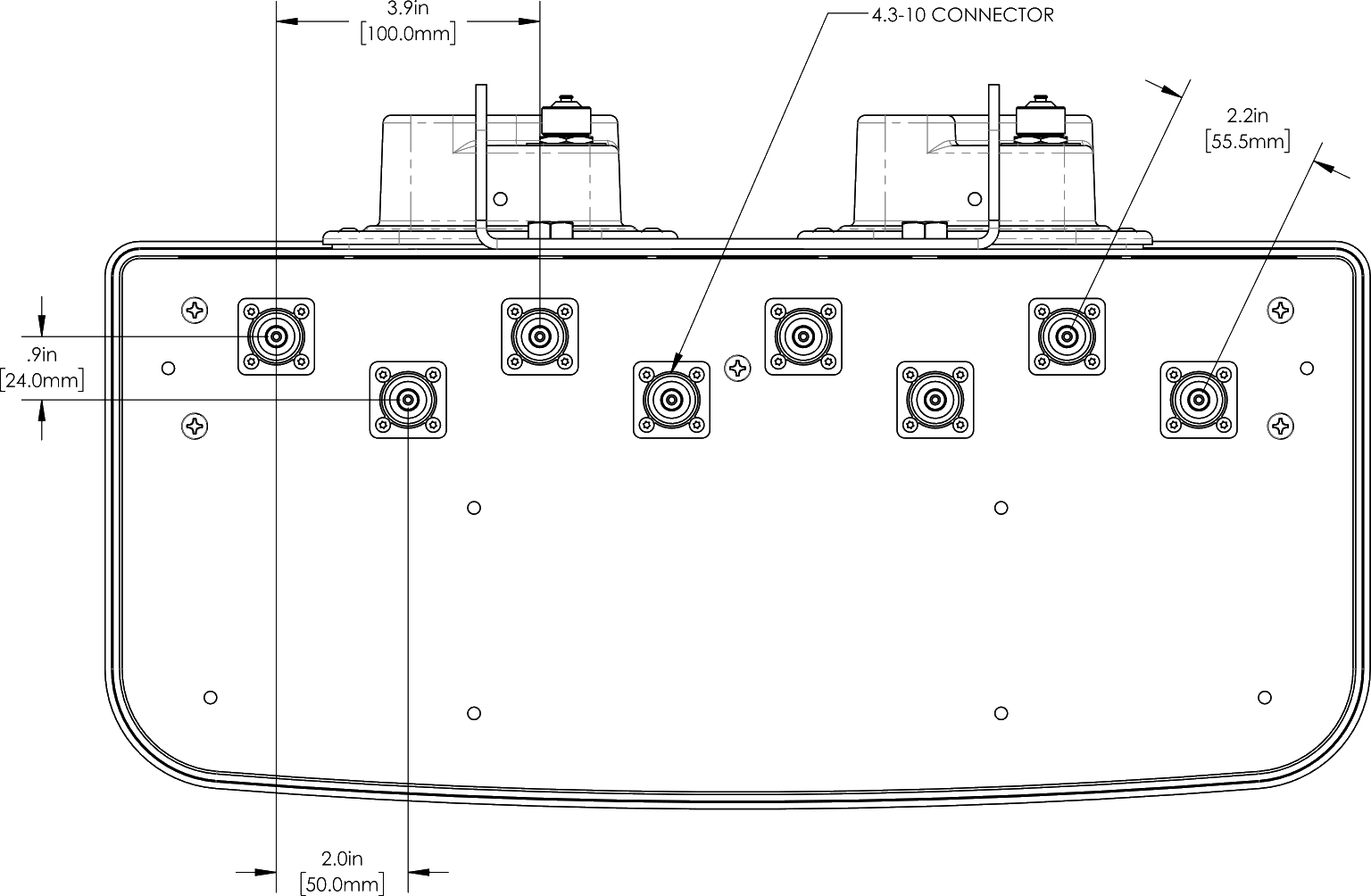

Connection Spacing Diagram	OPA45R-BU4A

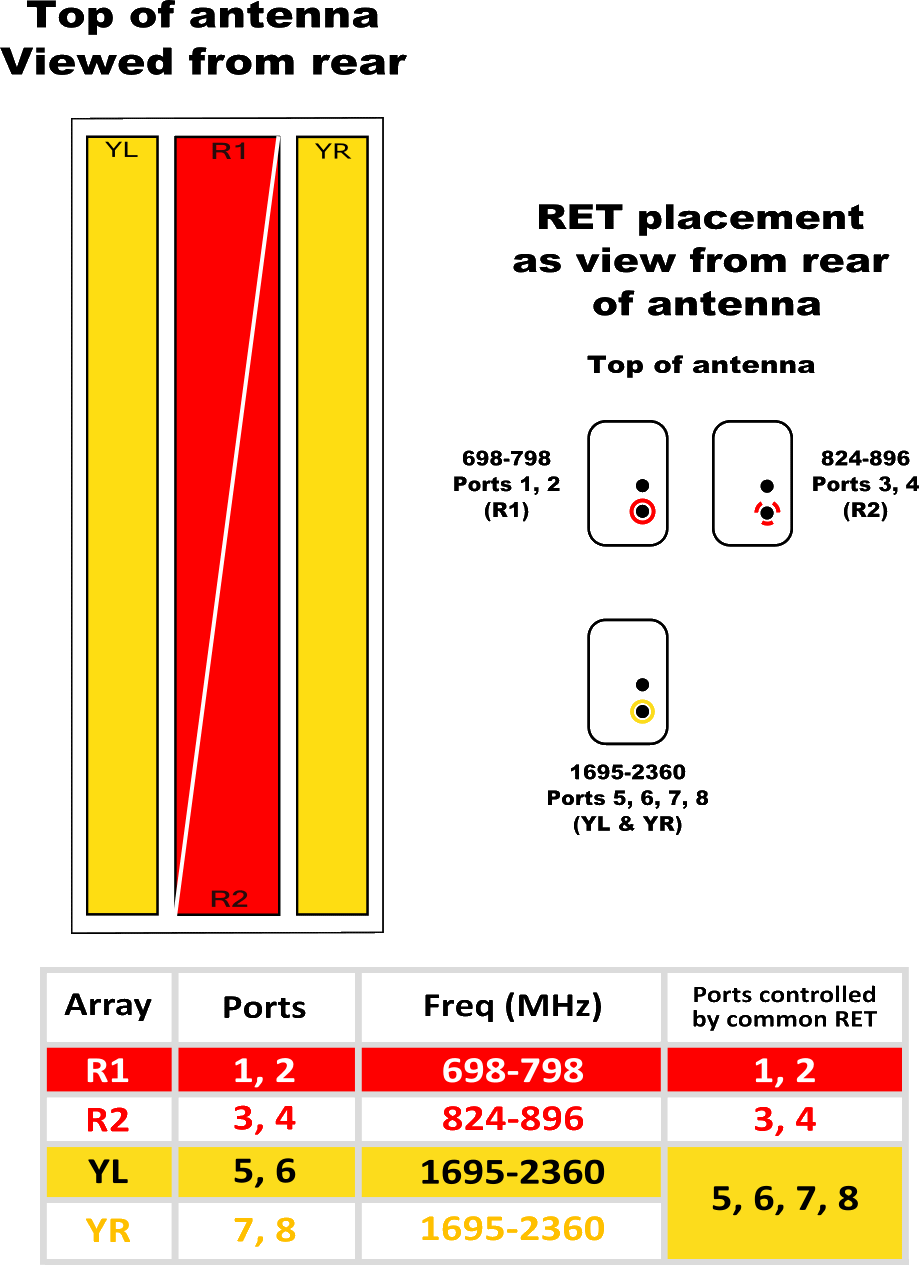

RET to Element Configuration	OPA45R-BU4AA RET to Element Configuation

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

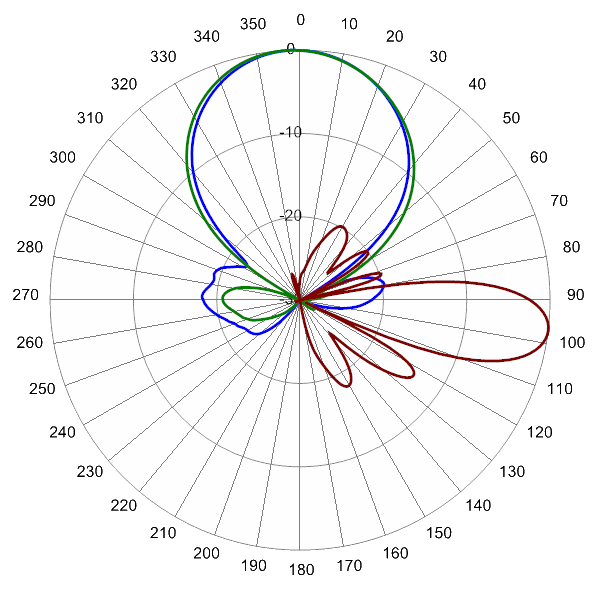

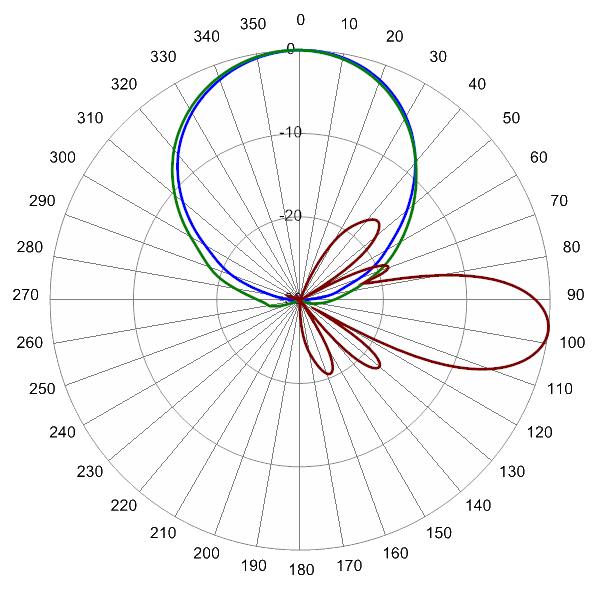

	710 MHz Azimuth with Elevation 7°	840 MHz Azimuth with Elevation 7°

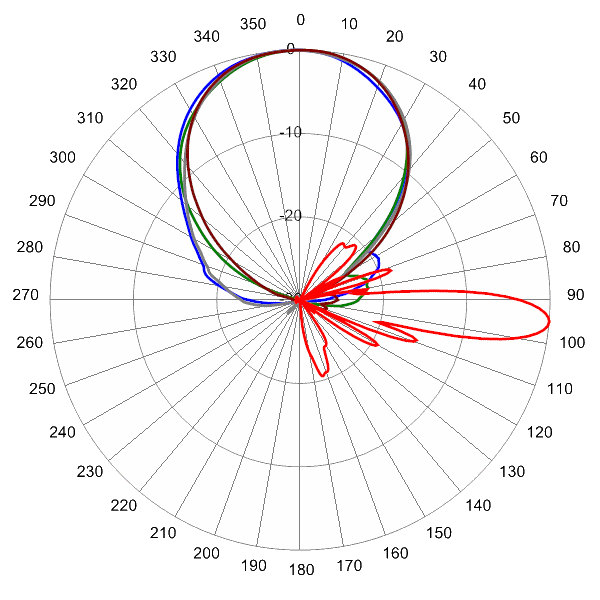

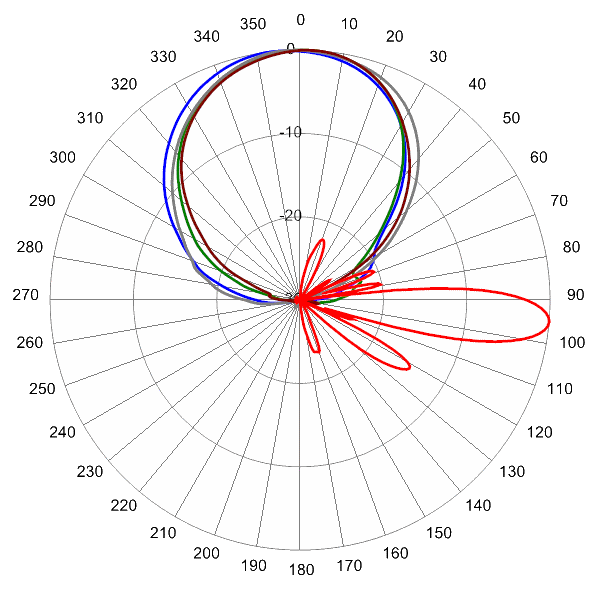

	1740 MHz Azimuth with Elevation 5°	1970 MHz Azimuth with Elevation 5°


	2130 MHz Azimuth with Elevation 5°

MBK-02		MBK-02 Mounting Kit
BSA-RET200		Remote Electrical Tilt System (RET)
HPA-CBK-AG-RRU		OctoPort antenna with 3 RET to RRU AISG cable kit
HPA-CBK-RA-AG-RRU		OctoPort antenna with 3 RET to RRU AISG right angle cable kit
SCU-AISG-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	OPA45R-BU4A Connector Spacing Diagram
	OPA45R-BU4AA Antenna/RET Config Diagram
	MBK-02 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

OPA45RBU4A: Text/Planet Format - Default Azimuth

Parts & Accessories

OPA45R-BU4AA-K	Four foot (1.3 m) OctoPort antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET200 RET actuators (Type 1 external) and MBK-02 mounting bracket
OPA45R-BU4AB-K	(Future Development) Four foot (1.8 m) OctoPort antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET400 RET actuators (Type 17 internal) and MBK-02 mounting bracket
MBK-02	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Remote electrical tilt actuator
HPA-CBK-AG-RRU	OctoPort antenna with 3 RET to RRU AISG cable kit
HPA-CBK-RA-AG-RRU	OctoPort antenna with 3 RET to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
