      TriBand Twelve Port Antenna TPA65R-GE6A




  PI TPA65RGE6AA front iso PI TPA65RGE6AA back iso
  • Six foot (1.8 m) TriBand, twelve port antenna with a 65° azimuth beamwidth covering 614-806 MHz and 1695-2690 MHz frequencies

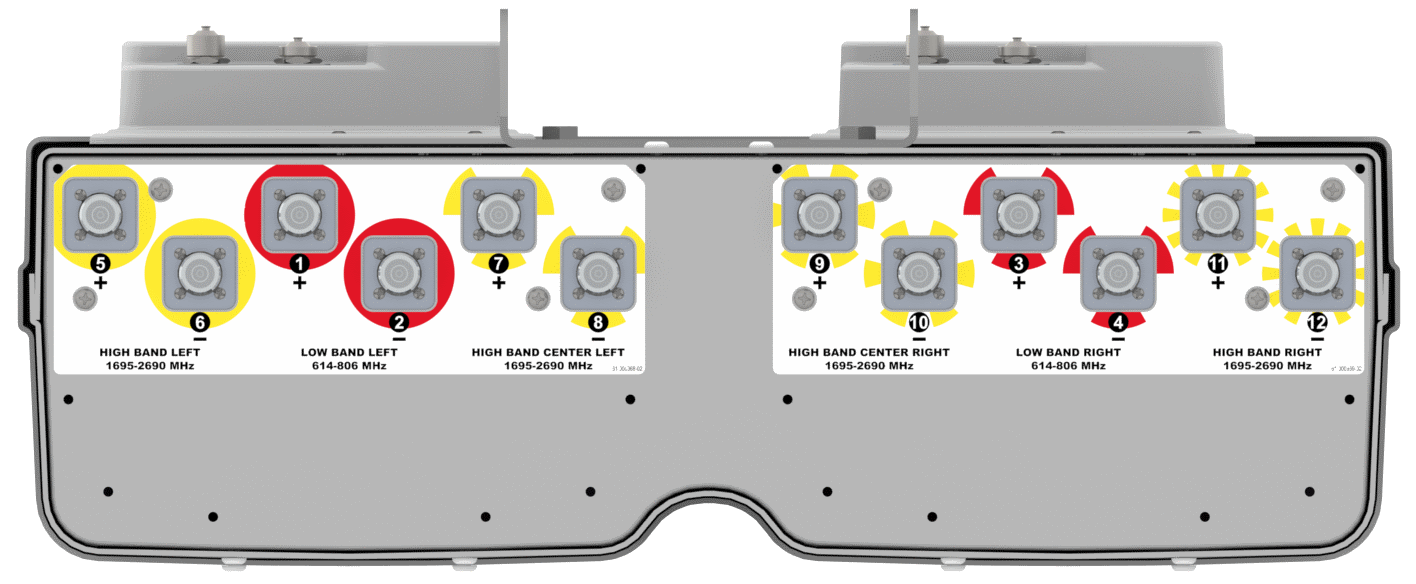

  • Eight wide high band ports covering 1695-2690 MHz and four wide low band ports covering 614-806 MHz in a single antenna enclosure
  • Full Spectrum Compliance 614-806 MHz / 1695-2690 MHz
  • Innovative Low and High Band Array configuration allows for 4T4R (4x4 MIMO) on Low Band and Dual 4T4R (4x4 MIMO) High Band Arrays, using full length arrays (non stacked), all in a single enclosure
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with 4 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers (Type 1 External)

MBK-01   MBK-01 Mounting Kit
BSA-RET200   Remote Electrical Tilt System (RET)
KUE-CBK-AG-RRU   AISG Cable set for four RET antenna
KUE-CBK-RA-AG-RRU   AISG Right Angle Cable set for four RET Antenna
SCU-AISG2-P   Portable AISG 2.0 Site Control Unit
Configuration File
