      OctoPort Multi-Band Antenna OPA65R-W4B





  PI OPA65RW4B front isometric PI OPA65RW4B back isometric

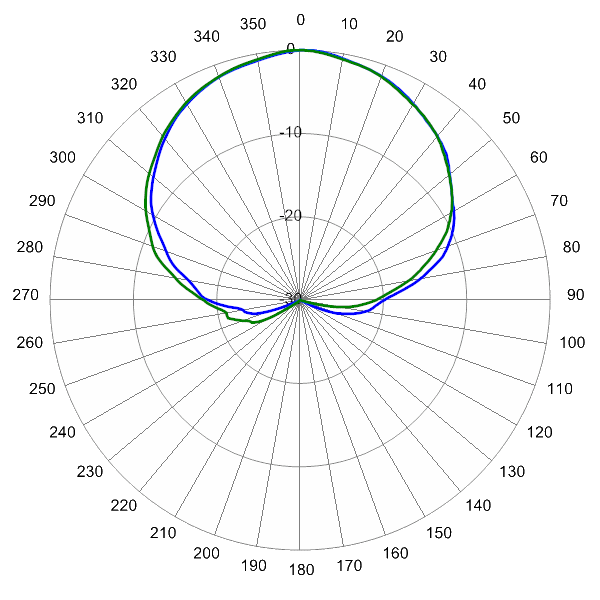

  • Four foot (1.3 m), eight port antenna with a 65° azimuth beamwidth covering 1710-2180 MHz

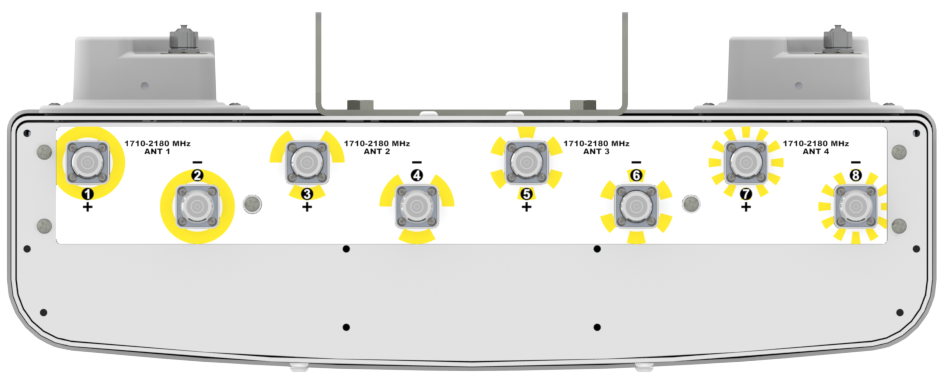

  • Eight high band ports in a single antenna
  • Sharp elevation beamwidth aids in network planning
  • Optimal elevation sidelobe performance
  • Enhanced array spacing ensures optimal MIMO performance
  • Exceeds minimum PIM performance requirements
  • Multi-network solution in one radome with eight ports
  • Reduces tower load and increases space for tower mounted remote radio heads
  • Multi-band design improves site radio resource management
  • Field replaceable, integrated AISG 2.0 compliant Remote Electrictal Tilt (RET) system with independent tilt control for each paired port

MBK-02   MBK-02 Mounting Kit
BSA-RET200   Remote Electrical Tilt System (RET)
QPA-CBK-AG-RRU   OctoPort antenna with 2 RET to RRU AISG cable kit
CBK-RA-AG-RRU-001   OctoPort antenna with 2 RET to RRU AISG right angle cable kit
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
Configuration File
For Firmware select RET Actuator link below.
BSA-RET200
SA-DC0301
Configuration FileVersion
01
BSA-RET200
SA-DC0401E
Configuration FileVersion
01
