Datasheet

Multi-Band Fourteen Port Antenna

FPA45R-BU6B

Six foot (1.8 m) internally multiplexed MultiBand, fourteen port antenna, with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies
Eight wide mid band ports covering 1695-2400 MHz, two wide low band ports covering 698-896 MHz and four frequency specific low band ports covering 717-728 MHz and 758-798 MHz (over distributed diplexing) in a single antenna enclosure
Innovative Low and Mid Band Array configuration allows for independent 2T2R (2x2 MIMO) on B29 Low Band Array and 4T4R (4x4 MIMO) on B14/B12 Low Band Arrays and Dual 4T4R (4x4 MIMO) Mid Band Array, using full length arrays, all in a 23.8” (606 mm) width enclosure
Industry leading antenna topology and RET shielding techniques drastically mitigate PIM propagation from B12/B14/B29 operations, allowing for superior Network performance
Full Spectrum Compliance for 698-896 MHz / 1695-2400 MHz operations
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Equipped with four RET-T17iG3-M, internal integrated AISG 2.0 compliant (upgradable to AISG 3.0 when available) Remote Electrical Tilt (RET) Actuators
Equipped with new 4.3-10 connector

Overview

The CCI internally multiplexed MultiBand array is a fourteen port antenna, with eight wide mid band ports covering 1695-2400 MHz, two wide low band ports covering 698-896 MHz and four frequency specific low band ports covering 717-728 MHz and 758-798 MHz (over distributed diplexing).

The antenna provides the capability to deploy dual 4T4R (4x4 MIMO) in the Mid Band, with a separate RET control. The antenna also provides the capability to provide independent RET control for B29 and B14/B12 operations.

CCI antennas are designed and produced to ISO 9001:2008 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

Dual 4×4 MIMO for the Mid band ports and 2x2 MIMO on B29 ports and 4x4 MIMO on B14/B12 ports
Ready for Network Standardization on 4.3-10 connectors
With CCI’s multiband antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical


Ports	2 × Low Band Ports for 717-728 MHz	2 × Low Band Ports for 758-798 MHz	2 × Low Band Ports for 698-896 MHz
Frequency Range	717-728 MHz	758-798 MHz	698-806 MHz	824-896 MHz
Gain¹	15.0 dBi	15.4 dBi	16.1 dBi	16.6 dBi
Gain (Average)	14.7 dBi	14.9 dBi	15.1 dBi	15.9 dBi
Azimuth Beamwidth (-3dB)	45°	45°	44°	40°
Elevation Beamwidth (-3dB)	11.4°	10.9°	11.3°	10.1°
Electrical Downtilt	2° to 12°	2° to 12°	2° to 12°	2° to 12°
Elevation Sidelobes (1st Upper)	<-18 dB	<-19 dB	<-18 dB	<-17 dB
Front-to-Back Ratio @180°	> 30 dB	> 35 dB	> 30 dB	> 35 dB
Front-to-Back Ratio ±20°	> 28 dB	> 32 dB	> 28 dB	> 32 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 28 dB	> 28 dB	> 28 dB
Cross-Polar Discrimination at 3 dB²	19.2 dB	20.8 dB	18.3 dB	18.6 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1.


Ports	8 × Mid Band Ports for 1695-2400 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain¹	18.4 dBi	19.1 dBi	19.8 dBi	19.9 dBi
Gain (Average)	17.2 dBi	18.0 dBi	18.5 dBi	18.8 dBi
Azimuth Beamwidth (-3dB)	50°	47°	45°	43°
Elevation Beamwidth (-3dB)	5.7°	5.2°	4.9°	4.3°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	<-18 dB	<-17 dB	<-17 dB	<-17 dB
Front-to-Back Ratio @180°	> 30 dB	> 35 dB	> 35 dB	> 35 dB
Front-to-Back Ratio ±20°	> 25 dB	> 30 dB	> 30 dB	> 30 dB
Cross-Polar Discrimination at Peak	> 19 dB	> 20 dB	> 24 dB	> 20 dB
Cross-Polar Discrimination at 3 dB²	8.8 dB	12.5 dB	12.2 dB	15.3 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1.

Mechanical

Dimensions (L×W×D)	72.0×23.8×10.0 in (1830×606×255 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	245 lbf @ 100 mph 1091 N @ 161 kph
Side Wind Load¹	82 lbf @ 100 mph 365 N @ 161 kph
Effective Projective Area (EPA), Front¹	11.1 ft² (1.0 m²)
Weight*	119.0 lbs (54.0 kg)
Connector	14 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)
¹Windload values calculated using CFD analysis * Weight excludes mounting kit

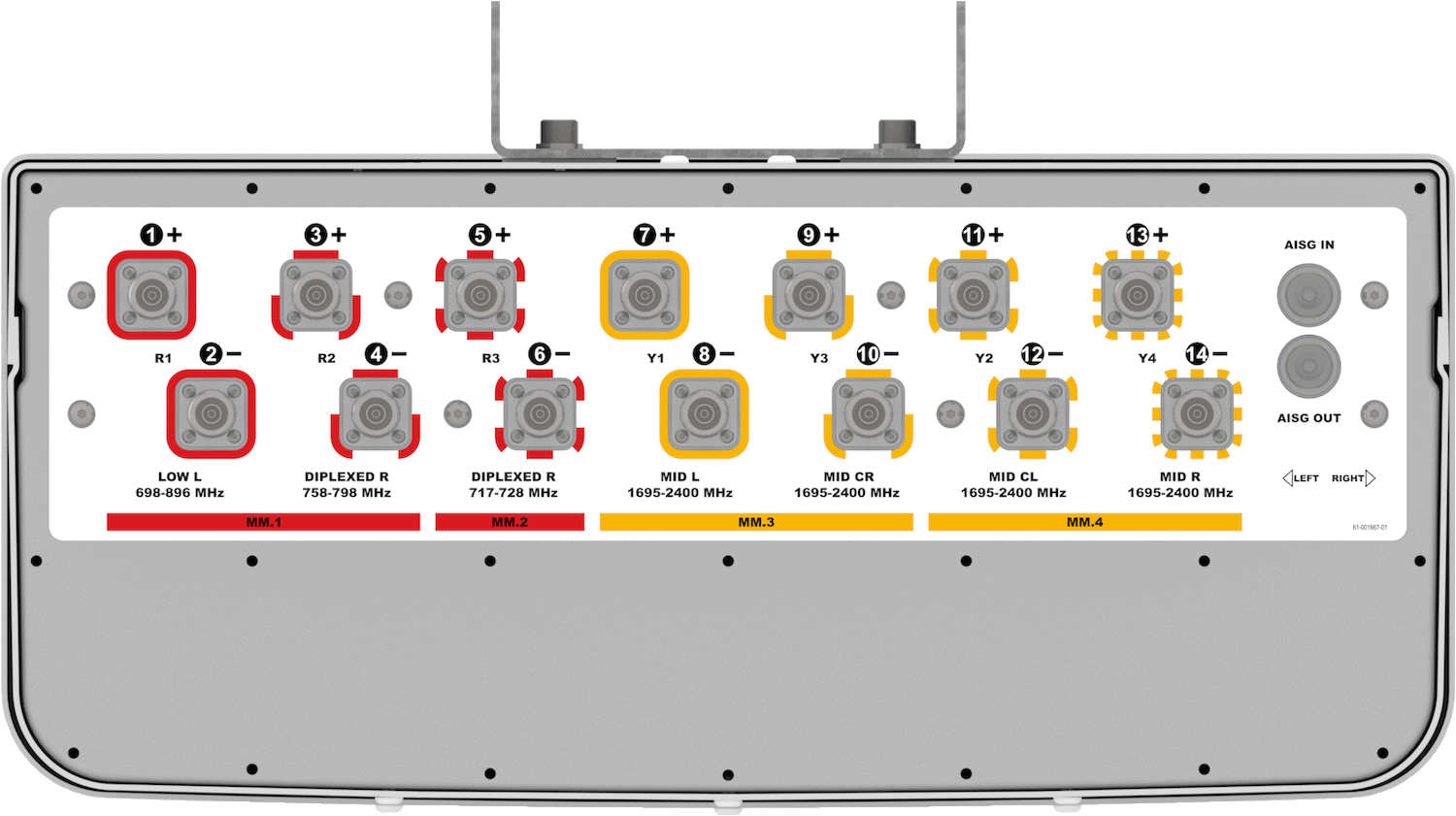

Bottom View	FPA45R-BU6B

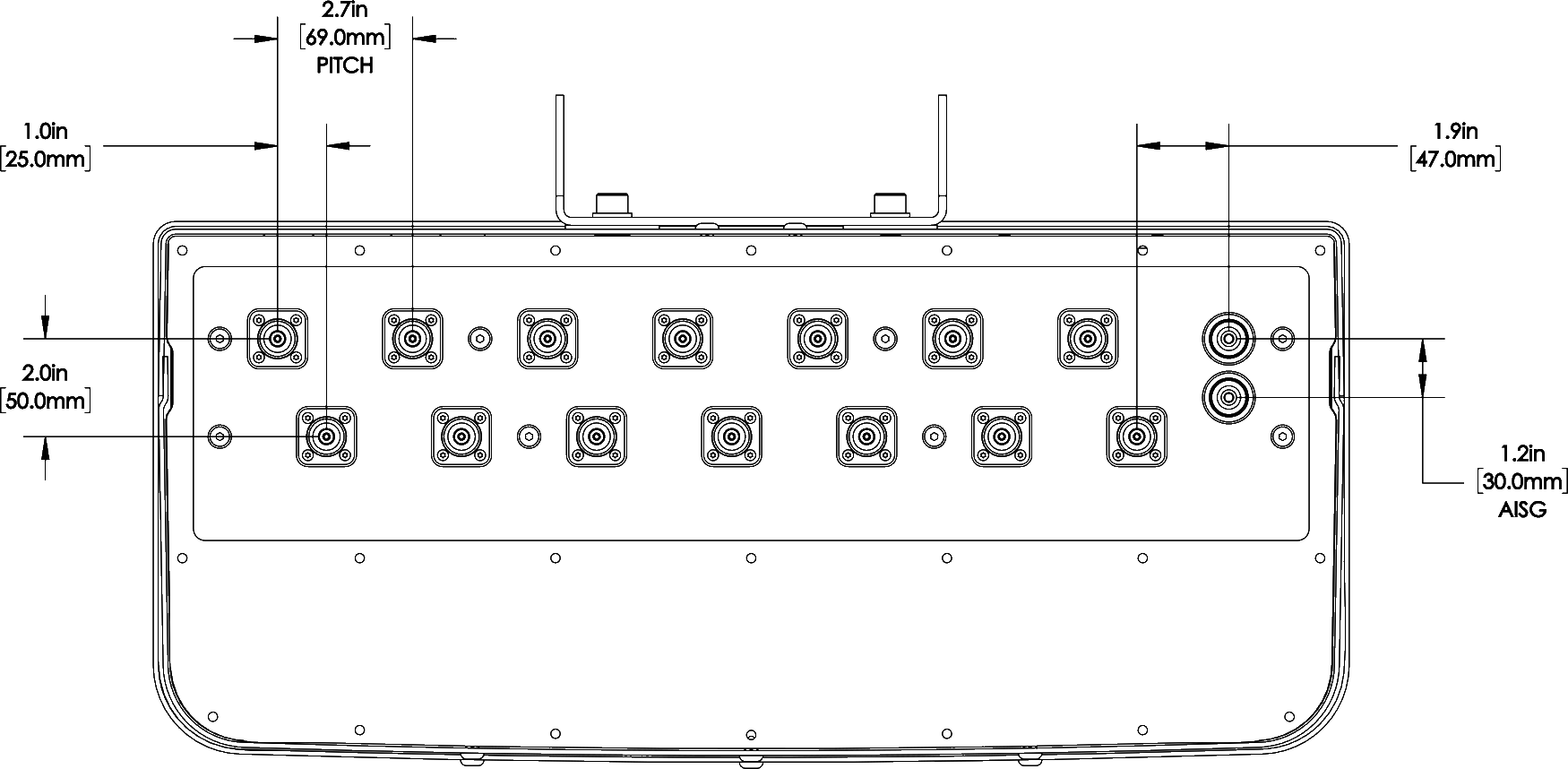

Connector Spacing	FPA45R-BU6B (Type T17iG3-M Internal RET)

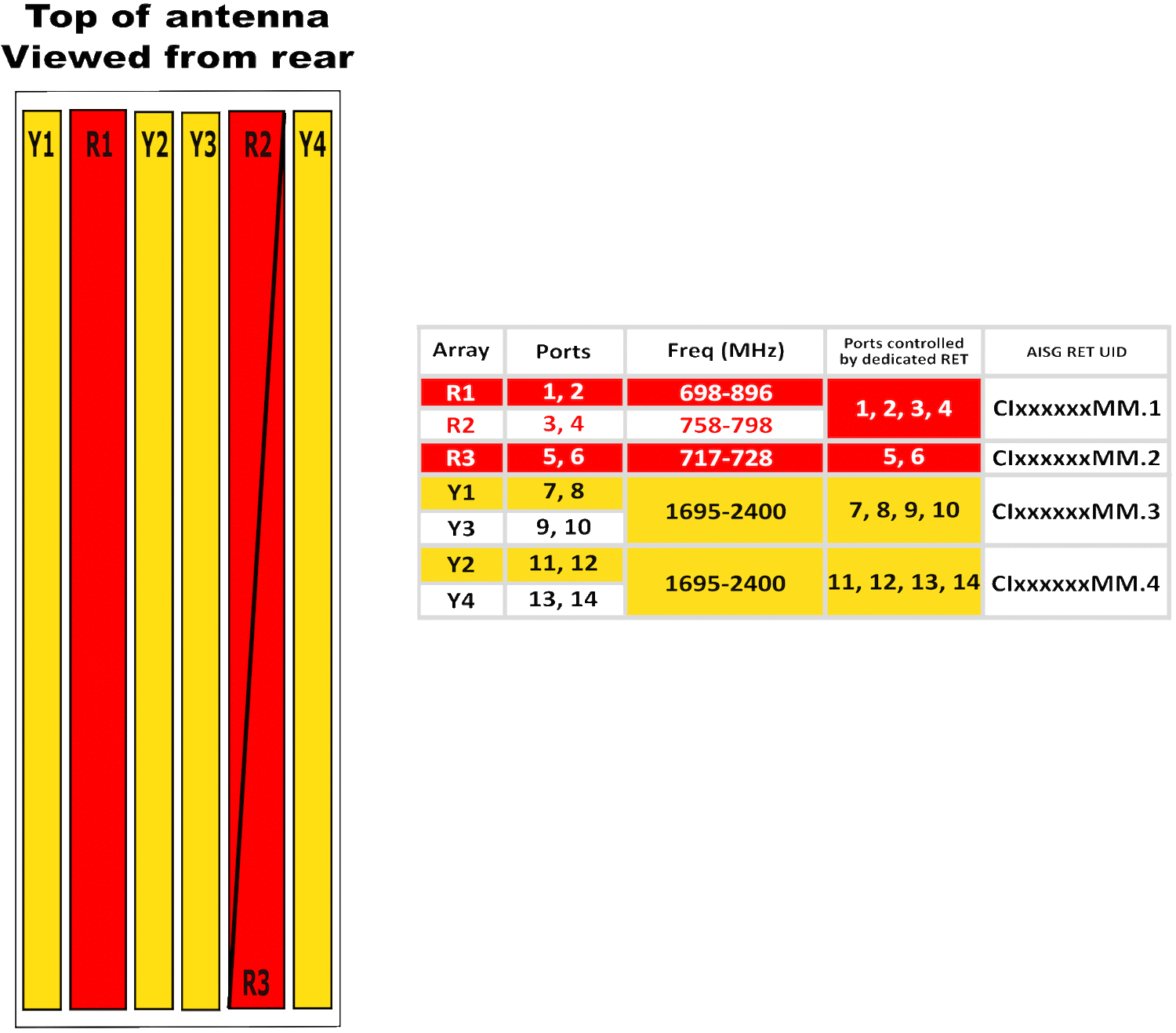

RET to Element Configuration	FPA45R-BU6BB Element and RET configuration (Type T17iG3-M Internal RET)

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

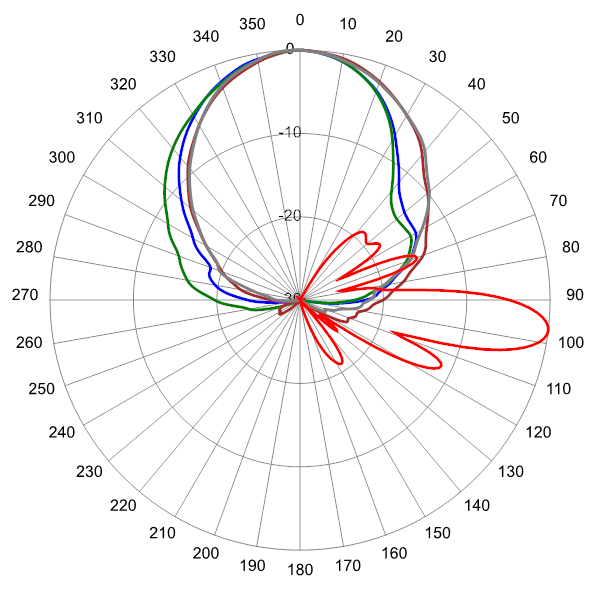

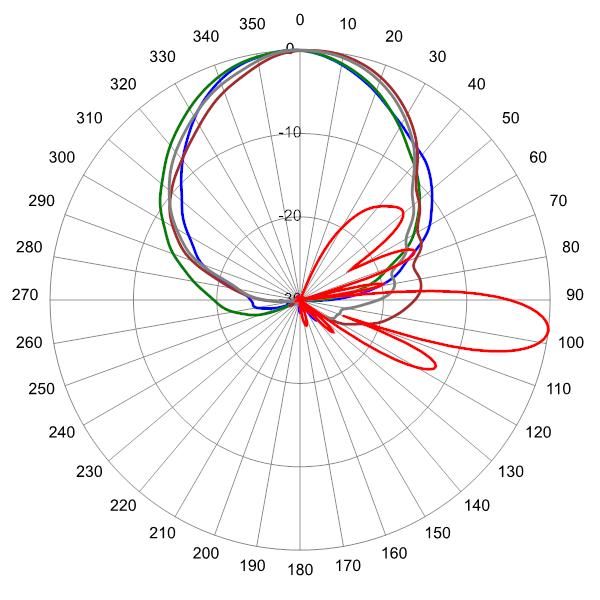

	722 MHz Azimuth with Elevation 7° (Ports 1, 2, 5 & 6)	788 MHz Azimuth with Elevation 7° (Ports 1, 2, 3 & 4)

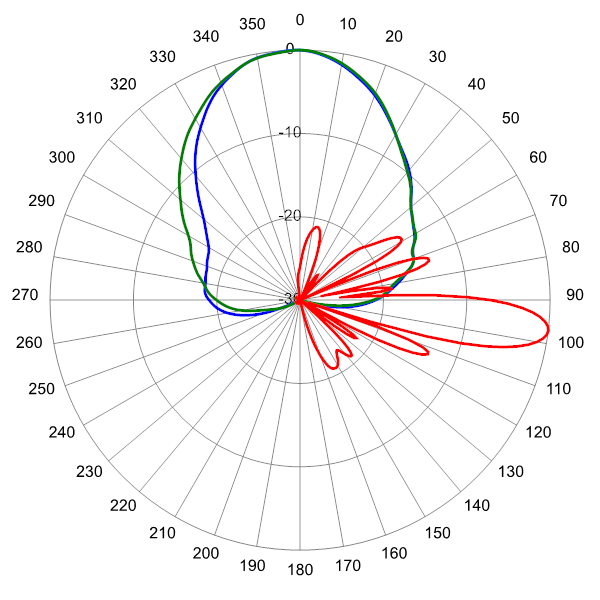

	896 MHz Azimuth with Elevation 7° (Ports 1 & 2)

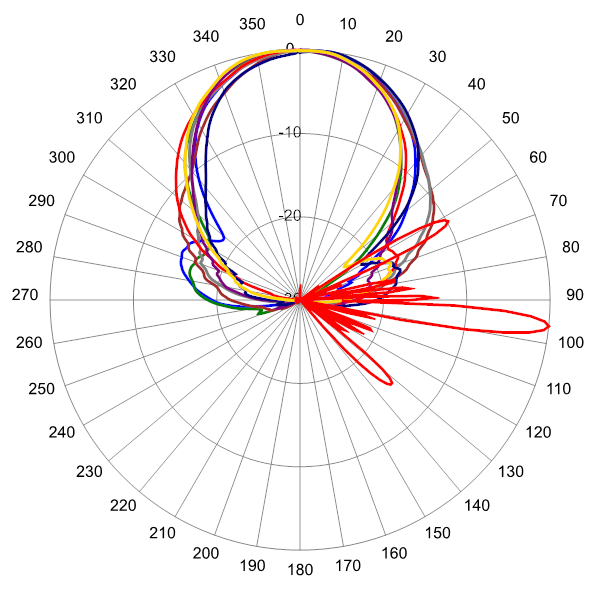

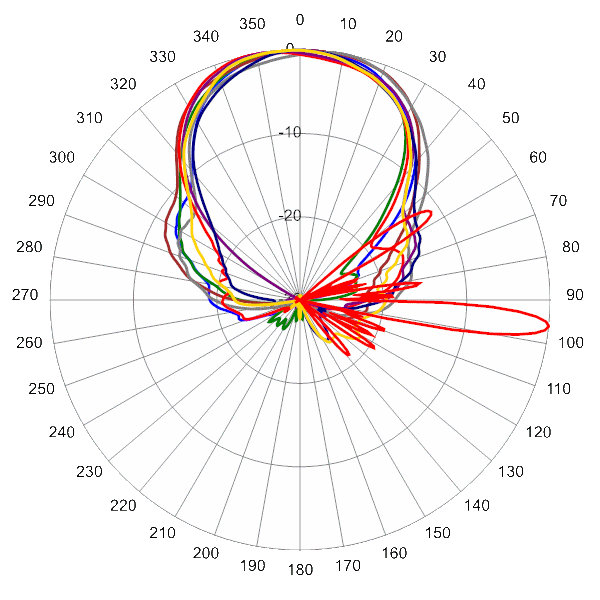

	1850 MHz Azimuth with Elevation 6° (Ports 7 to 14)	2155 MHz Azimuth with Elevation 6° (Ports 7 to 14)

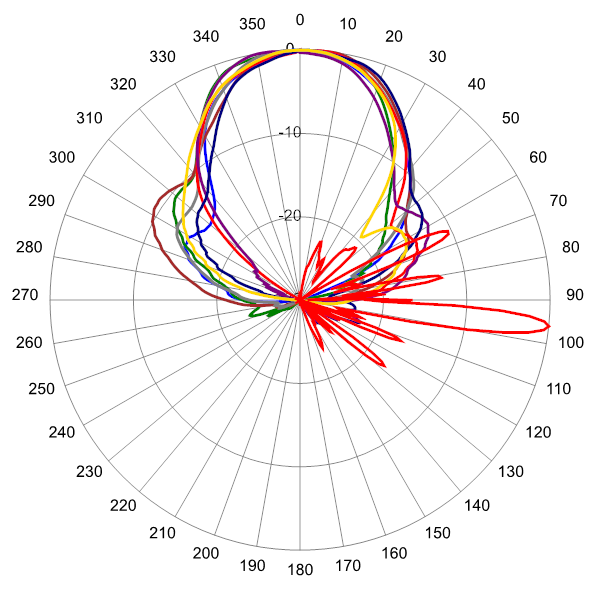

	2360 MHz Azimuth with Elevation 6° (Ports 7 to 14)

MBK-01		MBK-01 Mounting Kit with with 0° to 10° mechanical tilt adjustment
MBK-16		MBK-16 Mounting Kit with fixed 0° mechanical tilt
AISGC-M-F-10FT		10 Foot (3 M) Male/Female AISG cable for Type 17 RET
SCU-AISG-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	FPA45R-BU6B Connector Spacing Diagram
	FPA45R-BU6BB Antenna/RET Config Diagram
	MBK-01 Installation Guide
	MBK-16 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

FPA45RBU6B: Text/Planet Format - Default Azimuth

Parts & Accessories

FPA45R-BU6BB-K	Six foot (1.8 m) antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 4 factory RET-T17iG3-M actuators and MBK-16 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
MBK-16	Mounting Kit with fixed 0° mechanical tilt
AISGC-M-F-xFT AISGC-M-F-10FT	10 Ft (3 m) Male/Female RRU to Antenna AISG cable

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
