Datasheet

DualBand Twelve Port Antenna

TPA33R-BU8C

Eight foot (2.4 m), DualBand, twelve port antenna with a 33° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies
Eight wide Mid Band ports covering 1695-2400 MHz and four wide Low Band ports covering 689-896 MHz in a single antenna enclosure
Full Spectrum Compliance 689-896 MHz / 1695-2400 MHz
Innovative Array design to provide maximum pattern control and performance, while minimizing enclosure size
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
Equipped with 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers (Type 17 Internal)

Overview

The CCI 12-Port DualBand array is a twelve port antenna, with eight wide Mid Band ports covering 1695-2400 MHz and four wide Low Band ports covering 689-896 MHz. The antenna provides the capability to deploy Dual 4×4 Multiple-input Multiple-output (MIMO) in the Mid Band and 4X4 MIMO across Low Band ports. The CCI 12-Port Mid Band ports have independent tilt control between top and bottom antenna arrays.

In this three RET configuration, the 1st RET is dedicated for the four Low Band ports. The 2nd RET is dedicated for the four Mid Band ports and the 3rd RET is dedicated for the second four Mid Band ports. This RET arrangement allows for complete flexibility in coverage control between top and bottom Mid Band antenna arrays.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

Dual 4×4 MIMO for the Mid Band and 4X4 MIMO Low Band ports
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s TriBand antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	4 × Low Band Ports for 698-896 MHz
Frequency Range	698-806 MHz	824-896 MHz
Gain¹	15.7 dBi	16.5 dBi
Gain (Average)²	15.2 dBi	15.9 dBi
Azimuth Beamwidth (-3dB)	35°	31°
Elevation Beamwidth (-3dB)	20.1°	16.7°
Electrical Downtilt	2° to 16°	2° to 16°
Elevation Sidelobes (1st Upper)	< -16 dB	< -14 dB
Front-to-Back Ratio @180°	> 32 dB	> 35 dB
Front-to-Back Ratio ± 20°	> 27 dB	> 27 dB
Cross-Polar Discrimination at Peak	> 28 dB	> 26 dB
Cross-Polar Discrimination at 3 dB	> 21 dB	> 21 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1.

Ports	8 × Mid Band Ports for 1695-2400 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain¹	18.0 dBi	18.5 dBi	18.8 dBi	19.1 dBi
Gain (Average)²	17.0 dBi	17.7 dBi	18.0 dBi	18.6 dBi
Azimuth Beamwidth (-3dB)	36°	36°	35°	33°
Elevation Beamwidth (-3dB)	8.2°	7.2°	6.7°	5.8°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	<-14 dB	<-14 dB	<-13 dB	<-14 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Front-to-Back Ratio ± 20°	> 30 dB	> 32 dB	> 32 dB	> 32 dB
Cross-Polar Discrimination at Peak	> 19 dB	> 18 dB	> 19 dB	> 19 dB
Cross-Polar Discrimination at 3 dB	> 14 dB	> 14 dB	> 15 dB	> 16 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1.

Mechanical

Dimensions (L×W×D)	94.1×25.1×8.7 in (2389×638×220 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	385 lbf @ 100 mph 1711 N @ 161 kph
Side Wind Load¹	76 lbf @ 100 mph 337 N @ 161 kph
Effective Projective Area (EPA), Front¹	15.3 ft² (1.4 m²)
Weight*	115.1 lbs (52.2 kg)
Connector	12 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)
¹Windload values calculated using CFD analysis * Weight excludes mounting

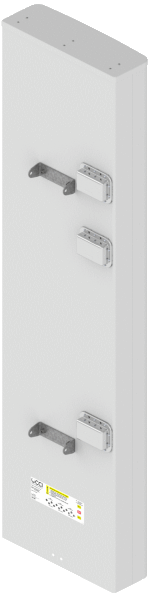

Bottom View

Connector Spacing

RET to Element Configuration	TPA33R-BU8CB Element and RET configuration (Type 17 Internal RET)

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at


	698 MHz Azimuth with Elevation 9°	860 MHz Azimuth with Elevation 9°


	1730 MHz Azimuth with Elevation 6°	2155 MHz Azimuth with Elevation 6°


	2340 MHz Azimuth with Elevation 6°

MBK-16	MBK-16 Mounting Kit with fixed 0° mechanical tilt
MBK-01	MBK-01 Mounting Kit with 0° - 10° mechanical tilt
BSA-RET400	Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-10FT	10 Foot (3 M) Male/Female AISG cable
SCU-AISG-P	Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	TPA33R-BU8CB Connector Spacing Diagram
	TPA33R-BU8CB Antenna/RET Config Diagram
	MBK-01 Installation Guide
	MBK-16 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

TPA33RBU8C: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET400 SA-DC0401
Configuration File	Version
Y005341R1R2.BIN	1
Y005352Y1Y2.BIN	2
Y005352Y3Y4.BIN	2

Parts & Accessories

TPA33R-BU8CB-K	Eight foot (2.4 m) DualBand antenna with 33° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET400 RET actuators and MBK-16 mounting bracket
MBK-16	MBK-16 Mounting Kit with fixed 0° mechanical tilt
MBK-01	MBK-01 Mounting Kit with 0° - 10° mechanical tilt
BSA-RET400	Type 17 Internal remote electrical tilt actuator
AISGC-M-F-xFT AISGC-M-F-10FT	10 Ft (3 m) Male/Female RRU to Antenna AISG cable

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
