      Quad Port High-Band Antenna QPA65R-W4B

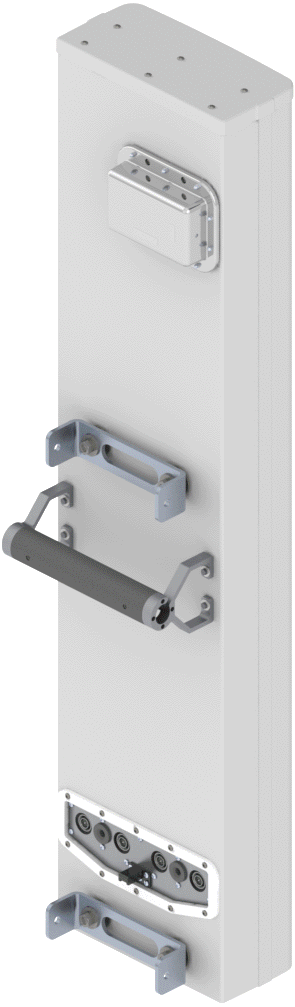

  PI QPA65RW4BA ISO FRONT PI QPA65RW4BA ISO REAR
  • Four foot (1.3 m) tall, 12.1” (306 mm) wide, four port antenna with a 65° azimuth beamwidth covering 1710-1880 MHz frequencies
  • Innovative RF Connector design which allows for blind mate connections with an IP67 rating on all connections. Ideal for Integrated Antenna/Radio attachments
  • Blind Mate connector design allows for easy RRU field replacements, without taking down the antenna or replacing the whole assembly
  • Integrated Blind Mate Connector design is RRU specific
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • Equipped with an internally integrated PHS Filter
  • Equipped with new Blind Mate 4.3-10
  • Equipped with one Internally Integrated RET Controller (Type 17)
Model BSA-RET400   Type 17 Internal Remote Electrical Tilt System (RET)
MBK-19   Single antenna mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment and ±30° of azimuth swing adjustment
MBK-20   Dual antenna mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment and ±30° of azimuth swing adjustment
MBK-21   Tri antenna mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment and ±30° of azimuth swing adjustment
RM-02   Interconnect system for Nokia AHEB Radio
Configuration File
For Firmware select RET Actuator link below.
BSA-RET400
SA-DC0401
Configuration FileVersion
7
