Datasheet

Diplexed Multi-Band Antenna

DMP65R-BU6D

Six foot (1.8 m) internally multiplexed MultiBand antenna, including eight external RF ports (12 RF ports internal), with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies
Four wide high band ports covering 1695-2400 MHz and four wide low band ports covering 698-896 MHz in a single antenna enclosure
Innovative Multiplexed/RET Control configuration, supporting Dual Band Radio Configurations (B12/B5 and B29/B5). The antenna provides Dual 4T4R (4x4 MIMO) capability, while providing independent RET control, an Industry First
Innovative Low and High Band Array configuration allows for 4T4R (4x4 MIMO) on Low Band and 4T4R (4x4 MIMO) High Band Arrays, using full length arrays (non stacked), all in a 20.7” (525 mm) width enclosure, an Industry First
Industry leading antenna topology and RET shielding techniques drastically mitigate PIM propagation from B12/B14/B29 operations, allowing for superior Network performance
Full Spectrum Compliance for PCS, AWS-3 and WCS frequencies and 700/850 MHz Dual Band Radio Configurations
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
Ordering options for External RET Controllers (Type 1) or Internally Integrated RET Controllers (Type 17)

Overview

The CCI internally multiplexed MultiBand array is an eight port (12 RF ports internal) antenna, with four wide band ports covering 1695-2400 MHz and four low band ports covering 698-896 MHz. The antenna provides the capability to deploy 4T4R (4x4 MIMO) in the high band, with separate RET control. The antenna also provides the capability to provide independent RET control for 700/850 MHz Dual Band Radio Configurations, while maintaining 4T4R (4x4 MIMO) across the low band ports.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the High Band and 4X4 MIMO Low Band ports
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s multiband antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical


Ports	4 × Low Band Ports for 698-896 MHz
Frequency Range	698-798 MHz	824-896 MHz
Gain¹	14.0 dBi	14.6 dBi
Gain (Average)²	13.2 dBi	13.7 dBi
Azimuth Beamwidth (-3dB)	74°	63°
Elevation Beamwidth (-3dB)	13.0°	11.1°
Electrical Downtilt	2° to 12°	2° to 12°
Elevation Sidelobes (1st Upper)	<-19 dB	<-19 dB
Front-to-Back Ratio @180°	> 34 dB	> 34 dB
Front-to-Back Ratio ±20°	> 30 dB	> 30 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB
Cross-Polar Discrimination at Sector²	13.0 dB	10.5 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6.


Ports	4 × High Band Ports for 1695-2400 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain¹	17.4 dBi	17.7 dBi	18.1 dBi	18.4 dBi
Gain (Average)²	16.7 dBi	16.9 dBi	17.1 dBi	17.3 dBi
Azimuth Beamwidth (-3dB)	70°	69°	68°	54°
Elevation Beamwidth (-3dB)	5.7°	5.2°	4.8°	4.1°
Electrical Downtilt	0° to 8°	0° to 8°	0° to 8°	0° to 8°
Elevation Sidelobes (1st Upper)	<-16 dB	<-17 dB	<-16 dB	<-17 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Front-to-Back Ratio ±20°	> 32 dB	> 32 dB	> 32 dB	> 32 dB
Cross-Polar Discrimination at Peak	> 20 dB	> 19 dB	> 20 dB	> 20 dB
Cross-Polar Discrimination at Sector²	11.2 dB	9.5 dB	9.5 dB	8.6 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6.

Mechanical

Dimensions (L×W×D)	71.2×20.7×7.7 in (1808×525×197 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	325 lbs (1446 N) @ 100 mph (161 kph)
Side Wind Load	144 lbs (642 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	12.7 ft² (1.2 m²)
Weight *	96.0 lbs (43.6 kg)
Connector	8 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting

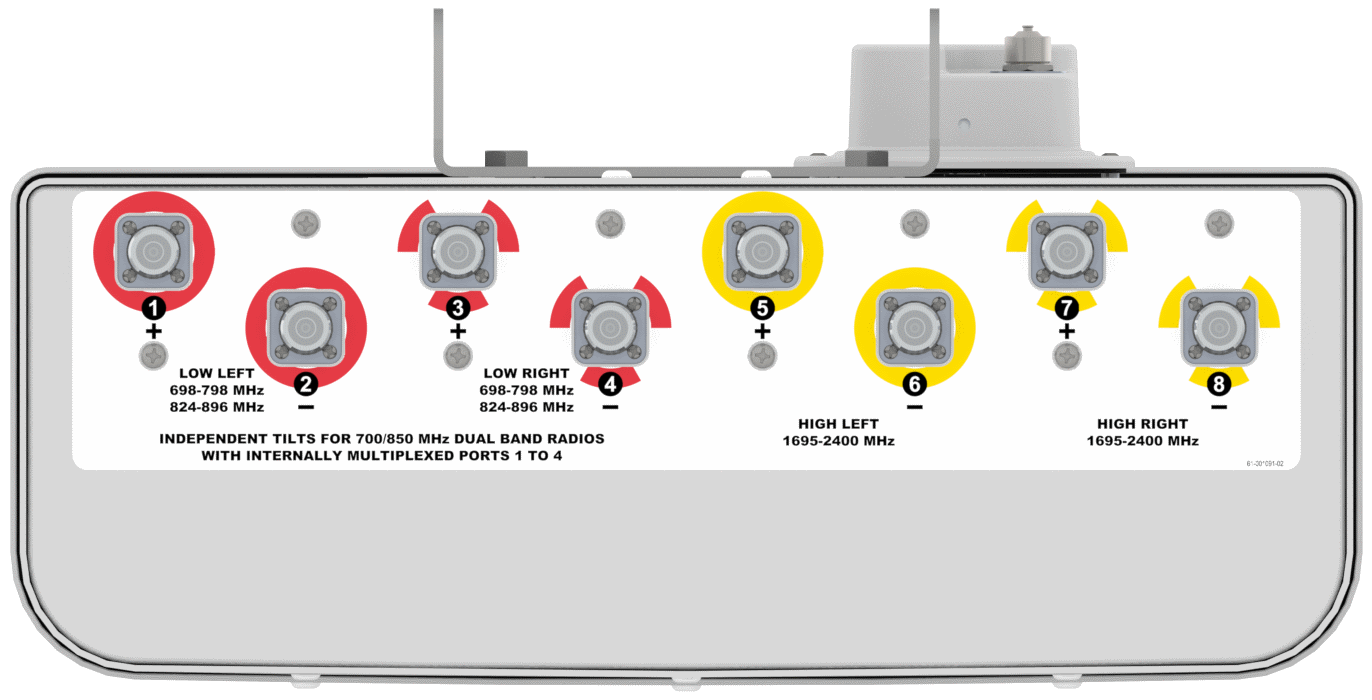

Bottom View

Connector Spacing

RET to Element Configuration	DMP65R-BU6DA Element and RET configuration (Type 1 External RET)

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

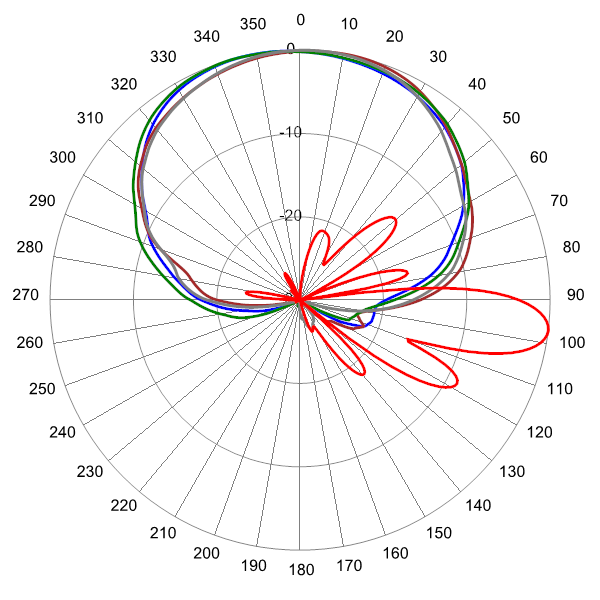

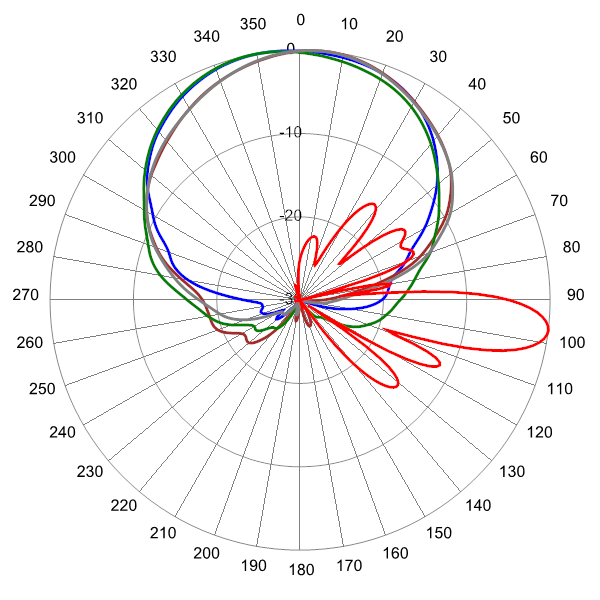

	698 MHz Azimuth with Elevation 7°	840 MHz Azimuth with Elevation 7°

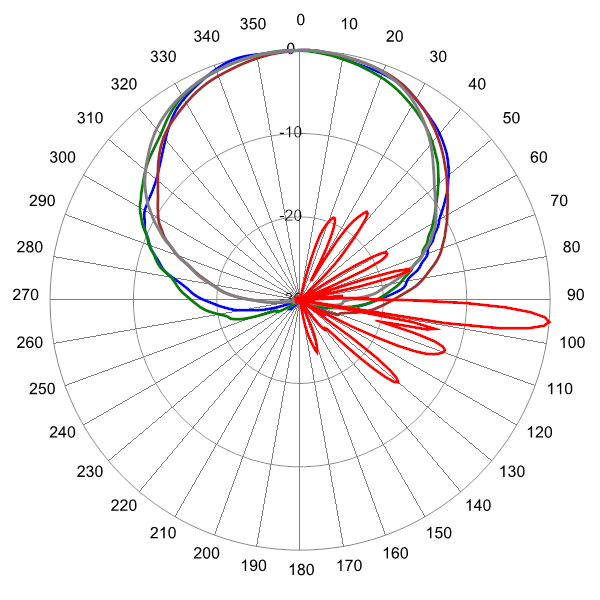

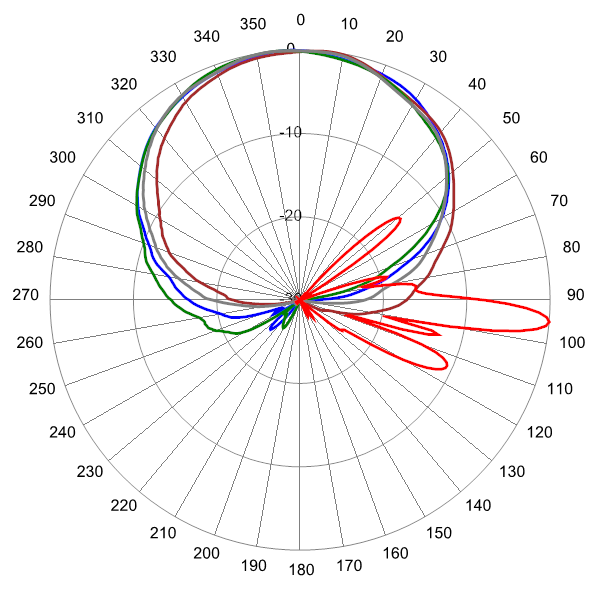

	1780 MHz Azimuth with Elevation 5°	2155 MHz Azimuth with Elevation 5°

MBK-16	MBK-16 Mounting Kit with fixed 0° mechanical tilt
MBK-01	MBK-01 Mounting Kit with 0° - 10° mechanical tilt
DM-02	DM-02 Dual Mount Mast Bracket Ki
BSA-RET200	Type 1 External Remote Electrical Tilt System (RET)
BSA-RET400	Type 17 Internal Remote Electrical Tilt System (RET)
DPA-CBK-AG-RRU	AISG Cable set for three RET antenna with Type 1 RET
CBK-RA-AG-RRU-004	AISG Right Angle Cable set for three RET antenna with Type 1 RET
SCU-AISG-P	Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	DMP65R-BU6DA Connector Spacing Diagram
	DMP65R-BU6DA Antenna/RET Config Diagram
	MBK-16 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

DMP65RBU6D: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0401E
Configuration File	Version
Y004472R1R2.BIN	2
Y004472R3R4.BIN	2
Y004482Y1Y2.BIN	2

Parts & Accessories

DMP65R-BU6DA-K	Six foot (1.8 m) antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET200 RET actuators (Type 1 external) and MBK-16 mounting bracket
DMP65R-BU6DB-K	Six foot (1.8 m) antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET400 RET actuators (Type 17 internal) and MBK-16 mounting bracket
MBK-16	Mounting bracket kit (top and bottom) with fixed 0° mechanical tilt
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt
DM-02	Dual mount mast bracket for side by side antenna mounting
BSA-RET200	Type 1 External Remote Electrical Tilt System (RET)
BSA-RET400	Type 17 Internal Remote Electrical Tilt System (RET)
DPA-CBK-AG-RRU	Antenna with 3 Type 1 RET to RRU AISG cable kit
CBK-RA-AG-RRU-004	Antenna with 3 Type 1 RET to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001

	Interactive Pattern Viewer
