Datasheet

TriBand Antenna

HPA45R-KE5A

				Four and a half foot (1.4 m), TriBand, six port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies Four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 698-960 MHz in a single antenna New enclosure with <15.4” (391 mm) width, narrowest enclosure in the industry for a 45° TriBand Antenna Full Spectrum Compliance 698-960 MHZ / 1695-2690 MHz LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance Exceeds minimum PIM performance requirements Comes with 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector Ordering options for 2 or 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) controllers

Overview

The CCI TriBand Antenna is a six port antenna, with four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 696-960 MHz. The CCI TriBand Antenna provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output in the low band. The CCI TriBand antenna allows separate tilt control between the low band ports and high band ports. With the use of three (3) RET controllers, the paired high band ports can be tilted independently, enabling maximum flexibility in network deployment.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the high band and 2×2 MIMO for the low band
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s TriBand Antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × Low Band Ports for 698-960 MHz
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain	15.4 dBi	15.8 dBi	16.1 dBi	16.6 dBi
Azimuth Beamwidth (-3dB)	52°	50°	47°	44°
Elevation Beamwidth (-3dB)	16.8°	15.3°	14.7°	13.7°
Electrical Downtilt	2° to 16°	2° to 16°	2° to 16°	2° to 16°
Elevation Sidelobes (1st Upper)	< -17 dB	< -18 dB	< -18 dB	< -18 dB
Front-to-Back Ratio @180°	> 32 dB	> 32 dB	> 32 dB	> 32 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB	> 25 dB	> 20 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain over all Tilts (dBi)	14.8	15.2	15.4	15.6
Gain over all Tilts Tolerance (dB)	0.5	0.5	0.6	0.9
Gain at Low-Tilt (dBi)	15.0	15.4	15.8	16.3
Gain at Mid-Tilt (dBi)	14.8	15.3	15.6	15.8
Gain at High-Tilt (dBi)	14.5	14.8	14.9	14.8
Azimuth Beamwidth Tolerance (°)	1.5	3.3	3.8	2.1
Elevation Beamwidth Tolerance (°)	1.4	0.8	0.8	0.8
Electrical Downtilt Deviation (°)	1.5	1.2	1.0	1.0
First Upper Sidelobe Suppression (dB)	-14.7	-15.9	-17.0	-15.4
Upper Sidelobe Suppression Peak to 20° (dB)	-19.0	-19.0	-18.4	-15.6
Front-to-Back Ratio over ±20° (dB)	23.3	25.1	23.8	23.7
Cross-polar Discrimination at 3 dB (dB)	23.0	22.8	21.4	19.8
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Ports	4 × High Band Ports for 1695-2690 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain	18.6 dBi	19.2 dBi	19.6 dBi	20.0 dBi	19.7 dBi
Azimuth Beamwidth (-3dB)	45°	44°	43°	43°	35°
Elevation Beamwidth (-3dB)	6.7°	6.1°	5.7°	5.0°	4.8°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	< -17 dB	< -17 dB	< -17 dB	< -17 dB	< -17 dB
Front-to-Back Ratio @180°	> 30 dB	> 33 dB	> 33 dB	> 33 dB	> 33 dB
Cross-Polar Discrimination at Peak	> 20 dB	> 20 dB	> 20 dB	> 20 dB	> 20 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc	≤ -150 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain over all Tilts (dBi)	17.7	18.5	18.9	18.9	18.8
Gain over all Tilts Tolerance (dB)	0.6	0.5	0.5	0.5	0.6
Gain at Low-Tilt (dBi)	17.7	18.5	18.9	18.8	19.0
Gain at Mid-Tilt (dBi)	17.7	18.6	19.0	18.9	19.2
Gain at High-Tilt (dBi)	17.7	18.5	18.8	18.6	18.6
Azimuth Beamwidth Tolerance (°)	3.8	3.8	3.9	3.6	3.2
Elevation Beamwidth Tolerance (°)	0.5	0.3	0.6	0.2	0.3
Electrical Downtilt Deviation (°)	0.8	0.8	0.8	0.7	0.8
First Upper Sidelobes Suppression (dB)	-15.1	-15.0	-14.8	-14.5	-12.7
Upper Sidelobe Suppression Peak to 20° (dB)	-15.0	-14.5	-14.1	-13.2	-12.1
Front-to-Back Ratio over ±20° (dB)	20.3	22.6	24.4	27.9	26.4
Cross-polar Discrimination at 3 dB (dB)	15.7	16.6	17.2	17.9	17.4
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	55.4×15.4×8.2 in (1407×391×208 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	189 lbs (842 N) @ 100 mph (161 kph)
Side Wind Load	112 lbs (498 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	7.4 ft² (0.7 m²)
Weight *	46.3 lbs (21.0 kg)
RET Weight	3.3 lbs (1.5 kg) for two RET's
RET Weight	5.0 lbs (2.3 kg) for three RET's
Connector	6 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting and RET

Bottom View	All models

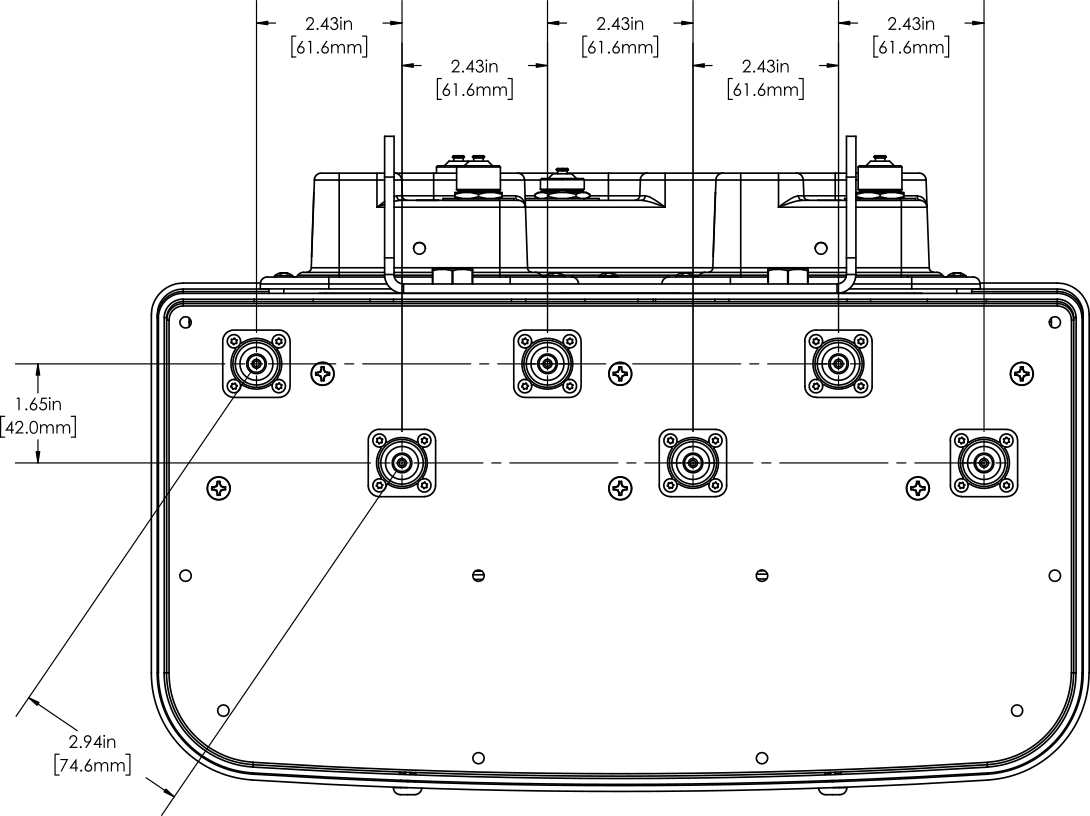

Connector Spacing	All models

	HPA45R-KE5AA Element and RET configuration (Type 1 External RET)

	HPA45R-KE5AB Element and RET configuration (Type 1 External RET)

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

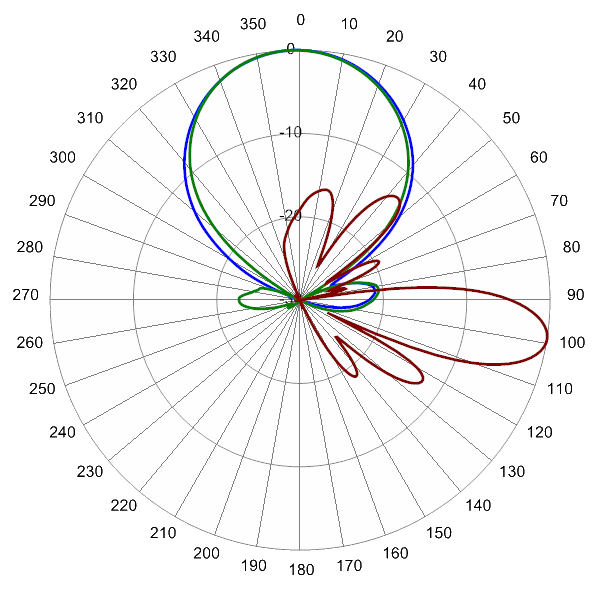

	734 MHz Azimuth with Elevation 9°	860 MHz Azimuth with Elevation 9°

	945 MHz Azimuth with Elevation 9°

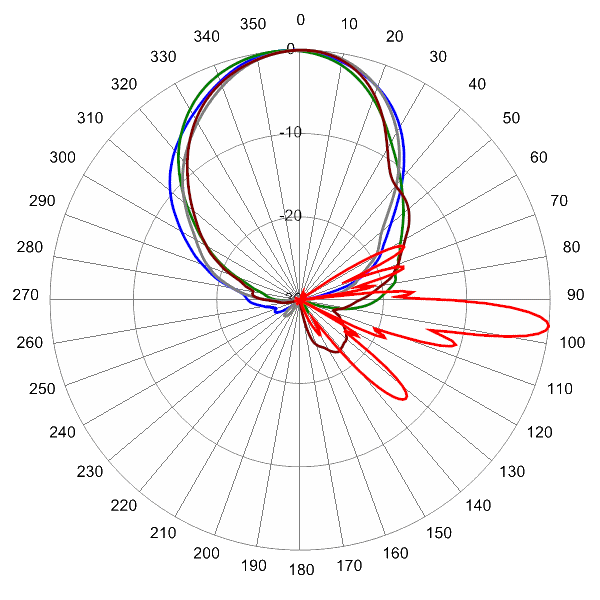

	1850 MHz Azimuth with Elevation 6°	2110 MHz Azimuth with Elevation 6°

	2350 MHz Azimuth with Elevation 6°	2610 MHz Azimuth with Elevation 6°

MBK-02		MBK-02 Mounting Kit
BSA-RET200		Type 1 External Remote Electrical Tilt System (RET)
TPA-CBK-AG-RRU		RRU AISG cable kit for three RET antenna
DPA-CBK-RA-AG-RRU		RRU AISG right angle cable kit for three RET antenna
CBK-AG-RRU-002		RRU AISG cable kit for two RET antenna
CBK-RA-AG-RRU-002		RRU AISG right angle cable kit for two RET antenna
SCU-AISG-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	HPA45R-KE5A Connector Spacing Diagram
	HPA45R-KE5AA Antenna/RET Config Diagram
	HPA45R-KE5AB Antenna/RET Config Diagram
	MBK-02 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

HPA45RKE5A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0301
Configuration File	Version
HPA45-KE5A-HK01.BIN	01
HPA45-KE5A-HE01.BIN	01

BSA-RET200 SA-DC0401E
Configuration File	Version
HPA45-KE5A-YK01.BIN	01
HPA45-KE5A-YE01.BIN	01

Parts & Accessories

HPA45R-KE5AA-K	Four and a half foot (1.4 m) TriBand antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET200 RET actuators and MBK-02 mounting bracket
HPA45R-KE5AB-K	Four and a half foot (1.4 m) TriBand antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 2 factory installed BSA-RET200 RET actuators and MBK-02 mounting bracket
MBK-02	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Remote electrical tilt actuator
TPA-CBK-AG-RRU	HexPort antenna with 3 RET to RRU AISG cable kit
DPA-CBK-RA-AG-RRU	HexPort antenna with 3 RET to RRU AISG right angle cable kit
CBK-AG-RRU-002	HexPort antenna with 2 RET to RRU AISG cable kit
CBK-RA-AG-RRU-002	HexPort antenna with 2 RET to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions
