      Hybrid Bi-SectorTM Array 12HBSAR-KE6NA




  PI 12HBSAR KE6NA front iso 20201202  PI 12HBSAR KE6NA rear iso 20201202
  • Six foot (1.98 m) tall and 19.5” (496 mm) wide, multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies
  • Eight wide high band ports covering 1695-2690 MHz and four wide low band ports covering 698-960 MHz in a single antenna
  • Full Spectrum Compliance for 698-960 MHz /1695-2690 MHz
  • Provides a pair of LTE Optimized Asymmetric Shaped Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum
  • LTE Optimized FBR, SPR and Boresight/Sector XPD Performance, essential for today’s LTE Data Networks
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with Three Field Replaceable, Type 17 integrated AISG 2.0 compliant Remote Electrical Tilt (RET)

Overview



This version of the CCI Hybrid Bi-SectorTM Multiband Array is a Twelve port antenna, with eight wide high band ports covering 1695-2690 MHz and four wide low band ports covering 698-960 MHz. The CCI Hybrid Bi-SectorTM array uses a pair of CCI’s Patented Asymmetric 33° Shaped Beams in the High Band frequencies and a high performance 65° azimuth beamwidth in the low band frequencies. The CCI Hybrid Bi-Sector Array thus provides the capability to deploy Dual (over split beams) 4×4 Multiple-input Multiple-output (MIMO) in the high band and Single 4x4 Multiple-input Multiple-output in the low band. The CCI Hybrid Bi-SectorTM Array utilizes three Type 17 RET controllers, with a separate RET control for the Low Band ports and a separate RET control in the High Band for each LEFT and RIGHT pair of CCI’s Patented Asymmetric 33° Shaped Beams.

The CCI Hybrid Bi-SectorTM Multiband Array, allow operators to reduce antenna count and replace existing 65° networks, while increasing cell site capacity and LTE data throughput by minimizing overlap between CCI’s Patented Asymmetric 33° Shaped Beams. This design approach lowers interference between sectors. All of this is achieved through a single panel array, producing significant CAPEX and OPEX cost savings for the operator.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications


  • Dual (over split beams) 4x4 MIMO on High Band and single 4x4 MIMO on Low Band
  • Ready for Network Standardization on 4.3-10 connectors
  • Ideal Antenna Solution for structurally constrained sites, where data throughput, capacity and limited spectrum is a concern
  • With CCI’s Hybrid Bi-SectorTM Antenna, wireless operators can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation cost

Electrical


Ports 4 × Low Band Ports for 698-960 MHz
Frequency Range 698-806 MHz 790-862 MHz 824-896 MHz 880-960 MHz
Gain1 14.4 dBi 14.5 dBi 14.7 dBi 15.3 dBi
Azimuth Beamwidth (-3dB) 76° 74° 71° 69°
Elevation Beamwidth (-3dB) 12.5° 11.3° 10.9° 10.2°
Electrical Downtilt 2° to 12° 2° to 12° 2° to 12° 2° to 12°
Elevation Sidelobes (1st Upper) < -20 dB < -20 dB < -20 dB < -20 dB
Front-to-Back Ratio @180° > 28 dB > 35 dB > 35 dB > 35 dB
Cross-Polar Discrimination (at Peak) > 25 dB > 25 dB > 25 dB > 24 dB
Cross-Polar Port-to-Port Isolation > 25 dB > 25 dB > 25 dB > 25 dB
Voltage Standing Wave Ratio(VSWR) < 1.5:1 < 1.5:1 < 1.5:1 < 1.5:1
Passive Intermodulation (2×20W) ≤ -153 dBc ≤ -153 dBc ≤ -153 dBc ≤ -153 dBc
Input Power Continuous Wave (CW) 500 watts 500 watts 500 watts 500 watts
Polarization Dual Pol 45° Dual Pol 45° Dual Pol 45° Dual Pol 45°
Input Impedance 50 ohms 50 ohms 50 ohms 50 ohms
Lightning Protection DC Ground DC Ground DC Ground DC Ground
1Peak gain across sub-bands.

BASTA Electrical Specifications
Frequency Range 698-806 MHz 790-862 MHz 824-896 MHz 880-960 MHz
Gain over all Tilts (dBi) 13.5 14.0 14.2 14.4
Gain over all Tilts Tolerance (dB) 0.6 0.4 0.4 0.5
Gain at Low-Tilt (dBi) 13.7 14.1 14.2 14.3
Gain at Mid-Tilt (dBi) 13.7 14.2 14.4 14.6
Gain at High-Tilt (dBi) 13.4 13.9 14.2 14.5
Azimuth Beamwidth Tolerance (°) 8.9 7.8 8.0 8.8
Elevation Beamwidth Tolerance (°) 1.0 0.7 0.6 0.7
Electrical Downtilt Deviation (°) 0.8 0.6 0.6 0.6
First Upper Sidelobe Suppression (dB) 18.7 18.8 17.6 17.3
Upper Sidelobe Suppression Peak to 20°(dB) 20.3 21.3 20.1 18.2
Front-to-Back Ratio over ±20° (dB) 18.6 21.7 23.5 24.5
Cross-polar Discrimination at ±60° (dB) 8.5 8.0 9.5 9.4
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1.
All specifications are subject to change without notice.


Ports 8 × High Band Ports for 1695-2690 MHz
Frequency Range 1695-1880 MHz 1850-1990 MHz 1920-2180 MHz 2300-2400 MHz 2496-2690 MHz
Gain1 17.8 dBi 18.4 dBi 18.5 dBi 19.2 dBi 19.6 dBi
Azimuth Beamwidth (-3dB) 37° 34° 32° 29° 27°
Elevation Beamwidth (-3dB) 7.9° 7.1° 6.6° 5.7° 5.6°
Electrical Downtilt 0° to 10° 0° to 10° 0° to 10° 0° to 10° 0° to 10°
Elevation Sidelobes (1st Upper) < -18 dB < -17 dB < -17 dB < -18 dB < -19 dB
Front-to-Back Ratio @180° > 35 dB > 35 dB > 35 dB > 35 dB > 35 dB
Cross-Polar Discrimination (at Peak) > 25 dB > 25 dB > 25 dB > 23 dB > 23 dB
Cross-Polar Port-to-Port Isolation > 25 dB > 25 dB > 25 dB > 25 dB > 25 dB
Voltage Standing Wave Ratio(VSWR) < 1.5:1 < 1.5:1 < 1.5:1 < 1.5:1 < 1.5:1
Passive Intermodulation (2×20W) ≤ -153 dBc ≤ -153 dBc ≤ -153 dBc ≤ -153 dBc ≤ -153 dBc
Input Power Continuous Wave (CW) 300 watts 300 watts 300 watts 300 watts 300 watts
Polarization Dual Pol 45° Dual Pol 45° Dual Pol 45° Dual Pol 45° Dual Pol 45°
Input Impedance 50 ohms 50 ohms 50 ohms 50 ohms 50 ohms
Lightning Protection DC Ground DC Ground DC Ground DC Ground DC Ground
1Peak gain across sub-bands.

BASTA Electrical Specifications
Frequency Range 1695-1880 MHz 1850-1990 MHz 1920-2180 MHz 2300-2400 MHz 2496-2690 MHz
Gain over all Tilts (dBi) 16.7 17.5 17.9 18.4 18.8
Gain over all Tilts Tolerance (dB) 0.8 0.4 0.5 0.5 0.7
Gain at Low-Tilt (dBi) 16.6 17.5 17.9 18.1 18.6
Gain at Mid-Tilt (dBi) 16.8 17.6 18.0 18.7 19.1
Gain at High-Tilt (dBi) 16.8 17.5 17.7 18.4 18.7
Azimuth Beamwidth Tolerance (°) 2.1 1.8 2.6 1.4 1.6
Elevation Beamwidth Tolerance (°) 0.6 0.4 0.5 0.2 0.3
Electrical Downtilt Deviation (°) 0.8 0.7 0.7 0.6 0.7
First Upper Sidelobe Suppression (dB) 15.4 13.4 11.6 13.8 14.9
Upper Sidelobe Suppression Peak to 20°(dB) 15.4 13.4 11.6 14.8 14.9
Front-to-Back Ratio over ±20° (dB) 25.5 27.5 29.6 30.3 29.5
Cross-polar Discrimination at 3 dB (dB) 17.2 16.7 15.3 12.2 14.2
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1.
All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D) 78.0×19.5×9.1 in (1981×496×230 mm)
Survival Wind Speed > 150 mph (> 241 kph)
Front Wind Load 343 lbs (1525 N) @ 100 mph (161 kph)
Side Wind Load 182 lbs (812 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area 13.4 ft2 (1.2 m2)
Weight* 86.0 lbs (39.0 kg)
Connector 12 × 4.3-10 female
Mounting Pole 2 to 5 in (5 to 12 cm)
* Weight excludes mounting kit

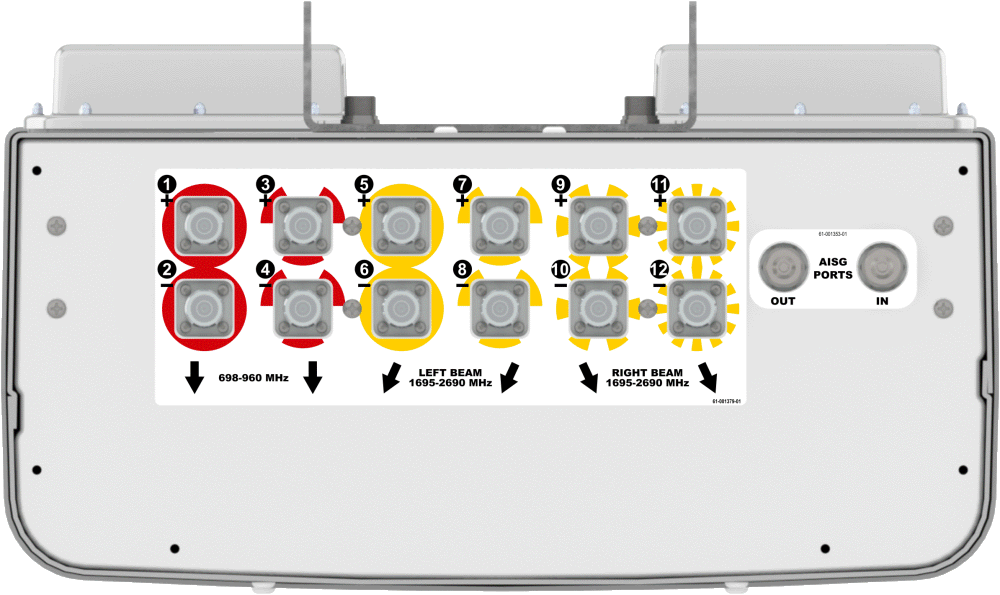

Bottom View 12HBSAR-KE6NAA
  PI 12HBSAR KE6NA bottom 20201202
Connector Spacing
  PI 12HBSAR KE6NA Connector spacing
RET to Array Configuration
  PI 12HBSARKE6NAA RET Element Diag

Typical Antenna Patterns

  For detailed information on additional antenna patterns, contact customer support at

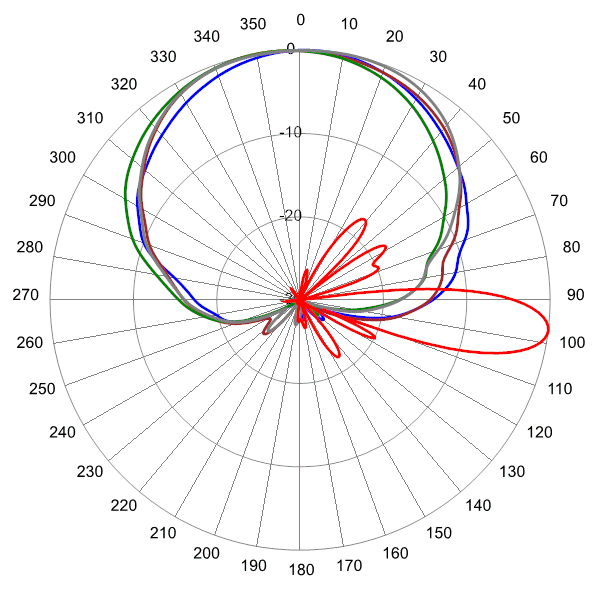

  PI 12HBSARKE6NAA AP 750 AZEL7 PI 12HBSARKE6NAA AP 850 AZEL7
  750 MHz Azimuth with Elevation 7° 850 MHz Azimuth with Elevation 7°

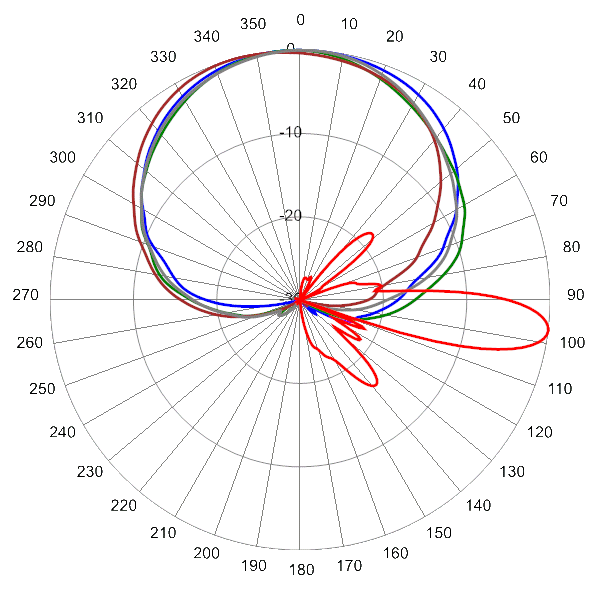

  PI 12HBSARKE6NAA AP 880 AZEL7
  880 MHz Azimuth with Elevation 7°

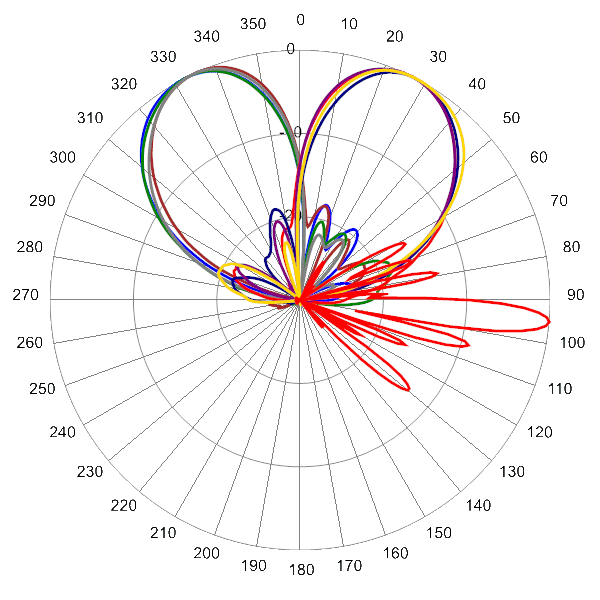

  PI 12HBSARKE6NAA AP 1920 AZEL5 PI 12HBSARKE6NAA AP 2170 AZEL5
  1920 MHz Azimuth with Elevation 5° 2170 MHz Azimuth with Elevation 5°

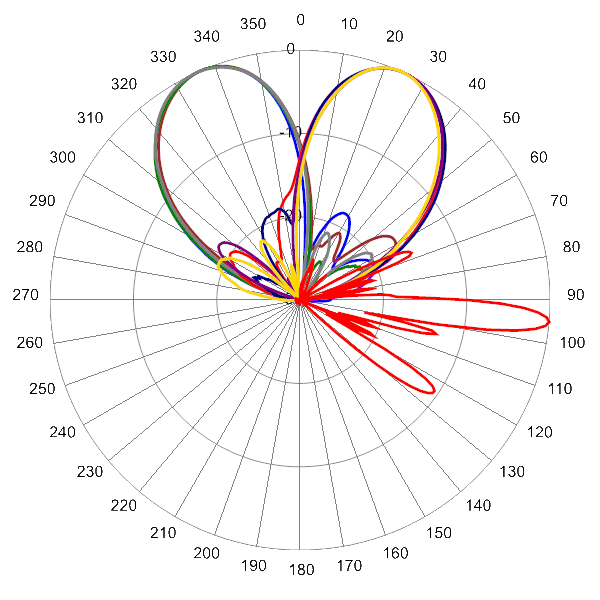

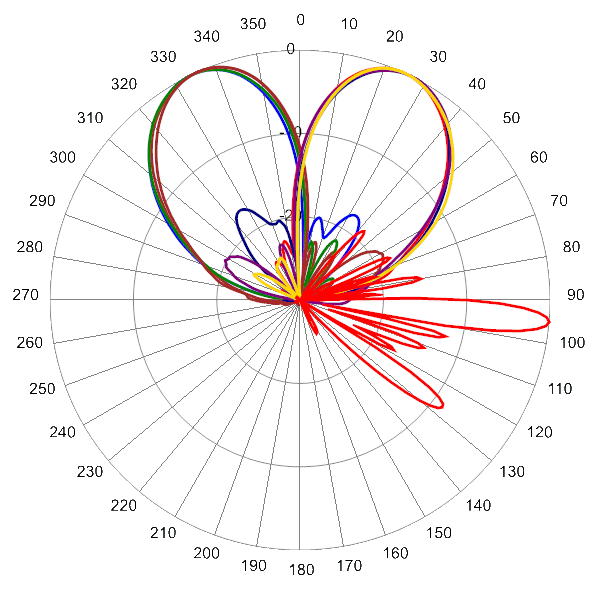

  PI 12HBSARKE6NAA AP 2320 AZEL5 PI 12HBSARKE6NAA AP 2500 AZEL5
  2320 MHz Azimuth with Elevation 5° 2500 MHz Azimuth with Elevation 5°
MBK-01 MBK-01 Mounting Kit with 0° - 10° mechanical tilt
MBK-16 MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400 Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-10FT 10 Foot (3 M) Male/Female AISG cable
SCU-AISG-P Portable AISG 2.0 Site Control Unit

Software/Firmware

pdficon large HPA-Firmware Upgrade Instructions
 softwareicon Current Firmware

Parts & Accessories


12HBSAR-KE6NAA-K Six foot (1.9 m) Hybrid Bi-SectorTM Antenna Array with 4.3-10 female connectors, 3 factory installed external BSA-RET400 RET actuators (Type 17 Internal) and MBK-01 mounting brackets
MBK-01 MBK-01 Mounting Kit with 0° - 10° mechanical tilt
MBK-16 MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400 Type 17 remote electrical tilt actuator
AISGC-M-F-xFT AISGC-M-F-10FT 10 Ft (3 m) Male/Female RRU to Antenna AISG cable

Standards & Compliance

Safety EN 60950-1, UL 60950-1
Emission EN 55022
Immunity EN 55024
Environmental IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
