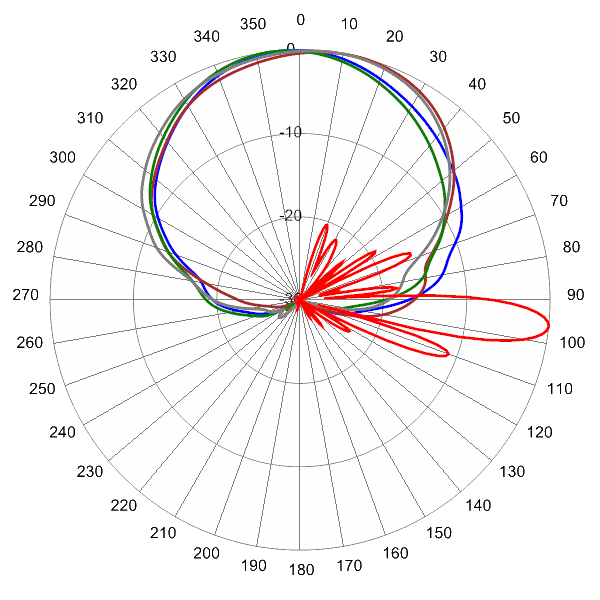

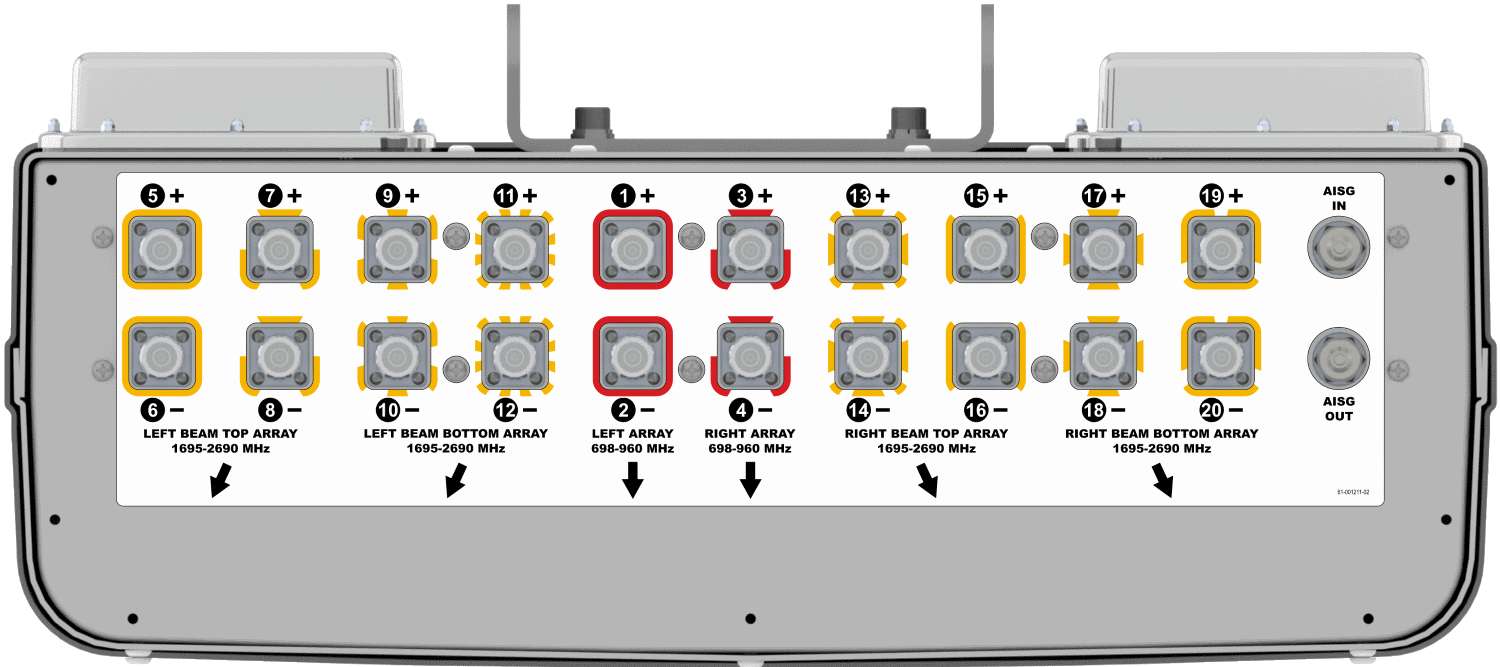

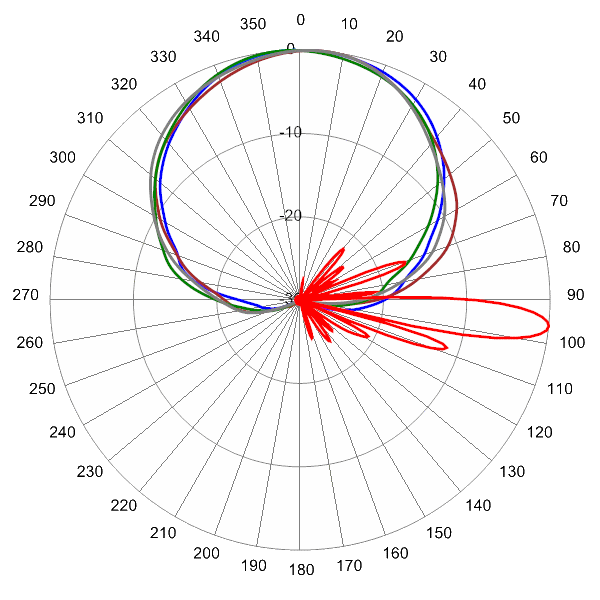

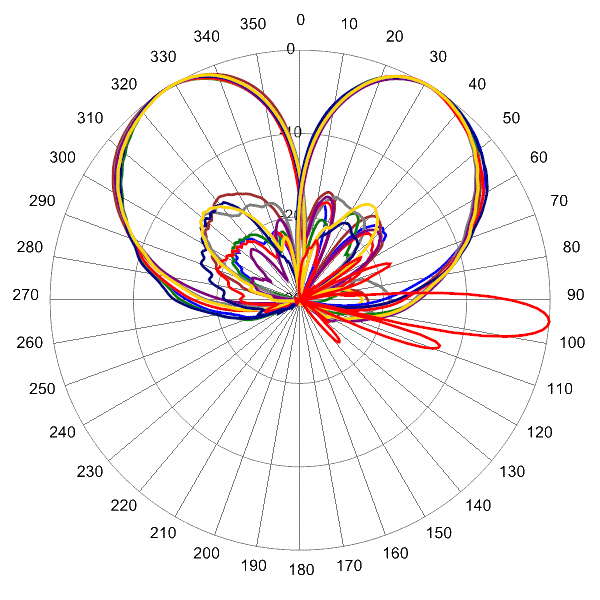

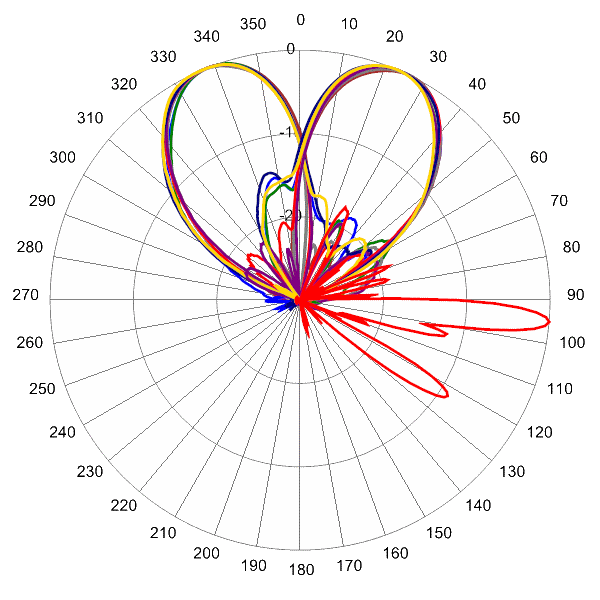

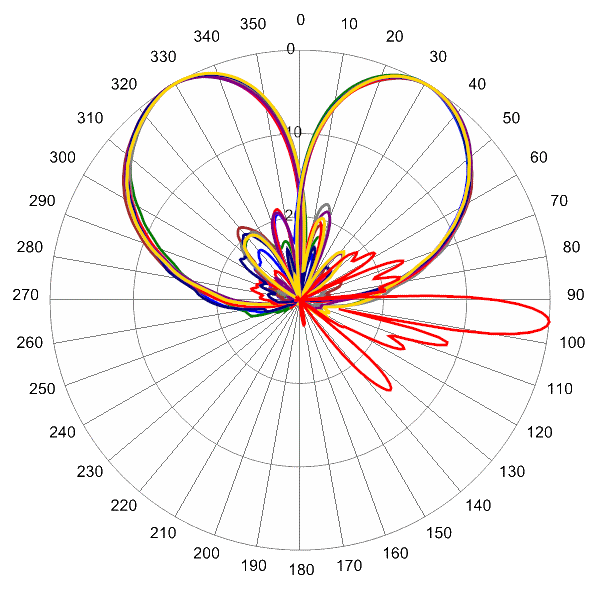

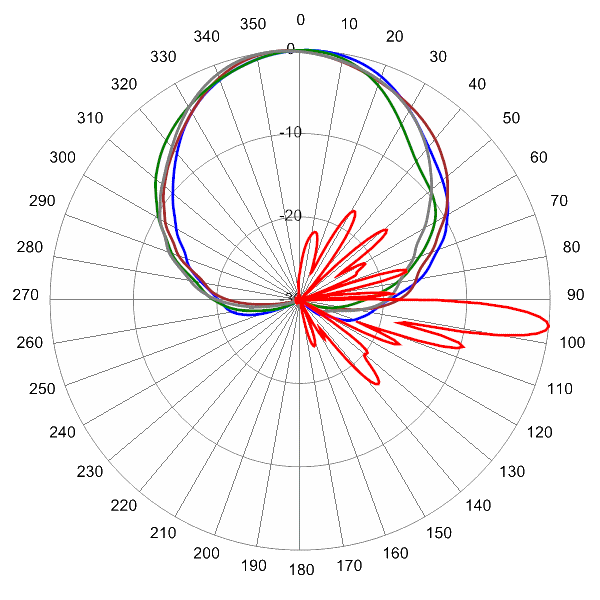

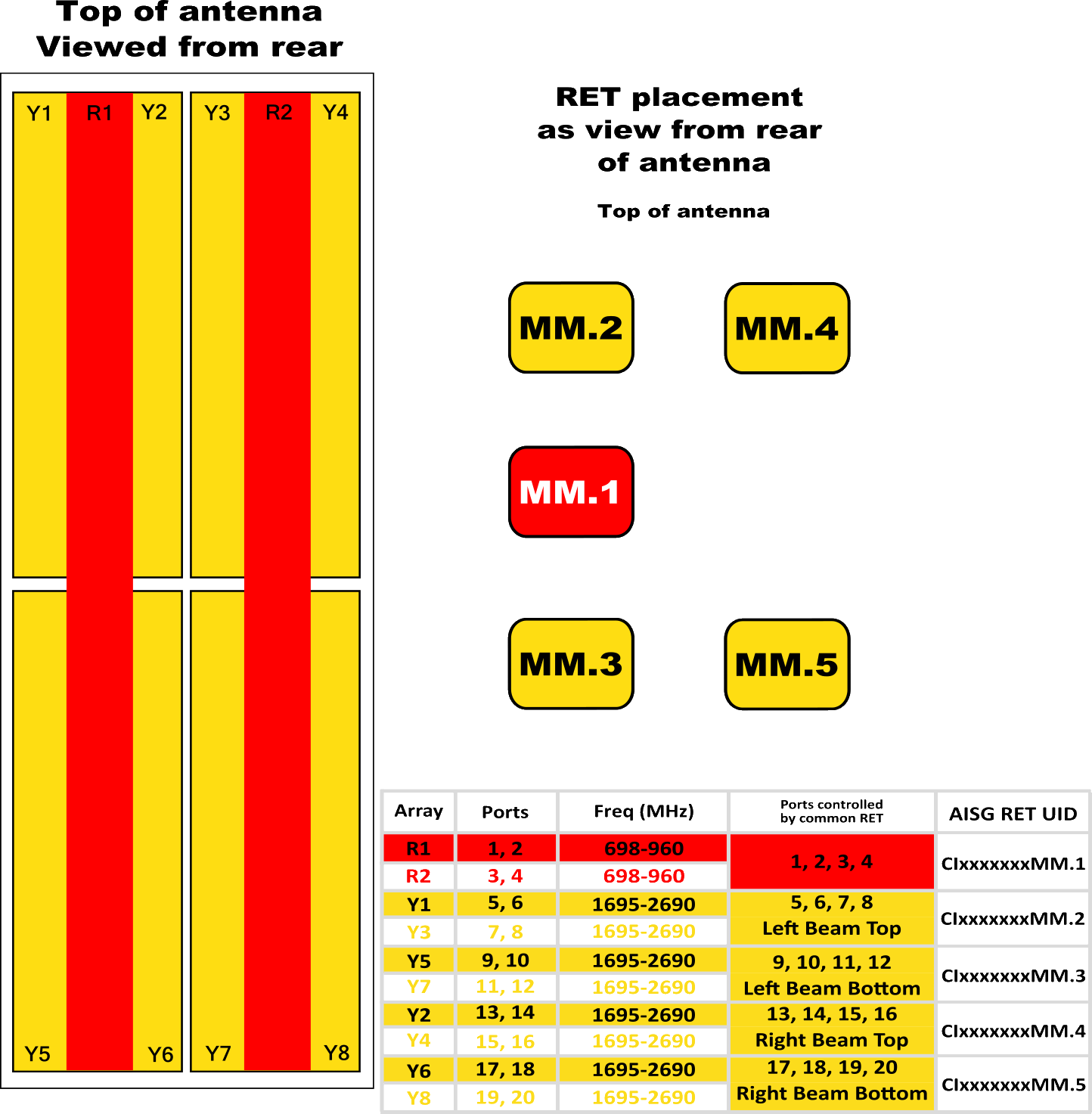

This version of the CCI Hybrid Bi-Sector^TM Multiband Array is a Twenty port antenna, with sixteen wide high band ports covering 1695-2690 MHz and four wide low band ports covering 698-960 MHz. The CCI Hybrid Bi-Sector^TM array uses two independent pairs of CCI’s Patented Asymmetric 33° Shaped Beams in the High Band frequencies and a high performance 65° azimuth beamwidth in the low band frequencies. The CCI Hybrid Bi-Sector Array thus provides the capability to deploy two independent sets of Dual (over split beams) 4×4 Multiple-input Multiple-output (MIMO) in the high band and Single 4x4 Multiple-input Multiple-output in the low band. The CCI Hybrid Bi-Sector^TM Array utilizes five RET controllers, with a separate RET control for the Low Band ports and a separate RET control in the High Band for each LEFT and RIGHT pair of CCI’s Patented Asymmetric 33° Shaped Beams.

The CCI Hybrid Bi-Sector^TM Multiband Array, allow operators to reduce antenna count and replace existing 65° networks, while increasing cell site capacity and LTE data throughput by minimizing overlap between CCI’s Patented Asymmetric 33° Shaped Beams. This design approach lowers interference between sectors. All of this is achieved through a single panel array, producing significant CAPEX and OPEX cost savings for the operator.
CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
