PiMPro Rack Mount Analyzer | PiMPro 850RM | |||
![]() |
|
Overview
CCI's PiMPro 850 Rack Mount precision Passive Intermod (PIM) analyzer has been designed from the ground up to meet the specific challenges of PIM testing both in laboratory and production environments. The PiMPro 850RM covers 824-894 MHz while delivering maximum power of two carriers at 40 watts (40W x 2) and uncompromising accuracy of intermodulation (IM) measurements, with a sensitivity of -125 dBm( -168 dBc at 20 watts). In a convenient 19 inch rack mount configuration the PIMPro 850RM offers easy to use graphic navigation tools and a unique touch screen display, which make it an invaluable tool for PIM testing. Long-term Evolution (LTE) radios are configured for 40 watts or more output power per carrier. Since site configurations can have as many as four carriers per sector, PIM testing at anything less than 40W x 2 does not accurately simulate live network traffic and is likely to understate actual site PIM levels. PiMPro's 40W x 2 power level allows for more realistic PIM level testing in the field. By design, the PiMPro provides precise measurement of the 3rd, 5th, 7th and 9th order of intermodulation of any system or component under high-power conditions. In addition to passive intermodulation measurements, the unit will provide VSWR and Return Loss values. PiMPro can be used to verify the integrity of individual passive components including connectors, cable assemblies, antennas, filters, making it an integral performance tool for both field and lab technicians. PiMPro Eco is an optional software application for automating PIM lab-based measurements performed on the PiMPro family of analyzers. The application allows users to create and recall test profiles, simultaneously perform frequency and power sweep, create customized reports for distribution and control ancillary instruments, such as network analyzers, signal analyzers and power meters for related RF measurements. PiMPro Eco software includes the applications source code written in LabVIEW, with a perpetual-use, royalty-free license. PiMPro Eco source code can easily be modified for various lab, field, production and proprietary environments. CCI’s turn-key PIM solutions, leverage best-in-class instrumentation partners, RF-centric software expertise and a global support network. |
Applications
|
Electrical Specifications
PiMPro Rack Mount 850 | ||
Band | Cellular 850 | |
Receive Frequency | 824 - 849 MHz | |
Transmit Frequency | 869 - 894 MHz | |
Transmitter | Frequency Accuracy | < 5 ppm |
Power Accuracy | 0.3 dB | |
Frequency Step Size | 200 kHz | |
Power Resolution | 0.1 dB | |
Adjustable Power Range | 17 to 46 dBm × 2 (50 mW to 40 W × 2) | |
Receiver | Residual Intermod Level | -122 dBm (-125 dBm Typical) |
Measurement Sensitivity | -135 dBm | |
Noise Floor | -136 dBm | |
Reverse Power Protection | 13 dBm (20 mW) continuous | |
Measurement Mode | Measurement Method | One Port, Reverse PIM |
Real Time PIM | 3rd, 5th, 7th & 9th PIM | |
Return Loss | Measured in dB | |
PIM vs Time | 3rd, 5th, 7th & 9th PIM | |
RX Interference | Receive Only Mode - Noise Floor Measurements | |
Frequency Sweep | Frequency Response | |
DAS Feature | Path Loss Characteristics | |
System | Power | 90 - 256 V, 50 - 60 Hz |
Alarms | Audio & Visual Display | |
Display Size & Type | 7" TFT Color Touch Screen | |
Data Ports | 1 - USB 2.0, 1 - Ethernet Port | |
Remote Control | No WiFi | |
Electrical | Max Power Consumption | <500 W |
Measurement & Configuration
![]() |
System Configuration System Configuration is the first data entry point for PiMPro users, where all system and report generation parameters are set. Includes settings for Date and Time, Audio Alarm, RF Power on Time interval, central Data Label management, PiMPro registration information and IP address are all keyed in from this screen. Software updates and screen calibrations are also accessed from this screen. |
|
![]() |
PIM vs Return Loss PiMPro’s main measurement screen provides instantaneous PIM measurement in both dBc or dBm. The large display flashes to annunciate the presence of RF power at the output connector. Pass/Marginal/Fail Limits, Output Power, Frequency and IM settings originate from this screen. PiMPro’s unique Return Loss diagnostic feature at high transmit (TX) power, quickly points out open cables. |
|
![]() |

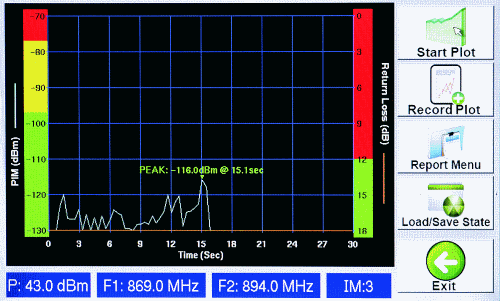

PIM vs Time The PIM vs Time dynamic measurement mode features a graphical representation of PIM as a function of time. Time scale can be set from 10 seconds to 4 minutes. The PiMPro Return Loss feature is also available on this screen. |
|
![]() |

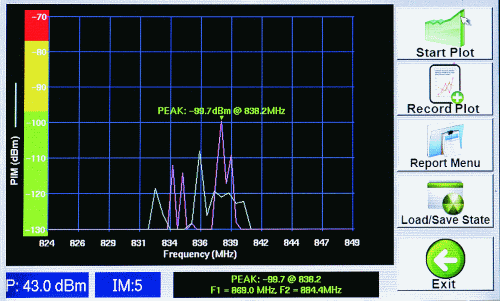

Frequency Sweep PiMPro displays a swept receive (RX) PIM range by sweeping the TX carriers from end to end within the set frequency band. PIM frequency response is displayed, exposing the worst case PIM level and the contributing frequencies. Users can immediately transfer the graph to the PIM vs Time feature and run a new test to isolate the causes of the specific PIM. |
|
![]() |

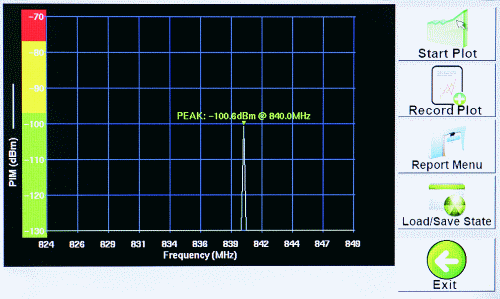

RX Interference With both internal amplifiers set to off, PiMPro performs a spectral analysis sweep, for interfering signals. RX Interference mode provides the added ability to discern PIM from external interfering signals in the receive band. External and internal PIM signals are unlikely to be in phase or simultaneous within PiMPro’s narrow receiver range, therefore, making RX Interference a powerful field diagnostic tool. |
|
![]() |
Report Generator Report data for all measurement modes can be stored in either, HTML or PDF file format. Users can concatenate a limitless series of measurements with different sector, feeder, color codes, as one single PDF file. Reports can be saved in PiMPro’s internal memory or to external USB memory from the unit’s front panel. |
|
![]() |

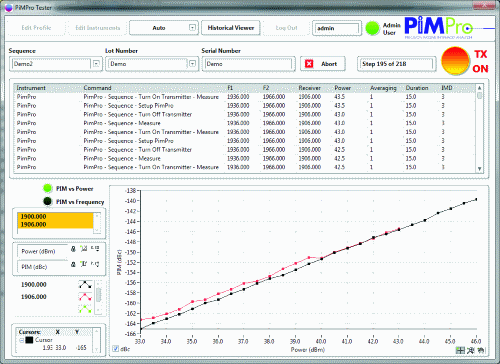

PimPro Eco (Optional) The PiMPro Eco software application automates PIM lab-based measurements performed on the PiMPro Classic and Rack Mount. Users can create and recall test profiles, simultaneously perform frequency and power sweep, create customized reports for distribution as well as control ancillary instruments, such as network analyzers, signal analyzers and power meters for related RF measurements. |
Accessories
PP-AK-DMDM | Low PIM 7–16 DIN Male to Male Adapter | |
PP-AK-DFDF | Low PIM 7–16 DIN Female to Female Adapter | |
PP-AK-DMNF | Low PIM 7–16 DIN Male to N Female Adapter | |
PP-AK-DMNM | Low PIM 7–16 DIN Male to N Male Adapter | |
PPT-AK-LOAD | Low PIM Termination Load < -168 dBc with both Male and Female 7–16 DIN | |
PP-AK-CAB-DMDF | Low PIM Male DIN to Female DIN jumper cable 3/8“ 3 m (10 ft) length | |
PP-AK-CAB-DMDM | Low PIM Male DIN to Male DIN jumper cable 3/8“ 3 m (10 ft) length | |
![]() |
PP-AK-PSTAN | PIM Standard Verification Source Tool |
PP-AK-TORW | Torque Wrench for 7–16 DIN Connector | |
PP-AK-ADJW | Adjustable Wrench | |
PP-AK-FIXW | Small 32 mm Wrench for 7–16 DIN | |
PPT-AK-ALCH | Alcohol Cleaning Kit |
|
