Small Cell TriBand Panel Antenna | SCA65F-EHJ1A | |||
|
The CCI Triband 65° x 65° array is a ten port antenna Small Cell antenna, with four wide band ports covering 1695-2690 MHz, four CBRS band ports covering 3400-3800 MHz and two U-NII band ports covering 5150-5925 MHz. The CCI 65° x 65° Small Cell antenna provides two independent sets of 4x4 Multiple-input-Multiple-output (MIMO) functionality across the 1695-2690 MHz and CBRS 3400-3800 MHz ports and provides 2x2 Multiple-input-Multiple-output (MIMO) functionality across the U-NII 5150-5925 MHz ports. |
Ports | 4 × High Band Ports for 1695-2690 MHz | ||||
Frequency Range | 1695-1880 MHz | 1850-1990 MHz | 1920-2180 MHz | 2305-2360 MHz | 2496-2690 MHz |
Gain1 | 8.7 dBi | 8.6 dBi | 8.6 dBi | 8.3 dBi | 8.2 dBi |
Gain (Average)2 | 8.4 dBi | 8.4 dBi | 8.3 dBi | 8.1 dBi | 7.9 dBi |
Azimuth Beamwidth (-3dB) | 68° | 67° | 67° | 68° | 70° |
Elevation Beamwidth (-3dB) | 68° | 70° | 70° | 70° | 73° |
Electrical Downtilt | 0° | 0° | 0° | 0° | 0° |
Front-to-Back Ratio @180° | > 35 dB | > 35 dB | > 35 dB | > 35 dB | > 35 dB |
Cross-Polar Discrimination (at Peak) | > 20 dB | > 22 dB | > 25 dB | > 24 dB | > 22 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 25 dB |
Voltage Standing Wave Ratio(VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.92:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |
Input Power Continuous Wave (CW) | 100 watts | 100 watts | 100 watts | 100 watts | 100 watts |
Polarization | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground |
1Peak gain across sub-bands. 2Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. |
Ports | 4 × High Band Ports for 3400-3800 MHz | 2 × High Band Ports for 5150-5925 MHz |
Frequency Range | 3400-3800 MHz | 5150-5925 MHz |
Gain1 | 8.3 dBi | 5.8 dBi |
Gain (Average)2 | 7.9 dBi | 5.1 dBi |
Azimuth Beamwidth (-3dB) | 69° | 77° |
Elevation Beamwidth (-3dB) | 73° | 28° |
Electrical Downtilt | 0° | 5° |
Elevation Sidelobes (1st Upper) | NA | < -20 dB |
Front-to-Back Ratio @180° | > 35 dB | > 35 dB |
Cross-Polar Discrimination (at Peak) | > 20 dB | > 18 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB | > 25 dB |
Voltage Standing Wave Ratio(VSWR) | < 1.5:1 | < 1.5:1 |
Input Power Continuous Wave (CW) | 50 watts | 10 watts |
Polarization | Dual Pol 45° | Dual Pol 45° |
Input Impedance | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground |
1Peak gain across sub-bands. 2Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. |
Dimensions (L×W×D) | 11.7×11.9×3.7 in (297×301×93 mm) |
Survival Wind Speed | > 150 mph (> 241 kph) |
Front Wind Load | 30 lbs (132 N) @ 100 mph (161 kph) |
Side Wind Load | 9 lbs (42 N) @ 100 mph (161 kph) |
Equivalent Flat Plate Area | 1.2 ft2 (0.1 m2) |
Weight * | 4.4 lbs (2.0 kg) |
Connector | 10 × NEX10 female |
Mounting Pole | 2 to 5 in (5 to 12 cm) |
* Weight excludes mounting |

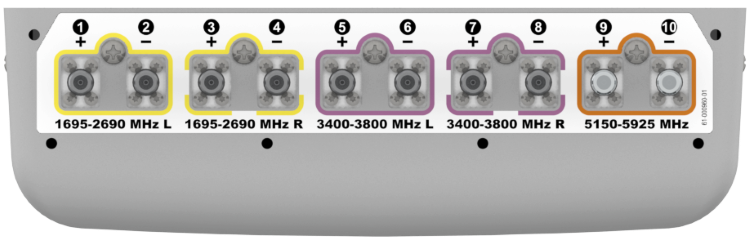

Bottom View | |
Connector Spacing | |
For detailed information on additional antenna patterns, contact customer support at |

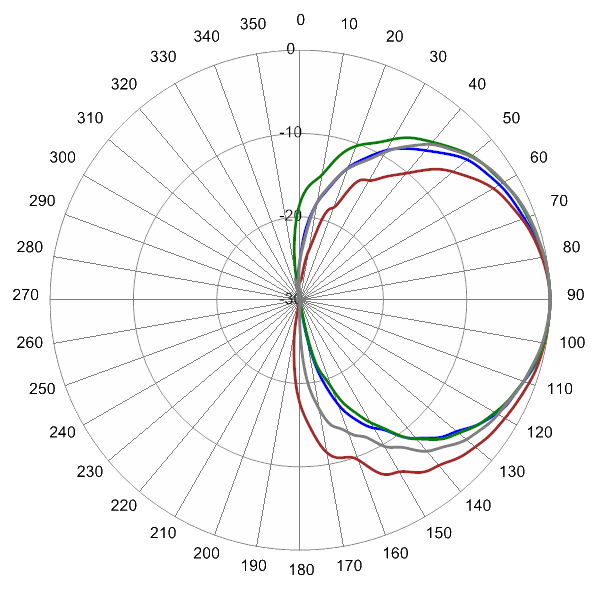

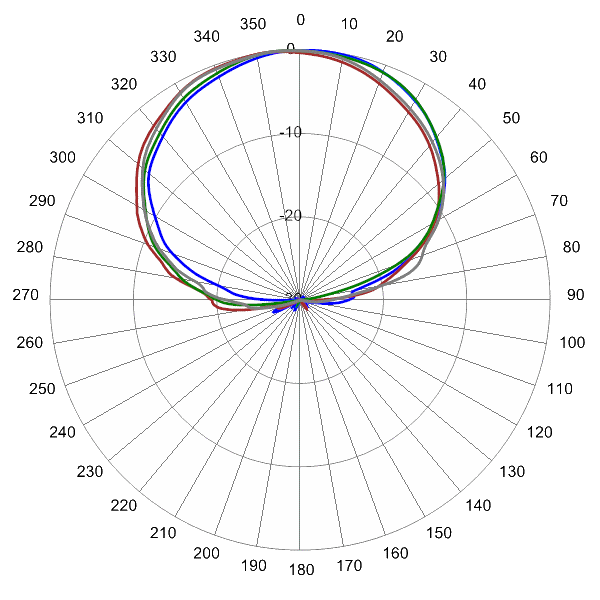

1910 MHz Azimuth | 1910 MHz Elevation 0° | |

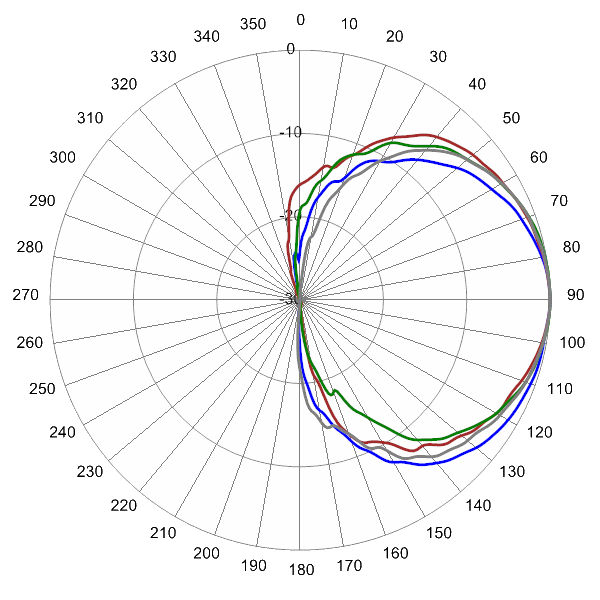

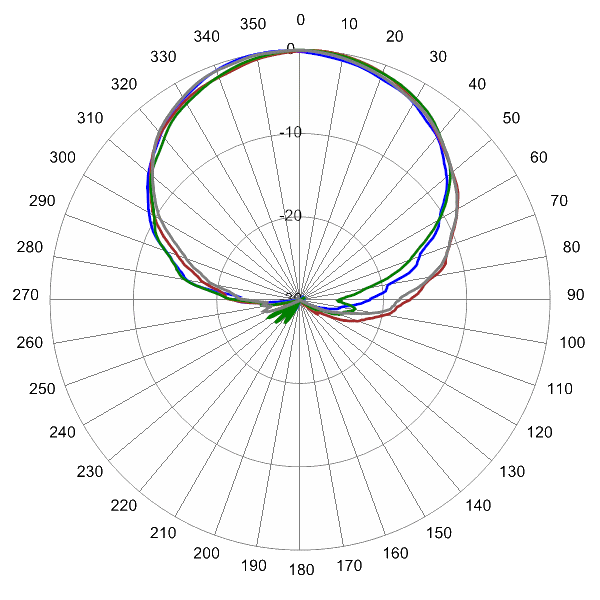

2300 MHz Azimuth | 2300 MHz Elevation 0° |

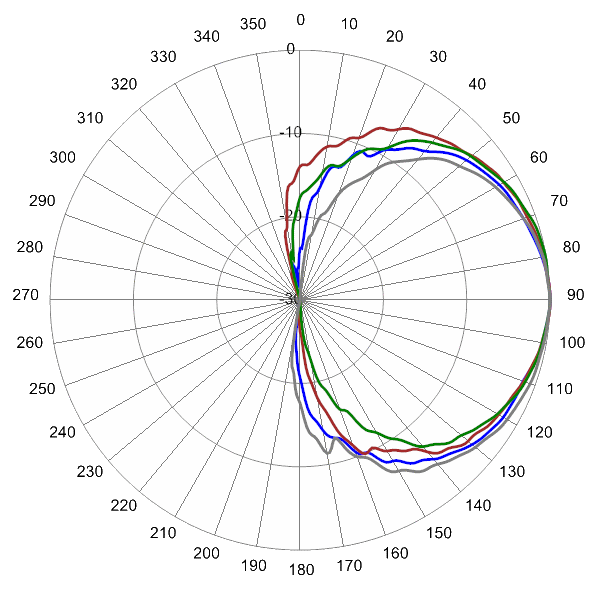

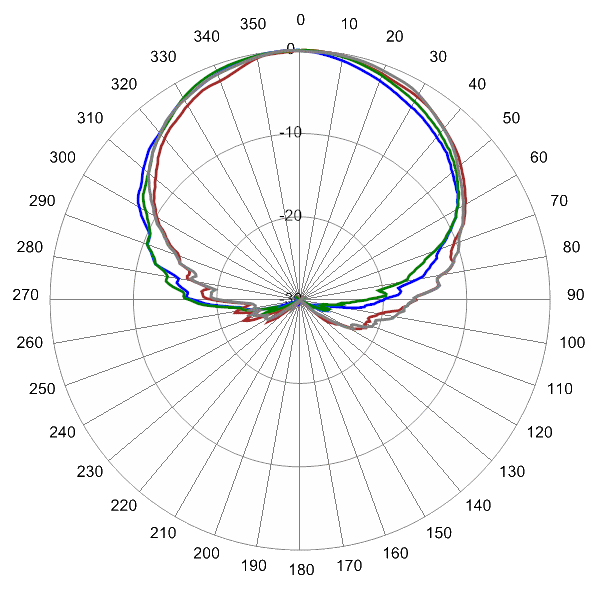

2610 MHz Azimuth | 2610 MHz Elevation 0° | |

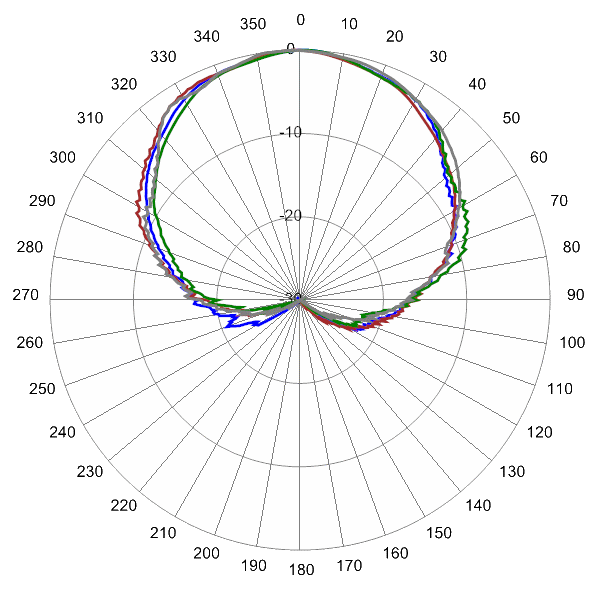

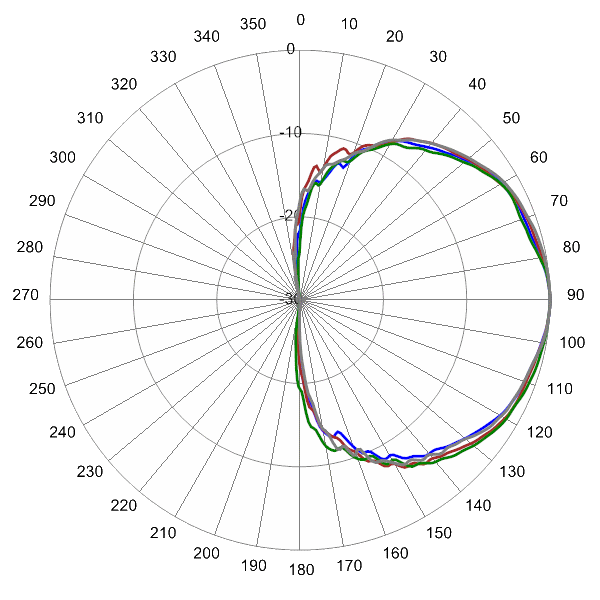

3600 MHz Azimuth | 3600 MHz Elevation 0° |

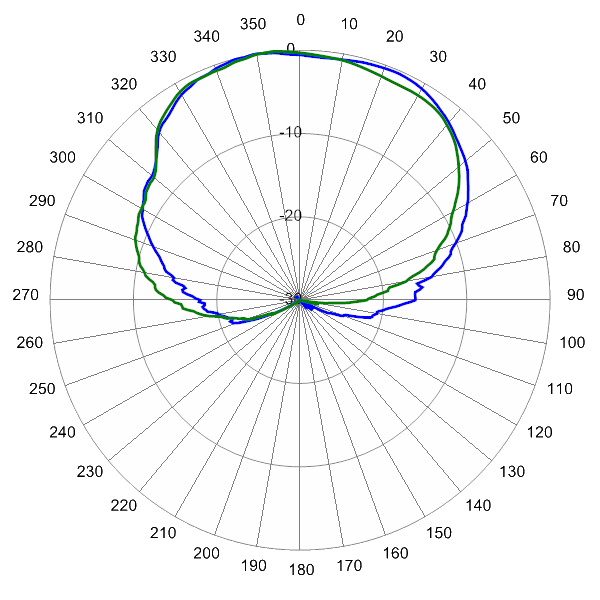

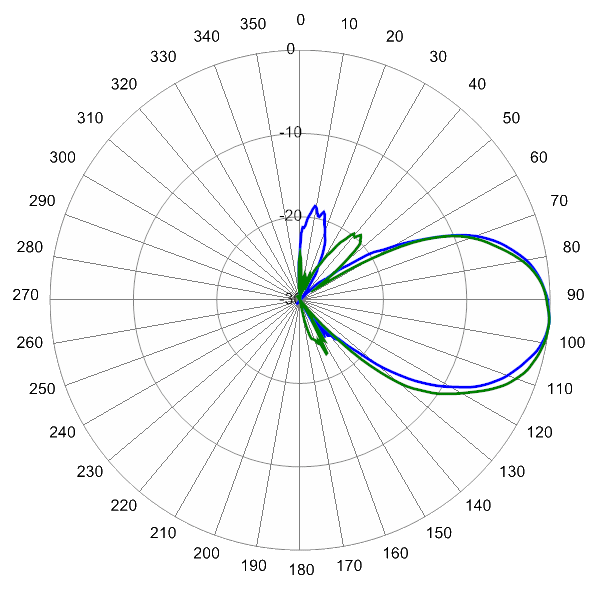

5150 MHz Azimuth | 5150 MHz Elevation 5° | |

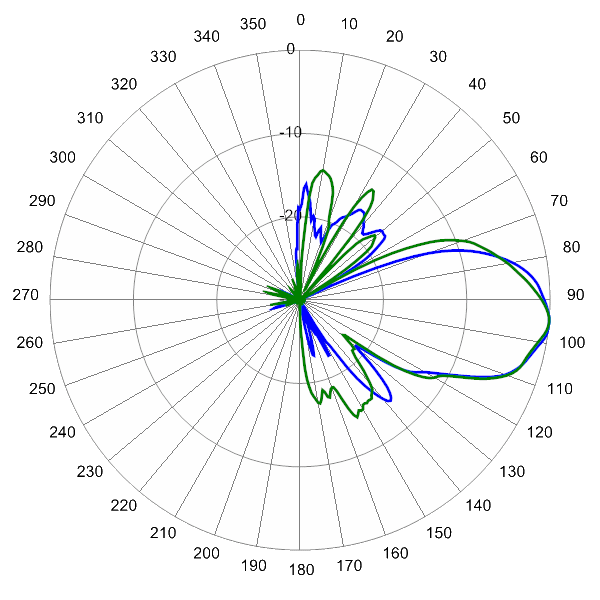

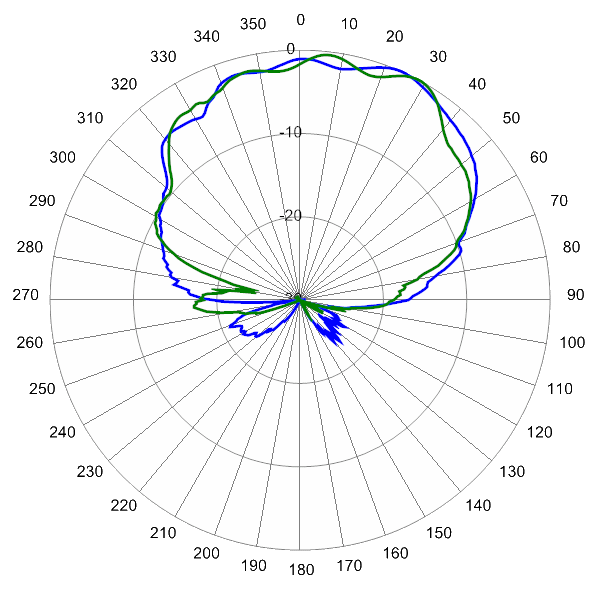

5825 MHz Azimuth | 5825 MHz Elevation 5° |
MBK-08 | MBK-08 Mounting Kit (Tilt Wall Mount) | |
MBC-07 | MBC-07 Mounting Kit (Pole Clamp to convert MBK-08) | |
MBK-09 | MBK-09 Mounting Kit (No Tilt Wall Mount) |
SCA65F-EHJ1AA-K | 1 foot (0.3 m)TriBand Panel antenna with 65° azimuth beamwidth, NEX10 connectors and MBK-08 mounting bracket |
SCA65F-EHJ1AA-K1 | 1 foot (0.3 m)TriBand Panel antenna with 65° azimuth beamwidth, NEX10 connectors and MBK-08 mounting bracket and MBC-07 pole mount clamp |
SCA65F-EHJ1AA-K2 | 1 foot (0.3 m)TriBand Panel antenna with 65° azimuth beamwidth, NEX10 connectors and MBK-09 non tilt fixed wall mount |
MBK-08 | Adjustable wall mount kit or pole mount using steel banding (not supplied) |
MBC-07 | 2-4.5 inch OD (5-11 cm) Pole mount clamp for use with MBK-08 |
MBK-09 | Fixed wall mount kit |
