Datasheet

Ten Port Multi-Band Antenna

DPA65R-KE8A

Eight foot (2.4 m), TriBand, ten port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies
Eight Ultra wide high band ports covering 1695-2690 MHz and two wide low band ports covering 698-960 MHz in a single antenna
Full Spectrum Compliance 698-960 MHZ / 1695-2690 MHz
Supports Dual 4x4 MIMO in high band
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
Equipped with 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers (Type 1 External)

Overview

The CCI 10-Port TriBand array is a ten port antenna, with eight Ultra Wide high band ports covering 1695-2690 MHz and two Ultra Wide low band ports covering 698-960 MHz. The antenna provides the capability to deploy Dual 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2X2 MIMO across low band ports. The CCI 10-Port allows independent tilt control between the low band ports and high band ports.

In this three RET configuration, the 1st RET is dedicated for the two Low Band ports. The 2nd and 3rd RET are each dedicated to four separate High Band ports. This RET arrangement allows for complete flexibility in coverage control between all eight high band ports.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

Dual 4x4 MIMO on High Band
2x2 MIMO on Low Band
Adding additional capacity without adding additional antennas

Electrical

Ports	2 × Low Band Ports for 698-960 MHz
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain	16.1 dBi	16.3 dBi	16.3 dBi	16.5 dBi
Azimuth Beamwidth (-3dB)	67°	70°	66°	61°
Elevation Beamwidth (-3dB)	10.0°	8.8°	8.5°	7.9°
Electrical Downtilt	0° to 10°	0° to 10°	0° to 10°	0° to 10°
Elevation Sidelobes (1st Upper)	<-16 dB	<-18 dB	<-20 dB	<-20 dB
Front-to-Back Ratio @180°	>35 dB	>35 dB	>35 dB	>35 dB
Cross-Polar Discrimination at Peak	>25 dB	>25 dB	>25 dB	>25 dB
Cross-Polar Port-to-Port Isolation	>25 dB	>25 dB	>25 dB	>25 dB
Voltage Standing Wave Ratio (VSWR)	<1.5:1	<1.5:1	<1.5:1	<1.5:1
Passive Intermodulation (2×20W)	≤-153 dBc	≤-153 dBc	≤-153 dBc	≤-153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain over all Tilts (dBi)	15.5	15.7	15.9	16.0
Gain over all Tilts Tolerance (dB)	0.5	0.3	0.5	0.5
Gain at Low-Tilt (dBi)	15.5	15.7	15.7	15.8
Gain at Mid-Tilt (dBi)	15.7	15.9	16.1	16.3
Gain at High-Tilt (dBi)	15.4	15.6	15.8	16.1
Azimuth Beamwidth Tolerance (°)	2.7	3.5	5.7	1.7
Elevation Beamwidth Tolerance (°)	0.9	0.5	0.6	0.5
Electrical Downtilt Deviation (°)	0.8	0.8	0.7	0.5
First Upper Sidelobe Suppression (dB)	13.7	15.1	16.9	16.5
Upper Sidelobe Suppression Peak to 20°(dB)	15.5	15.0	15.9	15.5
Front-to-Back Ratio over ±20° (dB)	25.6	28.5	28.5	29.0
Cross-polar Discrimination at ±60° (dB)	11.2	11.8	12.4	11.6
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Ports	8 × High Band Ports for 1695-2690 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain	16.8 dBi	17.3 dBi	17.4 dBi	17.2 dBi	17.2 dBi
Azimuth Beamwidth (-3dB)	64°	62°	62°	61°	60°
Elevation Beamwidth (-3dB)	8.1°	7.2°	6.7°	5.9°	5.7°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	<-18 dB	<-17 dB	<-17 dB	<-14 dB	<-14 dB
Front-to-Back Ratio @180°	>35 dB	>35 dB	>35 dB	>35 dB	>35 dB
Cross-Polar Discrimination at Peak	>18 dB	>17 dB	>18 dB	>20 dB	>20 dB
Cross-Polar Port-to-Port Isolation	>25 dB	>25 dB	>25 dB	>25 dB	>25 dB
Voltage Standing Wave Ratio (VSWR)	<1.5:1	<1.5:1	<1.5:1	<1.5:1	<1.5:1
Passive Intermodulation (2×20W)	≤-153 dBc	≤-153 dBc	≤-153 dBc	≤-153 dBc	≤-153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain over all Tilts (dBi)	15.9	16.3	16.6	16.3	16.1
Gain over all Tilts Tolerance (dB)	0.5	0.5	0.5	0.6	0.8
Gain at Low-Tilt (dBi)	16.0	16.5	16.7	16.6	16.2
Gain at Mid-Tilt (dBi)	15.9	16.3	16.6	16.4	16.2
Gain at High-Tilt (dBi)	15.8	16.2	16.4	16.0	15.8
Azimuth Beamwidth Tolerance (°)	3.9	3.9	3.8	5.7	5.4
Elevation Beamwidth Tolerance (°)	0.8	0.5	0.5	0.5	0.5
Electrical Downtilt Deviation (°)	1.7	1.6	1.5	1.4	1.4
First Upper Sidelobes Suppression (dB)	14.4	14.3	14.3	11.3	11.2
Upper Sidelobe Suppression Peak to 20°(dB)	12.3	11.7	11.4	10.4	10.9
Front-to-Back Ratio over ±20° (dB)	26.6	26.0	26.0	27.5	27.4
Cross-polar Discrimination at ±60° (dB)	7.6	6.7	6.9	7.1	7.6
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	96.1×12.1×9.6 in (2441×308×244 mm)
Survival Wind Speed	> 150 mph (>241 kph)
Front Wind Load	297 lbs (1320 N) @ 100 mph (161 kph)
Side Wind Load	246 lbs (1096 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	11.6 ft² (1.1 m²)
Weight *	64.6 lbs (29.3 kg)
Connector	10× 4.3-10 Female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting

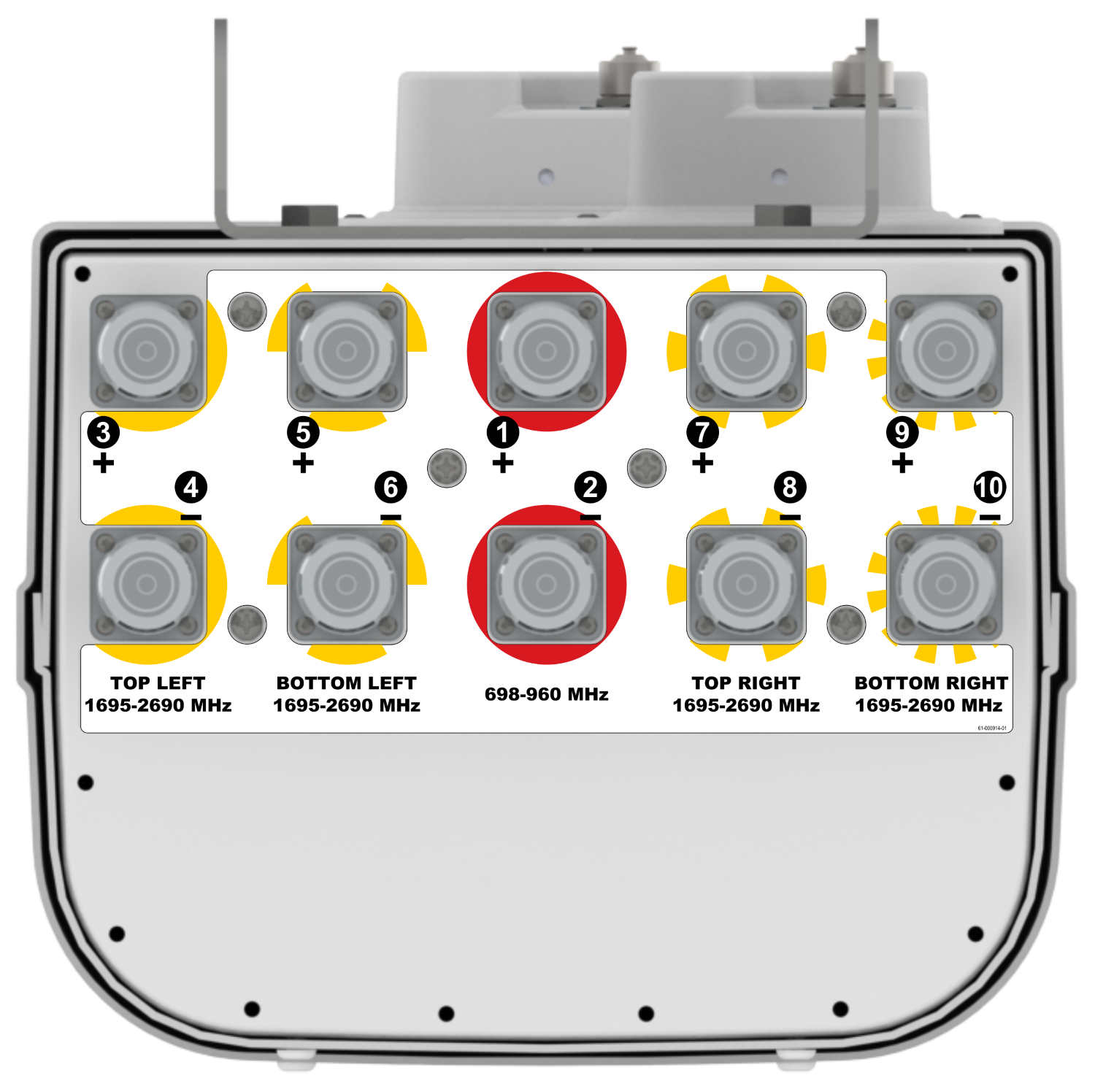

Bottom View

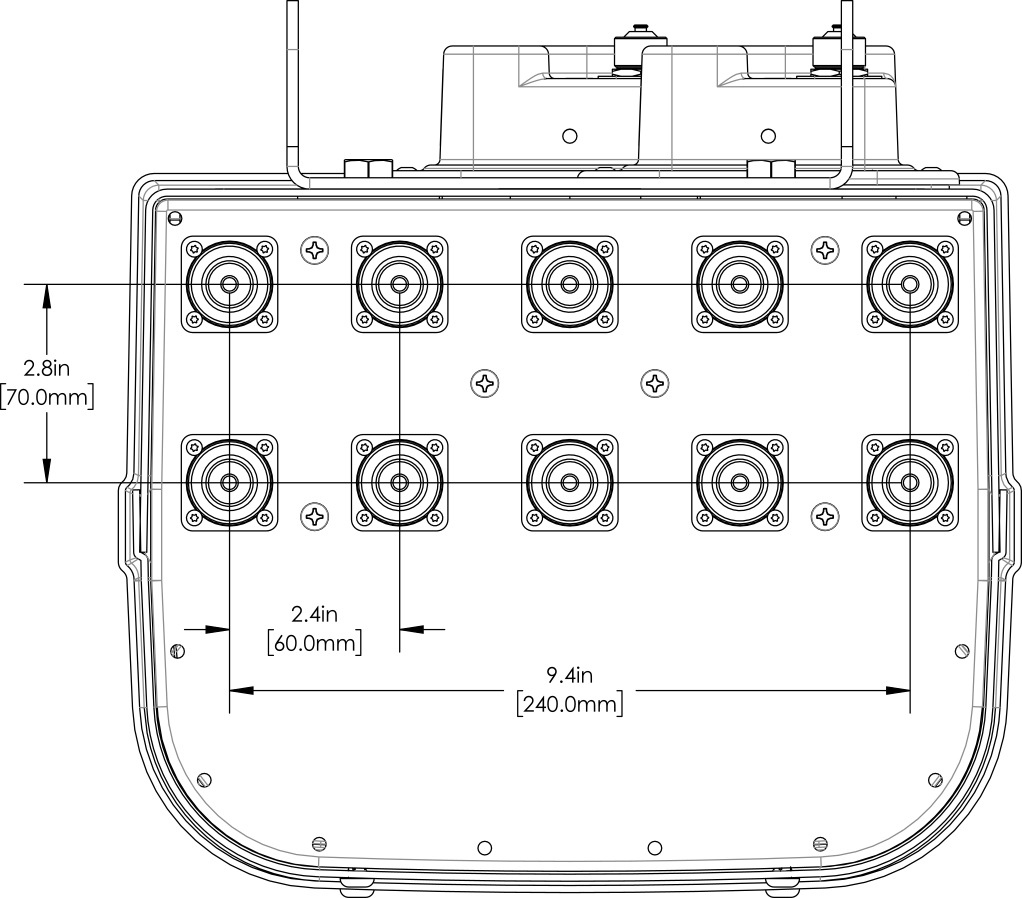

Connector Spacing

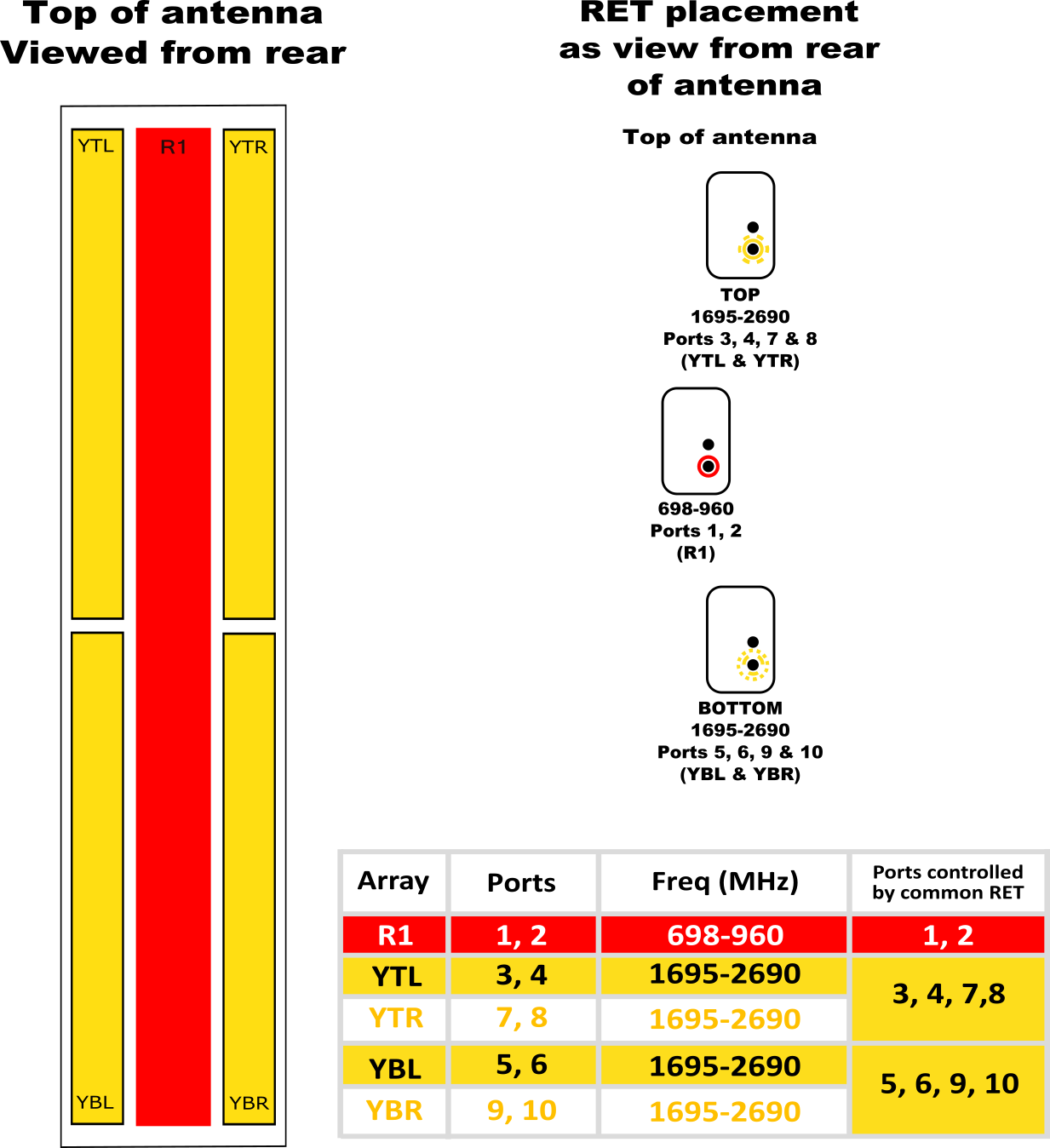

RET/Element Configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

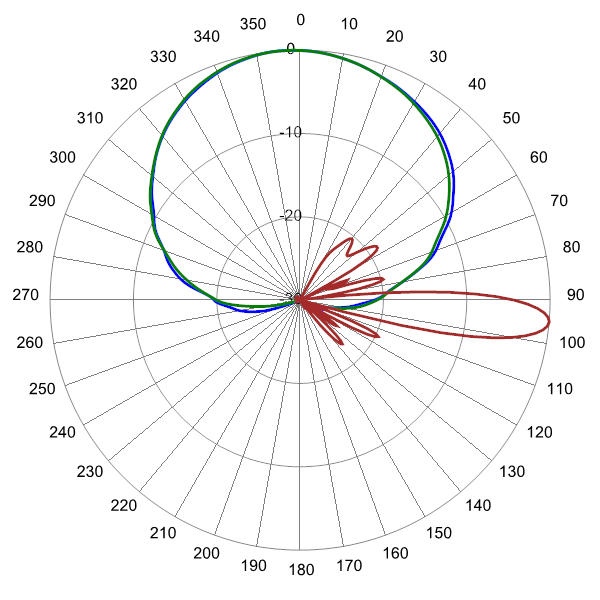

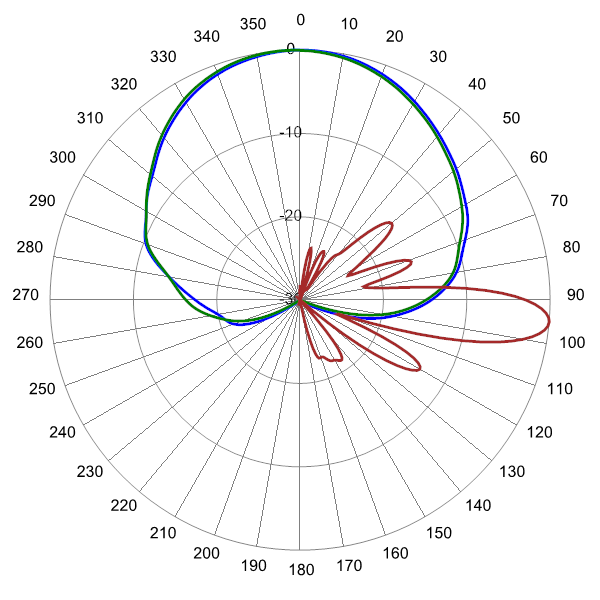

	704 MHz Azimuth with Elevation 5°	850 MHz Azimuth with Elevation 5°

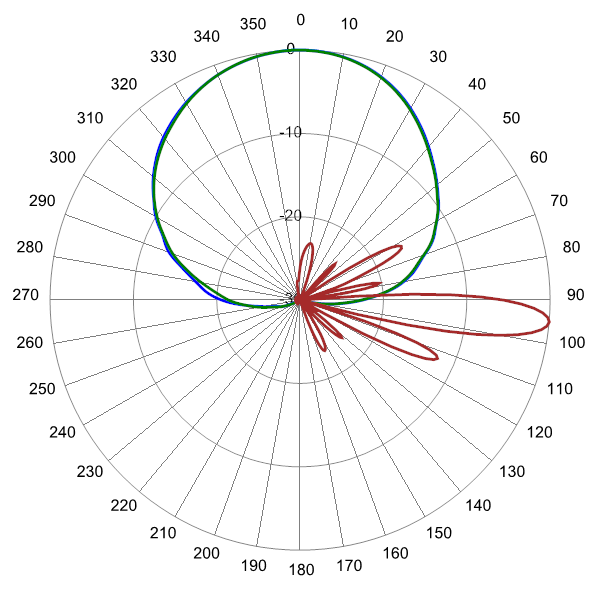

	945 MHz Azimuth with Elevation 5°

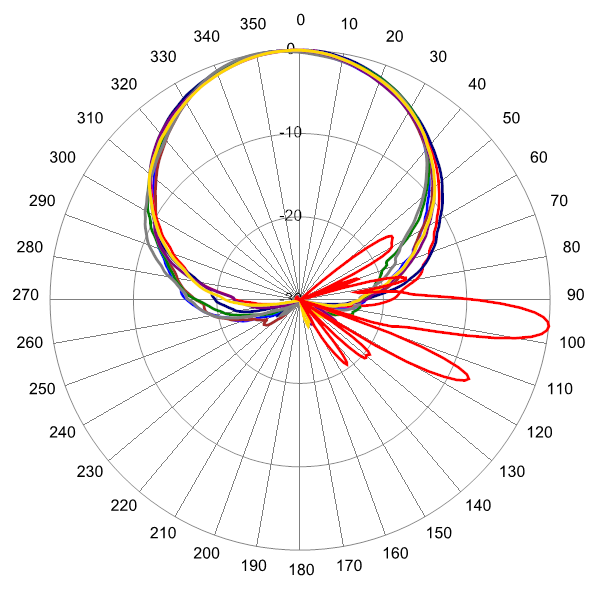

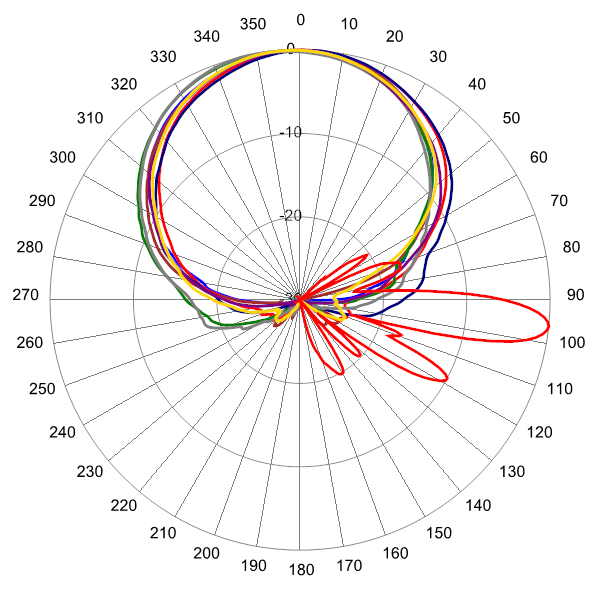

	1740 MHz Azimuth with Elevation 6°	1970 MHz Azimuth with Elevation 6°

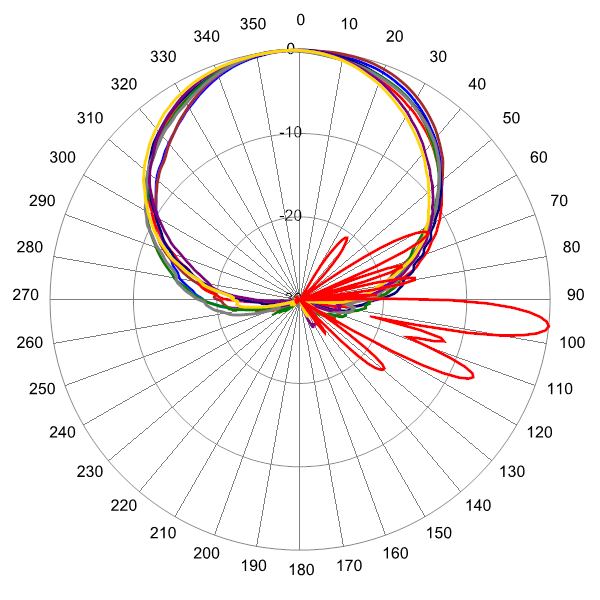

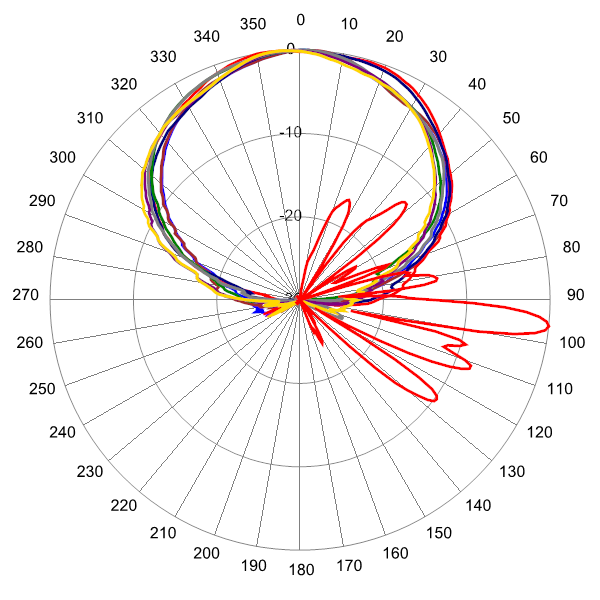

	2155 MHz Azimuth with Elevation 6°	2500 MHz Azimuth with Elevation 6°

MBK-01		MBK-01 Mounting Kit
BSA-RET200		Remote Electrical Tilt System (RET)
CBK-AG-RRU-004		AISG Cable set for three RET antenna
CBK-RA-AG-RRU-003		AISG Right Angle Cable set for three RET Antenna
SCU-AISG2-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	DPA65R-KE8AA Connector Spacing Drawing
	DPA65R-KE8AA RET to Element Configuration
	MBK-01 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

DPA65RKE8A: Text/Planet Format - Rotated Azimuth to 0

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0401E
Configuration File	Version
DPA65-KE8A-YK01.BIN	01
DPA65-KE8A-YE03.BIN	03

Parts & Accessories

DPA65R-KE8AA-K	8 foot (2.4 m) Ten Port antenna with 65° azimuth beamwidth, 4.3-10 female connectors and 3 factory installed external BSA-RET200 RET actuators (Type 1 external) and MBK-01 mounting kit
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Type 1 remote electrical tilt actuator
CBK-AG-RRU-004	Three RET antenna to RRU AISG cable kit
CBK-RA-AG-RRU-003	Three RET antenna to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
