      TriBand Antenna HPA45R-KE8A




  PI HPA45RKE8AA front iso  PI HPA45RKE8AA rear iso

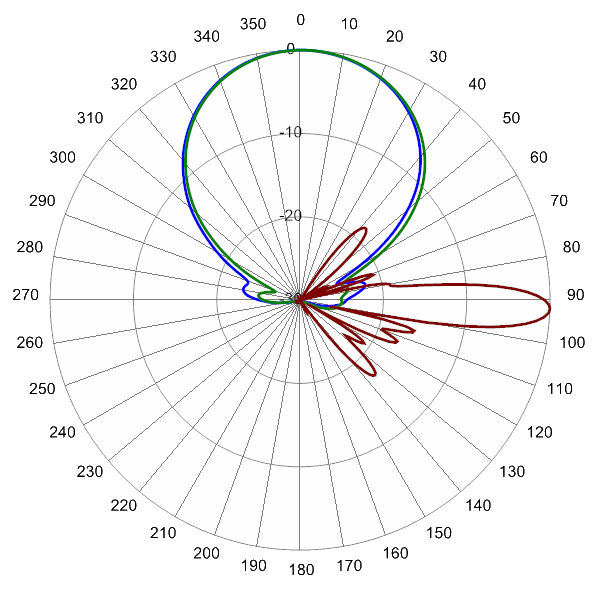

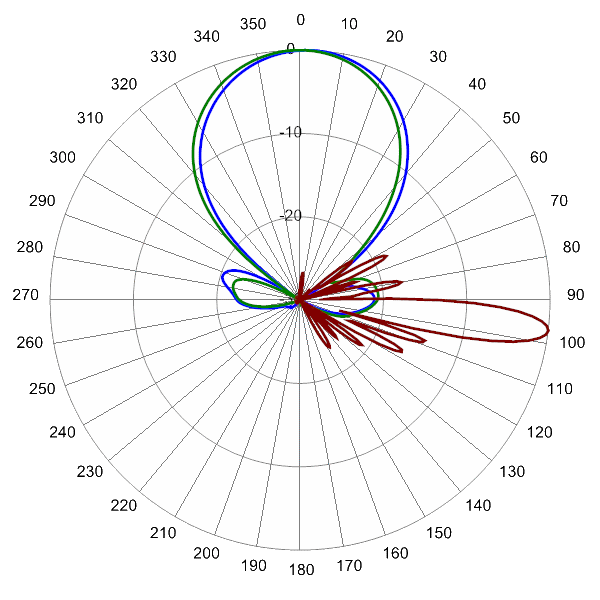

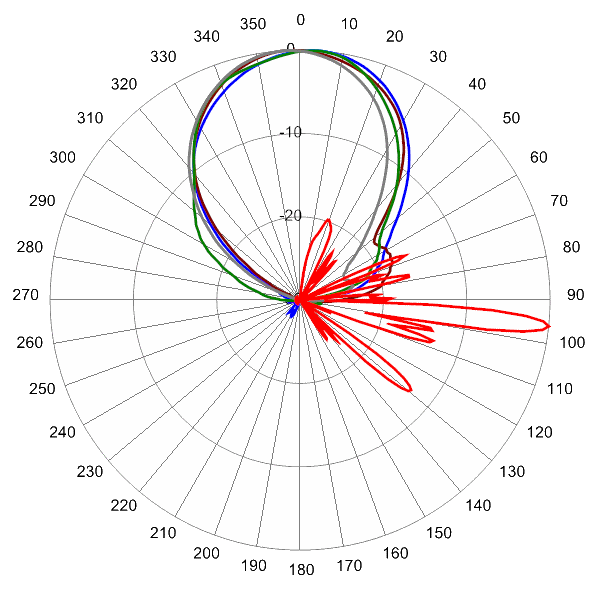

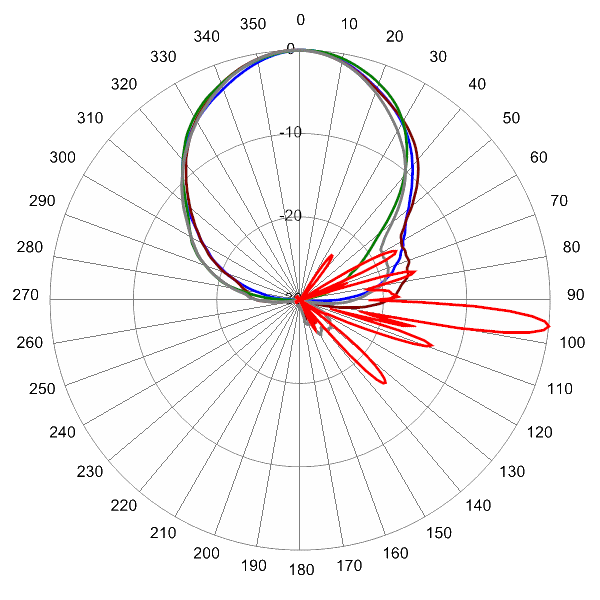

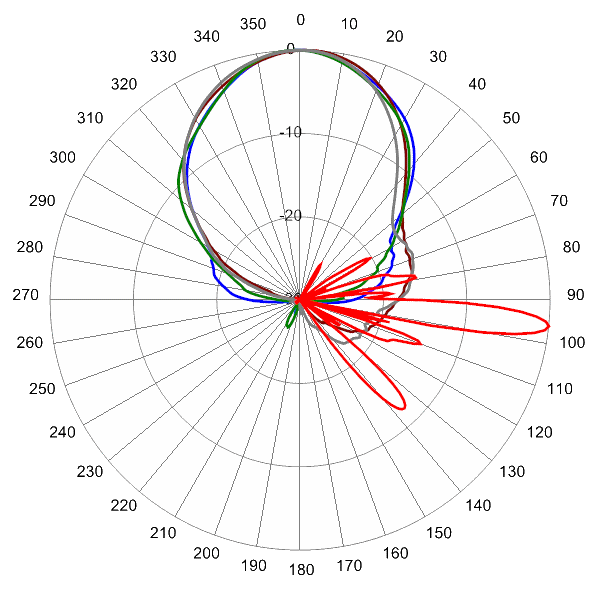

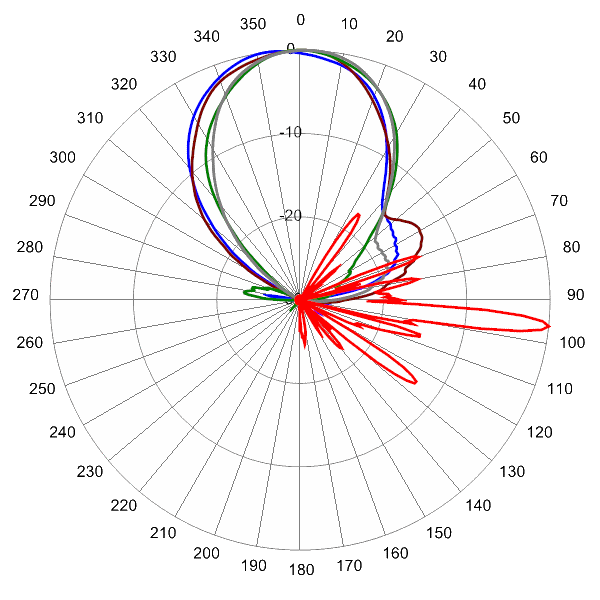

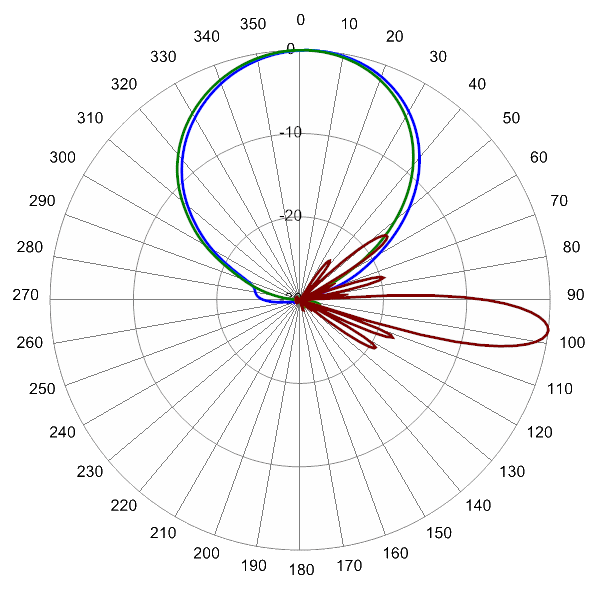

  • Eight foot (2.4 m), TriBand, six port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies

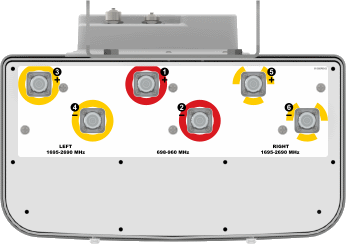

  • Four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 698-960 MHz in a single antenna
  • New enclosure with <15.4” (391 mm) width, narrowest enclosure in the industry for a 45° TriBand Antenna
  • Full Spectrum Compliance 698-960 MHz / 1695-2690 MHz
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements

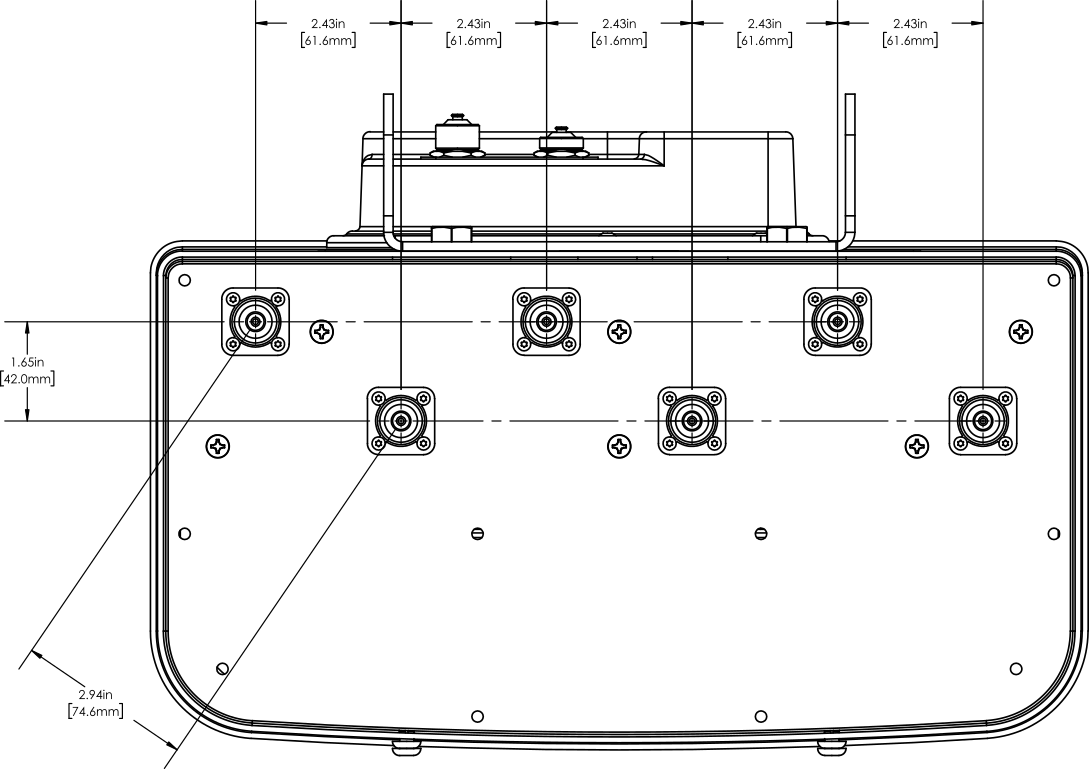

  • Comes with 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Ordering options for 2 or 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) controllers

MBK-01   MBK-01 Mounting Kit
BSA-RET200   Remote Electrical Tilt System (RET)
KUE-CBK-AG-RRU   AISG Cable set for three RET antenna
CBK-AG-RRU-002   AISG Cable set for two RET antenna
CBK-RA-AG-RRU-003   AISG Right Angle Cable set for three RET Antenna
CBK-RA-AG-RRU-005   AISG Right Angle Cable set for two RET Antenna
SCU-AISG2-P   Portable AISG 2.0 Site Control Unit
Configuration File
