Datasheet

HexPort Multi-Band Antenna

HPA45R-BW6A

				Six foot (1.8 m), Multiband, six port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2180 MHz frequencies Four wide high band ports covering 1695-2180 MHz and two wide low band ports covering 698-896 MHz in a single antenna New enclosure with <15.4” (394 mm) width, narrowest enclosure in the industry for a 45° Multiband Hexport Antenna Full Spectrum Compliance 698-896 MHz / 1695-2180 MHz frequencies and upcoming Band 14 Operations LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance Exceeds minimum PIM performance requirements Equipped with 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector Comes equipped with 2 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) controllers

Overview

The CCI HexPort multiband array is a six port antenna, with four wide high band ports covering 1695-2180 MHz and two wide low band ports covering 698-896 MHz. The CCI HexPort provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output in the low band. The CCI HexPort allows separate tilt control between the low band ports and high band ports.
CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the high band and 2×2 MIMO for the low band
Ready for Network Standardization on 4.3-10 connectors
With CCI’s multiband antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical


Ports	2 × Low Band Ports for 698-896 MHz		4 × High Band Ports for 1695-2180 MHz
Frequency Range	698-806 MHz	824-896 MHz	1850-1990 MHz	1695-1780/2110-2180 MHz
Gain	15.6 dBi	16.6 dBi	19.3 dBi	18.5 dBi	19.7 dBi
Azimuth Beamwidth (-3dB)	51°	47°	43°	45°	42°
Elevation Beamwidth (-3dB)	12.1°	10.5°	4.9°	5.5°	4.6°
Electrical Downtilt	2° to 12°	2° to 12°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	< -17 dB	< -18 dB	< -17 dB	< -16 dB	< -17 dB
Front-to-Back Ratio @180°	> 28 dB	> 30 dB	> 32 dB	> 30 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 20 dB	> 22 dB	> 20 dB	> 22 dB	> 22 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground


BASTA Electrical Specifications*
Frequency Range	698-806 MHz	824-896 MHz	1850-1990 MHz	1695-1780/2110-2180 MHz
Gain over all Tilts (dBi)	15.3	16.1	18.7	17.9	19.0
Gain over all Tilts Tolerance (dB)	0.3	0.5	0.5	0.5	0.5
Gain at Low-Tilt (dBi)	15.5	16.2	18.5	17.8	18.8
Gain at Mid-Tilt (dBi)	15.3	16.1	18.8	17.9	19.2
Gain at High-Tilt (dBi)	15.0	15.9	18.6	17.9	19.0
Azimuth Beamwidth Tolerance (°)	0.8	3.0	3.2	2.9	3.6
Elevation Beamwidth Tolerance (°)	0.9	0.5	0.3	0.3	0.3
Electrical Downtilt Deviation (°)	0.9	0.8	0.4	0.3	0.4
First Upper Sidelobes Suppression (dB)	13.3	15.8	13.8	13.5	13.6
Upper Sidelobe Suppression Peak to 20° (dB)	14.6	16.2	13.2	13.5	12.7
Front-to-Back Ratio over ±20° (dB)	22.7	23.4	20.9	19.0	21.8
Cross-polar Discrimination at 3 dB (dB)	18.2	19.2	16.7	15.0	17.1
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	72.0×15.4×8.2 in (1828×391×208 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	255 lbs (1136 N) @ 100 mph (161 kph)
Side Wind Load	153 lbs (680 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	10.0 ft² (0.9 m²)
Weight *	63.9 lbs (29.0 kg)
RET Weight	3.3 lbs (1.5 kg)
Connector	6 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting and RET

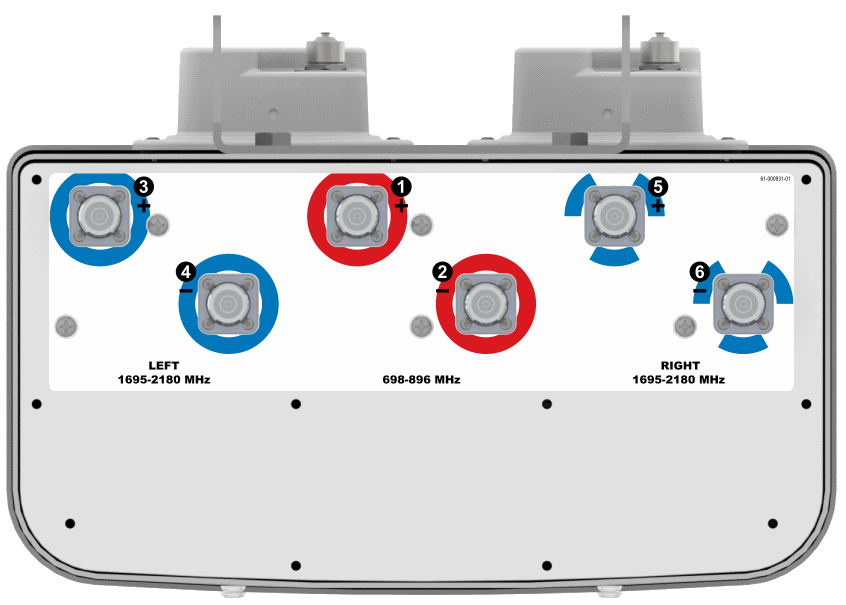

Bottom View	HPA45R-BW6A

Connector Spacing Diagram	HPA45R-BW6A

RET to Element Configuration	HPA45R-BW6AA Element and RET configuation

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

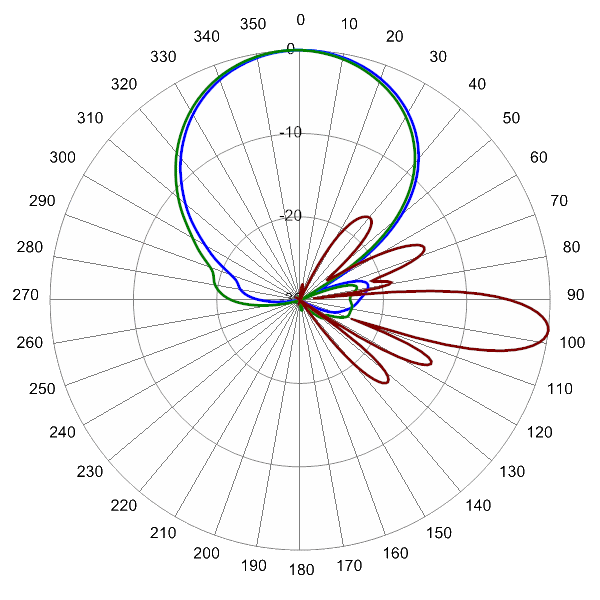

	734 MHz Azimuth with Elevation 7°	806 MHz Azimuth with Elevation 7°

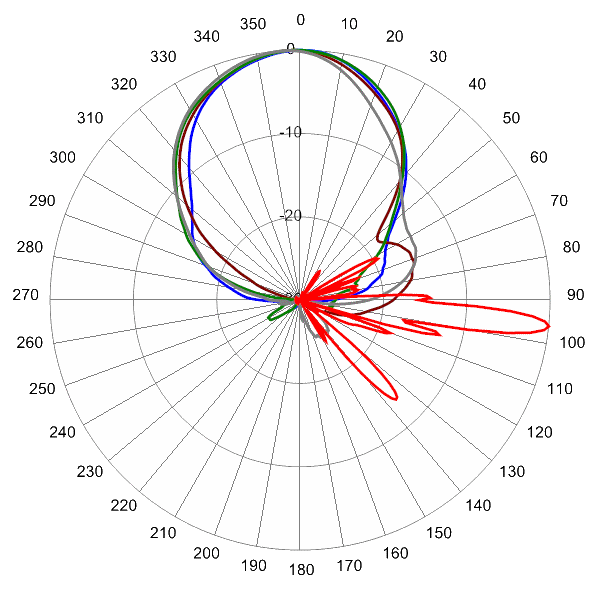

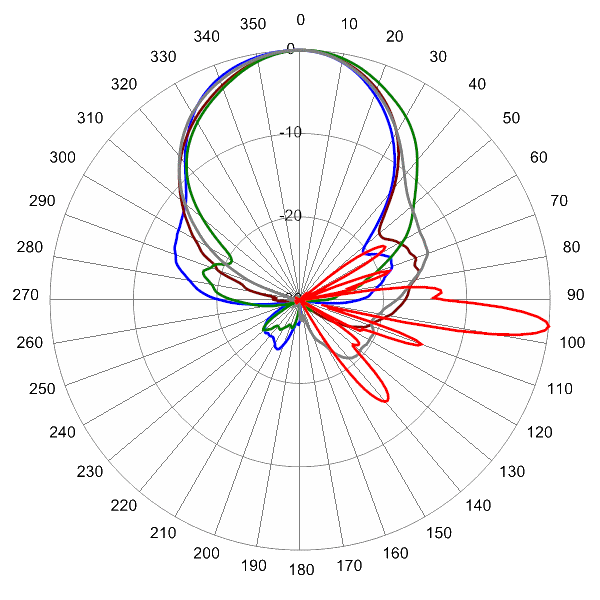

	1780 MHz Azimuth with Elevation 6°	1960 MHz Azimuth with Elevation 6°

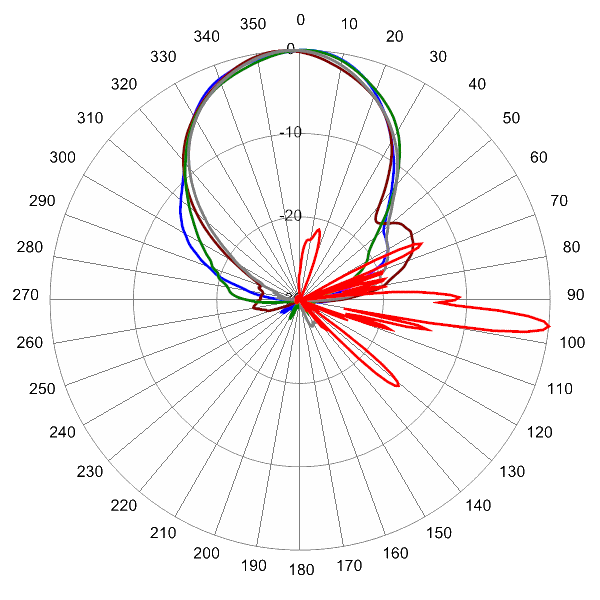

	2155 MHz Azimuth with Elevation 6°

MBK-01		MBK-01 Mounting Kit
BSA-RET200		Remote Electrical Tilt System (RET)
CBK-AG-RRU-001		AISG Cable set for two RET antenna
CBK-RA-AG-RRU-005		AISG Right Angle Cable set for two RET Antenna
SCU-AISG2-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	HPA45R-BW6A Connector Spacing Diagram
	HPA45R-BW6AA Antenna/RET Config Diagram
	MBK-01 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

HPA65RBW6A: Text/Planet Format - DownTilt - 65

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0301
Configuration File	Version
OPA45-BW6A-HB01.BIN	01
OPA45-BW6A-HW01.BIN	01

BSA-RET200 SA-DC0401E
Configuration File	Version
OPA45-BW6A-YB01.BIN	01
OPA45-BW6A-YW01.BIN	01

Parts & Accessories

HPA45R-BW6AA-K	Six foot (1.8 m) MultiBand antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 2 factory installed BSA-RET200 RET actuators (Type 1 External) and MBK-01 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Remote electrical tilt actuator
CBK-AG-RRU-001	HexPort antenna with 2 RET to RRU AISG cable kit
CBK-RA-AG-RRU-005	HexPort antenna with 2 RET to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
