      Multi-Band Twelve Port Antenna TPA65R-BU4B




  PI TPA65RBU4B front isometric PI TPA65RBU4B rear isometric

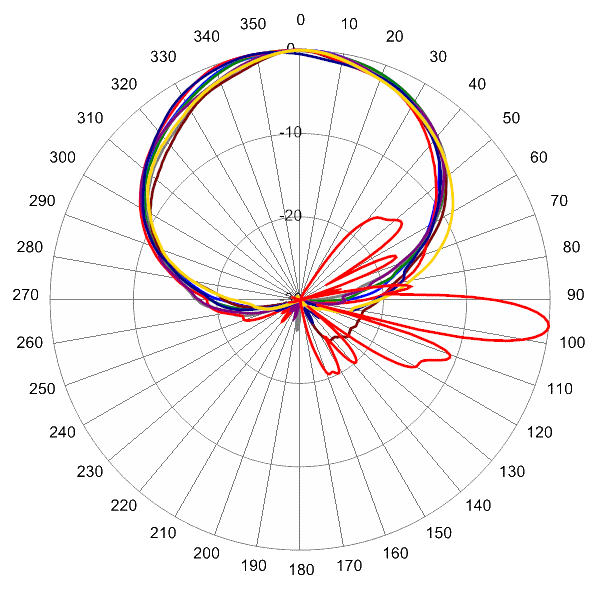

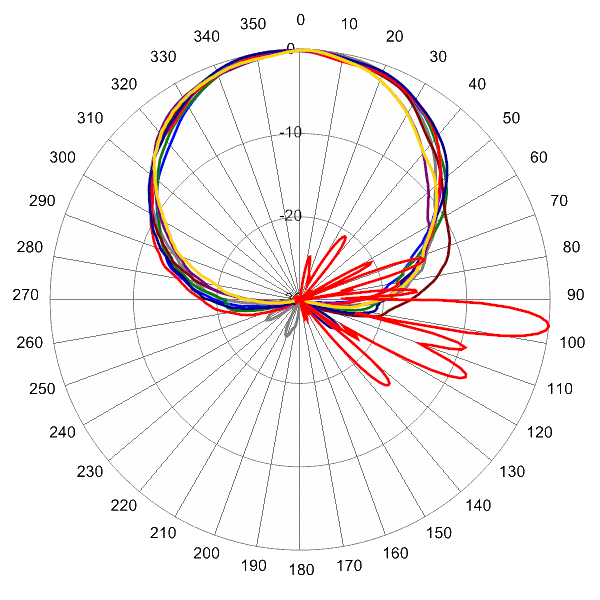

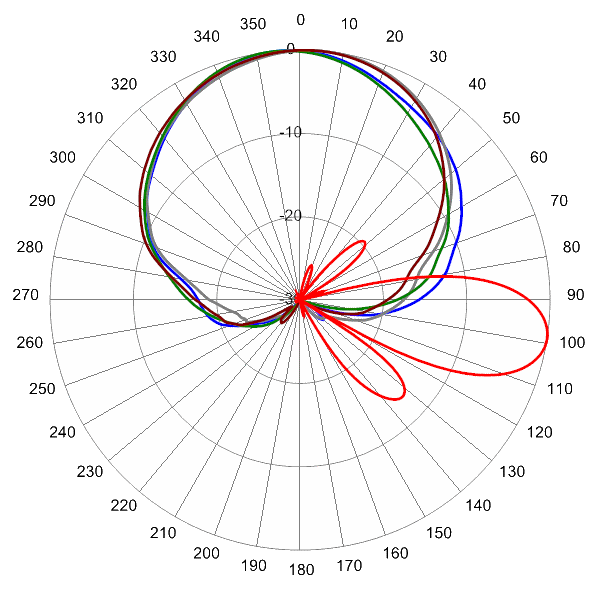

  • Four foot (1.2 m) multiband, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

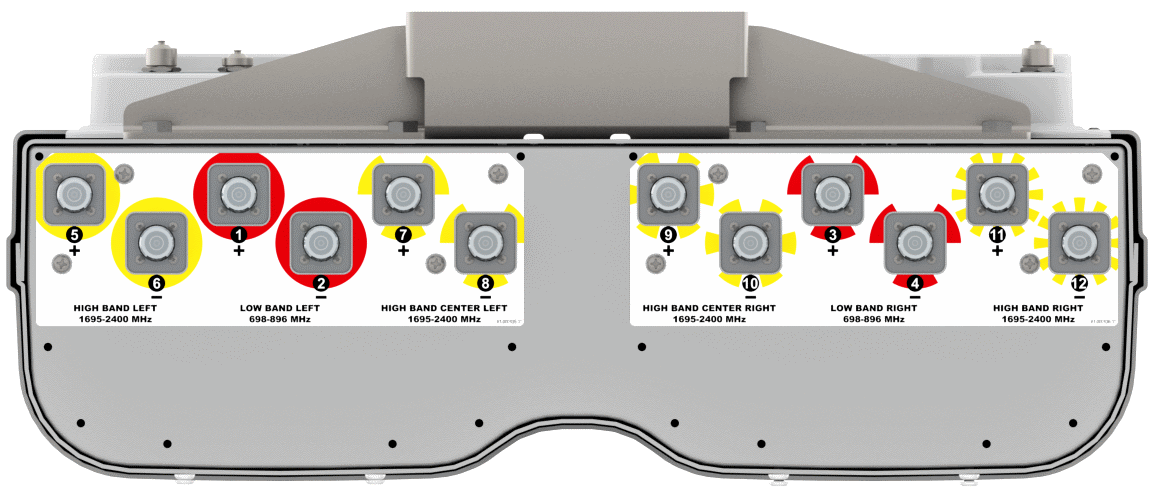

  • Eight high band ports covering 1695-2400 MHz and four low band ports covering 698-896 MHz in a single antenna enclosure
  • Full Spectrum Compliance for WCS and AWS-3 frequencies and upcoming Band 14 Operations
  • Array configuration allows for 4T4R (4X4 MIMO) on Low Band, essential for Band 14 Operations
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with 4 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers (Type 1 External)
MBK-02   MBK-02 Mounting Kit
BSA-RET200   Remote Electrical Tilt System (RET)
KUE-CBK-AG-RRU   AISG Cable set for four RET antenna
KUE-CBK-RA-AG-RRU   AISG Right Angle Cable set for four RET Antenna
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
Configuration File
