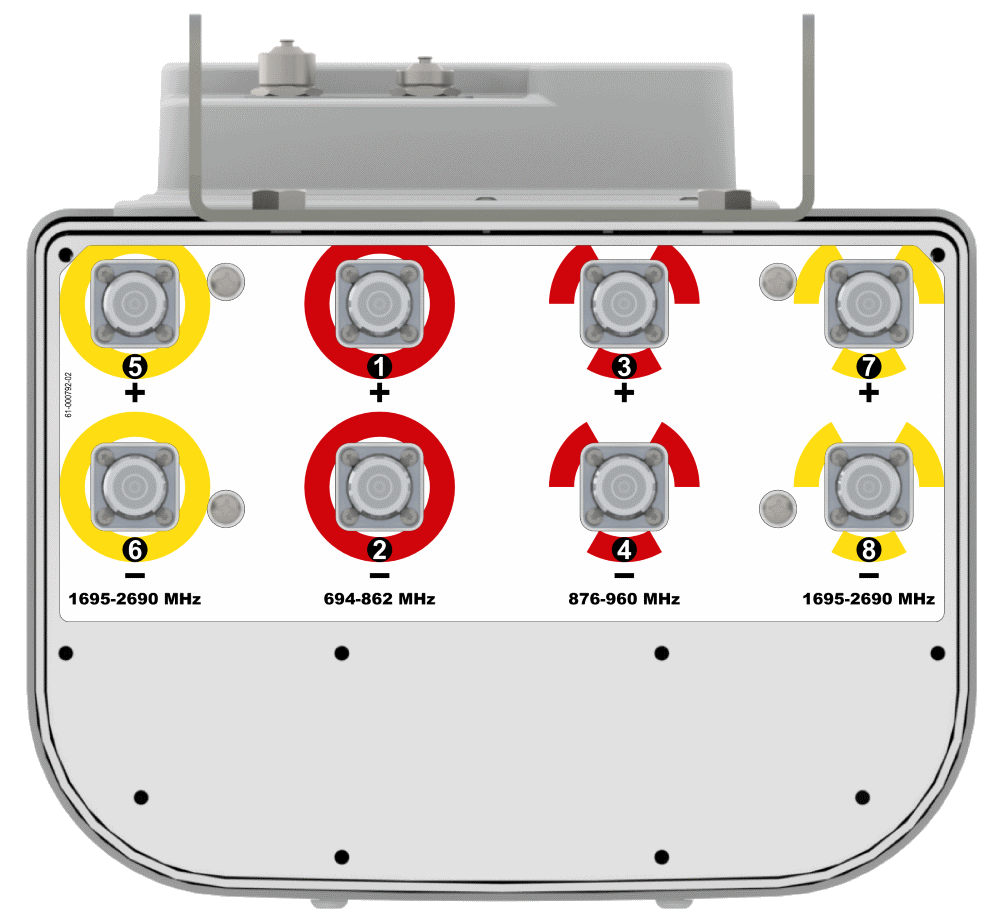

The CCI QuadBand array is an eight port antenna, with four wide high band ports covering 1695-2690 MHz and four frequency specific low band ports covering 694-862 MHz and 876-960 MHz. The antenna provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output across each of the paired low band ports.
The CCI OctoPort allows independent tilt control between the low band ports and high band ports, with two RET configurations available, either two or three RET Controllers (Type 1 External).
In a two RET configuration, the 1st RET is dedicated for the Low Band ports and the 2nd RET is dedicated for the High Band ports. With the use of a single RET in the High Band, equal tilt is achieved across all four High Band ports, which ensures optimal 4x4 MIMO performance.
In a three RET configuration, the 1st RET is dedicated for the Low Band ports and the 2nd and 3rd RET is dedicated for the High Band ports. The paired High Band ports can be tilted independently, enabling maximum flexibility in network deployment.
CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
|
