Datasheet

HexPort Multi-Band Antenna

HPA33R-CS4A

Four foot (1.2 m), multi-band, six port antenna with a 33° azimuth beamwidth optimized for covering 817-869 MHz and 1850-1995 MHz / 2496-2690 MHz frequencies
Four high band ports covering Band 25 and Band 41 and two wide low band ports covering Band 26 in a single antenna
Narrow Enclosure, 18.2” (463mm) width, compared to industry standard width of 23” (586mm) for similar specified products
Full Spectrum Compliance for Band 26, Band 25 and Band 41
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Two field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET)
Kit Options include DPO-7126Y-0-Q1, CCI’s High Performance, Low Loss, 8-4 Diplexer for Band 25 and Band 41
Ideal solution for difficult Band 41 8T/8R deployments, where structural, leasing and zoning are a concern.

Overview

The CCI HexPort multiband array is a six port antenna, with four high band ports covering Band 25 and Band 41 and two low band ports covering Band 26. The CCI HexPort provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output in the low band. The CCI HexPort allows separate tilt control between the low band ports and high band ports.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the high band and 2×2 MIMO for the low band
Supports 8T/8R configurations on Band 41, with CCI’s High Performance, Low Loss Diplexer for Band 25 and Band 41
With CCI’s multi-band antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2× Low Band Ports for 817-869 MHz	4 × High Band Ports for 1850-1995 MHz and 2496-2690 MHz
Frequency Range	817-869 MHz	1850-1995 MHz	2496-2690 MHz
Gain (Peak)	16.2 dBi	18.4 dBi	17.6 dBi
Gain (Average)	15.8 dBi	17.6 dBi	16.5 dBi
Azimuth Beamwidth (-3dB)	46°	37°	33°
Elevation Beamwidth (-3dB)	16.6°	9.1°	7.7°
Electrical Downtilt	0° to 14°	0° to 8°	0° to 8°
Elevation Sidelobes (1st Upper)	< -20 dB	< -16 dB	< -18 dB
Elevation Sidelobes* (1st Upper)	- 20.0 dB	- 15.8 dB	-17.4 dB
Front-to-Back Ratio* over ± 15°	27.7 dB	35.6 dB	34.4 dB
Cross-Polar Discrimination (at Peak)	> 30 dB	> 30 dB	> 19 dB
Cross-Polar Discrimination (at 3 dB)	> 27 dB	> 25 dB	> 18 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio(VSWR)	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	300 watts	300 watts
Polarization	Dual Pol 45°	Dual Pol 45°	Dual Pol 45°
Input Impedance	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	47.5×18.2×8.5 in (1208×463×216 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	186 lbs (826 N) @ 100 mph (161 kph)
Side Wind Load	96 lbs (427 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	7.3 ft² (0.7 m²)
Weight *	37.7 lbs (17.1 kg)
RET System Weight	3.3 lbs (1.5 kg)
Connector	6 × 7-16 DIN female long neck
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting and RET

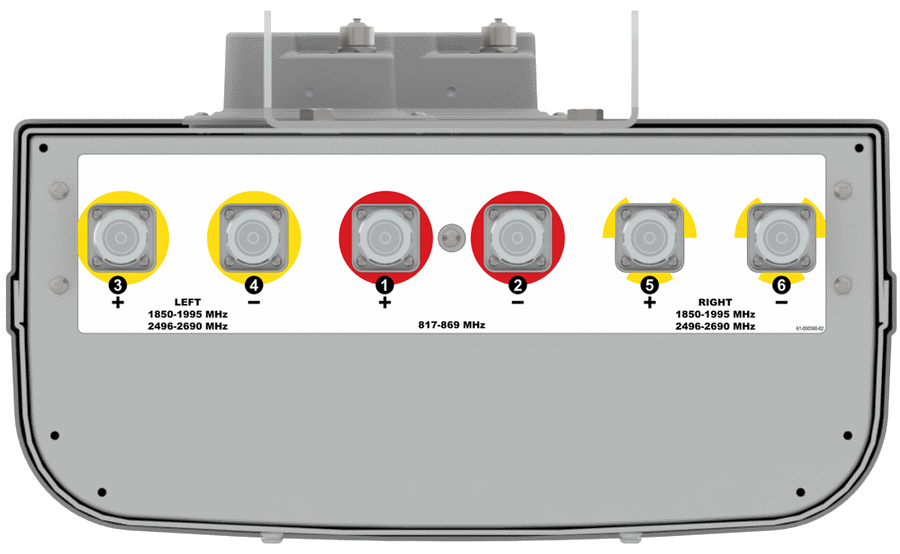

Bottom View		RET Connection Diagram

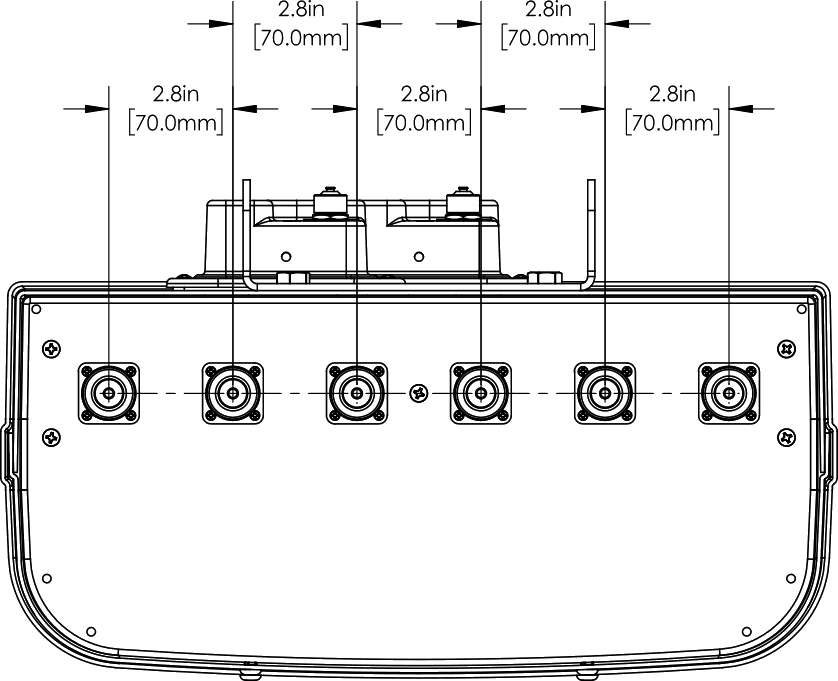

Connector Spacing

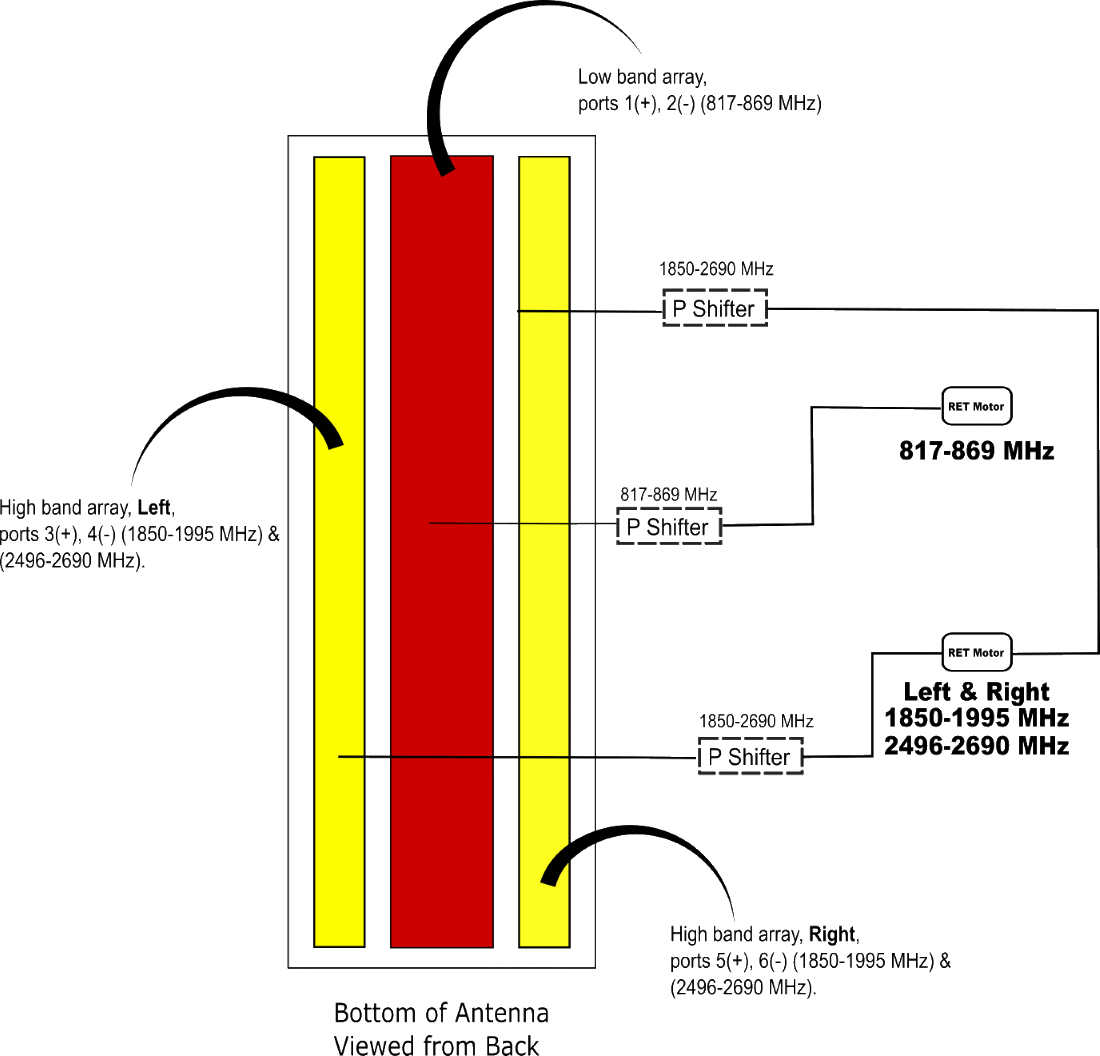

	HPA33R-CS6AA Element and RET configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

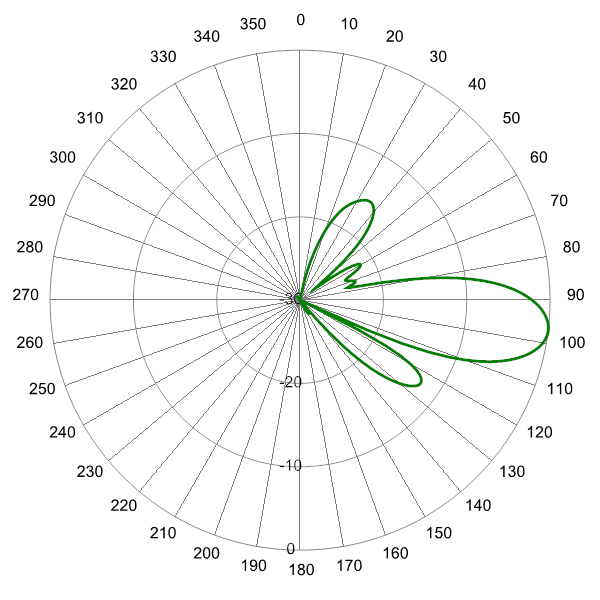

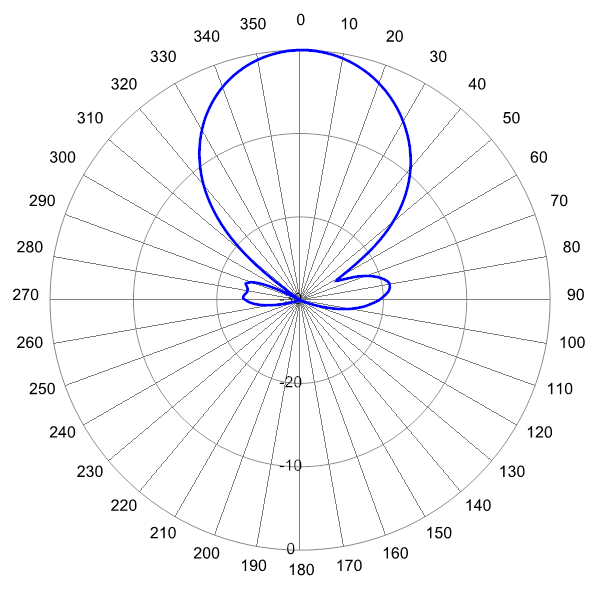

	860 MHz Azimuth	860 MHz Elevation 7°

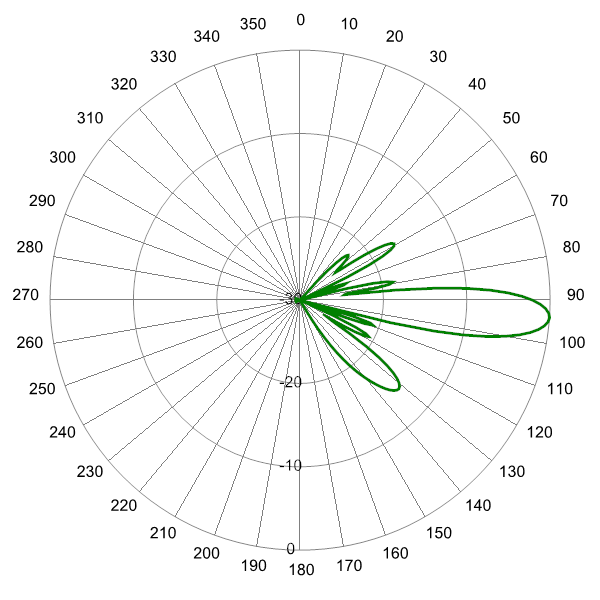

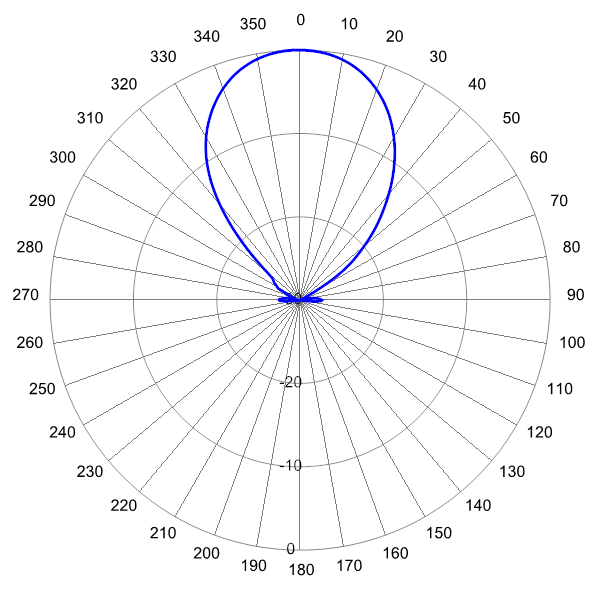

	1920 MHz Azimuth	1920 MHz Elevation 4°

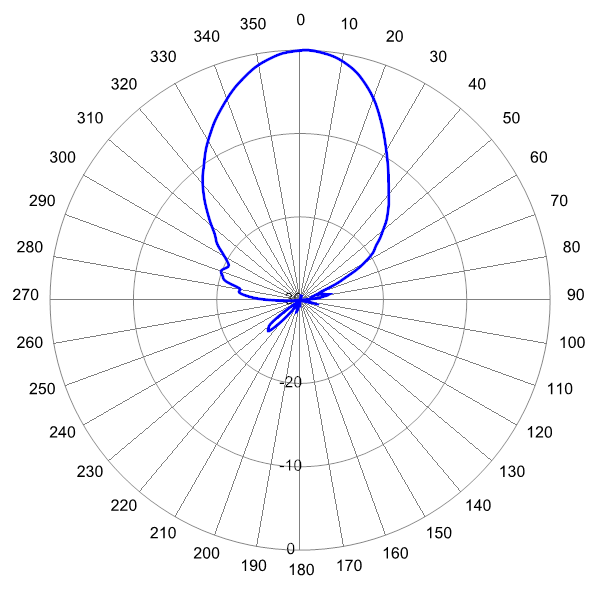

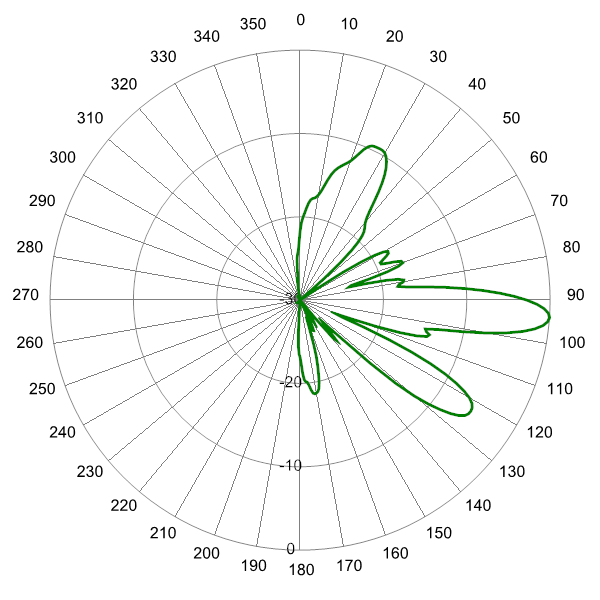

	2560 MHz Azimuth	2560 MHz Elevation 4°

Model BSA-RET200

Remote Electrical Tilt System (RET)

Product Information

	Datasheet
	HPA33R-CS4AA Connector Spacing Diagram
	HPA33R-CS4AA Element/RET Configuration Diagram
	MBK-02 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

HPA33RCS4A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0301
Configuration File	Version
HPA33-CS4A-HC01.BIN	01
HPA33-CS4A-HE03.BIN	03

BSA-RET200 SA-DC0401E
Configuration File	Version
HPA33-CS4A-YC01.BIN	01
HPA33-CS4A-YE02.BIN	02

Parts & Accessories

HPA33R-CS4AA	Four foot (1.2 m) antenna with 33° azimuth beamwidth, 7-16 DIN connectors and 2 factory installed BSA-RET200 RET actuators
HPA33R-CS4AA-K	Four foot (1.2 m) antenna with 33° azimuth beamwidth, 7-16 DIN connectors, 2 factory installed BSA-RET200 RET actuators and MBK-02 mounting kit.
HPA33R-CS4AA-K1	Four foot (1.2 m) antenna with 33° azimuth beamwidth, 7-16 DIN connectors, 2 factory installed BSA-RET200 RET actuators and MBK-02 mounting kit. Supplied with Diplexer DPO-7126Y-0-Q1 (8-4 Diplexer)
MBK-02	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Remote electrical tilt actuator
DPO-7126Y-0x1	DPO-7126Y-0-Q1 (8-4 Diplexer)
QPA-CBK-AG-RRU	Hexport antenna with 2 RET's to RRU AISG cable kit
QPA-CBK-RA-AG-RRU	Hexport antenna with 2 RET's to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
