Datasheet

DualBand Twelve Port Antenna

TPA65R-BU6Dv2

Product Update 1 – New innovative LB Dipole implemented, which improves gain and pattern performance in the MB arrays
Product Update 2 – Product now utilizes Internally Daisy Chained Type 17 RETs
Six foot (1.8 m) DualBand, twelve port antenna with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies
Eight wide mid band ports covering 1695-2400 MHz and four wide low band ports covering 698-896 MHz in a single antenna enclosure
Full Spectrum Compliance 698-896 MHz / 1695-2400 MHz
Innovative Low and Mid Band Array configuration allows for 4T4R (4x4 MIMO) on Low Band and Dual 4T4R (4x4 MIMO) Mid Band Arrays, using full length arrays (non stacked), all in a 20.7” (525mm) width enclosure, an Industry First
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Equipped with new 4.3-10 connectors

Overview

The CCI 12-Port DualBand array is a twelve port antenna, with eight wide mid band ports covering 1695-2400 MHz and four wide low band ports covering 698-896 MHz. The antenna provides the capability to deploy Dual 4×4 Multiple-input Multiple-output (MIMO) in the mid band and 4×4 MIMO across low band ports. The CCI 12-Port mid band ports have independent tilt control between left and right antenna arrays.

In this three RET configuration, the 1st RET is dedicated for the four Low Band ports. The 2nd RET is dedicated for the four Left Mid Band ports and the 3rd RET is dedicated for the four Right Mid Band ports. This RET arrangement allows for complete flexibility in coverage control between left and right mid band antenna arrays.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

Dual 4×4 MIMO for the Mid Band and 4×4 MIMO Low Band ports
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s DualBand antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	4 × Low Band Ports for 698-896 MHz
Frequency Range	698-806 MHz	824-896 MHz
Gain	14.4 dBi	15.3 dBi
Azimuth Beamwidth (-3dB)	72°	61°
Elevation Beamwidth (-3dB)	12.7°	11.1°
Electrical Downtilt	2° to 12°	2° to 12°
Elevation Sidelobes (1st Upper)	<-18 dB	<-20 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground

BASTA Electrical Specifications
Frequency Range	698-806 MHz	824-896 MHz
Gain over all Tilts (dBi)	13.6	14.4
Gain over all Tilts Tolerance (dB)	0.7	0.5
Gain at Low-Tilt (dBi)	13.8	14.6
Gain at Mid-Tilt (dBi)	13.6	14.4
Gain at High-Tilt (dBi)	13.3	14.1
Azimuth Beamwidth Tolerance (°)	8.5	7.9
Elevation Beamwidth Tolerance (°)	1.0	0.6
Electrical Downtilt Deviation (°)	0.7	0.4
First Upper Sidelobe Suppression (dB)	14.9	16.6
Upper Sidelobe Suppression Peak to 20°(dB)	15.9	17.4
Front-to-Back Ratio over ±20° (dB)	24.4	27.9
Cross-polar Discrimination at ±60° (dB)	10.7	8.6
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Ports	8 × Mid Band Ports for 1695-2400 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain	17.6 dBi	18.2 dBi	18.6 dBi	18.6 dBi
Azimuth Beamwidth (-3dB)	69°	63°	61°	56°
Elevation Beamwidth (-3dB)	5.6°	5.1°	4.8°	4.1°
Electrical Downtilt	0° to 8°	0° to 8°	0° to 8°	0° to 8°
Elevation Sidelobes (1st Upper)	<-16 dB	<-16 dB	<-16 dB	<-18 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 19 dB	> 18 dB	> 19 dB	> 21 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain over all Tilts (dBi)	16.4	17.1	17.6	17.7
Gain over all Tilts Tolerance (dB)	0.6	0.8	0.8	0.9
Gain at Low-Tilt (dBi)	16.2	16.6	17.1	17.0
Gain at Mid-Tilt (dBi)	16.5	17.3	17.9	18.0
Gain at High-Tilt (dBi)	16.6	17.3	17.8	18.1
Azimuth Beamwidth Tolerance (°)	9.0	6.8	5.6	6.5
Elevation Beamwidth Tolerance (°)	0.4	0.3	0.4	0.2
Electrical Downtilt Deviation (°)	0.7	0.6	0.6	0.9
First Upper Sidelobes Suppression (dB)	12.3	12.9	11.9	14.3
Upper Sidelobe Suppression Peak to 20°(dB)	10.9	12.8	11.9	13.5
Front-to-Back Ratio over ±20° (dB)	28.2	29.2	29.3	27.4
Cross-polar Discrimination at ±60° (dB)	9.7	8.8	8.6	6.0
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	71.2×20.7×7.7 in (1808×525×197 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	244 lbf @ 100 mph 1085 N @ 161 kph
Side Wind Load¹	54 lbf @ 100 mph 241 N @ 161 kph
Effective Projective Area (EPA), Front¹	9.7 ft² (0.9 m²)
Weight *	68.3 lbs (31.0 kg)
RF Connector	12 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)
¹Windload values calculated using CFD analysis * Weight excludes mounting

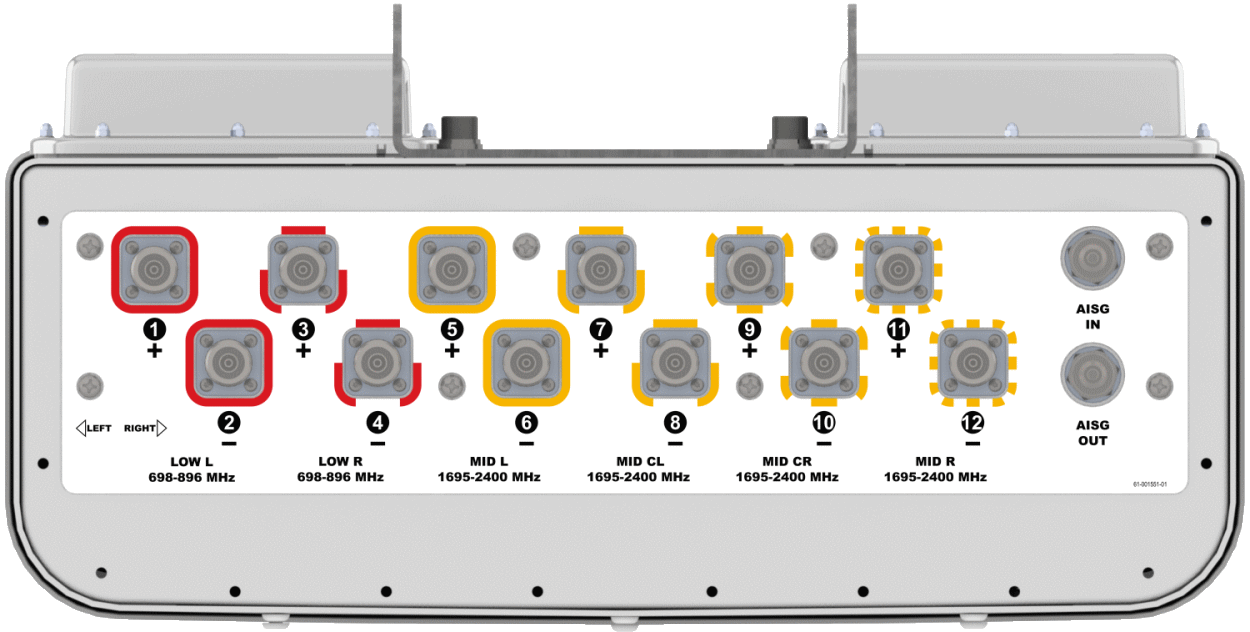

Bottom View

Connector Spacing

RET to Element Configuration	TPA65R-BU6Dv2B Element and RET configuration (Type 17 Internal RET)

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

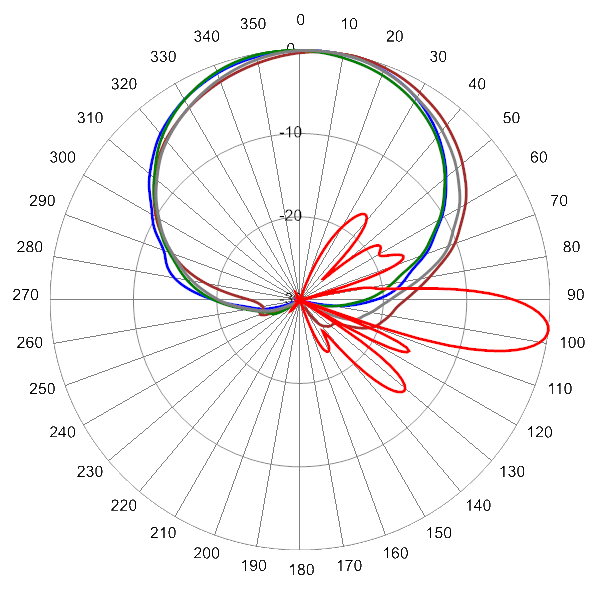

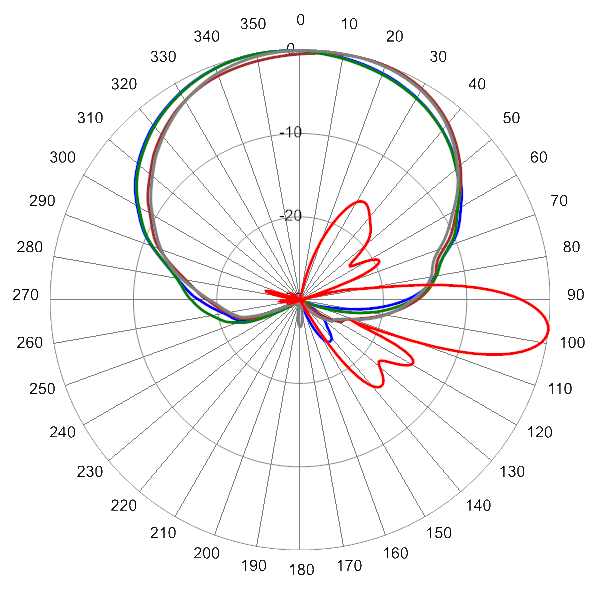

	734 MHz Azimuth with Elevation 7°	824 MHz Azimuth with Elevation 7°

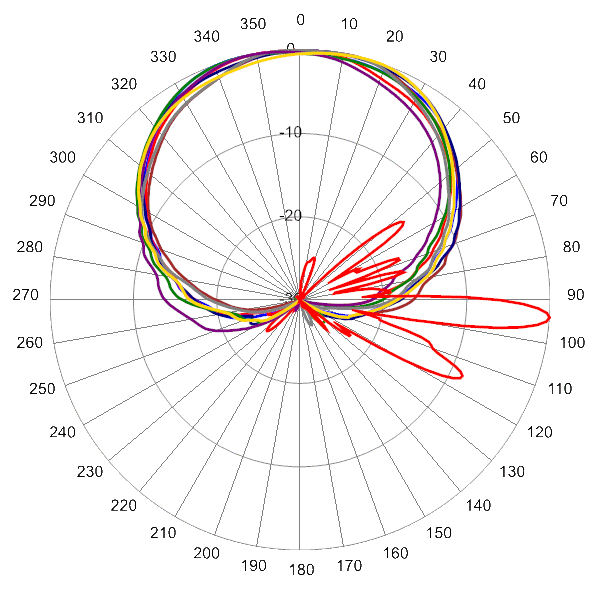

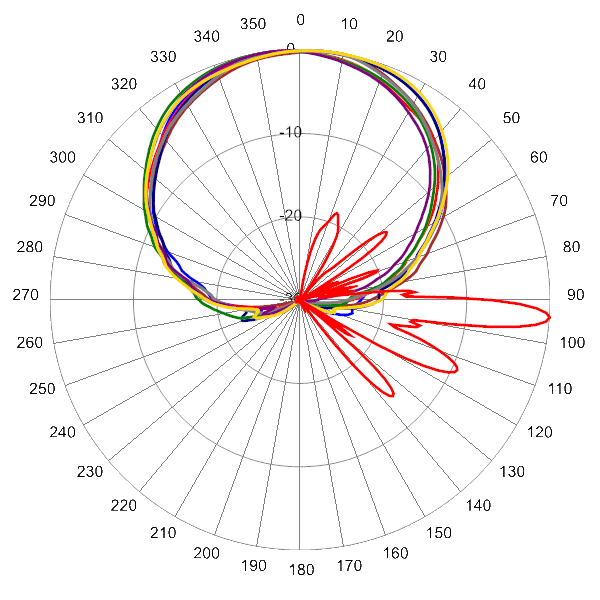

	1720 MHz Azimuth with Elevation 4°	1850 MHz Azimuth with Elevation 4°

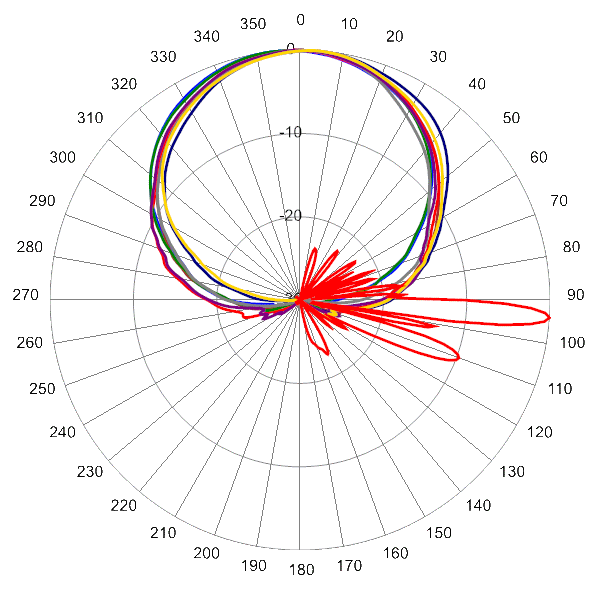

	2110 MHz Azimuth with Elevation 4°
