Datasheet

LowBand Antenna

2PA65R-K5A

Five foot (1.5 m), two port antenna with a 65° azimuth beamwidth covering 698-960 MHz frequencies
Array Optimized B20 Gain for superior performance
Gain Variance is minimized over a wide tilt range, for consistent performance over any tilt setting
Two wide low band ports covering 698-960 MHz in a single antenna
Full Spectrum Compliance 698-960 MHz
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements

Overview

The CCI antenna is a two port antenna, with two wide low band ports covering 698-960 MHz. The CCI antenna provides the capability to deploy 2x2 Multiple-input Multiple-output in the low band.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

2×2 MIMO for the low band
Ready for Network Standardization on 4.3-10 connectors
With CCI’s antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × Low Band Ports for 698-960 MHz
Frequency Range	698-806 MHz	791-832 MHz	832-862 MHz	862-960 MHz
Gain	14.8 dBi	14.7 dBi	14.9 dBi	15.1 dBi
Azimuth Beamwidth (-3dB)	64°	68°	68°	59°
Elevation Beamwidth (-3dB)	14.3°	13.5°	12.8°	12.2°
Electrical Downtilt	0° to 12°	0° to 12°	0° to 12°	0° to 12°
Elevation Sidelobes (1st Upper)	<-17 dB	<-19 dB	<-18 dB	<-19 dB
Front-to-Back Ratio @180°	> 30 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 27 dB	> 27 dB	> 27 dB	> 27 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	698-806 MHz	791-832 MHz	832-862 MHz	862-960 MHz
Gain over all Tilts (dBi)	14.4	14.5	14.6	14.9
Gain over all Tilts Tolerance (dB)	0.4	0.2	0.3	0.2
Gain at Low-Tilt (dBi)	14.5	14.6	14.8	15.0
Gain at Mid-Tilt (dBi)	14.3	14.4	14.5	14.8
Gain at High-Tilt (dBi)	14.5	14.5	14.6	15.0
Azimuth Beamwidth Tolerance (°)	2.5	2.4	2.2	4.1
Elevation Beamwidth Tolerance (°)	0.8	0.6	0.5	0.6
Electrical Downtilt Deviation (°)	1.0	1.1	0.9	1.0
First Upper Sidelobe Suppression (dB)	15.1	17.5	16.3	16.2
Upper Sidelobe Suppression Peak to 20° (dB)	16.9	17.7	16.3	16.3
Front-to-Back Ratio over ±20° (dB)	20.7	24.3	26.3	24.6
Cross-polar Discrimination at ±60° (dB)	8.0	7.5	8.4	7.9
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	59.0×12.1×7.7 in (1500×307×196 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	96 lbf @ 100 mph 428 N @ 161 kph
Side Wind Load¹	49 lbf @ 100 mph 217 N @ 161 kph
Effective Projective Area (EPA), Front¹	4.3 ft² (0.4 m²)
Weight *	28.4 lbs (12.9 kg)
RF Connector	2 × 4.3-10 female
Mounting Pole	3 to 6 in (76 to 152 mm)
¹Windload values calculated using CFD analysis * Weight excludes mounting

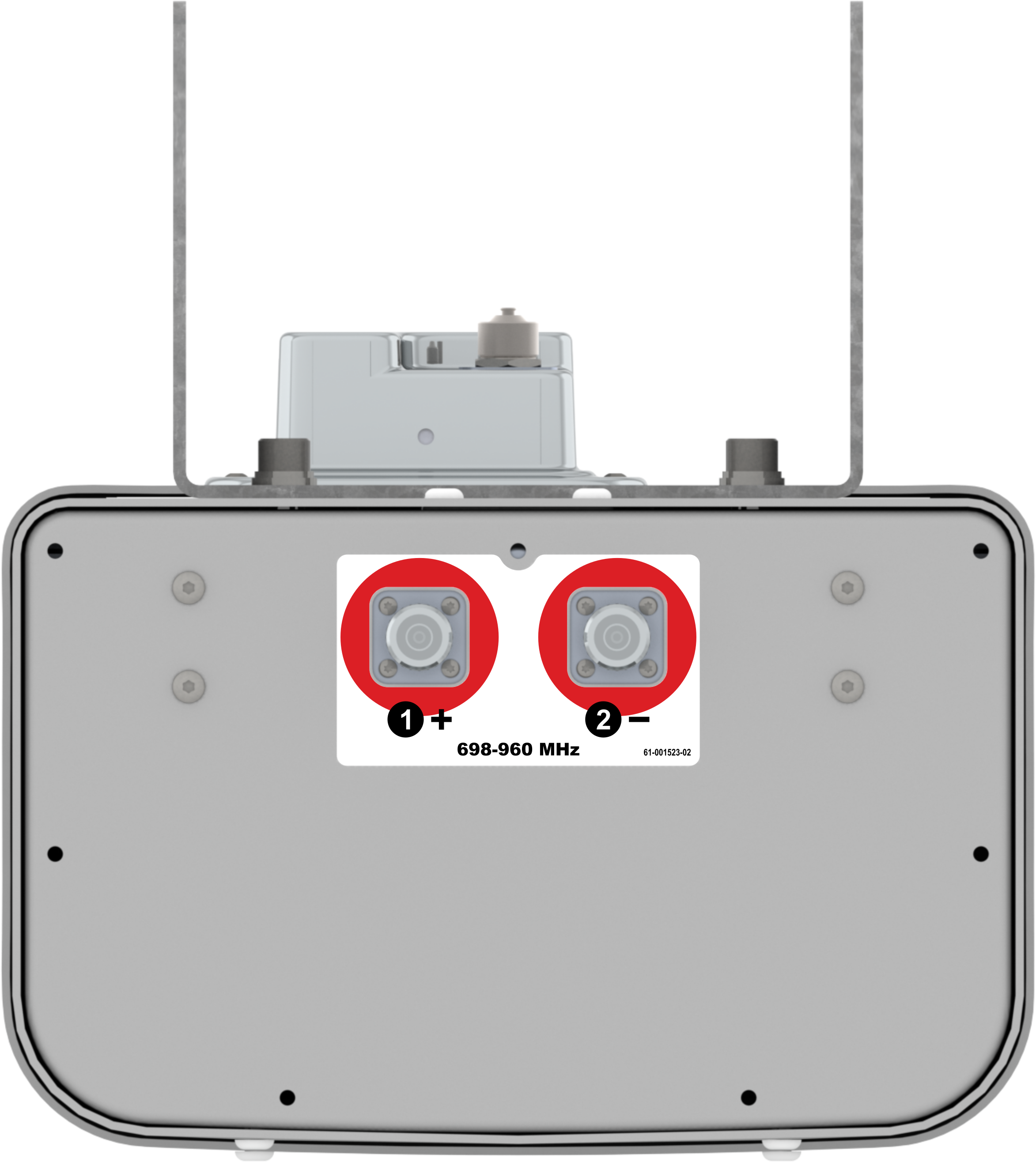

Bottom View	2PA65R-K5A

Connection Spacing Diagram	2PA65R-K5A

RET to Element Configuration	2PA65R-K5AA Element and RET configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

Interactive Pattern Viewer

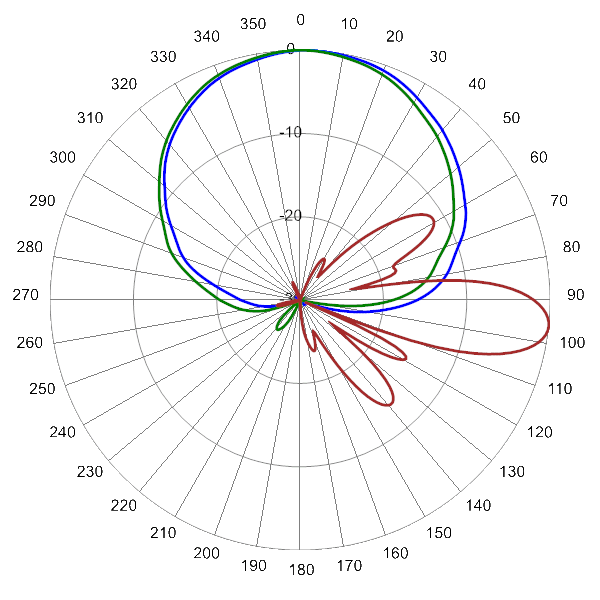

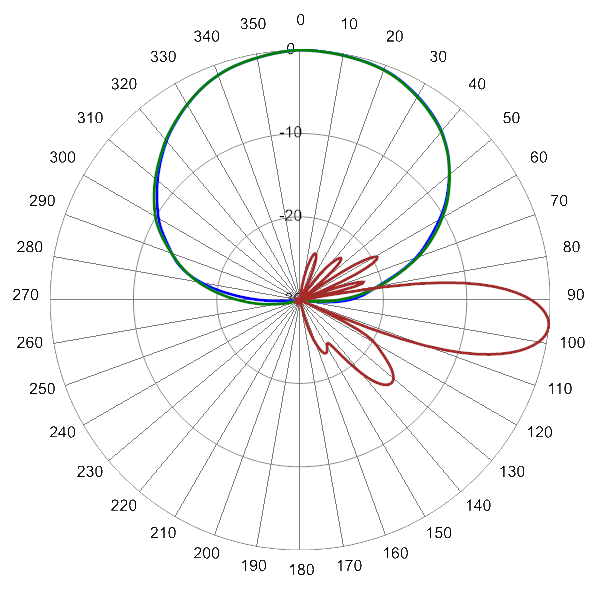

	710 MHz Azimuth with Elevation 6°	806 MHz Azimuth with Elevation 6°

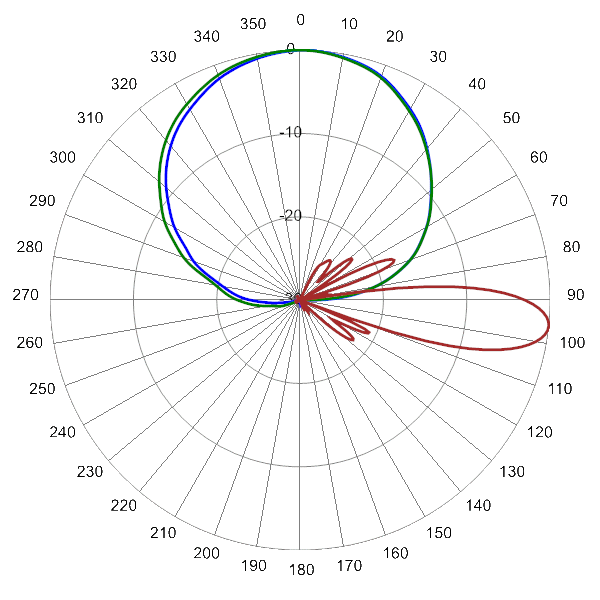

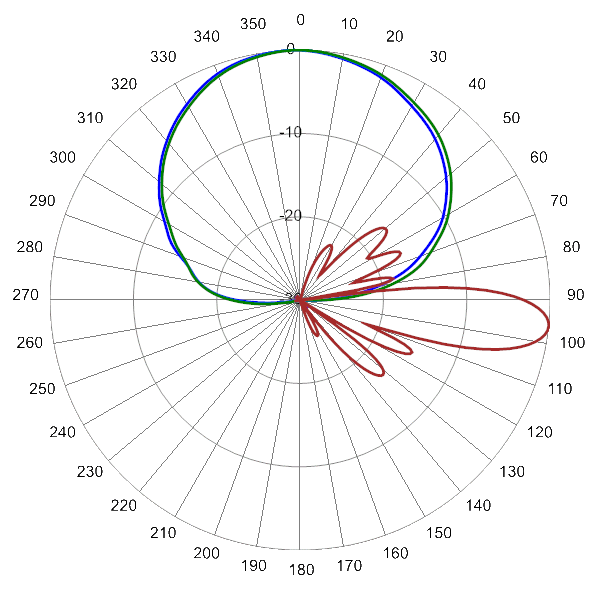

	880 MHz Azimuth with Elevation 6°	945 MHz Azimuth with Elevation 6°

MBK-37		Mounting Kit with either 0 or 5 degrees of mechanical tilt
BSA-RET200		Remote Electrical Tilt System (RET)
AISGC-M-F-10FT		10 Foot (3 M) Male/Female AISG cable
SCU-AISG-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	2PA65R-K5AA Connector Spacing Diagram
	2PA65R-K5AA Antenna/RET Config Diagram
	MBK-37 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

2PA65RK5A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0401E
Configuration File	Version
Y005473R1.BIN	3

Parts & Accessories

2PA65R-K5AA-K	Five foot (1.5 m) two port LowBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 1 factory installed BSA-RET200 RET actuators and MBK-37 mounting bracket
MBK-37	Mounting Kit with either 0 or 5 degrees of mechanical tilt
BSA-RET200	Type 1 External remote electrical tilt actuator
AISGC-M-F-xFT AISGC-M-F-10FT	10 Ft (3 m) Male/Female RRU to Antenna AISG cable

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
