      Multi-Band Ten Port Antenna DPA65R-BU8D




  PI DPA65RBU8DB ISO FRONT PI DPA65RBU8DB ISO REAR

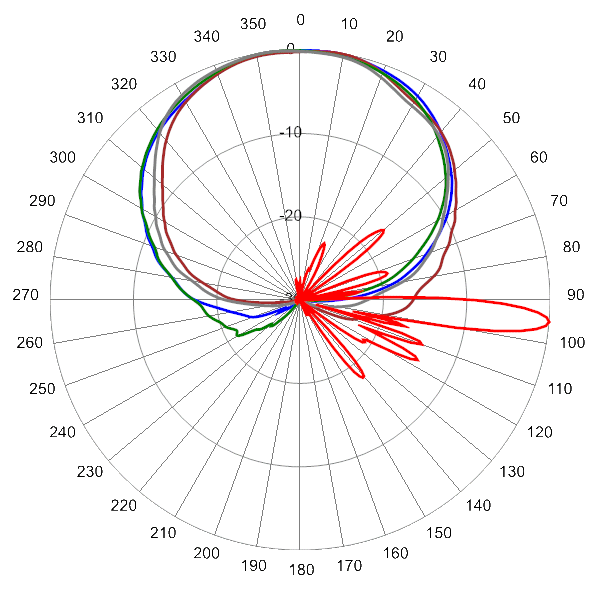

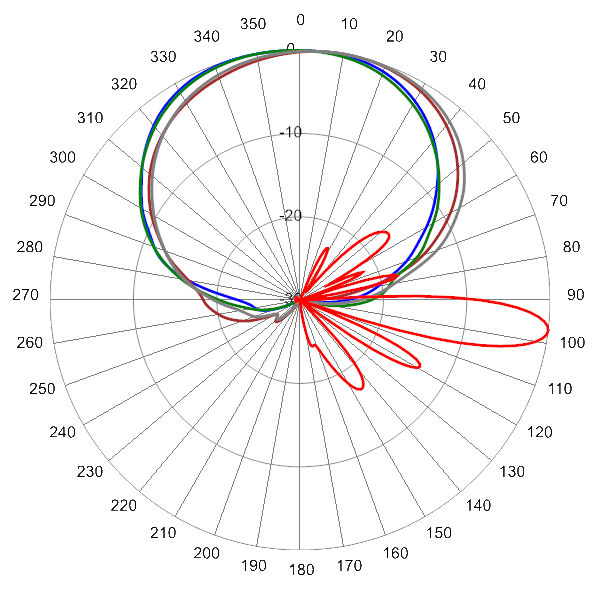

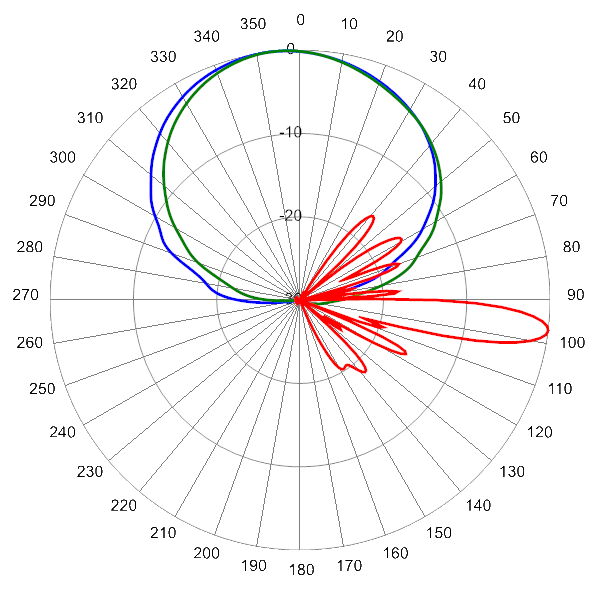

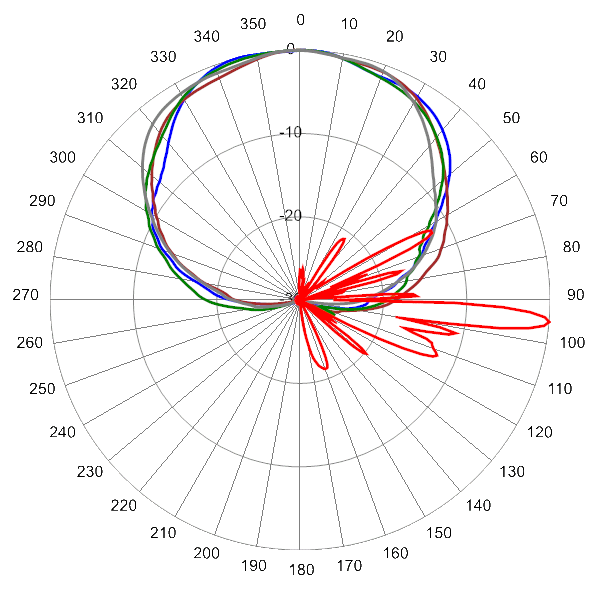

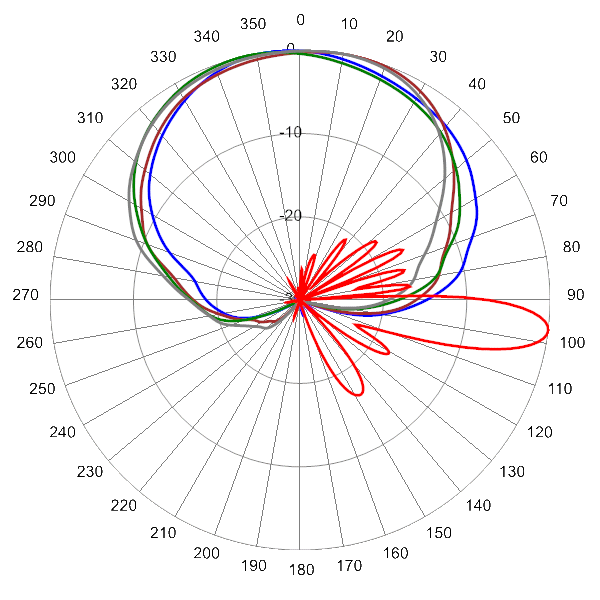

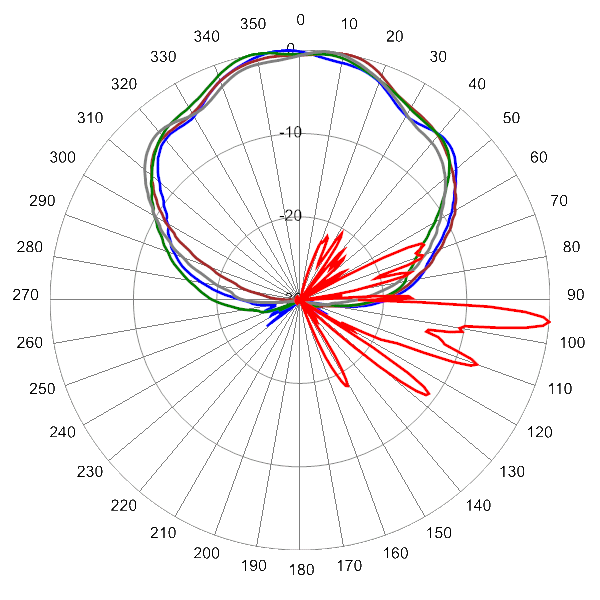

  • Eight foot (2.4 m) internally multiplexed MultiBand, ten port antenna, with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies

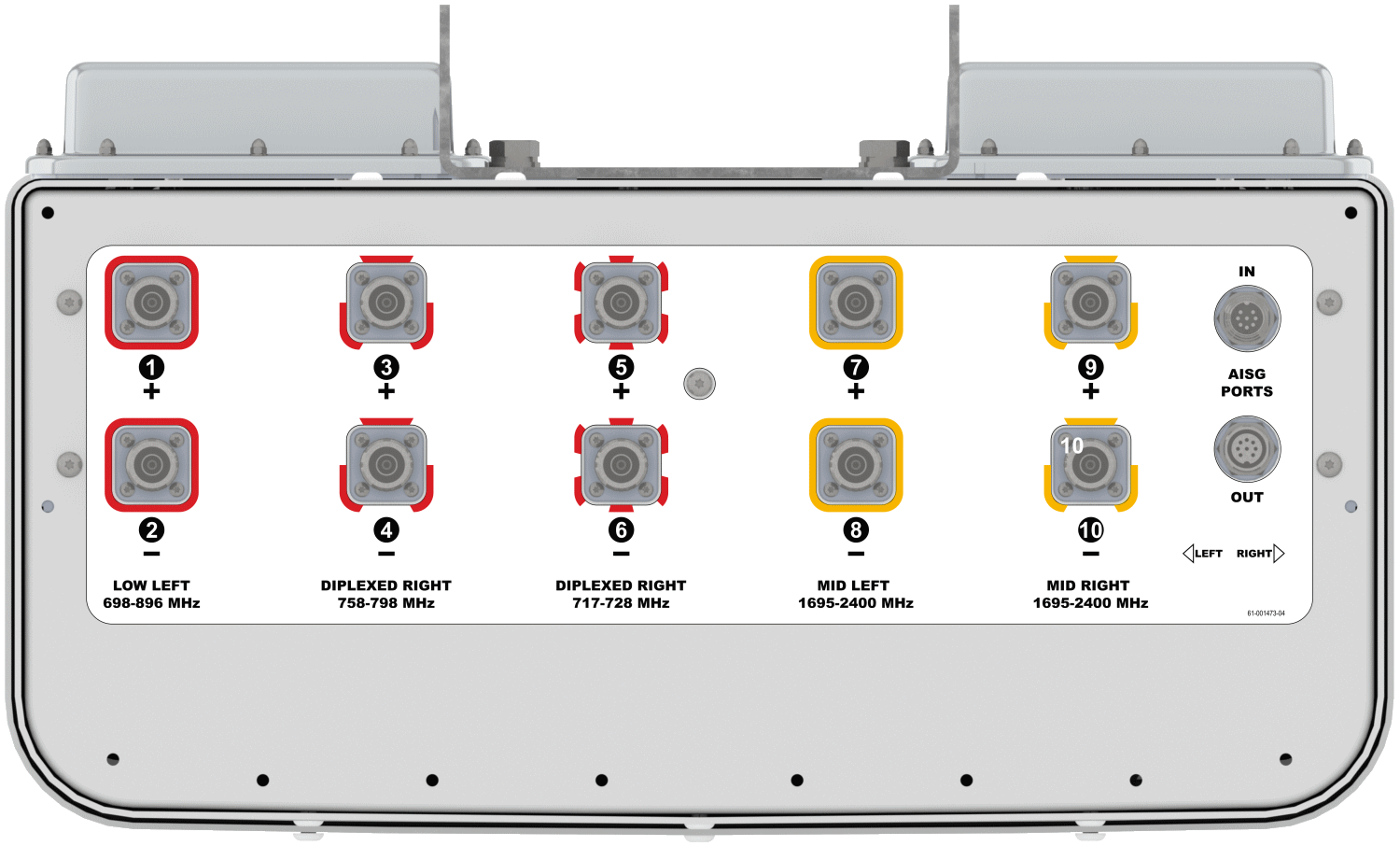

  • Four wide mid band ports covering 1695-2400 MHz, two wide low band ports covering 698-896 MHz and four frequency specific low band ports covering 717-728 MHz and 758-798 MHz (over distributed diplexing) in a single antenna enclosure
  • Innovative Low and Mid Band Array configuration allows for independent 2T2R (2x2 MIMO) on B29 Low Band Array and 4T4R (4x4 MIMO) on B14/B12 Low Band Arrays and 4T4R (4x4 MIMO) Mid Band Array, using full length arrays, all in a 20.7” (525 mm) width enclosure
  • Industry leading antenna topology and RET shielding techniques drastically mitigate PIM propagation from B12/B14/B29 operations, allowing for superior Network performance
  • Full Spectrum Compliance for 698-896 MHz / 1695-2400 MHz operations
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • Internally Integrated RET Controllers (Type 17)
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
MBK-01   MBK-01 Mounting Kit with with 0° to 10° mechanical tilt adjustment
MBK-16   MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400   Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-10FT   10 Foot (3 M) Male/Female AISG cable for Type 17 RET
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
Configuration File
