Datasheet

Multi-Band Ten Port Antenna

DPA65R-BU6D

Six foot (1.8 m) internally multiplexed MultiBand, ten port antenna, with a 65° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies
Four wide mid band ports covering 1695-2400 MHz, two wide low band ports covering 698-896 MHz and four frequency specific low band ports covering 717-728 MHz and 758-798 MHz (over distributed diplexing) in a single antenna enclosure
Innovative Low and Mid Band Array configuration allows for independent 2T2R (2x2 MIMO) on B29 Low Band Array and 4T4R (4x4 MIMO) on B14/B12 Low Band Arrays and 4T4R (4x4 MIMO) Mid Band Array, using full length arrays, all in a 20.7” (525 mm) width enclosure
Industry leading antenna topology and RET shielding techniques drastically mitigate PIM propagation from B12/B14/B29 operations, allowing for superior Network performance
Full Spectrum Compliance for 698-896 MHz / 1695-2400 MHz operations
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Internally Integrated RET Controllers (Type 17)
Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector

Overview

The CCI internally multiplexed MultiBand array is a ten port antenna, with four wide band ports covering 1695-2400 MHz, two wide low band ports covering 698-896 MHz and four frequency specific low band ports covering 717-728 MHz and 758-798 MHz (over distributed diplexing).

Innovative Low and Mid Band Array configuration allows for independent 2T2R (2x2 MIMO) on B29 Low Band Array and 4T4R (4x4 MIMO) on B14/B12 Low Band Arrays and 4T4R (4x4 MIMO) Mid Band Array, using full length arrays, all in a 20.7” (525 mm) width enclosure.

CCI antennas are designed and produced to ISO 9001:2008 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the Mid band ports and 2x2 MIMO on B29 ports and 4x4 MIMO on B14/B12 ports
Ready for Network Standardization on 4.3-10 connectors
With CCI’s multiband antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical


Ports	2 × Low Band Ports for 717-728 MHz	2 × Low Band Ports for 758-798 MHz	2 × Low Band Ports for 698-896 MHz
Frequency Range	717-728 MHz	758-798 MHz	698-806 MHz	824-896 MHz
Gain¹	13.6 dBi	13.9 dBi	14.3 dBi	14.9 dBi
Gain (Average)	13.2 dBi	13.4 dBi	13.5 dBi	14.1 dBi
Azimuth Beamwidth (-3dB)	75°	70°	73°	67°
Elevation Beamwidth (-3dB)	13.6°	12.3°	12.8°	11.0°
Electrical Downtilt	2° to 12°	2° to 12°	2° to 12°	2° to 12°
Elevation Sidelobes (1st Upper)	<-18 dB	<-18 dB	<-18 dB	<-18 dB
Front-to-Back Ratio @180°	> 35 dB	> 30 dB	> 35 dB	> 35 dB
Front-to-Back Ratio ±20°	> 30 dB	> 28 dB	> 32 dB	> 30 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Cross-Polar Discrimination at Sector²	9.4 dB	7.6 dB	11.6 dB	5.6 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1.


Ports	4 × Mid Band Ports for 1695-2400 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain¹	17.5 dBi	17.6 dBi	17.9 dBi	18.3 dBi
Gain (Average)	16.7 dBi	16.9 dBi	17.1 dBi	17.3 dBi
Azimuth Beamwidth (-3dB)	70°	71°	72°	53°
Elevation Beamwidth (-3dB)	5.7°	5.2°	4.8°	4.1°
Electrical Downtilt	0° to 8°	0° to 8°	0° to 8°	0° to 8°
Elevation Sidelobes (1st Upper)	<-16 dB	<-17 dB	<-17 dB	<-17 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Front-to-Back Ratio ±20°	> 32 dB	> 32 dB	> 32 dB	> 32 dB
Cross-Polar Discrimination at Peak	> 19 dB	> 18 dB	> 18 dB	> 19 dB
Cross-Polar Discrimination at Sector²	7.7 dB	7.7 dB	6.3 dB	5.5 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1.

Mechanical

Dimensions (L×W×D)	71.2×20.7×9.7 in (1808×525×247 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load¹	200 lbf @ 100 mph 888 N @ 161 kph
Side Wind Load¹	71 lbf @ 100 mph 316 N @ 161 kph
Effective Projective Area (EPA), Front¹	7.9 ft² (0.7 m²)
Weight*	87.6 lbs (39.7 kg)
Packaging Dimensions (L×W×D)	83.1×25.2×15.7 in (2110×640×400 mm)
Packaged Weight ~	137.0 lbs (62.1 kg)
Connector	10 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)
¹Windload values calculated using CFD analysis * Weight excludes mounting kit

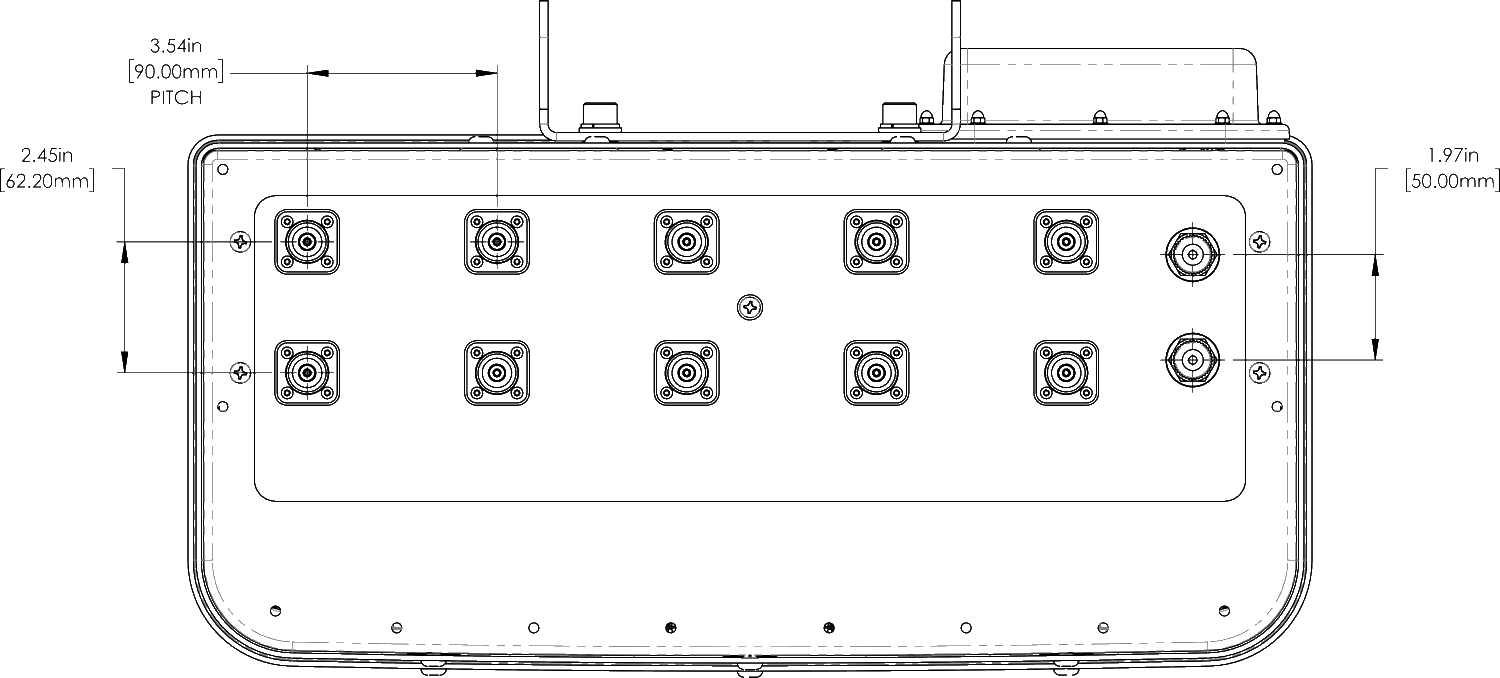

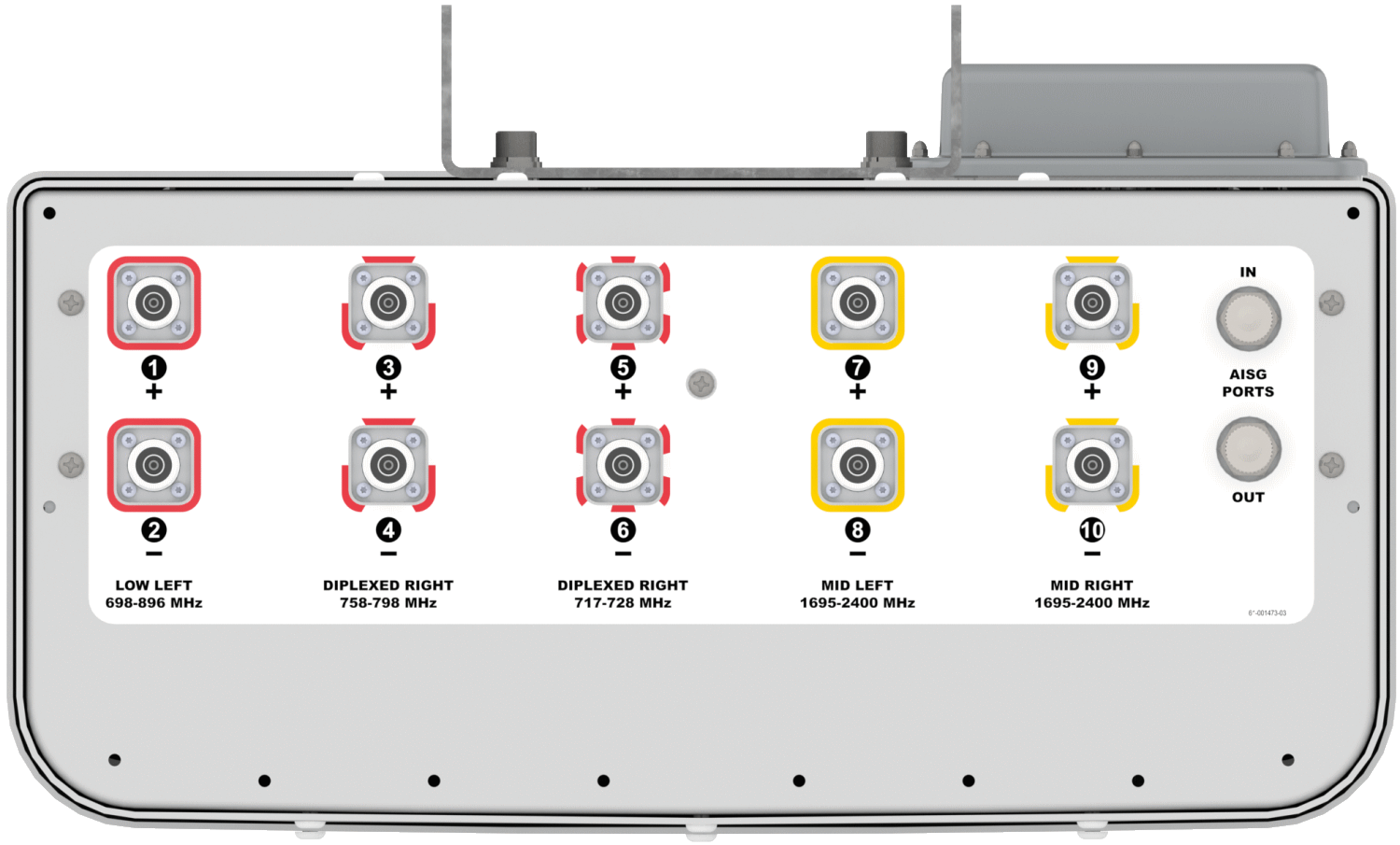

Bottom View	DPA65R-BU6DB

Connector Spacing	DPA65R-BU6DB (Type 17 Internal RET)

RET to Element Configuration	DPA65R-BU6DB Element and RET configuration (Type 17 Internal RET)

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

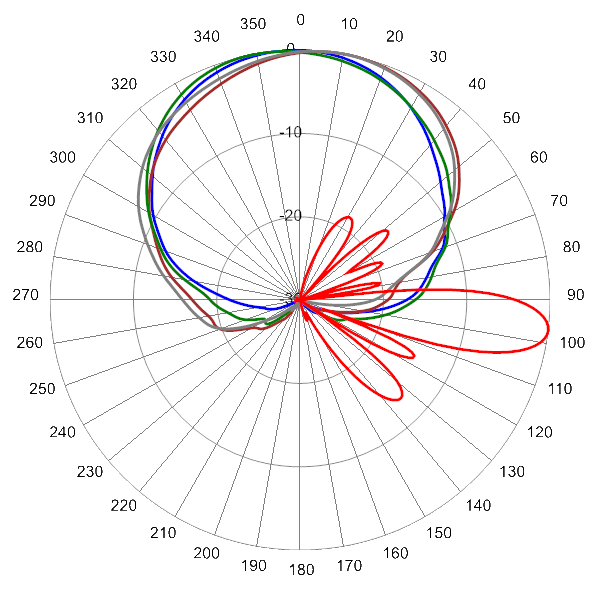

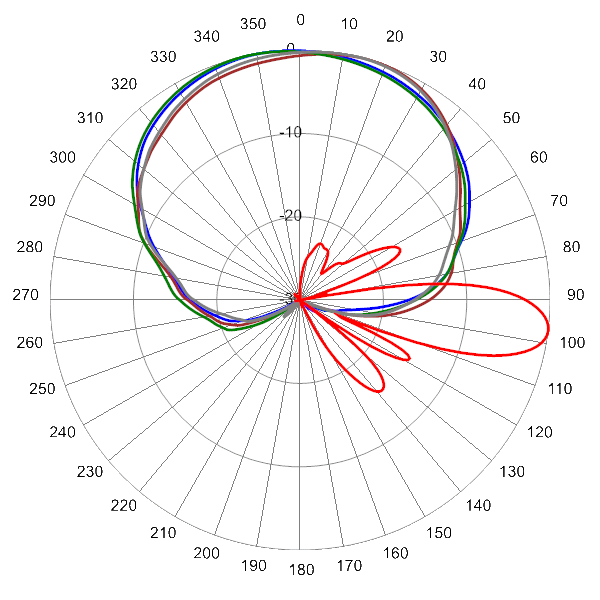

	722 MHz Azimuth with Elevation 7° (Ports 1, 2, 5 & 6)	788 MHz Azimuth with Elevation 7° (Ports 1, 2, 3 & 4)

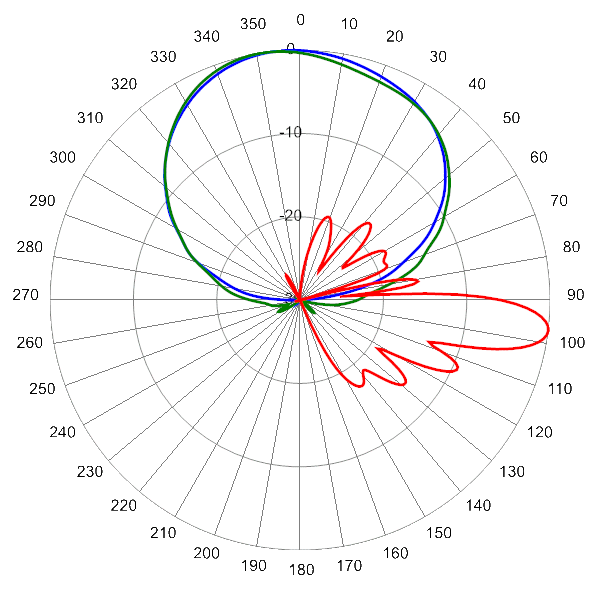

	896 MHz Azimuth with Elevation 7° (Ports 1 & 2)

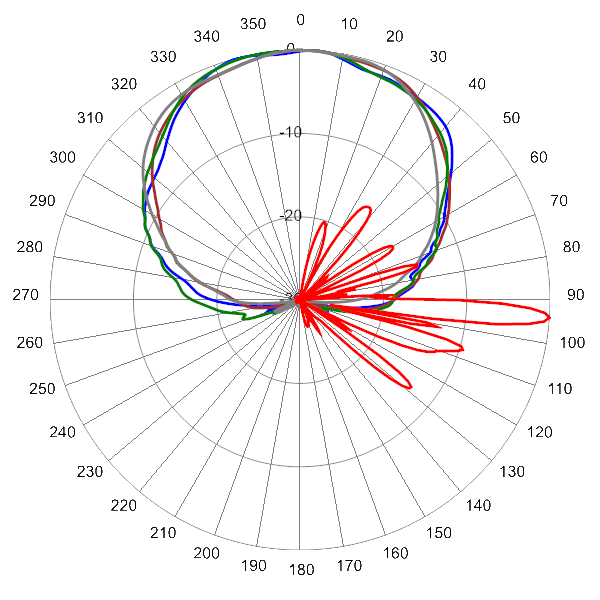

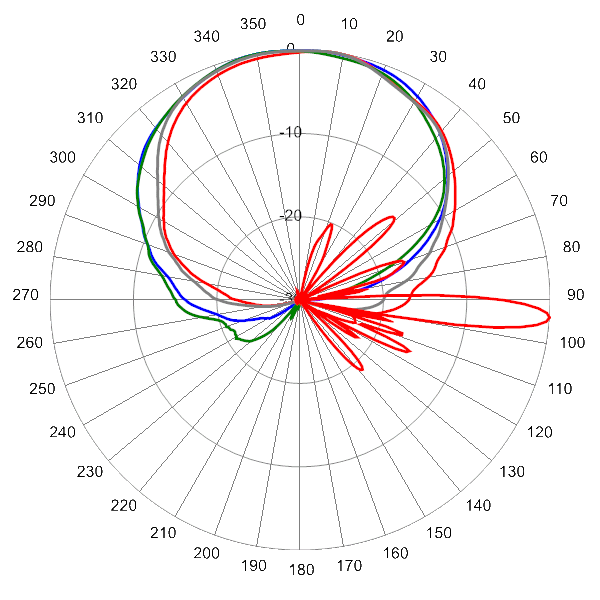

	1755 MHz Azimuth with Elevation 4° (Ports 7, 8, 9 & 10)	2155 MHz Azimuth with Elevation 5° (Ports 7, 8, 9 & 10)

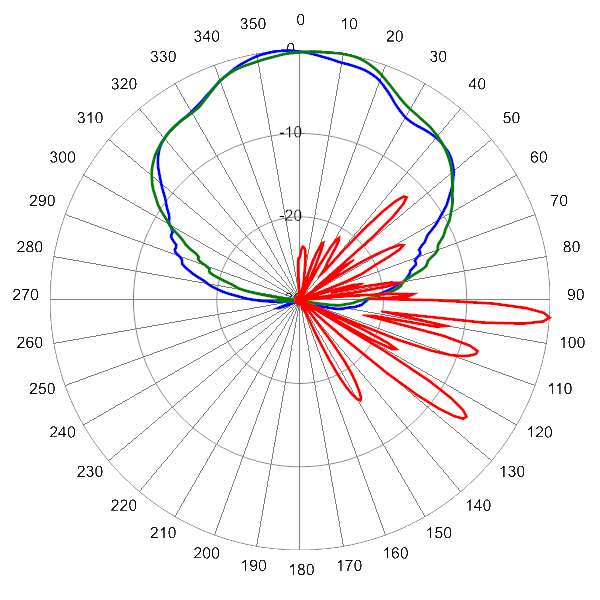

	2360 MHz Azimuth with Elevation 4° (Ports 7, 8, 9 & 10)

MBK-01		MBK-01 Mounting Kit with with 0° to 10° mechanical tilt adjustment
MBK-16		MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400		Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-10FT		10 Foot (3 M) Male/Female AISG cable for Type 17 RET
SCU-AISG-P		Portable AISG 2.0 Site Control Unit
