      OctoPort Multi-Band Antenna OPA65R-OH5A




  PI OPA65ROH5A front iso PI OPA65ROH5A rear iso
  • Five foot (1.4 m), Multiband, Eight port antenna with a 65° azimuth beamwidth, covering 1427-2690 MHz and 3100-4200 MHz frequencies

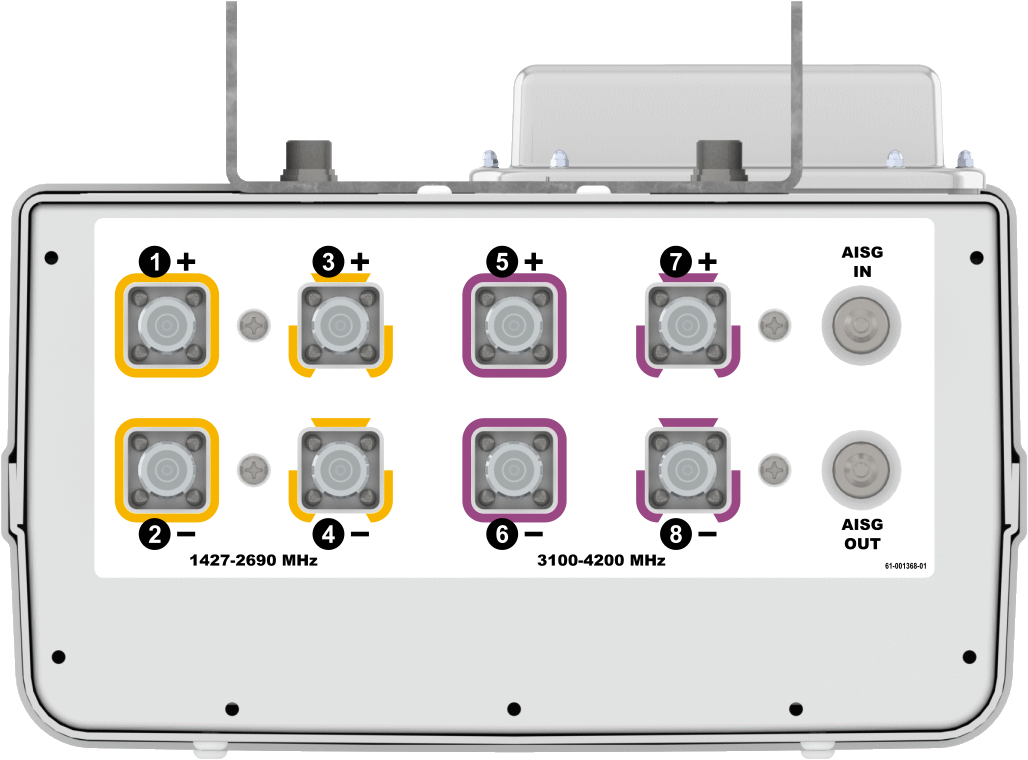

  • Four wide band ports covering 1427-2690 MHz and four wide band ports covering 3100-4200 MHz, all within in a low weight and low profile antenna
  • The Low weight and Low profile of this panel antenna, makes this an ideal solution for Small Cell/C-RAN Densification deployments in difficult jurisdictional urban, suburban and rural environments
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacityLTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Equipped with Two Field Replaceable, Type 17 integrated AISG 2.0 compliant Remote Electrical Tilt (RET) controllers
  • Equipped 4.3-10 connectors
MBK-01 MBK-01 Mounting Kit with 0° - 10° mechanical tilt
BSA-RET400 Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-10FT 10 Foot (3 M) Male/Female AISG cable
SCU-AISG-P Portable AISG 2.0 Site Control Unit
Configuration File
For Firmware select RET Actuator link below.
