Tri-Band Eight Port Antenna | OPA65R-TE8C | |||
|
||||
The CCI TriBand array is a eight port antenna, with four wide high band ports covering 1695-2690 MHz and four wide low band ports covering 614-896 MHz. The antenna provides the capability to deploy 4×4 Multiple-Input Multiple-Output (MIMO) in the high band and 4X4 MIMO across low band ports. |
|
Ports | 4 × Low Band Ports for 614-896 MHz | ||
Frequency Range | 614-698 MHz | 698-806 MHz | 824-896 MHz |
Gain | 15.6 dBi | 16.4 dBi | 16.3 dBi |
Azimuth Beamwidth (-3dB) | 73° | 63° | 55° |
Elevation Beamwidth (-3dB) | 11.2° | 9.4° | 8.0° |
Electrical Downtilt | 2° to 12° | 2° to 12° | 2° to 12° |
Elevation Sidelobes (1st Upper) | <-17 dB | <-19 dB | <-20 dB |
Front-to-Back Ratio @180° | > 32 dB | > 32 dB | > 35 dB |
Cross-Polar Discrimination at Peak | > 25 dB | > 25 dB | > 25 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB | > 25 dB | > 25 dB |
Voltage Standing Wave Ratio (VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |
Input Power Continuous Wave (CW) | 500 watts | 500 watts | 500 watts |
Polarization | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground |
BASTA Electrical Specifications | |||
Frequency Range | 614-698 MHz | 698-806 MHz | 824-896 MHz |
Gain over all Tilts (dBi) | 14.4 | 15.5 | 15.9 |
Gain over all Tilts Tolerance (dB) | 0.7 | 0.7 | 0.5 |
Gain at Low-Tilt (dBi) | 14.5 | 15.6 | 16.1 |
Gain at Mid-Tilt (dBi) | 14.4 | 15.6 | 16.1 |
Gain at High-Tilt (dBi) | 14.3 | 15.3 | 15.7 |
Azimuth Beamwidth Tolerance (°) | 9.3 | 8.3 | 7.3 |
Elevation Beamwidth Tolerance (°) | 1.1 | 0.9 | 0.5 |
Electrical Downtilt Deviation (°) | 1.5 | 1.2 | 1.2 |
First Upper Sidelobe Suppression (dB) | 12.2 | 15.6 | 16.4 |
Upper Sidelobe Suppression Peak to 20°(dB) | 16.0 | 15.3 | 14.6 |
Front-to-Back Ratio over ±20° (dB) | 22.8 | 26.2 | 28.3 |
Cross-polar Discrimination at ±60° (dB) | 13.1 | 10.9 | 8.9 |
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice. |
Ports | 4 × High Band Ports for 1695-2690 MHz | ||||
Frequency Range | 1695-1880 MHz | 1850-1990 MHz | 1920-2180 MHz | 2300-2400 MHz | 2496-2690 MHz |
Gain | 17.9 dBi | 18.2 dBi | 18.3 dBi | 18.5 dBi | 18.1 dBi |
Azimuth Beamwidth (-3dB) | 67° | 64° | 61° | 55° | 55° |
Elevation Beamwidth (-3dB) | 5.6° | 5.1° | 4.7° | 4.0° | 3.9° |
Electrical Downtilt | 0° to 8° | 0° to 8° | 0° to 8° | 0° to 8° | 0° to 8° |
Elevation Sidelobes (1st Upper) | <-16 dB | <-17 dB | <-17 dB | <-18 dB | <-19 dB |
Front-to-Back Ratio @180° | > 35 dB | > 35 dB | > 35 dB | > 35 dB | > 35 dB |
Cross-Polar Discrimination at Peak | > 19 dB | > 18 dB | > 18 dB | > 21 dB | > 18 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 25 dB |
Voltage Standing Wave Ratio (VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |
Input Power Continuous Wave (CW) | 300 watts | 300 watts | 300 watts | 300 watts | 300 watts |
Polarization | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground |
BASTA Electrical Specifications | |||||||
Frequency Range | 1695-1880 MHz | 1850-1990 MHz | 1920-2180 MHz | 2300-2400 MHz | 2496-2690 MHz | ||
Gain over all Tilts (dBi) | 16.6 | 17.1 | 17.2 | 17.6 | 17.5 | ||
Gain over all Tilts Tolerance (dB) | 0.7 | 0.7 | 0.6 | 0.8 | 0.7 | ||
Gain at Low-Tilt (dBi) | 16.4 | 16.8 | 17.0 | 17.1 | 17.1 | ||
Gain at Mid-Tilt (dBi) | 16.6 | 17.3 | 17.4 | 17.9 | 17.8 | ||
Gain at High-Tilt (dBi) | 16.8 | 17.3 | 17.3 | 17.8 | 17.6 | ||
Azimuth Beamwidth Tolerance (°) | 2.9 | 2.7 | 7.6 | 9.3 | 6.1 | ||
Elevation Beamwidth Tolerance (°) | 0.4 | 0.3 | 0.4 | 0.2 | 0.2 | ||
Electrical Downtilt Deviation (°) | 1.6 | 1.5 | 1.5 | 1.6 | 1.6 | ||
First Upper Sidelobes Suppression (dB) | 13.5 | 14.1 | 14.5 | 15.6 | 15.7 | ||
Upper Sidelobe Suppression Peak to 20°(dB) | 12.3 | 13.0 | 12.3 | 12.4 | 11.9 | ||
Front-to-Back Ratio over ±20° (dB) | 27.1 | 27.6 | 26.3 | 28.0 | 26.4 | ||
Cross-polar Discrimination at ±60° (dB) | 8.7 | 6.5 | 5.5 | 3.3 | 6.7 | ||
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice. |
Dimensions (L×W×D) | 96.7×25.4×8.1 in (2455×645×205 mm) |
Survival Wind Speed | > 150 mph (> 241 kph) |
Front Wind Load | 549 lbs (2442 N) @ 100 mph (161 kph) |
Side Wind Load | 217 lbs (966 N) @ 100 mph (161 kph) |
Equivalent Flat Plate Area | 21.4 ft2 (2.0 m2) |
Weight * | 102.6 lbs (46.5 kg) |
Connector | 8 × 4.3-10 female |
Package Dimensions (LxWxD) | 105.8x30.2x14.4 in (2688x768x366 mm) |
Package Weight | 160.9 lbs (73.0 kg) |
Mounting Pole | 2 to 5 in (5 to 12 cm) |
* Weight excludes mounting |

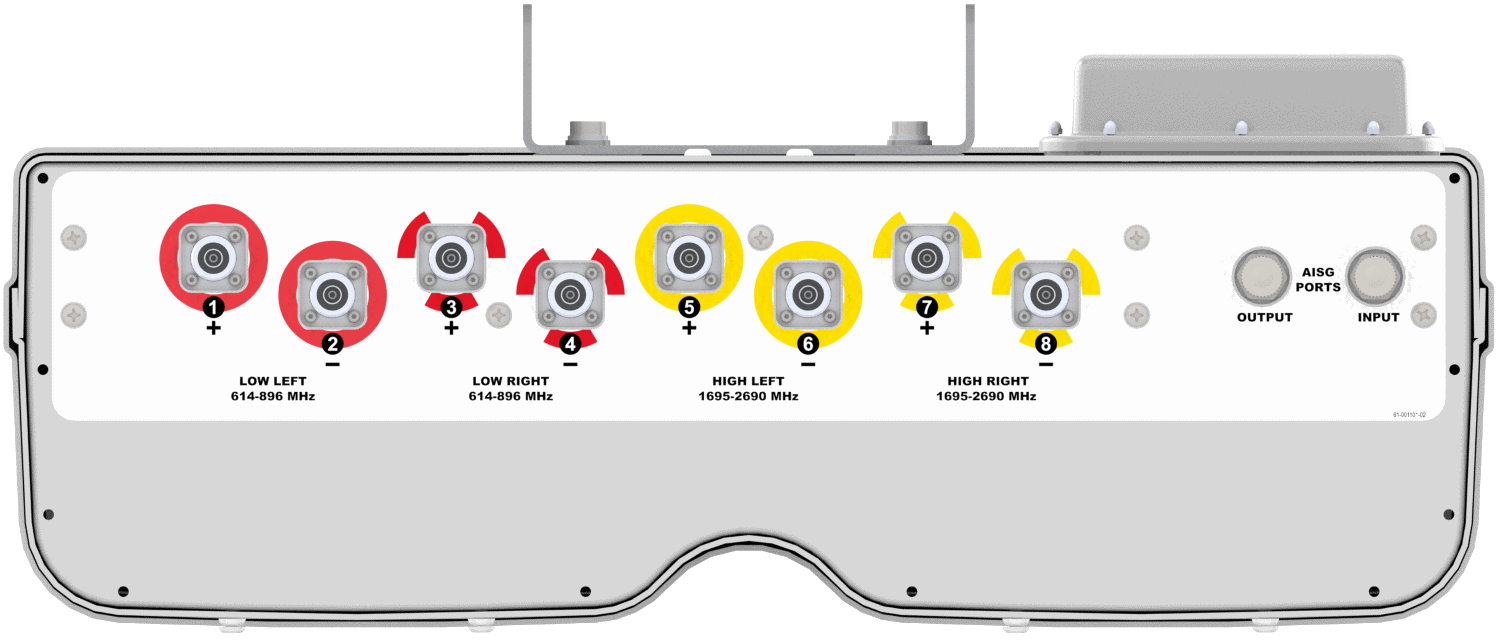

Bottom View | OPA65R-TE8CA (Type 17 Internal RET) |
Connector Spacing | |

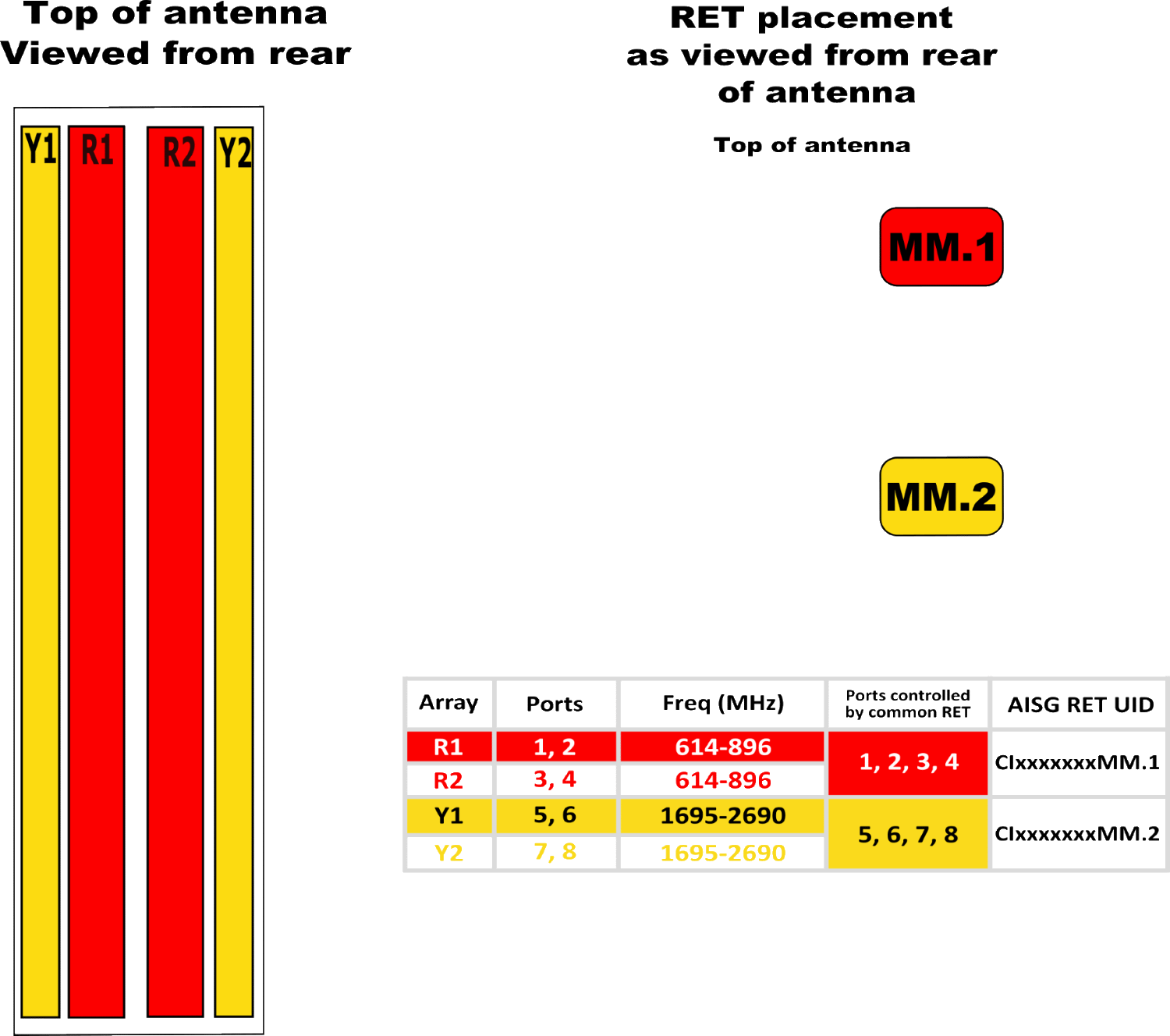

RET to Element Configuration | OPA65R-TE8CA Element and RET configuration (Type 17 Internal RET) |
For detailed information on additional antenna patterns, contact customer support at |

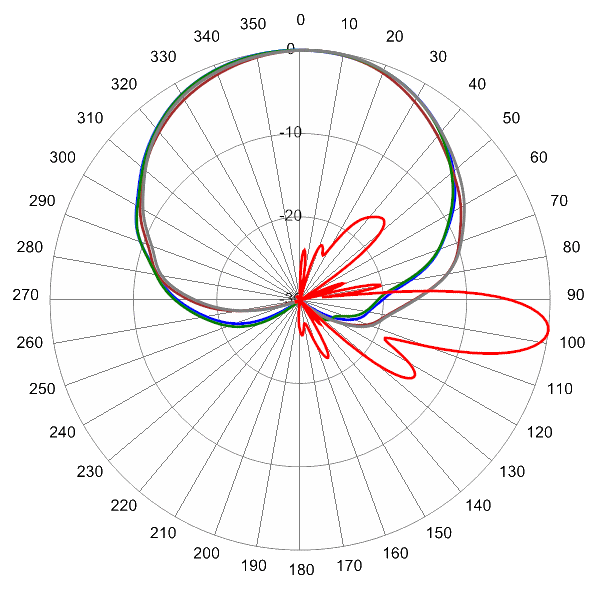

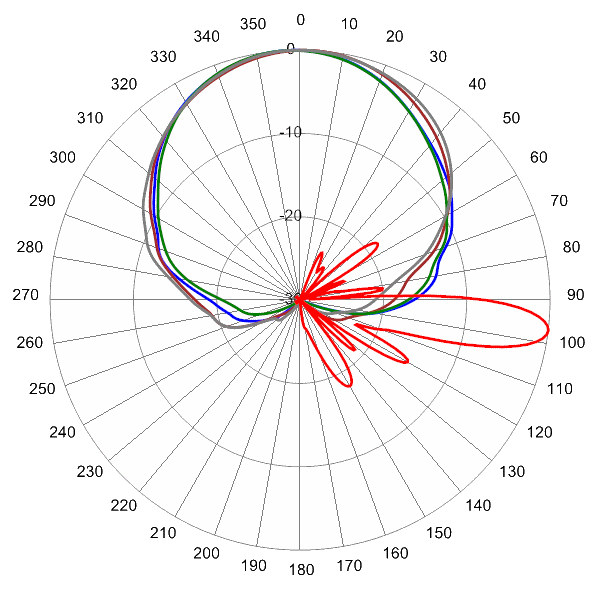

645 MHz Azimuth with Elevation 7° | 763 MHz Azimuth with Elevation 7° | |

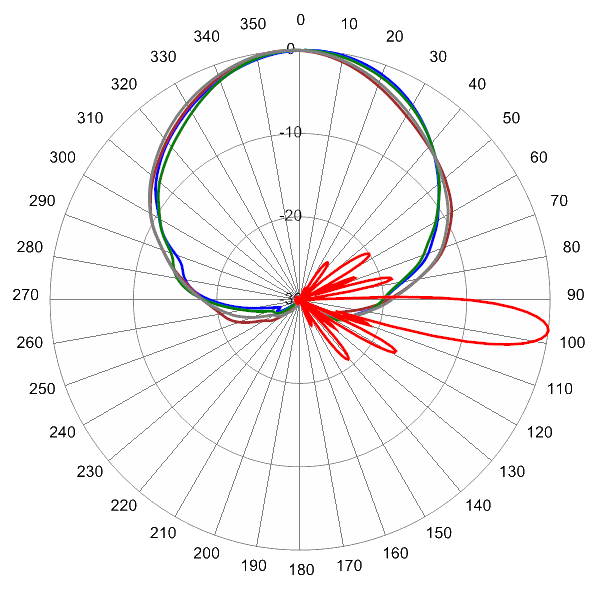

824 MHz Azimuth with Elevation 7° |

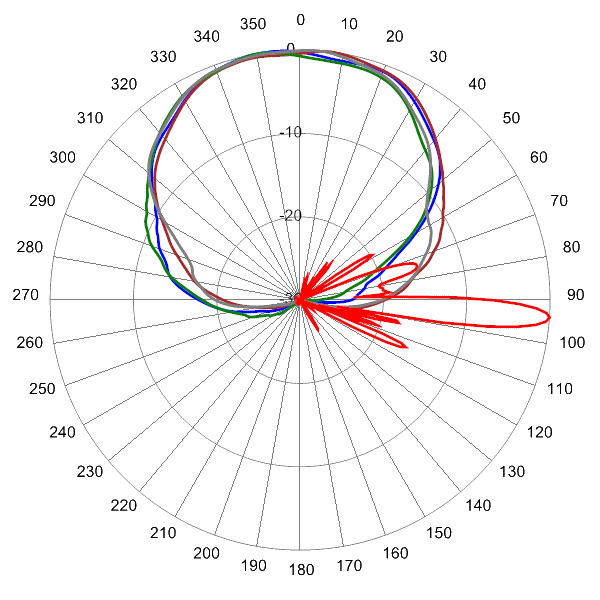

1740 MHz Azimuth with Elevation 4° | 1850 MHz Azimuth with Elevation 4° | |

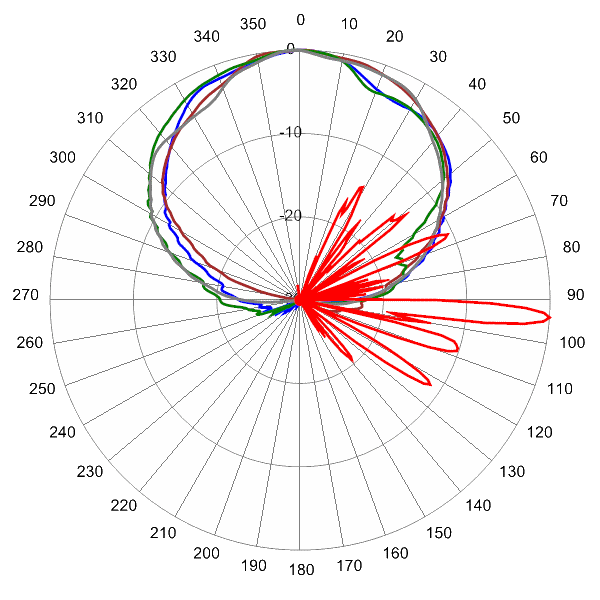

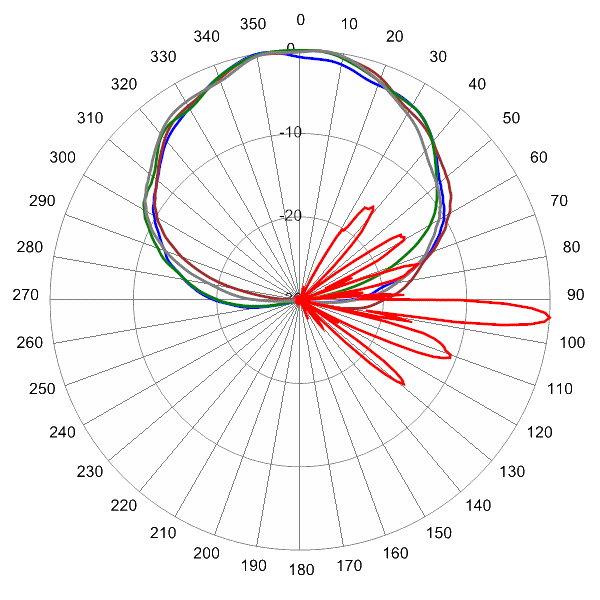

2155 MHz Azimuth with Elevation 4° | 2540 MHz Azimuth with Elevation 4° |
MBK-01 | MBK-01 Mounting Kit | |
MBK-16 | MBK-16 Mounting Kit | |
BSA-RET400 | Remote Electrical Tilt System (RET) (Type 17 Internal) | |
SCU-AISG2-P | Portable AISG 2.0 Site Control Unit |
OPA65R-TE8CA-K | Eight foot (2.5 m) TriBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 2 factory installed BSA-RET400 RET actuators (Type 17 Internal) and 0° - 10° mechanical tilt mounting bracket (MBK-01) |
MBK-01 | Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment |
MBK-16 | Mounting bracket kit (top and bottom) with fixed 0° mechanical tilt |
BSA-RET400 | Remote electrical tilt actuator Type 17 Internal |
Safety | EN 60950-1, UL 60950-1 |
Emission | EN 55022 |
Immunity | EN 55024 |
Environmental | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24 |
