Datasheet

TriBand Twelve Port Antenna

TPA65R-KE8E

				Eight foot (2.4 m), TriBand, twelve port antenna with a 65° azimuth beamwidth covering 698-862 MHz, 876-960 MHz and 1695-2690 MHz frequencies. Eight wide high band ports covering 1695-2690 MHz and two low band ports covering 698-862 MHz and two low band ports covering 876-960 MHz in a single antenna enclosure Full Spectrum Compliance 698-960 MHz / 1695-2690 MHz LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance Exceeds minimum PIM performance requirements Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector Equipped with 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) Controllers (Type 1 External)

Overview

The CCI 12-Port TriBand array is a twelve port antenna, with eight wide high band ports covering 1695-2690 MHz and two 700 MHz ports and two 850 MHz ports. The antenna provides the capability to deploy Dual 4×4 Multiple-input Multiple-output (MIMO) in the high band and Dual 2X2 MIMO across low band ports. The CCI 12-Port high band ports have independent tilt control between left and right antenna arrays. The CCI 12-Port high band ports have independent tilt control between left and right antenna arrays.

In this three RET configuration, the 1st RET is dedicated for the four Low Band ports. The 2nd RET is dedicated for the four Left High Band ports and the 3rd RET is dedicated for the four Right High Band ports. This RET arrangement allows for complete flexibility in coverage control between left and right high band antenna arrays.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

Dual 4×4 MIMO for the High Band and Dual 2X2 MIMO Low Band ports
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s TriBand antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × Low Band Ports for 698-862 MHz		2 × Low Band Ports for 876-960 MHz
Frequency Range	698-798 MHz	790-862 MHz	876-960 MHz
Gain	15.8 dBi	16.0 dBi	16.2 dBi
Azimuth Beamwidth (-3dB)	66°	70°	61°
Elevation Beamwidth (-3dB)	9.7°	8.6°	7.8°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	<-17 dB	<-18 dB	<-20 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications
Frequency Range	698-798 MHz	790-862 MHz	876-960 MHz
Gain over all Tilts (dBi)	15.3	15.5	15.8
Gain over all Tilts Tolerance (dB)	0.3	0.5	0.5
Gain at Low-Tilt (dBi)	15.2	15.3	15.5
Gain at Mid-Tilt (dBi)	15.5	15.7	16.1
Gain at High-Tilt (dBi)	15.2	15.4	15.8
Azimuth Beamwidth Tolerance (°)	3.0	3.8	2.0
Elevation Beamwidth Tolerance (°)	0.9	0.6	0.5
Electrical Downtilt Deviation (°)	0.5	0.3	0.5
First Upper Sidelobe Suppression (dB)	13.3	13.6	14.0
Upper Sidelobe Suppression Peak to 20°(dB)	15.2	14.2	14.2
Front-to-Back Ratio over ±20° (dB)	25.5	27.3	28.2
Cross-polar Discrimination at ±60° (dB)	10.6	11.2	12.0
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Ports	8 × High Band Ports for 1695-2690 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain	16.8 dBi	17.1 dBi	17.3 dBi	17.1 dBi	17.2 dBi
Azimuth Beamwidth (-3dB)	64°	62°	62°	60°	61°
Elevation Beamwidth (-3dB)	8.1°	7.2°	6.7°	6.0°	5.6°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	< -18 dB	< -16 dB	< -16 dB	< -15 dB	< -14 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 17 dB	> 16 dB	> 18 dB	> 19 dB	> 19 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain over all Tilts (dBi)	15.8	16.3	16.5	16.2	16.1
Gain over all Tilts Tolerance (dB)	0.6	0.5	0.5	0.7	1.0
Gain at Low-Tilt (dBi)	15.9	16.3	16.6	16.4	16.2
Gain at Mid-Tilt (dBi)	15.9	16.3	16.5	16.3	16.2
Gain at High-Tilt (dBi)	15.8	16.2	16.4	16.9	15.7
Azimuth Beamwidth Tolerance (°)	4.1	4.0	3.9	5.4	6.8
Elevation Beamwidth Tolerance (°)	0.7	0.5	0.5	0.4	0.4
Electrical Downtilt Deviation (°)	1.1	0.9	0.9	0.8	0.8
First Upper Sidelobes Suppression (dB)	14.0	13.3	12.9	11.6	10.4
Upper Sidelobe Suppression Peak to 20°(dB)	12.9	11.7	10.9	10.1	10.2
Front-to-Back Ratio over ±20° (dB)	26.5	25.7	25.5	27.6	28.1
Cross-polar Discrimination at ±60° (dB)	7.6	6.9	7.3	6.9	7.1
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	96.1×12.1×9.6 in (2441×308×244 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	297 lbs (1320 N) @ 100 mph (161 kph)
Side Wind Load	246 lbs (1096 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	11.6 ft² (1.1 m²)
Weight *	71.2 lbs (32.3 kg)
Connector	12 × 4.3-10 female
Package Dimensions (LxWxD)	106.1×16.3×15.7 in (2694×414×398 mm)
Package Weight	117.9 lbs (53.5 kg)
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting

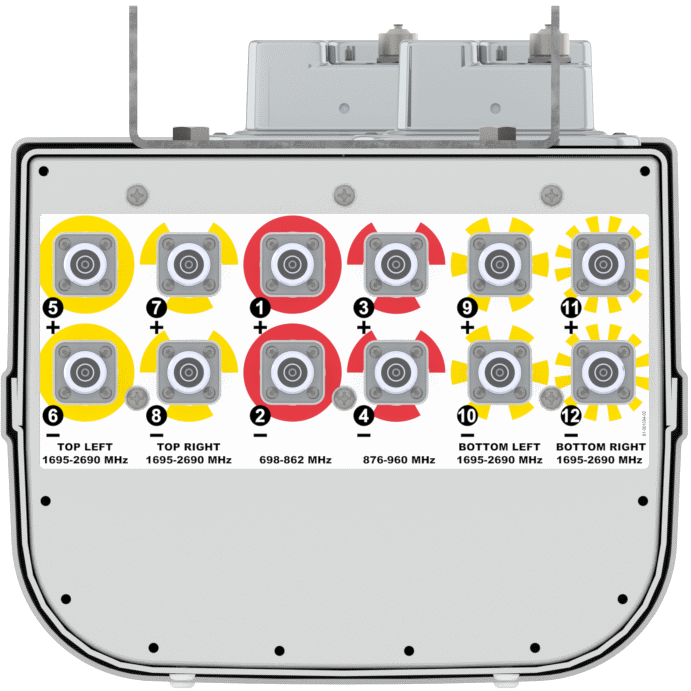

Bottom View

Connector Spacing

RET to Element Configuration	TPA65R-KE8EA Element and RET configuration (Type 1 External RET)

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at


	725 MHz Azimuth with Elevation 6°	824 MHz Azimuth with Elevation 6°

	925 MHz Azimuth with Elevation 6°


	1720 MHz Azimuth with Elevation 6°	2155 MHz Azimuth with Elevation 6°

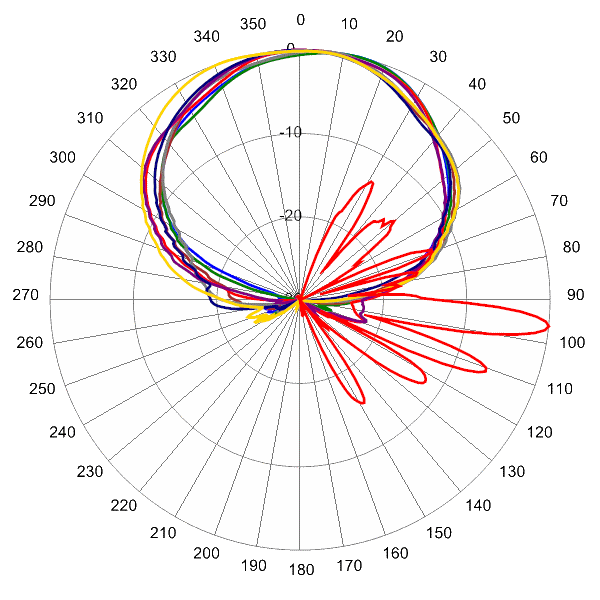

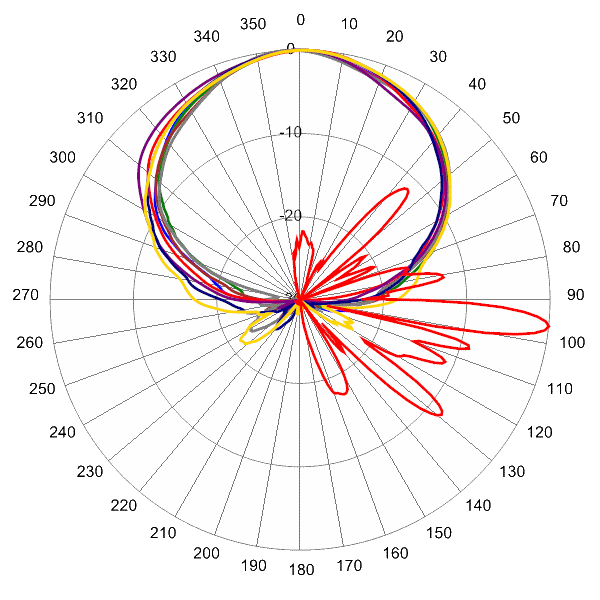

	2360 MHz Azimuth with Elevation 6°	2650 MHz Azimuth with Elevation 6°

MBK-01		MBK-01 Mounting Kit with 0° - 10° mechanical tilt
MBK-16		MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET200		Remote Electrical Tilt System (RET)
DPA-CBK-AG-RRU		AISG Cable set for three RET antenna
DPA-CBK-RA-AG-RRU		AISG Right Angle Cable set for three RET Antenna
SCU-AISG2-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	TPA65R-KE8E Connector Spacing Diagram
	TPA65R-KE8EA Antenna/RET Config Diagram
	MBK-01 Installation Guide
	MBK-16 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0401E
Configuration File	Version
TPA65-KE8E-YK01.BIN	01
TPA65-KE8E-YE01.BIN	01

Parts & Accessories

TPA65R-KE8EA-K	Eight foot (2.4 m) TriBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET200 RET actuators and MBK-01 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
MBK-16	Mounting bracket kit (top and bottom) with fixed 0° mechanical tilt
BSA-RET200	Remote electrical tilt actuator
DPA-CBK-AG-RRU	RRU AISG cable kit for three RET antenna
DPA-CBK-RA-AG-RRU	RRU AISG right angle cable kit for three RET antenna

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions
