Datasheet

MultiBand Antenna

OPA45R-BU5C

				Four and a half foot (1.4 m) multiband, eigth port antenna with a 45° azimuth beamwidth covering 698-896 MHz and 1695-2400 MHz frequencies Four high band ports covering 1695-2400 MHz and four low band ports covering 698-896 MHz in a single antenna enclosure Full Spectrum Compliance for WCS and AWS-3 frequencies and Band 14 Operations Array configuration allows for 4T4R (4X4 MIMO) on Low Band, essential for Band 14 Operations LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance Exceeds minimum PIM performance requirements Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector Ordering options for External RET Controllers (Type 1) or Internally Integrated RET Controllers (Type 17)

Overview

The CCI Multi-Port multiband array is an eight port antenna, with four wide band ports covering 1695-2400 MHz and four low band ports covering 698-896 MHz. The antenna provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 4X4 Multiple-input Multiple-output (MIMO) across low band ports. The CCI 8-Port allows independent tilt control between the low band ports and high band ports. In this two RET configuration, the 1^st RET is dedicated for the four Low Band ports and the 2^nd RET is for the four High Band ports.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the High Band and 4×4 MIMO for the Low Band ports
Ready for Network Standardization on 4.3-10 connectors
With CCI’s multiband antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical


Ports	4 × Low Band Ports for 698-896 MHz
Frequency Range	698-806 MHz	824-896 MHz
Gain	15.4 dBi	15.8 dBi
Azimuth Beamwidth (-3dB)	55°	48°
Elevation Beamwidth (-3dB)	17.1°	14.9°
Electrical Downtilt	4° to 18°	4° to 18°
Elevation Sidelobes (1st Upper)	<-18 dB	<-20 dB
Front-to-Back Ratio @180°	> 30 dB	> 30 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground


BASTA Electrical Specifications*
Frequency Range	698-806 MHz	824-896 MHz
Gain over all Tilts (dBi)	14.5	15.1
Gain over all Tilts Tolerance (dB)	0.7	0.7
Gain at Low-Tilt (dBi)	14.7	15.6
Gain at Mid-Tilt (dBi)	14.5	15.3
Gain at High-Tilt (dBi)	14.2	14.5
Azimuth Beamwidth Tolerance (°)	6.7	3.5
Elevation Beamwidth Tolerance (°)	1.5	0.9
Electrical Downtilt Deviation (°)	1.0	1.0
First Upper Sidelobe Suppression (dB)	14.9	16.8
Upper Sidelobe Suppression Peak to 20° (dB)	18.8	18.5
Front-to-Back Ratio over ±20° (dB)	22.4	21.9
Cross-polar Discrimination at 3 dB (dB)	20.7	19.9
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.


Ports	4 × High Band Ports for 1695-2400 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain	18.6 dBi	18.8 dBi	19.2 dBi	18.9 dBi
Azimuth Beamwidth (-3dB)	42°	42°	42°	43°
Elevation Beamwidth (-3dB)	6.8°	6.2°	5.8°	5.1°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	<-17 dB	<-17 dB	<-16 dB	<-15 dB
Front-to-Back Ratio @180°	> 32 dB	> 32 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 20 dB	> 20 dB	> 22 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground


BASTA Electrical Specifications*
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz
Gain over all Tilts (dBi)	17.7	18.3	18.6	18.3
Gain over all Tilts Tolerance (dB)	0.5	0.4	0.4	0.6
Gain at Low-Tilt (dBi)	17.7	18.3	18.7	18.4
Gain at Mid-Tilt (dBi)	17.7	18.3	18.7	18.4
Gain at High-Tilt (dBi)	17.6	18.2	18.4	18.1
Azimuth Beamwidth Tolerance (°)	4.1	4.2	4.1	6.4
Elevation Beamwidth Tolerance (°)	0.5	0.3	0.5	0.2
Electrical Downtilt Deviation (°)	0.6	0.6	0.5	0.5
First Upper Sidelobes Suppression (dB)	15.0	15.2	14.5	12.7
Upper Sidelobe Suppression Peak to 20° (dB)	14.1	13.7	13.1	12.6
Front-to-Back Ratio over ±20° (dB)	20.9	22.3	23.9	27.2
Cross-polar Discrimination at 3 dB (dB)	16.2	16.0	16.2	18.3
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	55.0×29.1×8.5 in (1396×739×217 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	341 lbs (1517 N) @ 100 mph (161 kph)
Side Wind Load	115 lbs (511 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	13.3 ft² (1.2 m²)
Weight *	64.6 lbs (29.3 kg)
Connector	8 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting

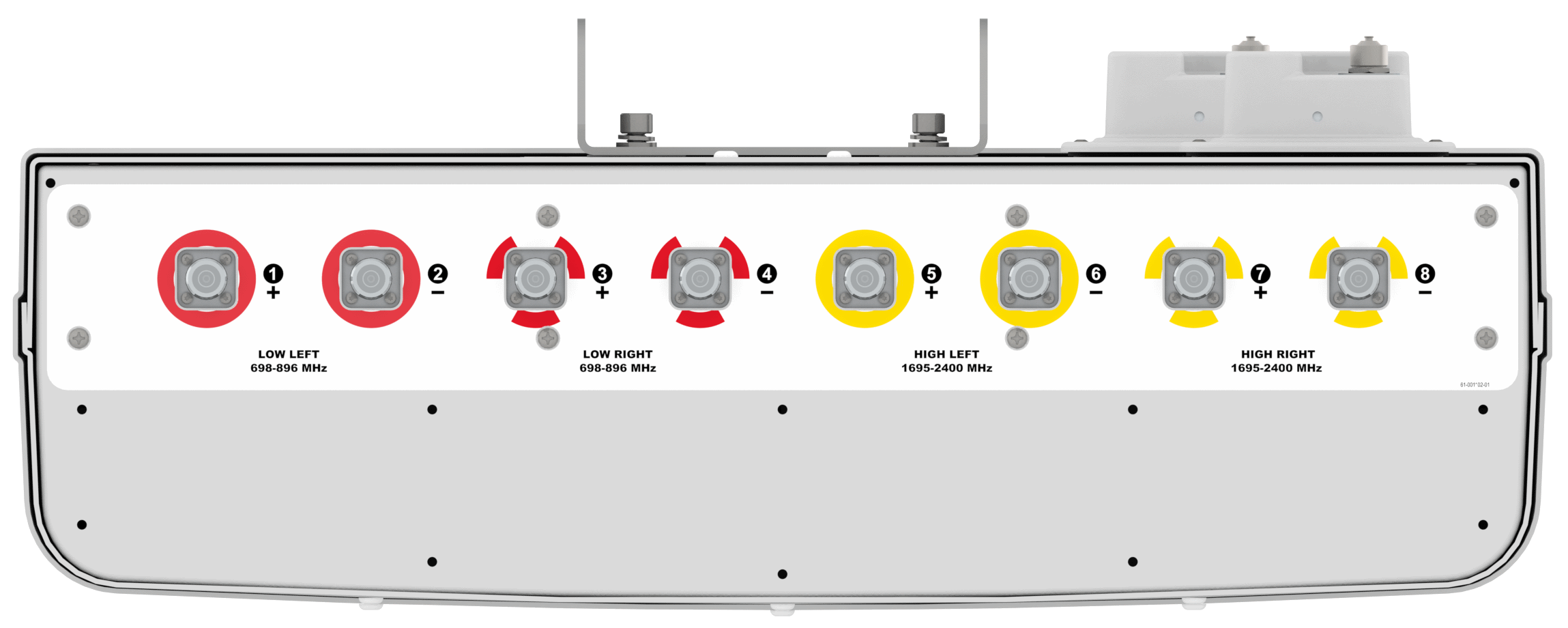

Bottom View	OPA45R-BU5CA

Connector Spacing Diagram	OPA45R-BU5CA

RET to Element Configuration	OPA45R-BU5CA Element and RET configuation

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at


	734 MHz Azimuth with Elevation 11°	880 MHz Azimuth with Elevation 11°


	1850 MHz Azimuth with Elevation 6°	1960 MHz Azimuth with Elevation 6°

	2360 MHz Azimuth with Elevation 6°

MBK-01		MBK-01 Mounting Kit
BSA-RET200		Type 1 External Remote Electrical Tilt System (RET)
BSA-RET400		Type 17 Internal Remote Electrical Tilt System (RET)
CBK-AG-RRU-001		AISG Cable set for two RET (Type 1) Antenna
CBK-RA-AG-RRU-005		AISG Right Angle Cable set for two RET (Type 1) Antenna
SCU-AISG2-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	OPA45R-BU5CA Connector Spacing Diagram
	OPA45R-BU5CA Antenna/RET Config Diagram
	MBK-01 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

OPA45RBU5C: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0401E
Configuration File	Version
OPA45-BU5C-YB01.BIN	01
OPA45-BU5C-YU01.BIN	01

Parts & Accessories

OPA45R-BU5CA-K	Five foot (1.4 m) TriBand antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 2 factory installed BSA-RET200 RET actuators (Type 1 External) and MBK-01 mounting bracket
OPA45R-BU5CB-K	Five foot (1.4 m) TriBand antenna with 45° azimuth beamwidth, 4.3-10 female connectors, 2 factory installed BSA-RET400 RET actuators (Type 17 Internal) and MBK-01 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Type 1 External remote electrical tilt actuator
BSA-RET400	Type 17 Internal remote electrical tilt actuator
CBK-AG-RRU-001	TriBand antenna with 2 RET (Type 1) to RRU AISG cable kit
CBK-RA-AG-RRU-005	TriBand antenna with 2 RET (Type 1)to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
