      Hybrid Bi-SectorTM Array HBSA33R-KE4A




  PI HBSA33RKE4AA FRONT ISO  PI HBSA33RKE4AA REAR ISO
  • Four foot (1.2 m), multiband, six port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-960 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies

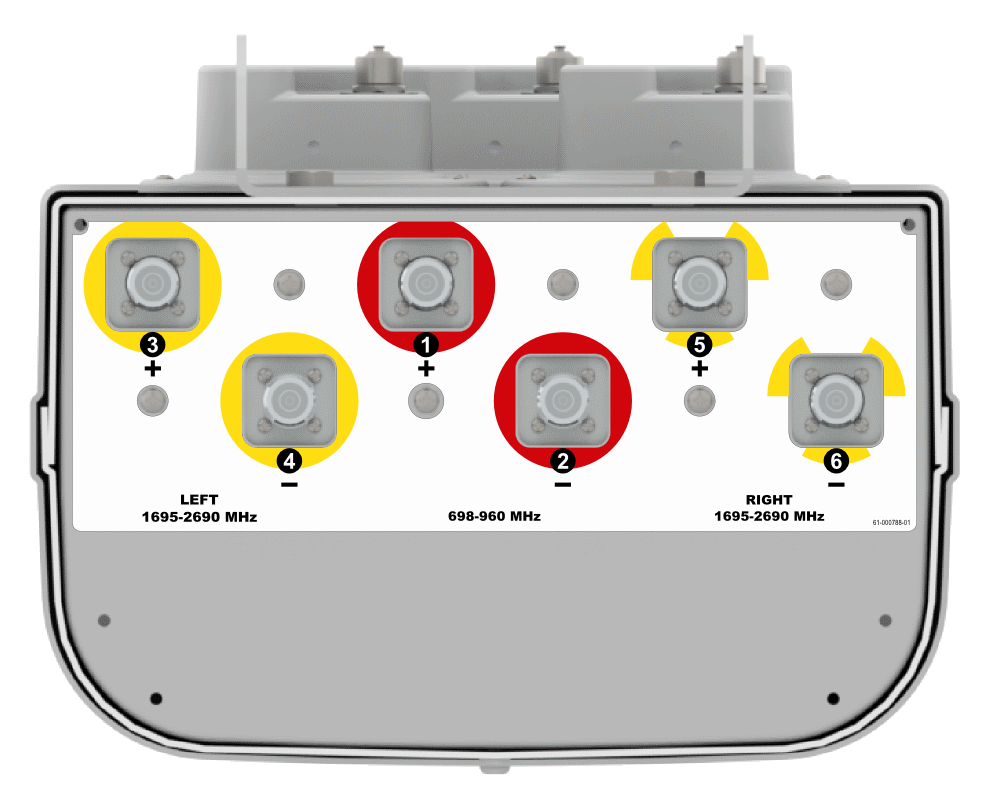

  • Four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 698-960 MHz in a single antenna
  • Narrow Enclosure, 13.7” (348mm) width. Narrowest Enclosure in the Industry for this type of Antenna
  • Full Spectrum Compliance for 698-960 MHz / 1695-2690
  • LTE Optimized Asymmetric Shaped Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum
  • LTE Optimized FBR, SPR and Boresight/Sector XPD Performance. Essential for today’s LTE Data Networks
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with Three Field Replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET)



MBK-02   MBK-02 Mounting Kit
BSA-RET200   Remote Electrical Tilt System (RET)
HPA-CBK-AG-RRU   RRU AISG cable kit for three RET antenna
HPA-CBK-RA-AG-RRU   RRU AISG right angle cable kit for three RET antenna
SCU-AISG-P   Portable AISG 2.0 Site Control Unit
Configuration File
