      Hybrid Bi-SectorTM Array 12HBSAR-BW6NA




  PI 12HBSAR BW6NA front iso 20201202 PI 12HBSAR BW6NA rear iso 20201202

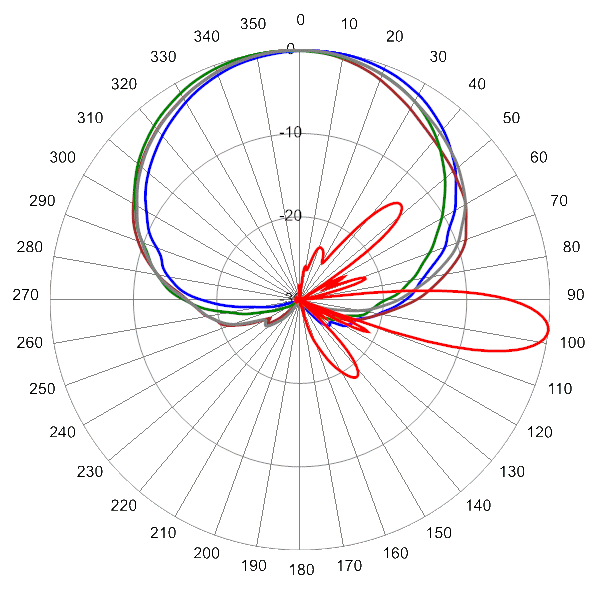

  • Six foot (1.98 m) tall and 19.5” (496 mm) wide, multiband, Twelve port Hybrid Bi-SectorTM Antenna. Deploying a high performing 65° azimuth beamwidth covering 698-896 MHz and a pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2180 MHz frequencies

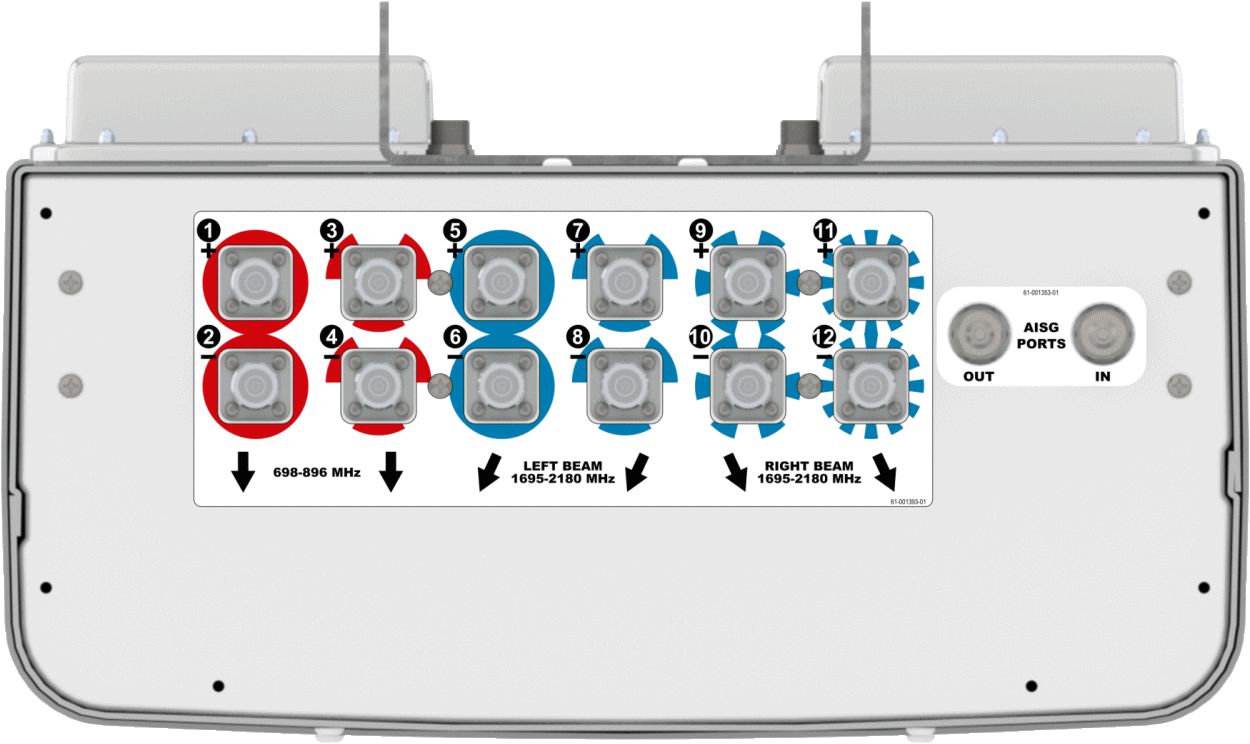

  • Eight wide high band ports covering 1695-2180 MHz and four wide low band ports covering 698-896 MHz in a single antenna
  • Full Spectrum Compliance for 698-896 MHz /1695-2180 MHz

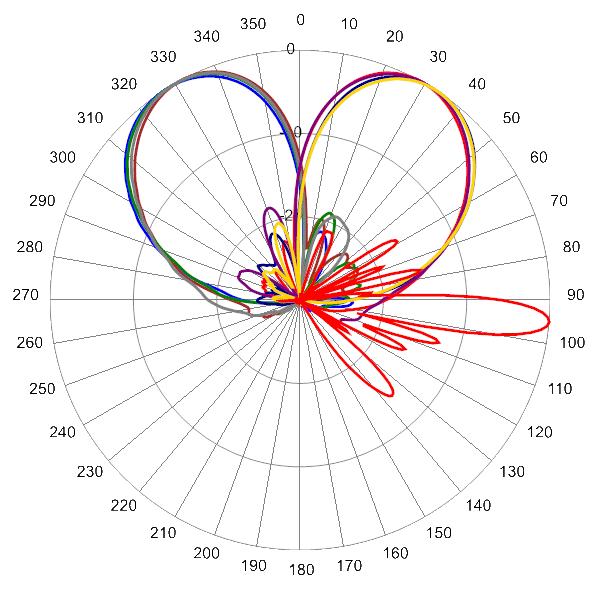

  • Provides a pair of LTE Optimized Asymmetric Shaped Beams for improved LTE data throughput by minimizing beam crossover, providing for an efficient use of valuable radio capacity and frequency spectrum
  • LTE Optimized FBR, SPR and Boresight/Sector XPD Performance, essential for today’s LTE Data Networks
  • Exceeds minimum PIM performance requirements
  • Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
  • Equipped with Three Field Replaceable, Type 17 integrated AISG 2.0 compliant Remote Electrical Tilt (RET)
MBK-01 MBK-01 Mounting Kit with 0° - 10° mechanical tilt
MBK-16 MBK-16 Mounting Kit with fixed 0° mechanical tilt
BSA-RET400 Type 17 Internal Remote Electrical Tilt System (RET)
AISGC-M-F-10FT 10 Foot (3 M) Male/Female AISG cable
SCU-AISG-P Portable AISG 2.0 Site Control Unit
Configuration File
