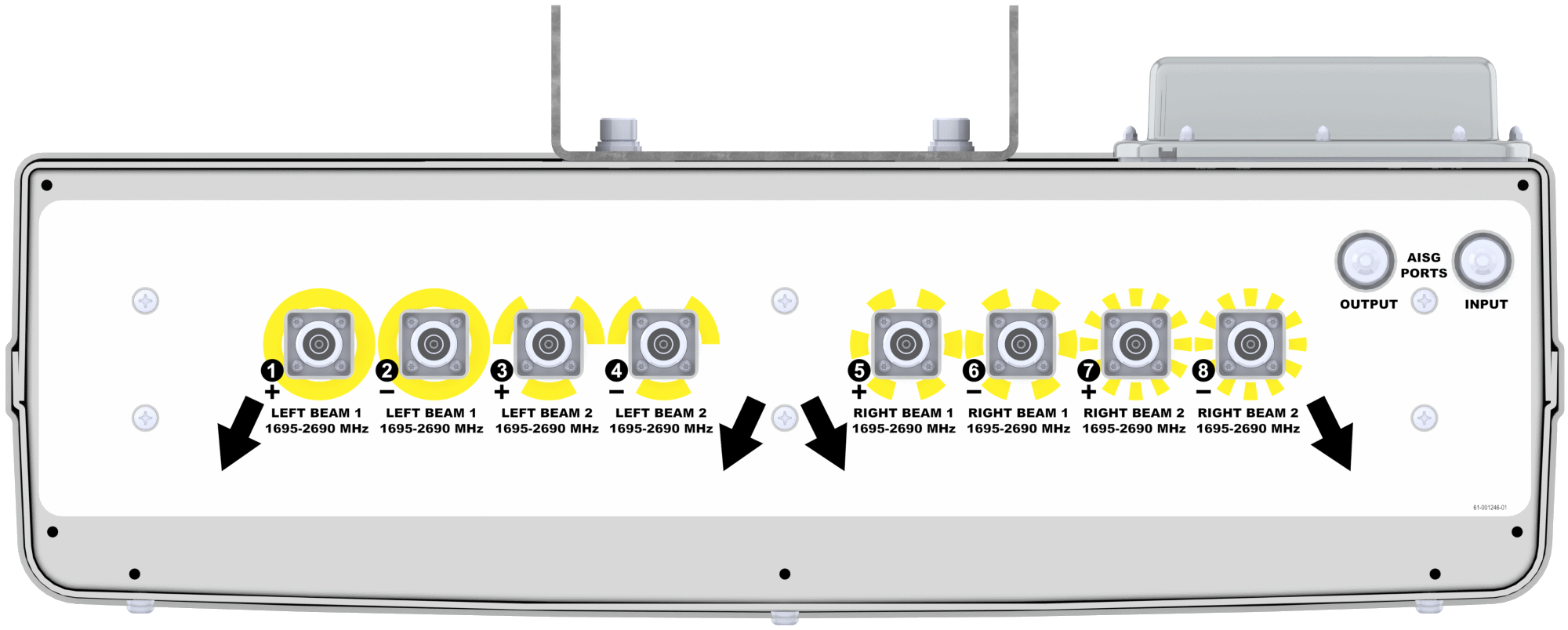

This version of the CCI Bi-SectorTM Ultra Wideband Array is an eight port antenna, with eight wide High Band ports (four per beam) covering 1695-2690 MHz. The CCI Bi-SectorTM array uses a pair of CCI’s High Performing Patented Asymmetric 33° Shaped Beams. The CCI Bi-SectorTM Array thus provides the capability to deploy Dual (over split beams) 4×4 Multiple-input Multiple-output (MIMO) in the High Band. The CCI Bi-SectorTM Array utilizes two RET controllers, with a separate RET controller for each of CCI’s Patented Asymmetric 33° Shaped Beams.

The CCI Bi-SectorTM Wideband Array, allow operators to reduce antenna count and replace existing 65° networks, while increasing cell site capacity and LTE data throughput by minimizing overlap between CCI’s Patented Asymmetric 33° Shaped Beams. This design approach lowers interference between sectors. All of this is achieved through a single panel array, producing significant CAPEX and OPEX cost savings for the operator.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
