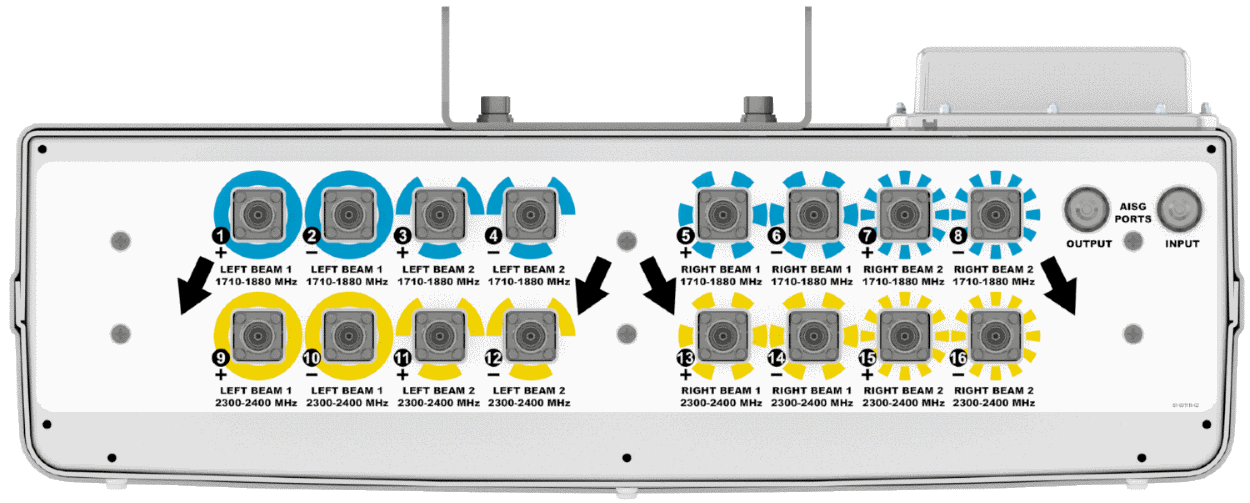

This version of the CCI Bi-Sector^TM Dualband Array is a sixteen port antenna, with sixteen frequency specific high band ports covering 1710-1880 MHz and 2300-2400 Mhz. The CCI Bi-Sector^TM array uses a pair of CCI’s Patented Asymmetric 33° Shaped Beams. The CCI Bi-Sector^TM Array provides the capability to deploy Dual 4×4 Multiple-input Multiple-output (MIMO) in the high band array. The CCI Bi-Sector^TM Array utilizes two Type 17 RET controllers, with a separate RET control for each pair of CCI’s Patented Asymmetric Shaped Beams
The CCI Bi-Sector^TM Dualband Array, allow operators to reduce antenna count and replace existing 65° networks, while increasing cell site capacity and LTE data throughput by minimizing overlap between CCI’s Patented Asymmetric 33° Shaped Beams. This design approach lowers interference between sectors. All of this is achieved through a single panel array, producing significant CAPEX and OPEX cost savings for the operator.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
