Mounting Bracket Kit | MBK-31 | |||
|

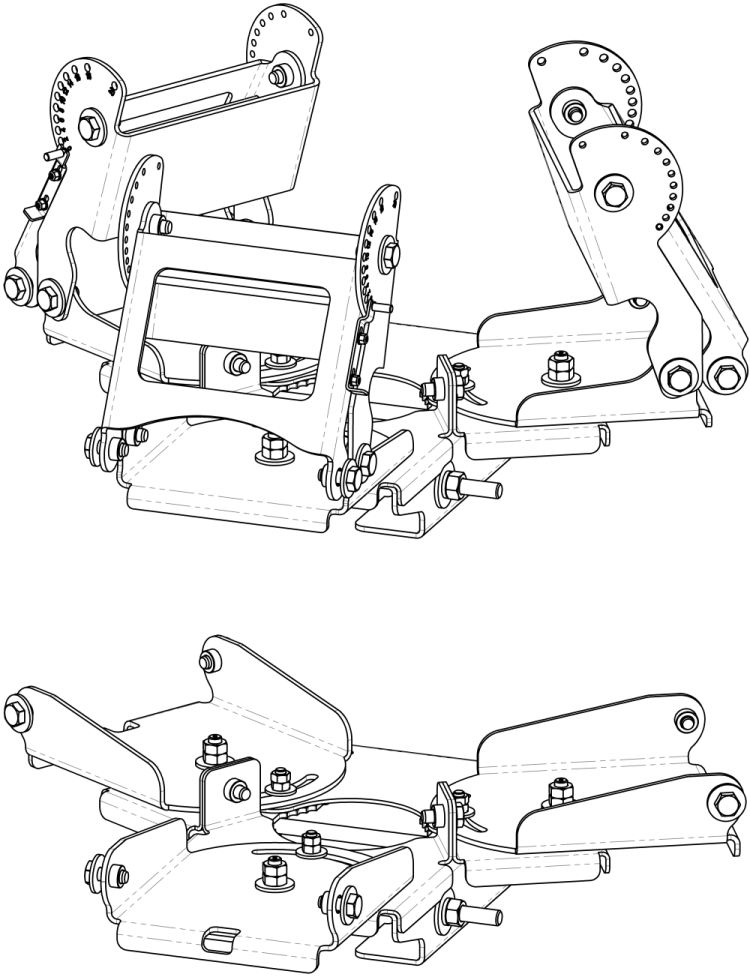

This Pole Mounting Bracket is designed for use with CCI’s QPA65R-H3A antenna. The MBK-31 bracket kit delivers a very stable mounting for three antennas and offers 0 to 20 degrees of down tilt. The rugged design supports CCI’s antennas while resisting the elements. The clamps adjust to fit pole diameters ranging from 3.5 – 5.5 inches (89 – 140 mm). |
Weight | 52.7 lbs (23.9 kg) |
Hinge Pitch | 34.25 in 870 mm) |
Mounting Pole Dimension | 3.5 to 5.5 in (89 to 140 mm) |
Fastener Size | M10 HHC Screw, DIN 933, ISO 4017 M12 Hex Nut, DIN 934, ISO 4032 |
Installation Torque | M10-18 ft·lbs (25 Nm), M12-40 ft·lbs (54 Nm) |
Mechanical Tilt | 0° to 20° |
MBK-31 |

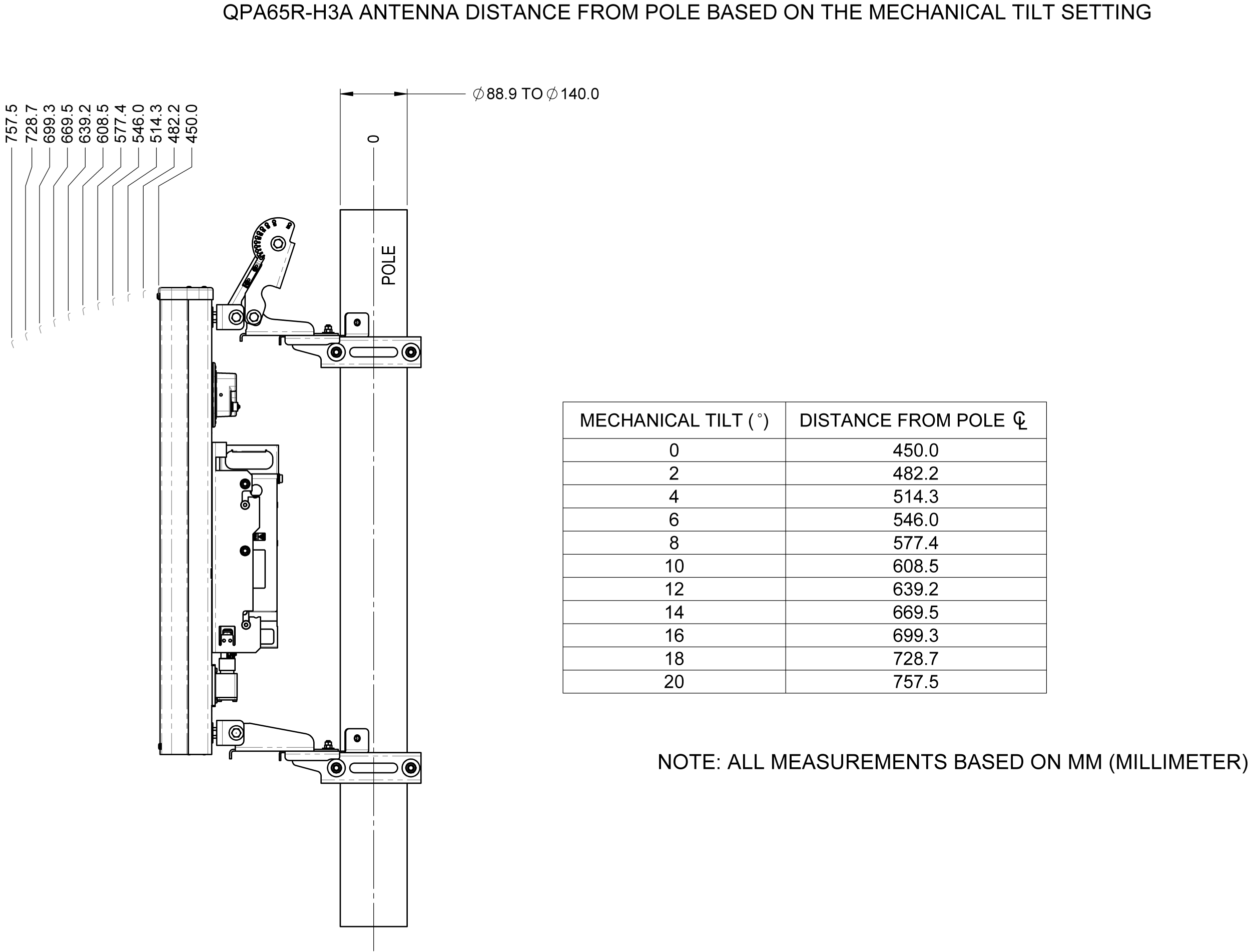

Mechanical Tilt Setting Chart For QPA65R-H3A |
|
