Datasheet

Adjustable Mast Bracket

BSA-M05

			Horizontal Mechanical Tilt of (±35°) Vertical Mechanical Tilt of (±55°) Mast (2” to 5” Mast) mounting of the 2 foot Multi-Band Bi-Sector Array antenna (a.k.a. “Stadium Antenna”), when the Adjustable Mast Bracket (BSA-M05) is used in conjunction with the Mast Bracket Clamp (MBC-01) Wall Mounting of the 2 foot Multi-Band Bi-Sector Array antenna (a.k.a. “Stadium Antenna”), when the Adjustable Mast Bracket (BSA-M05) is used on its own

Overview

The Adjustable Mast Bracket (BSA-M05) can be used either in conjunction with the Mast Bracket Clamp (MBC-01) when a 2” to 5” diameter mast (pipe) is used, or on its own when Wall Mounting is desired. The Stadium Antenna can be mounted Horizontally or Vertically with the Adjustable Mast Bracket, and it’s Mechanical Tilt can be adjusted in both the Horizontal (±35°) and Vertical (±55°) directions.

Mechanical

Weight	7.7 lbs (3.5 kg)
Hinge Pitch	Horizontal(± 35°), Vertical(± 55°)
Fastener Size	M10
Installation Torque	15 ft-lbs (20 Nm)
Mechanical Tilt Adjustment	Horizontal(± 35°), Vertical(± 55°)
Mounting Pole(when used with MBC-01)	2 to 5 in (5 to 12 cm)

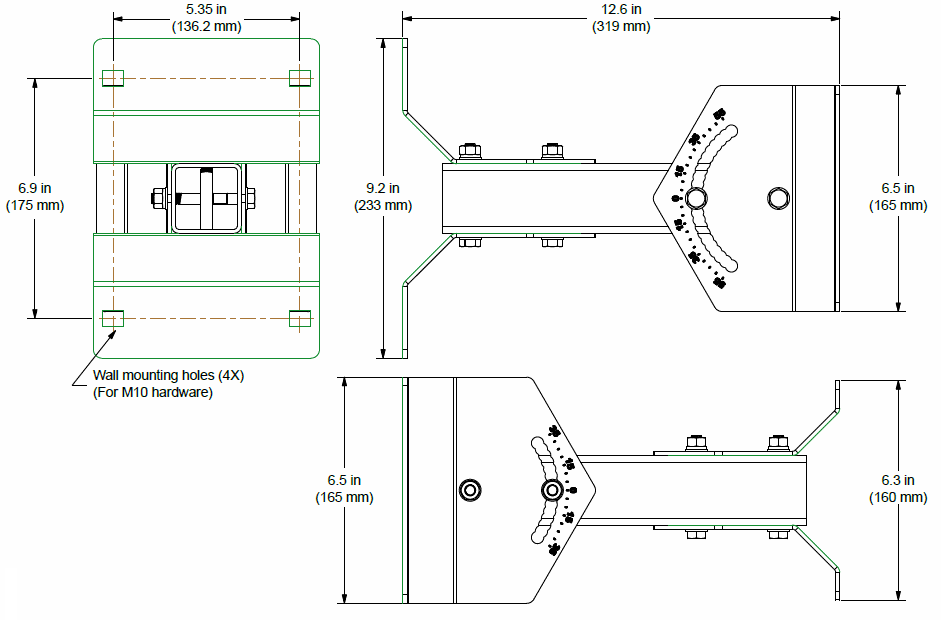

	BSA-M05 Dimensions

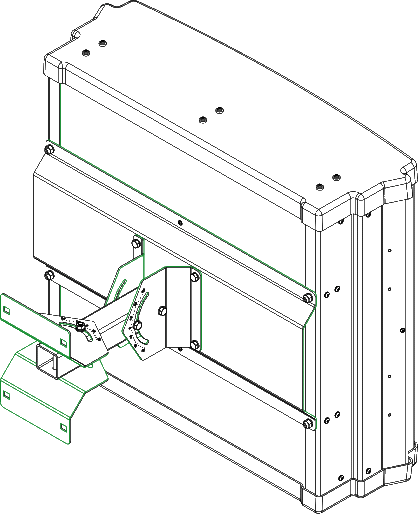

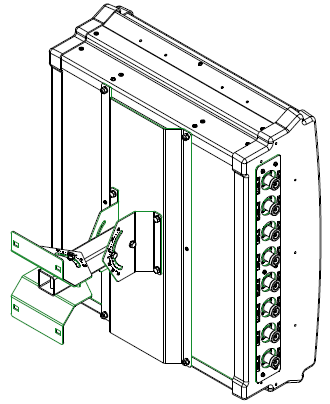

	BSA-M05 horizontal mount on "Stadium Antenna"	BSA-M05 vertical mount on "Stadium Antenna"

	MBC-01 Mast Bracket Clamp	BSA-M05 and MBC-01 mounting application
