Communication Components, Inc. Outdoor Broadband Triplexer features full AWS-3 support and combines 700 MHz, 850 MHz, and PCS/AWS band Basestation Tx/Rx signals onto a common port. Specifically intended for use in multi-band systems with limited feeder lines, the CCI Triplexer model TPX-070821 facilitates the addition of new technologies including LTE to existing sites while providing a high degree of isolation between systems. By reducing the number of feeder lines, the cost to upgrade a site (tower loading, leasing and installation costs) is reduced.
The CCI Outdoor Broadband Triplexer provides full band performance for each band with low insertion loss, low Intermodulation, and high power handling. Excellent return loss delivers the best match to the antennas and base station, saving precious transmit power. DC and AISG pass-through retains full RET and TMA capability utilizing CCI’s AISG suite of products.
Technical Description:

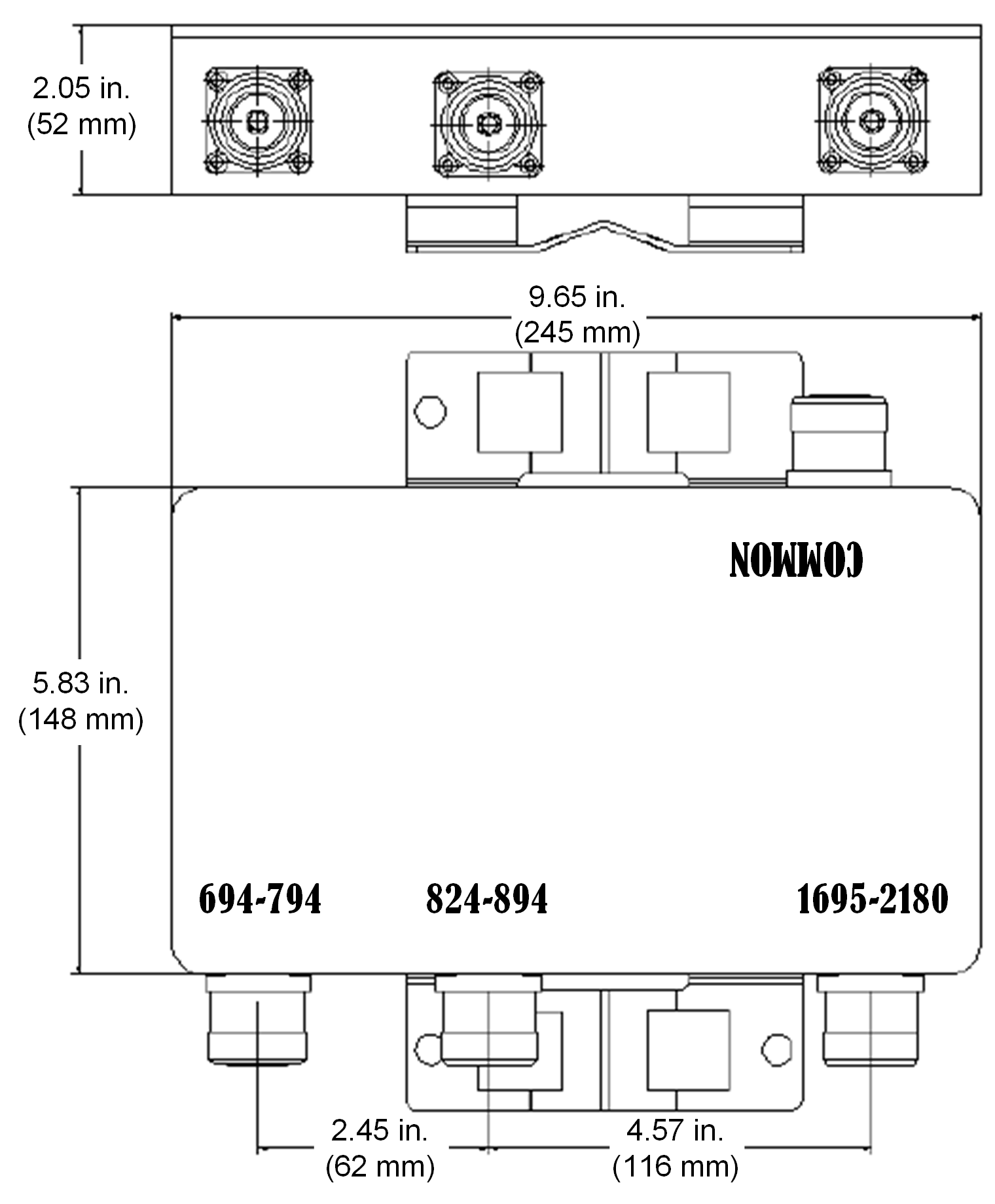

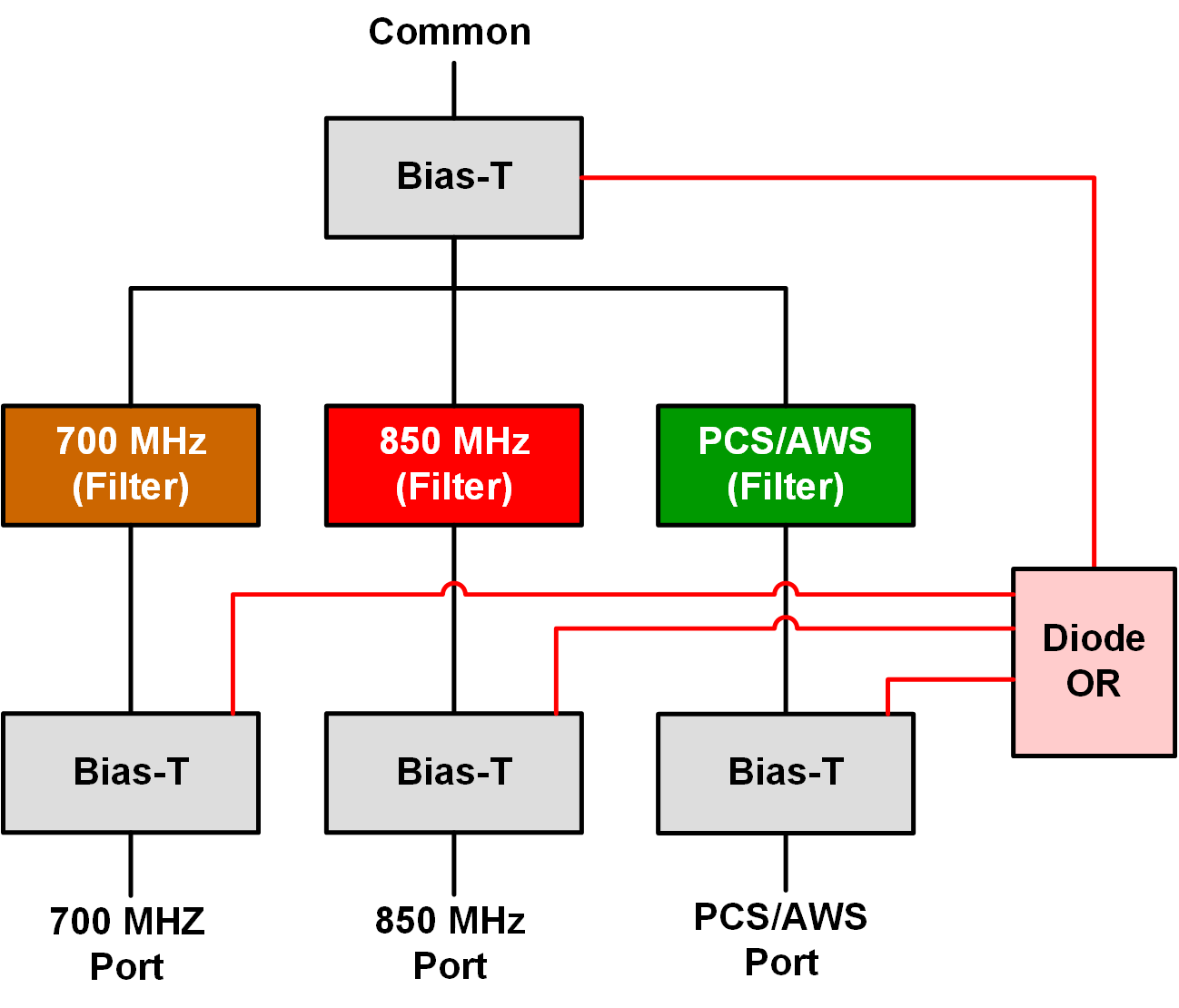

The Outdoor Broadband Triplexer consists of multiple filters to combine (or divide) full band 700 MHz, 850 MHz and PCS/AWS signals. This tower mount unit can be used as either a splitter or combiner to aggregate multiple bands on a common feeder line. All RF ports are DIN 7-16 connectors. The fully weatherproof tower mount unit incorporates a unique smart Bias-T architecture which passes the DC and AISG carrier frequency from any of the input ports to the common port while blocking the DC and AISG signals from being re-injected into the other input ports. The unit has internal lightning strike protection using a multi-stage surge protection circuit. The filters have been designed to minimize insertion loss while maximizing isolation. Particular attention has been given to the intermodulation performance of the Broadband Diplexer to minimize any passive intermodulation products from occurring. All DIN Connectors are fully IP68 rated and the unit body is rated for IP66.
|
