Broadband Triplexer Combiner | TPX-192126A-xxx | |||
|
Overview

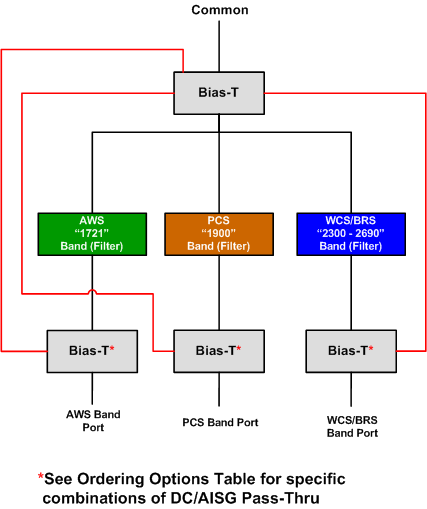

The CCI Broadband Triplexer combines three bands, PCS (1850-1995), AWS (1695-2180) and WCS/BRS (2310-2690) onto a common port. Specifically intended for use in multi-band systems with limited feeder lines, this CCI Triplexer facilitates the addition of new technologies including LTE and new spectrum including AWS-3 to existing sites while providing a high degree of isolation between systems. Decreasing the number of feeder lines lowers tower loading, leasing and installation expenditures and the total cost to upgrade a site is significantly reduced. Technical Description: The Triplexer consists of multiple filters and can be used as either a splitter or combiner to aggregate the PCS, AWS, and WCS/BRS bands on a common feeder line. The fully weatherproof triplexer is orderable with DC block on all ports or DC and AISG signal pass-through on any of the band specific ports. When configured with pass-through the Triplexer provides power and control for TMA's & RET antennas. DC and AISG signal pass-through is available on both the rack mounted and outdoor pole mount models. The triplexer has internal multi-strike lightning protection using a multi-stage surge protection circuit. |
The unit has been designed to minimize insertion loss while maximizing isolation. Particular attention has been given to the intermodulation performance of the Triplexer to minimize any passive intermodulation products from occurring. The indoor model can be 19” rack mounted and the unit body is rated for IP20. An optional wall mount bracket is available for the indoor model. The triplexer is avaialble in a 1U high 19" rack mount configuration as well as an outdoor pole mounted single or twin configuration. An additional wall/pole bracket is included with the rack mount unit to provide flexible mounting options. Both the rack mount and pole mount configurations are available with either 7-16 DIN or 4.3-10 conectors and are IP67 rated for outdoor use. |
Electrical Specification
RF Parameters | Ports | Frequency(MHz) | Specification |
Return Loss | Common | 1850 - 1995 | 18 dB minimum, 20 dB typical |
1695 - 1780 | 18 dB minimum, 20 dB typical | ||
2110 - 2180 | 18 dB minimum, 20 dB typical | ||
2310 - 2690 | 18 dB minimum, 20 dB typical | ||
PCS | 1850 - 1995 | 18 dB minimum, 20 dB typical | |
AWS | 1695 - 1780 | 18 dB minimum, 20 dB typical | |
2110 - 2180 | 18 dB minimum, 20 dB typical | ||
WCS/BRS | 2310 - 2690 | 18 dB minimum, 20 dB typical | |
Insertion Loss | COM to PCS | 1850 - 1995 | 0.35 dB typical, 0.5 dB maximum |
COM to AWS | 1695 - 1780 | 0.35 dB typical, 0.5 dB maximum | |
2110 - 2180 | 0.35 dB typical, 0.5 dB maximum | ||
COM to WCS/BRS | 2310 - 2690 | 0.35 dB typical, 0.5 dB maximum | |
Isolation | COM to PCS | 1695 - 1780 | 50 dB minimum |
2110 - 2180 | 50 dB minimum | ||
2310 - 2690 | 50 dB minimum | ||
COM to AWS | 1850 - 1995 | 50 dB minimum | |
2310 - 2690 | 50 dB minimum | ||
COM to WCS/BRS | 1850 - 1995 | 50 dB minimum | |
1695 - 1780 | 50 dB minimum | ||
2110 - 2180 | 50 dB minimum |
General Characteristics | |
Impedance | 50 ohms |
Continuous Average Power | 60 W per input port maximum |
Peak Envelope Power | 1.2 kW max. (PCS, AWS), 650 W max. (WCS, BRS) |
Intermodulation Performance | <-117 dBm (-160 dBc) typical (2 × +43 dBm tones) all bands (Indoor & Outdoor) |
DC Pass Current/AISG Pass | 3A/AISG signal (2.176 Mhz) per AISG 2.0 (Outdoor) |
Mechanical Specification
Indoor Rack Mount | |
Connectors | 4 × 7-16 DIN female or 4 × 4.3-10 female |
Body Dimensions | 1.73 × 10.24 × 10.47 in. (44.0 × 260.0 × 266.0 mm) |
Overall Dimensions (7-16 DIN Connectors) | 1.73 × 19.00 × 11.65 in. (44.0 × 483.0 × 296.0 mm) |
Overall Dimensions (4.3-10 Connectors) | 1.73 × 19.00 × 11.89 in. (44.0 × 483.0 × 302.0 mm) |
Weight | 11.9 lbs (5.4 kg) |
Mounting | 19 inch (483 mm) x 1U (266 mm) rack or included wall mount bracket |
Outdoor Pole Mount | Single | Twin |
Connectors | 4 × 7-16 DIN female or 4 x 4.3-10 female | |
Body Dimensions | 1.73 × 10.24 × 10.47 in. (44.0 × 260.0 × 266.0 mm) |
4.09 × 10.24 × 10.47 in. (104.0 × 260.0 × 266.0 mm) |
Overall Dimensions | 2.36 × 10.24 × 13.94 in. (60.0 × 260.0 × 354.0 mm) |
4.72 × 10.78 × 13.94 in. (120.0 × 274.0 × 354.0 mm) |
Weight (no Bracket) | 11.9 lbs (5.4 kg) | 24.4 lbs (11.1 kg) |
Frontal Wind Load @ 150 km/hour | 235.0 N (52.8 lbs) | 235.0 N (52.8 lbs) |
Lateral Wind Load @ 150 km/hour | 38.9 N (8.7 lbs) | 79.5 N (17.9 lbs) |
Mounting | Pole/Wall Mount |
Indoor Broadband Triplexer (TPX-192126A-xRM) Outline Drawing |
Outdoor Broadband Triplexer (TPX-192126A-X-O) Outline Drawing |
Outdoor Broadband Triplexer (TPX-192126A-X-O-D-C2) Outline Drawing |
Product Information
Parts & Accessories
TPX-192126A-xRM | 19 in. Indoor Rack Mount Triplexer with 7-16 DIN connectors, includes optional wall mount |
TPX-192126A-xRM-C2 | 19 in. Indoor Rack Mount Triplexer with 4.3-10 connectors, includes optional wall mount |
MPW-01 | Pole/Wall Mounting Kit for Select Filters and Amplifiers |
TPX-192126A-X-O | Outdoor Pole/Wall Mount Triplexer with 7-16 DIN connectors |
TPX-192126A-X-O-C2 | Outdoor Pole/Wall Mount Triplexer with 4.3-10 connectors |
TPX-192126A-X-O-D | Outdoor Twin Pole/Wall Mount Triplexer with 7-16 DIN connectors |
TPX-192126A-X-O-D-C2 | Outdoor Twin Pole/Wall Mount Triplexer with 4.3-10 connectors |
Option (-X) | Description |
-0 | No DC/AISG Pass thru |
-1 | DC/AISG Pass thru PCS to COMMON, DC Block on AWS, WCS/BRS ports |
-2 | DC/AISG Pass thru AWS to CLOMMON, DC Block on PCS, WCS/BRS ports |
-3 | DC/AISG Pass thru WCS/BRS to COMMON, DC Block on AWS, PCS ports |
-S | DC/AISG Pass thru on any port with Smart Bias-T |
Standards & Compliance
Safety | EN 60950-1, UL 60950-1 |
Emission | EN 55022 |
Immunity | EN 55024 |
Environmental | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, IEC61000-4-5, GR-63-CORE 4.3.1, EN 60529 IP20, IP67, IP68 |
|
