      Broadband Pentaplexer Combiner 5PO-6919203636-xxx




  PI 5PO6919213636XQ2 V1.0 180402
  • The rackmounted Pentaplexer combines the frequency ranges 617-960 MHz, 1850-1995 MHz, 1695-1780/2110-2200MHz and 2 x 2305-2690 MHz onto a common port
  • Supports the 600, 700, SMR, 850 and 900 bands on one port, AWS band on a second port, PCS band on a third port, and has two WCS/2600 band input ports
  • High power 60 W per port with low insertion loss in a small, lightweight enclosure
  • Low intermodulation with isolation of ≥50 dB between the frequency ranges and ≥25 dB between the twin WCS/2600 band inputs ports
  • Pole or wall mount for outdoor
  • Available in Single, Twin or Quad Configurations
  • High reliability of >500K Hours MTBF



Overview



The CCI Broadband Pentaplexer, which is available in a Quad, Twin or Single configuration, combines the Tx/Rx signals of 617-960 MHz, PCS, AWS and two sets of WCS/BRS band inputs onto a common port. Specifically intended for use in multiband systems with limited feeder lines, this CCI Pentaplexer facilitates the addition of new technologies including LTE and new spectrum including AWS-3 and 600 MHz to existing sites. The Pentaplexer provides a minimum of 50 dB of isolation between each of the individual frequency ranges and a minimum of 25 dB of isolation between the two 2305-2690 band ports. By reducing the number of feeder lines, the cost to upgrade a site (tower loading, leasing and installation costs) is reduced.

The CCI Pentaplexer Combiner provides full band performance for each band with low insertion loss, low Intermodulation, and high power handling. Excellent return loss delivers the best match to the antennas and base station, saving precious transmit power.  The Pentaplexer is fully outdoor rated and can be pole or wall mounted.



Technical Description:

The Outdoor Broadband Pentaplexer Combiner consists of multiple filters to combine (or divide) full band 617-960 MHz, PCS, AWS and 2 x WCS/BRS signals.  This tower mount unit can be used as either a splitter or combiner to aggregate multiple bands on a common feeder line. All RF ports are terminated in 4.3-10 connectors.

The filters have been designed to minimize insertion loss while maximizing isolation. Particular attention has been given to the intermodulation performance of the Broadband Pentaplexer to minimize any passive intermodulation products from occurring. The Pentaplexer is IP67 rated and suitable for use outdoors.

CCI filter and combiner products are designed and produced to ISO 9001 certification standards for reliability and quality at our state-of-the-art engineering and manufacturing facilities.

Electrical Specification

RF Parameters Ports Frequency(MHz) Specification
Return Loss COM 617 - 960 18 dB min., 20 dB typ.
1850 - 1995 18 dB min., 20 dB typ.
1695 - 1780 18 dB min., 20 dB typ.
2110 - 2200 18 dB min., 20 dB typ.
2305 - 2690 18 dB min., 20 dB typ.
LOW BAND 617 - 960 18 dB min., 20 dB typ.
PCS 1850 - 1995 18 dB min., 20 dB typ.
AWS 1695 - 1780 18 dB min., 20 dB typ.
2110 - 2200 18 dB min., 20 dB typ.
WCS/BRS1 2305 - 2690 18 dB min., 20 dB typ.
WCS/BRS2 2305 - 2690 18 dB min., 20 dB typ.
Insertion Loss COM to LOW BAND 617 - 960 0.15 dB maximum
COM to PCS 1850 - 1995 0.3 dB typical, 0.4 dB maximum
COM to AWS 1695 - 1780 0.3 dB typical, 0.35 dB maximum
2110 - 2200 0.3 dB typical, 0.35 dB maximum
COM to WCS/BRS1 2305 - 2690 3.55 dB typical, 3.7 dB maximum
COM to WCS/BRS2 2305 - 2690 3.55 dB typical, 3.7 dB maximum
Rejection COM to LOW BAND 1850 - 1995 50 dB min.
1695 - 1780 50 dB min.
2110 - 2200 50 dB min.
2305 - 2690 (1) 50 dB min.
2305 - 2690 (2) 50 dB min.
COM to PCS 617 - 960 50 dB min.
1695 - 1780 50 dB min.
2110 - 2200 50 dB min.
2305 - 2690 (1) 50 dB min.
2305 - 2690 (2) 50 dB min.
COM to AWS 617 - 960 50 dB min.
1850 - 1995 50 dB min.
2305 - 2690 (1) 50 dB min.
2305 - 2690 (2) 50 dB min.
COM to WCS/BRS1 617 - 960 53 dB min.
1850 - 1995 53 dB min.
1695 - 1780 53 dB min.
2110 - 2180 53 dB min.
2180 - 2200 48 dB min.
2305 - 2690 (2) 25 dB min.
COM to WCS/BRS2 617 - 960 53 dB min.
1850 - 1995 53 dB min.
1695 - 1780 53 dB min.
2110 - 2180 53 dB min.
2180 - 2200 48 dB min.
2305 - 2690 (1) 25 dB min.

General Characteristics
Impedance 50 ohms
Continuous Average Power 60 W maximum per input port
Peak Envelope Power 1.2 kW maximum per input port, excluding WCS/BRS port which is 650 W
Intermodulation Performance(all ports) <-117 dBm (-160 dBc) typical (2 × +43 dBm tones) all bands
DC Pass Current/AISG Pass Not applicable

Environmental Specification

Operating Temperature -40˚C to +65˚C
Enclosure & Connectors IP67 (indoor/outdoor)
Relative Humidity 0 - 99%
MTBF >500,000 hours
Lightning Protection 8/20us, ±10KA max, 10 strikes each, IEC61000-4-5

Mechanical Specification

Configuration Single Twin Quad
Connectors 6x 4.3-10 female 12 x 4.3-10 female 24 x 4.3-10 female
Dimensions w/o Bracket 10.24 × 15.24 × 1.69 in.
(260 × 387 × 43 mm)
10.24 × 15.24 × 3.46 in.
(260 × 387 × 88 mm)
10.24 × 15.24 × 7.01 in.
(260 × 387 × 178 mm)
Dimensions w/ Bracket 13.74 × 15.24 × 2.32 in.
(349 × 387 × 59 mm)
13.74 × 15.75 × 4.09 in.
(349 × 400 × 104 mm)
13.74 × 15.75 × 7.64 in.
(349 × 400 × 194 mm)
Weight 16.6 lbs (7.55 kg) 32.4 lbs (14.71 kg) 63.5 lbs (28.85 kg)
Frontal Wind Load 407.6 N @150km/hour 407.6 N @150km/hour 407.6 N @150km/hour
Lateral Wind Load 38 N @150km/hour 77.7 N @150km/hour 157.2 N @150km/hour
Mounting Wall or Pole mount



   OD 5PO6919203636xS2 V1.0 200630
  Single Broadband Pentaplexer (5PO-6919203636-x-S2) Outline Drawing
  OD 5PO6919213636XT2 V1.0 200630
  Twin Broadband Pentaplexer (5PO-6919203636-x-T2) Outline Drawing
  OD 5PO6919213636XQ2 V1.0 200630
  Quad Broadband Pentaplexer (5PO-6919203636-x-Q2) Outline Drawing

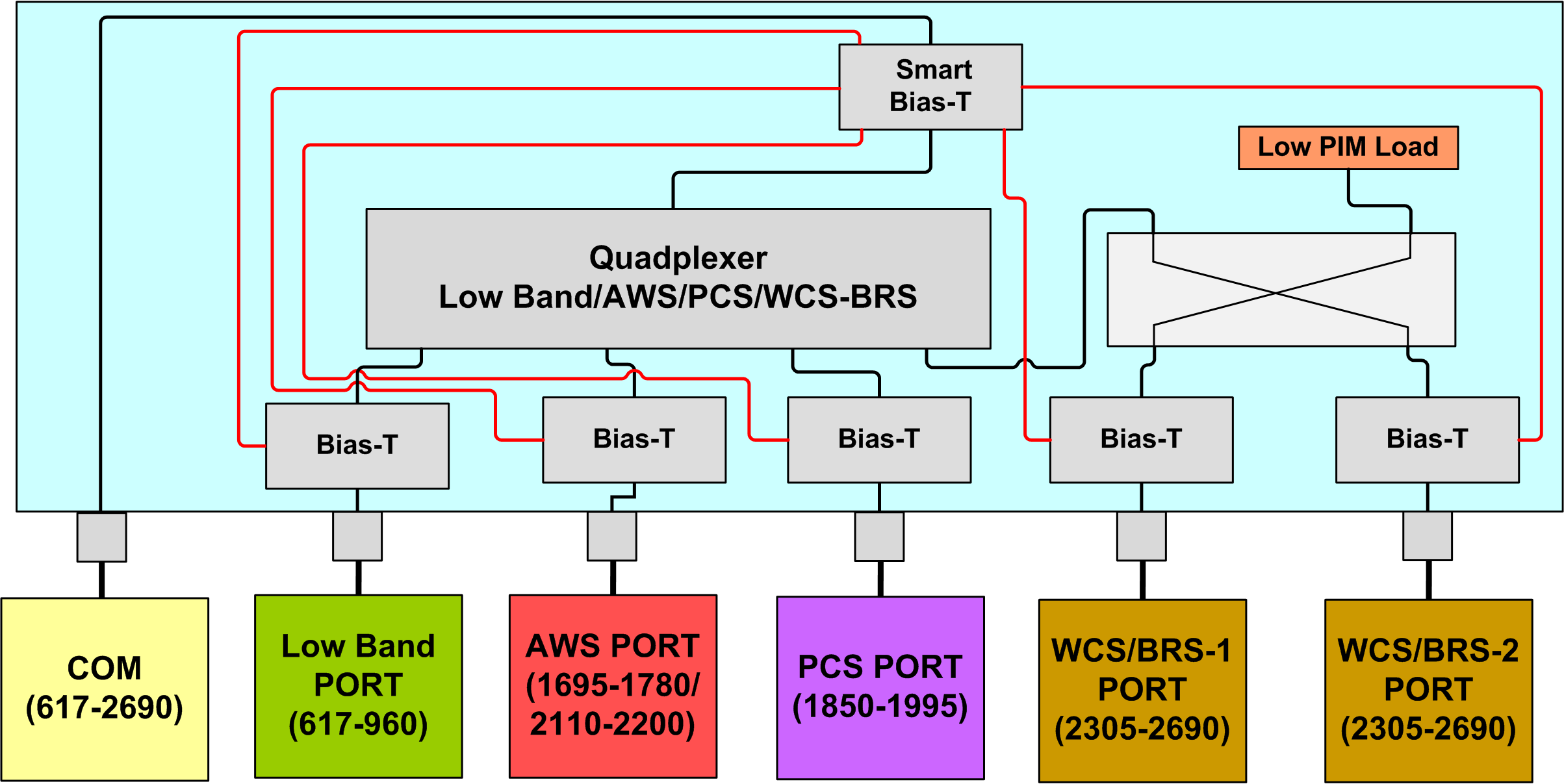

Block Diagram

  BD 5PO6919213636XXX V1.0 180404
  Broadband Pentaplexer (5PO-6919203636-xxx) Block Diagram

Accessories

SCU-AISG2-3 AISG 2.0 Site Controller
RET-CBK AISG Cable Kit
BT-0723-DMDF-AG-O DIN-Male RF Port, DIN-Female RF+DC+AISG Port
BT-0723-DFDM-AG-O DIN-Female RF Port, DIN-Male RF+DC+AISG Port
BT-0723-DFDF-AG-O DIN-Female RF Port, DIN-Female RF+DC+AISG Port

Parts & Accessories

5PO-6919203636-x-S2 Single Pentaplexer with 4.3-10 connectors (see options for DC or AISG Pass through)
5PO-6919203636-x-T2 Twin Pentaplexer with 4.3-10 connectors (see options for DC or AISG Pass through)
5PO-6919203636-x-Q2 Quad Pentaplexer with 4.3-10 connectors (see options for DC or AISG Pass through)

Option (-x) Description
-S Smart Bias-T, DC/AISG Pass through on either port
-0 No DC/AISG Pass through and No DC Block
-1 DC/AISG Pass through LOW BAND to COM, DC Block on all other input ports
-2 DC/AISG Pass through PCS Band to COM, DC Block on all other input ports
-3 DC/AISG Pass through AWS to COM, DC Block on all other input ports
-4 DC/AISG Pass through WCS/BRS1 to COM, DC Block on all other input ports
-5 DC/AISG Pass through WCS/BRS2 to COM, DC Block on all other input ports
-B DC Block on all ports

Standards & Compliance

Safety EN 60950-1, UL 60950-1
Emission EN 55022
Immunity EN 55024
Environmental IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, IEC61000-4-5, GR-63-CORE 4.3.1, EN 60529 IP67, IP68

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
