      Broadband Outdoor Diplexer DPO-3147-xxx




  PI DPO31470X1 V1.0 191004
  • Combines two frequency ranges 380-2180 MHz with 2400-2700 MHz onto a single common port.
  • The low band port covers the 380-2180 MHz frequency range and the high band port covers 2400-2700 MHz frequency range.
  • High power 200 W per port with low insertion loss in a small, lightweight enclosure
  • Low intermodulation with isolation of >50 dB port to port
  • Available dual unit configuration
  • High reliability of >500K Hours MTBF and multi-strike lightning protection
  • Available outdoor pole or wall mounting options



Overview



The CCI Outdoor Broadband Diplexer passes 380-2180 MHz on its low band input port and 2400-2700 MHz on its high band input port. The Diplexer combines the low band and high band signals on to a common port and is specifically intended for use in multi-band systems with limited feeder lines. The Diplexer facilitates the addition of new technologies including LTE and new spectrum to existing sites while providing a high degree of isolation between systems. Decreasing the number of feeder lines lowers tower loading, leasing and installation expenditures and significantly reduces the total cost to upgrade a site.
The Diplexer provides full band coverage for each band with low insertion loss, low Intermodulation, and high 200 W per port power handling. Excellent return loss performance delivers the best match to the antennas and base station, saving precious transmit power. The CCI Diplexer enables Remote Electrical Tilt (RET) and Tower Mount Amplifiers (TMA) control capability by providing DC/AISG 2.0 compliant pass-through on either input. It is available in single or twin unit configuration.



Technical Description:

The CCI Outdoor Broadband Diplexer consists of multiple filters and can be used as either a splitter or combiner to aggregate the 380-2180 MHz band with the 2400-2700 MHz band on to a common feeder line. The fully weatherproof tower mount outdoor Diplexer provides DC and AISG signal pass-through on either of the band specific ports, enabling power and control for TMA's & RET antennas. The Smart Bias-T architecture passes the DC and AISG carrier frequency from any one of the input ports to the common port while blocking the DC and AISG signals from being re-injected into the other input ports. The Diplexer has internal multi-strike lightning protection using a multi-stage surge protection circuit.
The unit has been designed to minimize insertion loss while maximizing isolation. Particular attention has been given to the intermodulation performance of the Diplexer to minimize any passive intermodulation products from occurring. The Diplexer housing is constructed from die cast aluminum and consists of an IP67 moisture proof enclosure, with IP67 moisture proof connectors suited to long-life masthead mounting. The Diplexer can be pole or wall mounted with the included bracket. The RF ports can be configured with either DIN 7-16, 4.3-10 or N connectors.
CCI filter and combiner products are designed and produced to ISO 9001 certification standards for reliability and quality at our state-of-the-art engineering and manufacturing facilities.

Electrical Specification

RF Parameters Ports Frequency(MHz) Specification
Return Loss COMMON 380 - 2180 18 dB minimum
2400 - 2700 18 dB minimum
Lowband Port

380 - 2180 18 dB minimum
Highband Port 2400 - 2700 18 dB minimum
Insertion Loss COMMON to
Lowband Port
380 - 2180 0.3 dB typical, 0.5 dB maximum
COMMON to
Highband Port
2400 - 2700 0.3 dB typical, 0.5 dB maximum
Isolation Highband Port to
Lowband Port
2400 - 2700 50 dB minimum
Lowband Port to
Highband Port
380 - 2180 50 dB minimum

General Characteristics
Impedance 50 ohms
Continuous Average Power 200 W maximum all ports
Peak Envelope Power 2 kW maximum all ports
DC Pass Current/AISG Pass (Low Band to Common Port) 2.5A/AISG signal (2.176 MHz) per AISG 2.0
Intermodulation Performance <-110 dBm (-153 dBc) minimum, all bands at 2× +43 dBm tones

Environmental

Operating Temperature -20˚C to +60˚C
Enclosure Unit Body IP67, Connector IP68
MTBF >500,000 hours
Lightning Protection 8/20us, ±10KA max, 10 strikes per IEC61000-4-5

Mechanical

Model Single Twin
Connectors 3 × 7-16 DIN female or
3 × 4.3-10 female
6 × 7-16 DIN female or
6 × 4.3-10 female
Dimensions w/Bracket (HxWxD) 4.67 x 9.17 x 2.29 in. (119 x 233 x 56 mm) 4.67 x 9.17 x 3.90 in. (119 x 233 x 99 mm)
Housing Dimensions (HxWxD) 4.67 x 5.24 x 1.61 in. (119 x 133 x 41 mm) 4.67 x 5.24 x 3.31 in. (119 x 133 x 84 mm)
Weight 2.86 lbs (1.3 Kg) 5.95 lbs. (2.7 kg)
Mounting Pole/Wall mounting bracket



   OD DPO31470X1 V1.0 191004
  Outdoor Diplexer Outline Drawing

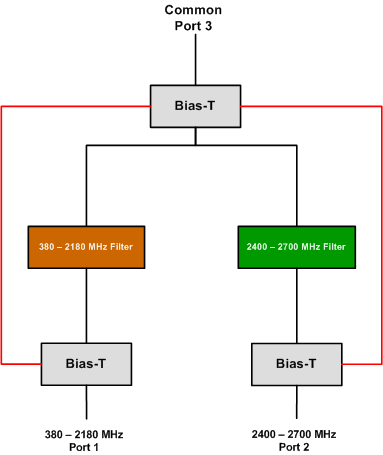

Block Diagram

  BD DPO3147xxx v1.0 191004
  Outdoor Broadband Diplexer with Smart Bias-T Block Diagram

Accessories

SCU-AISG2-3 AISG 2.0 Site Controller
RET-CBK AISG Cable Kit
BT-0821-DMDF-AG-O DIN-Male RF Port, DIN-Female RF+DC+AISG Port
BT-0821-DFDM-AG-O DIN-Female RF Port, DIN-Male RF+DC+AISG Port
BT-0821-DFDF-AG-O DIN-Female RF Port, DIN-Female RF+DC+AISG Port

Parts & Accessories

DPO-3147-0-Sx Outdoor Broadband Diplexer with no DC/AISG pass-through
DPO-3147-S-Sx Outdoor Broadband Diplexer with Smart Bias-T
DPO-3147-0-Tx Outdoor Twin Broadband Diplexer with no DC/AISG pass-through
DPO-3147-S-Tx Outdoor Twin Broadband Diplexer with Smart Bias-T

Option (-x) Description
-1 7-16 female connectors
-2 4.3-10 female connectors
-3 N female connectors

Standards & Compliance

Safety EN 60950-1, UL 60950-1
Emission EN 55022
Immunity EN 55024
Environmental IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, IEC61000-4-5, GR-63-CORE 4.3.1, EN 60529 IP67, IP68

Certifications

Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
