      Wideband Hybrid Combiner HYO-77-2xx




  HYO772xx FV
  • Wideband Hybrid Combiner covering 698 - 2700 MHz
  • Near lossless combining
  • High in-band isolation
  • Outdoor capable unit
  • Very low PIM
  • High power Handling 500W per port and 3KW peak
  • RoHS compliant



Overview



CCI’s Wideband 2-Way Hybrid Combiner provides a solution where combining two RF inputs into one or two common outputs is required. The unit is housed in a weatherproof outdoor enclosure for outdoor basestation or tower mount applications.

Technical Description:

CCI’s Outdoor Wideband 2-Way Hybrid Combiner covers the full 698 - 2700 MHz spectrum. The unit is housed in an IP67 moisture proof enclosure, with IP67 moisture proof connectors suited for long-life. The combiner can be wall or pole mounted.



Electrical

RF Parameters Ports Frequency(MHz) Specification
Insertion Loss Input1 to Output2 698 - 800 3.05 dB ± 0.4 dB
800 - 2700 3.05 dB ± 0.3 dB
Coupled Output Input1 to Coupled Port3 698 - 2700 34 dB ± 10 dB
Isolation Input Port 1 to Input Port 2 698 - 2700 30 dB min. , 32 dB typ.
Return Loss All Ports 698- 2700 ≤ 25 dB min.
  1Ports 1 & 2;  2Ports 3 & 4  3Test Port



General Characteristics
Impedance 50 ohms
Continuous Average Power 500 W maximum (per port)
Peak Envelope Power 3 kW maximimum
Intermodulation Performance
(2 × 43 dBm carriers)
<-160 dBc (-117 dBm) minimum, <-165 dBc (-122 dBm) typ.
DC Pass Current/AISG Pass DC paths: Port 1 to Port 3; Port 2 to Port 4; (max 6.5 A per AISG 2.0)

Environmental

Operating Temperature -40˚C to +70˚C
Ingress Protection IP67
Relative Humidty 0 - 95%

Mechanical

Parameters HYO-77-2F1 HYO-77-2F2
Input Connectors 7-16 DIN female × 4 4.3-10 female × 4
Dimensions (body only)(H×W×D) 1.89 × 6.49 × 1.61 in. (48 × 165 × 41 mm)
Dimensions (incl. brackets)(H×W×D) 5.04 × 6.49 × 2.24 in. (128 × 165 × 57 mm)
Weight with brackets 2.56 lbs (1.16 Kg)
Mounting Pole/Wall mounting bracket

  HYO772xx Outline
  Hybrid Combiner Outline Drawing

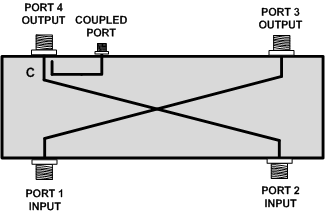

Block Diagram

  BD HYB20727Lx V1.2 151125HiRes
  2 × 2 Hybrid Combiner Block Diagram

Accessories



Product Information



Parts & Accessories

HYO-77-2F1 Outdoor Wideband 2-Way Hybrid Combiner with Output Coupler and 7-16 Connectors
HYO-77-2F2 Outdoor Wideband 2-Way Hybrid Combiner with Output Coupler and 4.3-10 Connectors

Standards & Compliance

Safety EN 60950-1, UL 60950-1
Emission EN 55022
Immunity EN 55024
Environmental IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529 IP65 & IP67

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001

ISO9001Logo RoHS logo 3GPPLogo
