| Wideband Hybrid Combiner | HLO-66-2xx | |||
Pattern Viewer |
|
Mechanical
| Parameters | HYL-67-2Sx (Single) | HYL-67-2Tx (Twin) |
| Input Connectors | 7-16 or 4.3-10 female × 2 | 7-16 or 4.3-10 female × 4 |
| Output Connectors | 7-16 or 4.3-10 female × 1 | 7-16 or 4.3-10 female × 2 |
| Dimensions (body only)(H×W×D) | 8.50 × 7.76 ×3.25 in. (216.0 × 197.0 × 82.5 mm) |
8.50 × 7.76 ×6.50 in. (216.0 × 197.0 × 165.0 mm) |
| Dimensions (incl. brackets)(H×W×D) | 11.18 × 7.76 × 3.84 in. (284.0 x 197.0 × 97.5 mm) |
11.18 × 7.76 × 7.09 in. (284.0 x 197.0 × 180.0 mm) |
| Weight with brackets | 9.9 lbs (4.5 Kg) | 19.8 lbs (9.0 Kg) |
| Mounting | Pole/Wall mounting bracket | |
 |
|

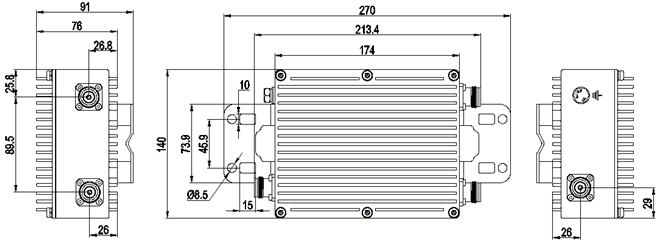

| 2-Way Hybrid Combiner with Integrated Load Outline Drawing |
|
|
