      TriBand Antenna HPA45F-KE2A




  PI HPA45FKE2A front iso PI HPA45FKE2A back iso

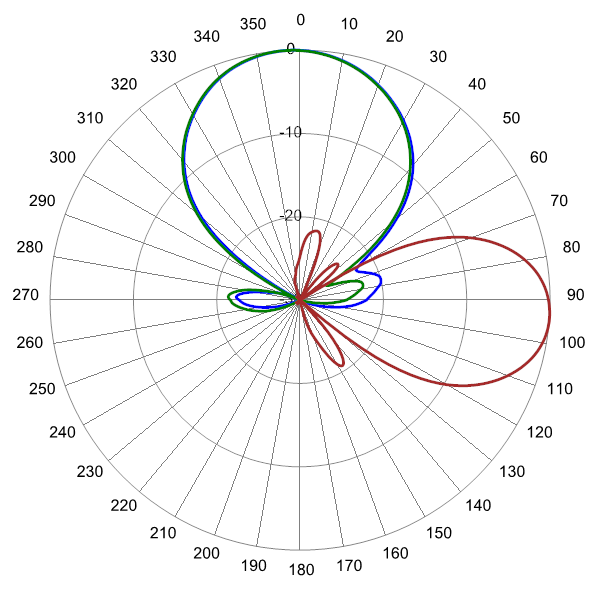

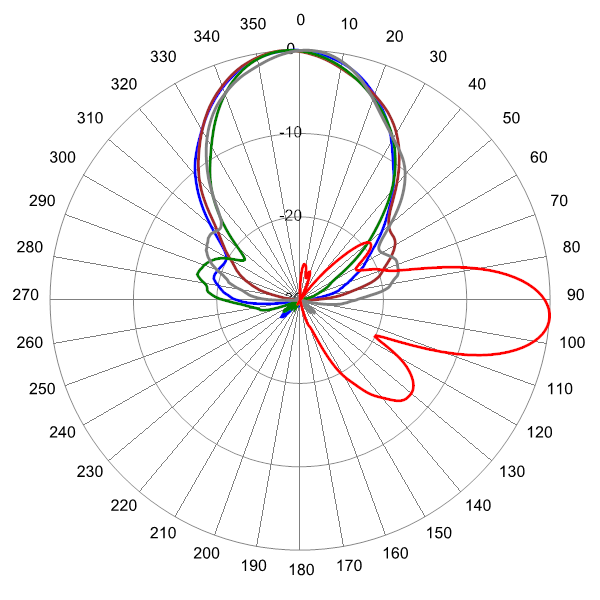

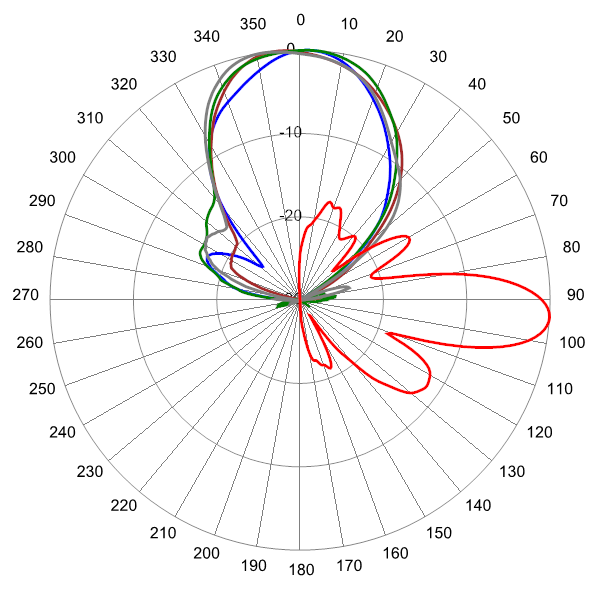

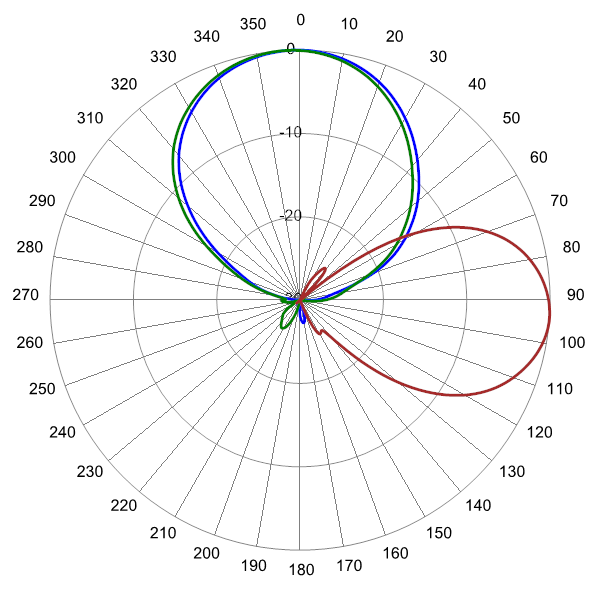

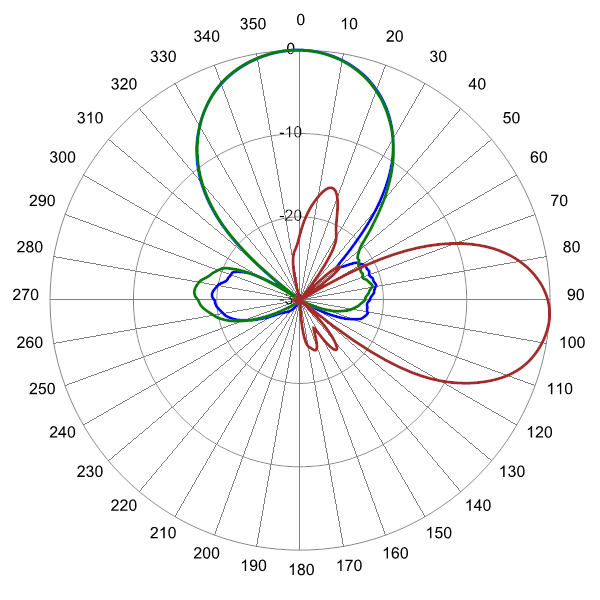

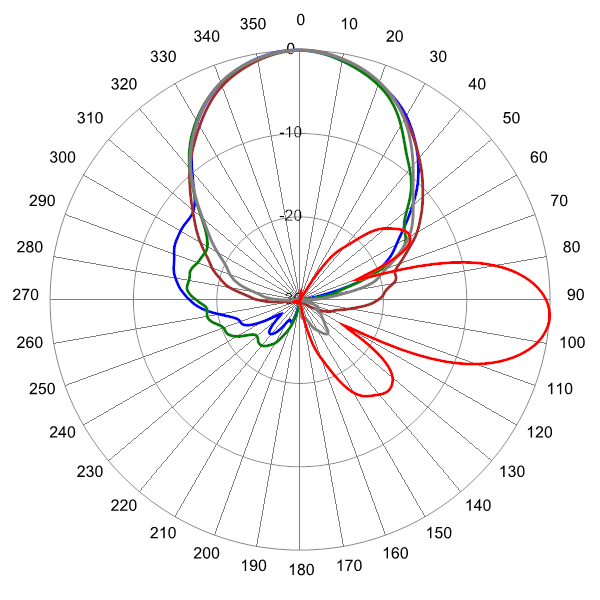

  • Two foot (0.6 m), TriBand, six port antenna with a 45° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies

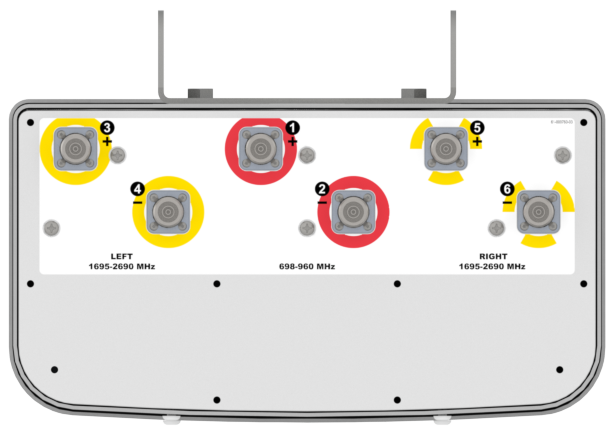

  • Four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 698-960 MHz in a single antenna
  • Full Spectrum Compliance 698-960 MHZ / 1695-2690 MHz
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
  • Exceeds minimum PIM performance requirements
  • 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
MBK-03   MBK-03 Mounting Kit
