Datasheet

TriBand Antenna

HPA65R-KE6A

				Six foot (1.8 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 694-960 MHz and 1695-2690 MHz frequencies Four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 694-960 MHz in a single antenna New enclosure with <12” (305 mm) width, narrowest enclosure in the industry Full Spectrum Compliance 694-960 MHZ / 1695-2690 MHz LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance Exceeds minimum PIM performance requirements Ordering options for 7/16 DIN connector or the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector Ordering options for 2 or 3 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) controllers Ordering option for a 3 manual (VET) model

Overview

The CCI TriBand is a six port antenna, with four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 694-960 MHz. The CCI TriBand antenna provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output in the low band. The CCI TriBand antenna allows separate tilt control between the low band ports and high band ports. With the use of three (3) RET controllers, the paired high band ports can be tilted independently, enabling maximum flexibility in network deployment.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the high band and 2×2 MIMO for the low band
Ready for Network Standardization on 4.3-10 connectors
With CCI’s TriBand antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × Low Band Ports for 694-960 MHz
Frequency Range	694-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain	14.6 dBi	14.5 dBi	14.4 dBi	14.4 dBi
Azimuth Beamwidth (-3dB)	66°	71°	68°	62°
Elevation Beamwidth (-3dB)	12.8°	11.6°	11.1°	10.4°
Electrical Downtilt	2° to 12°	2° to 12°	2° to 12°	2° to 12°
Elevation Sidelobes (1st Upper)	<-19 dB	<-19 dB	<-19 dB	<-18 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	694-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain over all Tilts (dBi)	14.1	13.9	14.0	14.1
Gain over all Tilts Tolerance (dB)	0.5	0.5	0.5	0.3
Gain at Low-Tilt (dBi)	14.3	14.2	14.2	14.2
Gain at Mid-Tilt (dBi)	14.1	14.0	14.1	14.1
Gain at High-Tilt (dBi)	13.8	13.6	13.8	13.9
Azimuth Beamwidth Tolerance (°)	3.3	3.3	6.0	2.3
Elevation Beamwidth Tolerance (°)	1.1	0.8	0.6	0.5
Electrical Downtilt Deviation (°)	0.7	0.8	0.7	0.6
First Upper Sidelobe Suppression (dB)	-15.0	-16.8	-17.1	-15.0
Upper Sidelobe Suppression Peak to 20° (dB)	-16.8	-17.1	-17.9	-16.8
Front-to-Back Ratio over ±20° (dB)	25.2	27.9	27.5	27.4
Cross-polar Discrimination at ±60° (dB)	11.2	12.0	11.7	10.0
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Ports	4 × High Band Ports for 1695-2690 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain	17.6 dBi	18.1 dBi	18.7 dBi	18.5 dBi	18.2 dBi
Azimuth Beamwidth (-3dB)	62°	60°	59°	62°	67°
Elevation Beamwidth (-3dB)	5.7°	5.1°	4.8°	4.1°	3.7°
Electrical Downtilt	0° to 8°	0° to 8°	0° to 8°	0° to 8°	0° to 8°
Elevation Sidelobes (1st Upper)	<-17 dB	<-19 dB	<-18 dB	<-18 dB	<-17 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 21 dB	> 18 dB	> 19 dB	> 21 dB	> 21 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain over all Tilts (dBi)	16.8	17.3	17.7	17.9	17.4
Gain over all Tilts Tolerance (dB)	0.5	0.8	0.8	0.8	0.8
Gain at Low-Tilt (dBi)	16.7	16.9	17.1	17.3	17.2
Gain at Mid-Tilt (dBi)	16.9	17.5	17.9	18.2	17.8
Gain at High-Tilt (dBi)	17.0	17.6	18.0	18.1	17.4
Azimuth Beamwidth Tolerance (°)	4.1	3.0	2.4	3.5	7.7
Elevation Beamwidth Tolerance (°)	0.5	0.3	0.5	0.3	0.3
Electrical Downtilt Deviation (°)	0.6	0.6	0.6	0.7	0.8
First Upper Sidelobes Suppression (dB)	-14.0	-16.0	-15.9	-15.1	-14.3
Upper Sidelobe Suppression Peak to 20° (dB)	-12.6	-14.1	-14.0	-14.2	-13.0
Front-to-Back Ratio over ±20° (dB)	28.5	29.6	30.6	28.7	28.7
Cross-polar Discrimination at ±60° (dB)	9.4	7.9	7.1	5.9	6.7
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	71.1×11.7×7.7 in (1807×297×196 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	201 lbs (894 N) @ 100 mph (161 kph)
Side Wind Load	144 lbs (639 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	7.9 ft² (0.7 m²)
Weight *	41.9 lbs (19.0 kg)
RET Weight per RET	5.0 lbs (2.3 kg) (3 RET's)
Connector	6 × 7-16 DIN female long neck or 6 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting and RET

Bottom View	All models	Connector Spacing


RET Connection Diagram	HPA65R-KE6AA and AB model	HPA65R-KE6AC and AD model

	HPA65R-KE6AA and AB Element and RET configuation

	HPA65R-KE6AC & AD Element and RET configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

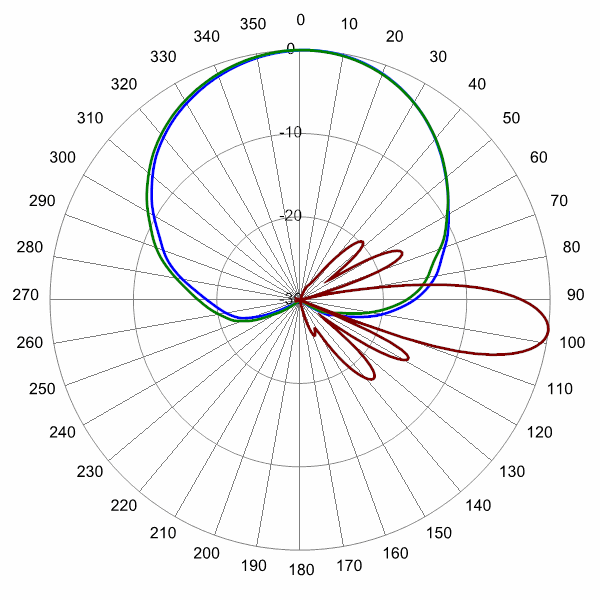

	734 MHz Azimuth with Elevation 7°	806 MHz Azimuth with Elevation 7°

	925 MHz Azimuth with Elevation 7°


	1780 MHz Azimuth with Elevation 4°	1960 MHz Azimuth with Elevation 4°

	2155 MHz Azimuth with Elevation 4°	2500 MHz Azimuth with Elevation 4°

Model BSA-RET200

Remote Electrical Tilt System (RET)

Product Information

	Datasheet
	HPA65R-KE6A Connector Spacing Diagram
	HPA65R-KE6AA & AB Antenna/RET Config Diagram
	HPA65R-KE6AC & AC Antenna/RET Config Diagram
	MBK-01 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

HPA65RKE6A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0301
Configuration File	Version
HPA65RKE6A-HK01.BIN	01
HPA65RKE6A-HE01.BIN	01

BSA-RET200 SA-DC0401E
Configuration File	Version
HPA65RKE6A-YK01.BIN	01
HPA65RKE6A-YE01.BIN	01

Parts & Accessories

HPA65R-KE6AA-K	Six foot (1.8 m) TriBand antenna with 65° azimuth beamwidth, 7-16 DIN female connectors, 3 factory installed BSA-RET200 RET actuators and MBK-01 mounting bracket
HPA65V-KE6AA-K	Six foot (1.8 m) TriBand antenna with 65° azimuth beamwidth, 7-16 DIN female connectors, with 3 factory installed manual knobs and MBK-01 mounting bracket
HPA65R-KE6AB-K	Six foot (1.8 m) TriBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 3 factory installed BSA-RET200 RET actuators and MBK-01 mounting bracket
HPA65V-KE6AB-K	Six foot (1.8 m) TriBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors, with 3 factory installed manual knobs and MBK-01 mounting bracket
HPA65R-KE6AC-K	Six foot (1.8 m) TriBand antenna with 65° azimuth beamwidth, 7-16 DIN female connectors, 2 factory installed BSA-RET200 RET actuators and MBK-01 mounting bracket
HPA65R-KE6AD-K	Six foot (1.8 m) TriBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 2 factory installed BSA-RET200 RET actuators and MBK-01 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Remote electrical tilt actuator
HPA-CBK-AG-RRU	TriBand antenna with 3 RET to RRU AISG cable kit
HPA-CBK-RA-AG-RRU	TriBand antenna with 3 RET to RRU AISG right angle cable kit
QPA-CBK-AG-RRU	TriBand antenna with 2 RET to RRU AISG cable kit
QPA-CBK-RA-AG-RRU	TriBand antenna with 2 RET to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
