Datasheet

Quad Port Low-Band Array

QPA65R-K8A

				Wideband performance, covering 700 MHz, 800 MHz and 900 MHz bands Four Low Band ports in one antenna Sharp azimuth roll-off reduces Sector Power Ratio, minimizing adjacent sector interference Excellent Cross-Pol Discrimination and Horizontal Pattern Tracking maximizes 2x2 and 4x4 MIMO performance Excellent elevation side-lobe performance Excellent MIMO performance due to array spacing Excellent PIM Performance A multi-network solution in one radome 3GPP/AISG 2.0 compliant RET system with daisy chaining capability available Reduces tower loading Frees up space for tower mounted E-nodes Provides remote control of electrical Downtilt of antenna for easier optimization 7-16 DIN female or 4.3-10 female connector options

Overview

The CCI 65° QuadPort Low Band Antenna Array is a 4-port antenna with Low band (698-960 MHz) coverage. With four low band ports, our QuadPort antenna is ready for 4X4 high band MIMO.
Modern networks demand high performance, consequently CCI has incorporated several new and innovative design techniques to provide an antenna with excellent side-lobe performance, sharp elevation beams, and high front to back ratio.
Multiple networks can now be connected to a single antenna, reducing tower loading and leasing expense, while decreasing deployment time and installation cost.
Full band capability for 700 MHz, 800 MHz and 900 MHz in a single enclosure.
CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4x4 MIMO
Adding additional capacity without adding additional antennas

Electrical

Ports	4 × Low Band Ports for 698-960 MHz
Frequency Range	698-806 MHz	824-896 MHz	880-960 MHz
Gain¹	16.2 dBi	16.8 dBi	16.5 dBi
Gain (Average)²	15.7 dBi	16.4 dBi	16.1 dBi
Azimuth Beamwidth (-3dB)	65°	62°	64°
Elevation Beamwidth (-3dB)	8.7°	7.4°	7.0°
Electrical Downtilt	2° to 10°	2° to 10°	2° to 10°
Elevation Sidelobes (1st Upper)	< -19 dB	< -19 dB	< -18 dB
Elevation Sidelobes (Peak to 20º)	< -18 dB	< -18 dB	< -17 dB
Front-to-Back Ratio @180°	> 35 dB	> 30 dB	> 30 dB
Cross-Polar Discrimination (at Peak)	> 21 dB	> 22 dB	> 22 dB
Cross-Polar Discrimination (+/-60º)	> 11 dB	> 10 dB	> 10 dB
Cross-Polar Port-to-Port Isolation	> 30 dB	> 30 dB	> 27 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground
¹Peak gain across sub-bands. ²Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6.

Mechanical

Dimensions (L×W×D)	98.0×24.3×7.9 in (2489×618×200 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	537 lbs (2390 N) @ 100 mph (161 kph)
Side Wind Load	216 lbs (963 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	21.0 ft² (1.9 m²)
Weight *	99 lbs (45 kg)
RET System Weight	3.0 lbs (1.5 kg)
Connector	4 × 7-16 DIN female long neck or 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting and RET

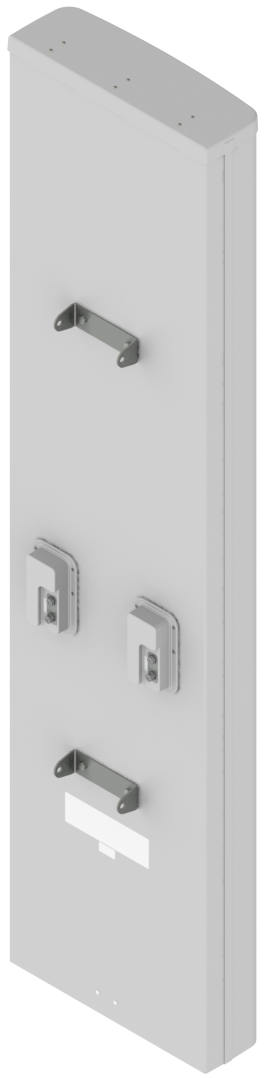

Bottom View		RET Connection Diagram

Connector Spacing

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at


	743 MHz Azimuth	743 MHz Elevation 6°

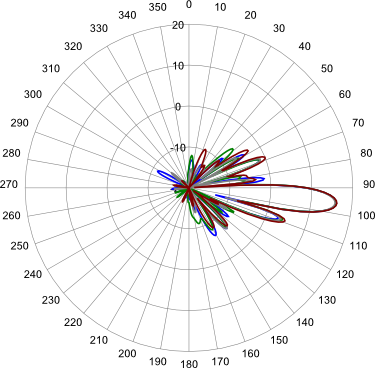

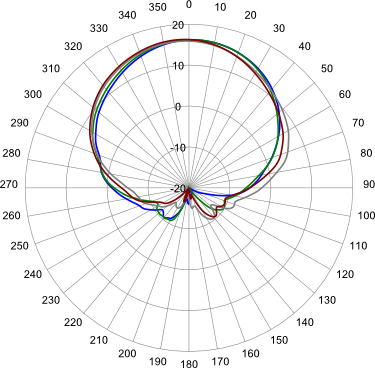

	830 MHz Azimuth	830 MHz Elevation 6°

Model BSA-RET200

Remote Electrical Tilt System (RET)

Product Information

	Datasheet
	QPA65R-K8A Connector Spacing Drawing
	MBK-01 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

QPA65RK8A: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET200 SA-DC0301
Configuration File	Version
QPA65R-K8A-HK02.BIN	02

BSA-RET200 SA-DC0401E
Configuration File	Version
QPA65R-K8A-YK01.BIN	01

Parts & Accessories

QPA65R-K8AA	8 foot (2.5 m) QuadPort antenna with 65° azimuth beamwidth and 2 factory installed BSA-RET200 actuators and 7-16 DIN female connectors
QPA65R-K8AB	8 foot (2.5 m) QuadPort antenna with 65° azimuth beamwidth and 2 factory installed BSA-RET200 actuators and 4.3-10 female connectors
QPA65R-K8AA-K	Antenna kit with 2 factory installed RET actuators, 7-16 DIN female connectors and MBK-01 mounting bracket
QPA65R-K8AB-K	Antenna kit with 2 factory installed RET actuators, 4.3-10 female connectors and MBK-01 mounting bracket
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
BSA-RET200	Remote electrical tilt actuator
QPA-CBK-AG-RRU	QuadPort antenna to RRU AISG cable kit
QPA-CBK-RA-AG-RRU	QuadPort antenna to RRU AISG right angle cable kit

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions
