TriBand Antenna | HPA45F-TE2A | |||
|
Overview
The CCI TriBand is a six port antenna, with four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 614-960 MHz. The CCI TriBand antenna provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output in the low band. CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities. |
Electrical
Ports | 2 × Low Band Ports for 614-960 MHz | ||||
Frequency Range | 614-698 MHz | 698-806 MHz | 790-862 MHz | 824-896 MHz | 880-960 MHz |
Gain | 12.0 dBi | 12.6 dBi | 13.3 dBi | 13.4 dBi | 13.5 dBi |
Azimuth Beamwidth (-3dB) | 56° | 50° | 48° | 44° | 41° |
Elevation Beamwidth (-3dB) | 33.8° | 31.6° | 29.0° | 27.5° | 26.4° |
Electrical Downtilt | 4° | 4° | 4° | 4° | 4° |
Elevation Sidelobes (1st Upper) | < -18 dB | < -20 dB | < -20 dB | < -20 dB | < -20 dB |
Front-to-Back Ratio @180° | > 30 dB | > 30 dB | > 35 dB | > 35 dB | > 35 dB |
Cross-Polar Discrimination at Peak | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 22 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 25 dB |
Voltage Standing Wave Ratio (VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |
Input Power Continuous Wave (CW) | 500 watts | 500 watts | 500 watts | 500 watts | 500 watts |
Polarization | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground |
BASTA Electrical Specifications* | |||||
Frequency Range | 614-698 MHz | 698-806 MHz | 790-862 MHz | 824-896 MHz | 880-960 MHz |
Gain over sub band (dBi) | 11.4 | 12.4 | 12.9 | 13.2 | 13.3 |
Gain over sub band Tolerance (dB) | 0.7 | 0.3 | 0.4 | 0.3 | 0.2 |
Azimuth Beamwidth Tolerance (°) | 5.9 | 0.6 | 3.2 | 5.1 | 1.6 |
Elevation Beamwidth Tolerance (°) | 1.5 | 1.5 | 1.8 | 1.4 | 1.2 |
Electrical Downtilt Deviation (°) | 3.1 | 2.1 | 1.0 | 0.6 | 0.7 |
First Upper Sidelobe Suppression (dB) | 17.2 | 19.1 | 18.4 | 18.3 | 16.5 |
Front-to-Back Ratio over ±20° (dB) | 21.8 | 24.5 | 26.9 | 24.8 | 23.7 |
Cross-polar Discrimination at 3 dB (dB) | 19.6 | 23.8 | 25.0 | 18.9 | 16.1 |
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice. |
Ports | 4 × High Band Ports for 1695-2690 MHz | ||||
Frequency Range | 1695-1880 MHz | 1850-1990 MHz | 1920-2180 MHz | 2300-2400 MHz | 2496-2690 MHz |
Gain | 14.2 dBi | 14.3 dBi | 14.7 dBi | 15.4 dBi | 16.2 dBi |
Azimuth Beamwidth (-3dB) | 43° | 40° | 40° | 42° | 34° |
Elevation Beamwidth (-3dB) | 19.0° | 18.4° | 17.7° | 15.1° | 14.1° |
Electrical Downtilt | 4° | 4° | 4° | 4° | 4° |
Elevation Sidelobes (1st Upper) | <-14 dB | <-15 dB | <-16 dB | <-16 dB | <-15 dB |
Front-to-Back Ratio @180° | > 32 dB | > 34 dB | > 35 dB | > 35 dB | > 35 dB |
Cross-Polar Discrimination at Peak | > 19 dB | > 18 dB | > 20 dB | > 25 dB | > 25 dB |
Cross-Polar Port-to-Port Isolation | > 25 dB | > 25 dB | > 25 dB | > 25 dB | > 25 dB |
Voltage Standing Wave Ratio (VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |
Input Power Continuous Wave (CW) | 300 watts | 300 watts | 300 watts | 300 watts | 300 watts |
Polarization | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° | Dual Linear 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground | DC Ground | DC Ground |
BASTA Electrical Specifications* | |||||||
Frequency Range | 1695-1880 MHz | 1850-1990 MHz | 1920-2180 MHz | 2300-2400 MHz | 2496-2690 MHz | ||
Gain over sub band (dBi) | 13.5 | 14.0 | 14.3 | 15.1 | 15.6 | ||
Gain Tolerance over sub band (dB) | 0.4 | 0.4 | 0.3 | 0.2 | 0.5 | ||
Azimuth Beamwidth Tolerance (°) | 4.1 | 3.7 | 3.6 | 1.7 | 5.8 | ||
Elevation Beamwidth Tolerance (°) | 0.6 | 1.0 | 1.3 | 0.6 | 1.5 | ||
Electrical Downtilt Deviation (°) | 2.1 | 1.2 | 1.5 | 1.6 | 1.3 | ||
First Upper Sidelobes Suppression (dB) | 11.5 | 12.3 | 12.8 | 12.9 | 9.9 | ||
Upper Sidelobe Suppression Peak to 20° (dB) | 20.0 | 18.8 | 19.1 | 16.2 | 10.6 | ||
Front-to-Back Ratio over ±20° (dB) | 20.4 | 23.3 | 25.1 | 29.4 | 26.8 | ||
Cross-polar Discrimination at 3 dB (dB) | 14.1 | 14.1 | 15.1 | 18.0 | 18.7 | ||
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice. |
Mechanical
Dimensions (L×W×D) | 25.9×15.9×8.1 in (658×405×205 mm) |
Survival Wind Speed | > 150 mph (> 241 kph) |
Front Wind Load | 88 lbs (391 N) @ 100 mph (161 kph) |
Side Wind Load | 46 lbs (203 N) @ 100 mph (161 kph) |
Equivalent Flat Plate Area | 3.4 ft2 (0.3 m2) |
Weight* | 18.3 lbs (8.3 kg) |
Connector | 6× 4.3-10 female |
Mounting Pole | 2 to 5 in (5 to 12 cm) |
* Weight excludes mounting |

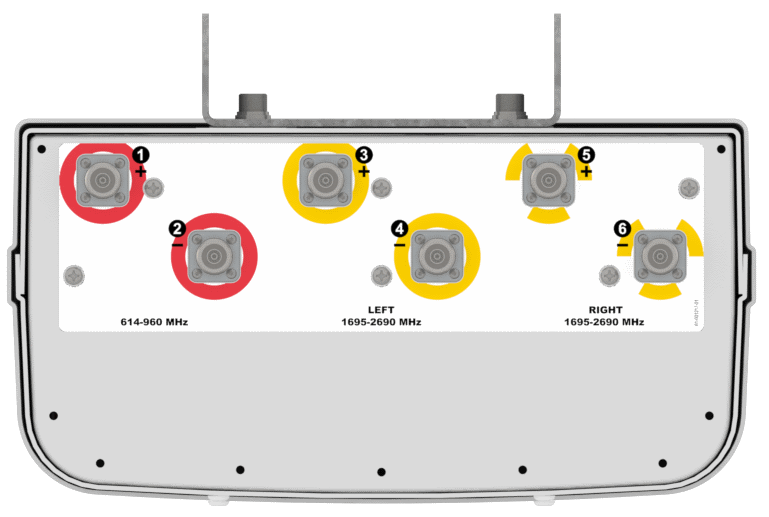

Bottom View | HPA45F-TE2AA |
Connection Spacing Diagram | HPA45F-TE2AA |
Antenna Array Configuration | HPA45F-TE2AA |
Typical Antenna Patterns
For detailed information on additional antenna patterns, contact customer support at |

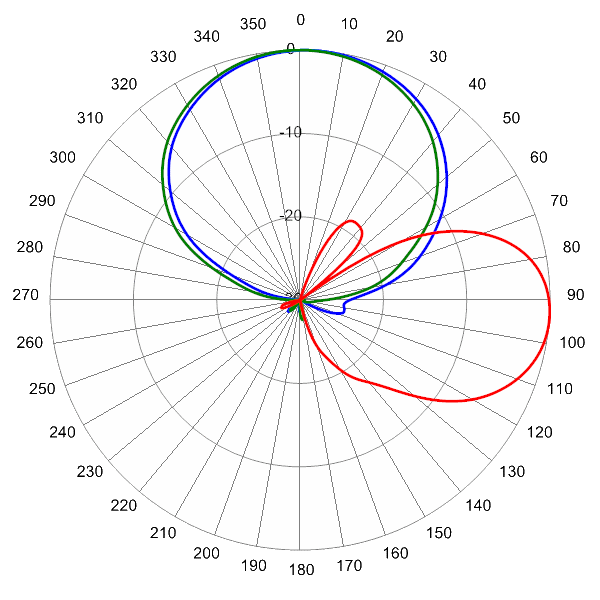

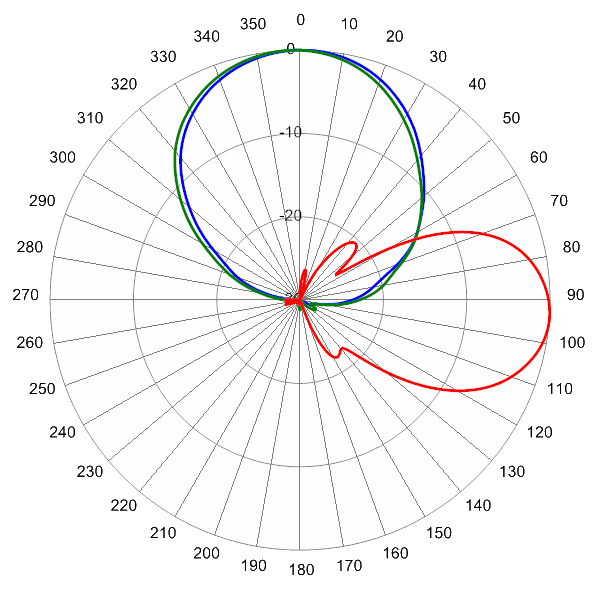

614 MHz Azimuth with Elevation 4° | 704 MHz Azimuth with Elevation 4° | |

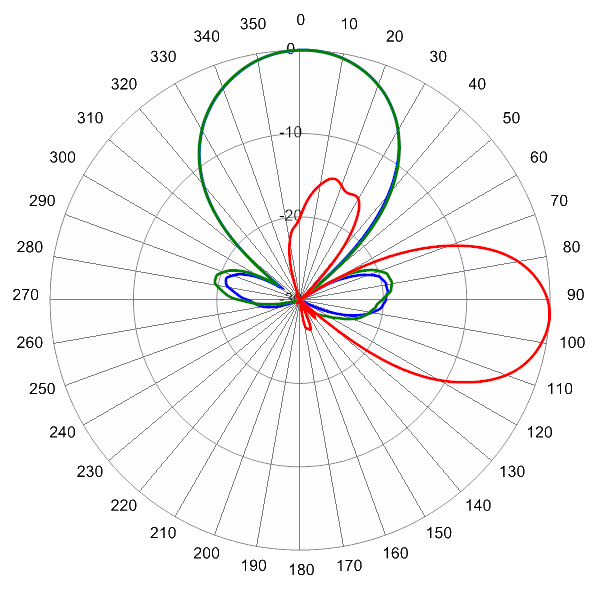

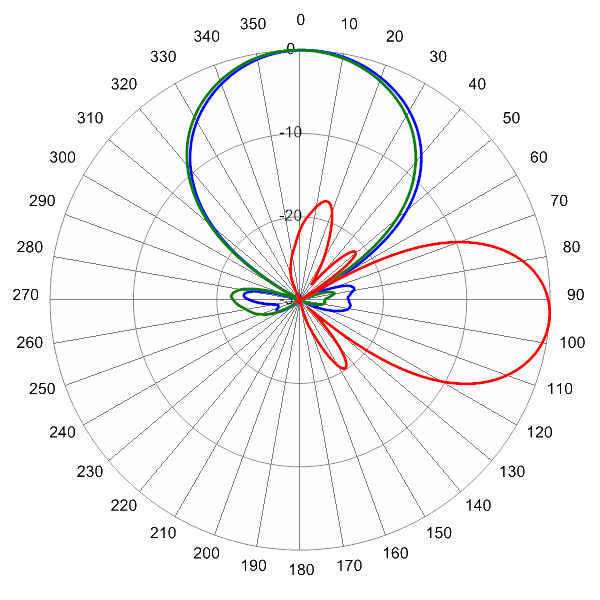

824 MHz Azimuth with Elevation 4° | 945 MHz Azimuth with Elevation 4° |

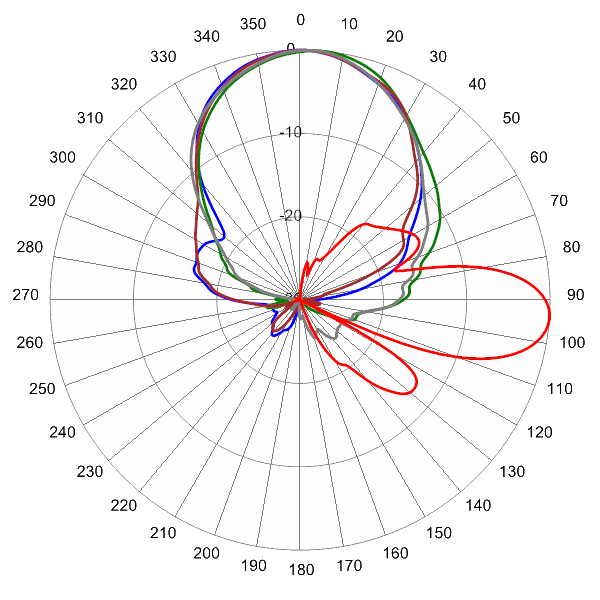

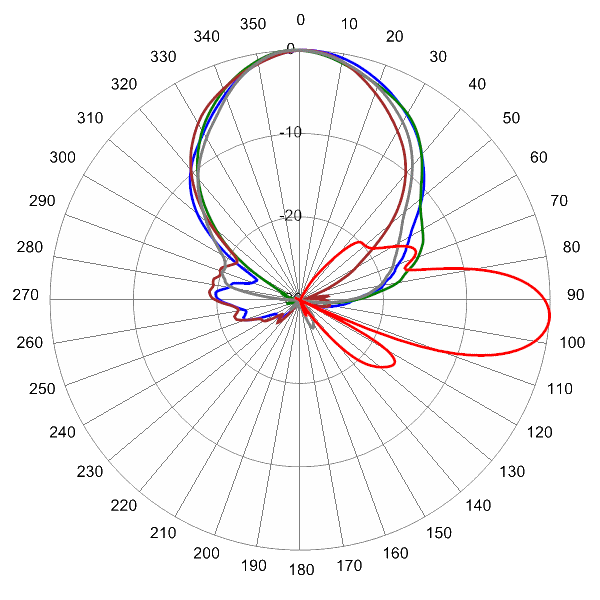

1710 MHz Azimuth with Elevation 4° | 1970 MHz Azimuth with Elevation 4° | |

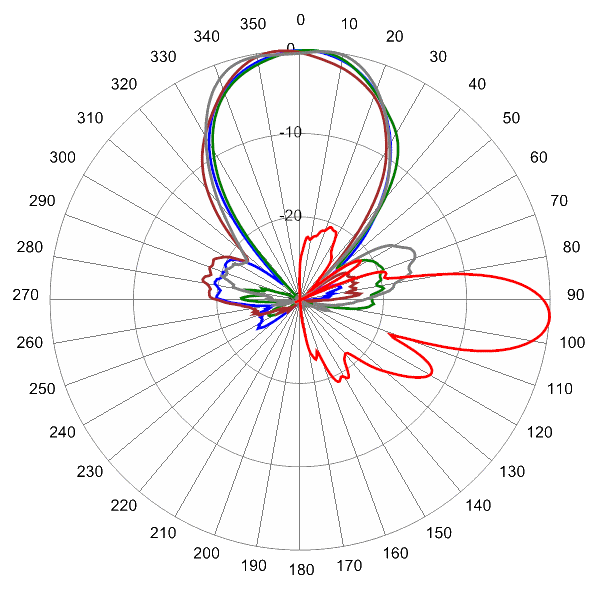

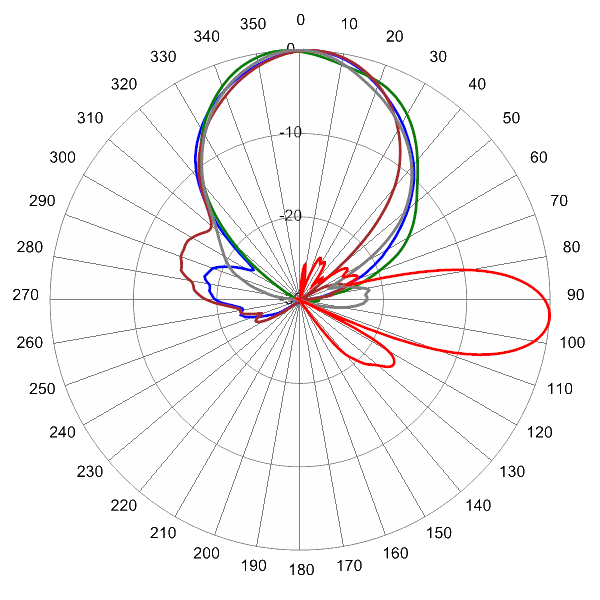

2155 MHz Azimuth with Elevation 4° | 2500 MHz Azimuth with Elevation 4° |
Parts & Accessories
HPA45F-TE2AA-K | Two foot (0.6 m) TriBand antenna with 45° azimuth beamwidth, 4.3-10 female connectors and MBK-03 mounting bracket |
MBK-03 | Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment |
TM-01 | Triple Pole Mounting Bracket (top and bottom) with fixed 0° mechanical tilt |
