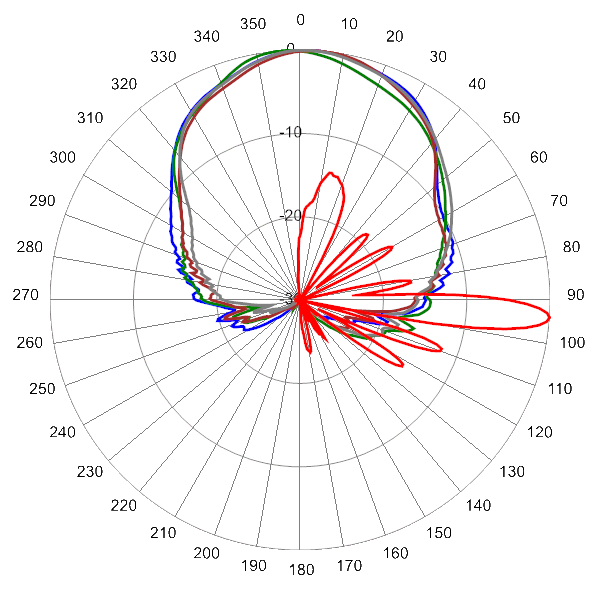

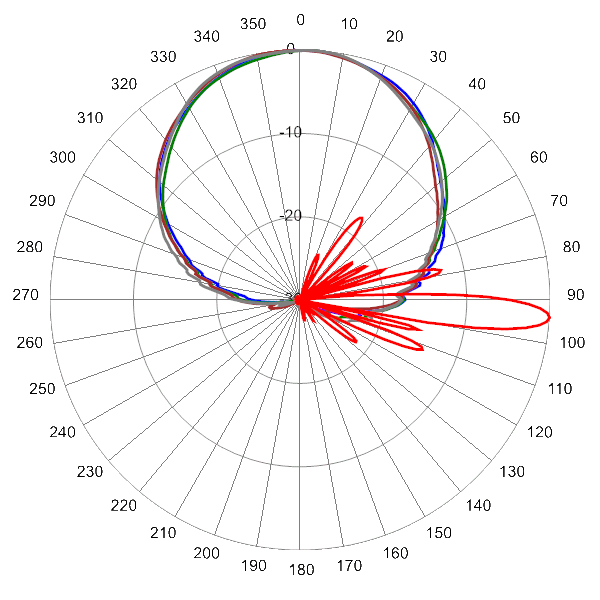

Antenna Pattern
|
In the Americas | |
Sales | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
Customer Service | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
Technical Support | |
+1 (201) 342-3338 phone | |
+1 (201)-342-3339 fax | |
89 Leuning Street | |
South Hackensack, NJ 07606 | |
USA | |
|
||||
Quad Port High-Band Antenna | QPA65F-H2A | |||
![]() |
![]() |
|
The CCI WideBand Antenna is a four port antenna, with four wide High Band ports covering 3100-4200 MHz. The CCI WideBand Antenna provides the capability to deploy 4×4 Multiple-Input Multiple-Output (MIMO). |
|
Specifications | 4 × High Band Ports for 3100-4200 MHz | ||
Frequency Range | 3100-3300 MHz | 3300-3800 MHz | 3700-4200 MHz |
Gain | 17.6 dBi | 18.3 dBi | 18.4 dBi |
Azimuth Beamwidth (-3dB) | 62° | 59° | 55° |
Elevation Beamwidth (-3dB) | 7.6° | 6.5° | 6.1° |
Electrical Downtilt | 4° | 4° | 4° |
Elevation Sidelobes (1st Upper) | < -16 dB | < -18 dB | < -17 dB |
Front-to-Back Ratio @180° | > 40 dB | > 45 dB | > 45 dB |
Cross-Polar Discrimination (at Peak) | > 21 dB | > 21 dB | > 19 dB |
Cross-Polar Port-to-Port Isolation | > 27 dB | > 27 dB | > 27 dB |
Voltage Standing Wave Ratio(VSWR) | < 1.5:1 | < 1.5:1 | < 1.5:1 |
Passive Intermodulation (2×20W) | ≤ -140 dBc | ≤ -140 dBc | ≤ -140 dBc |
Input Power Continuous Wave (CW) | 100 watts | 100 watts | 100 watts |
Polarization | Dual Pol 45° | Dual Pol 45° | Dual Pol 45° |
Input Impedance | 50 ohms | 50 ohms | 50 ohms |
Lightning Protection | DC Ground | DC Ground | DC Ground |
BASTA Electrical Specifications* | |||
Frequency Range | 3100-3300 MHz | 3300-3800 MHz | 3700-4200 MHz |
Gain over Sub Band (dBi) | 16.9 | 17.8 | 17.8 |
Gain over Sub Band Tolerance (dB) | 1.1 | 0.4 | 0.4 |
Azimuth Beamwidth Tolerance (°) | 2.2 | 2.1 | 6.6 |
Elevation Beamwidth Tolerance (°) | 0.8 | 0.4 | 0.5 |
Electrical Downtilt Deviation (°) | 0.5 | 0.4 | 0.5 |
First Upper Sidelobes Suppression (dB) | 7.7 | 13.1 | 13.8 |
Front-to-Back Ratio over ±20° (dB) | 30.8 | 33.6 | 29.2 |
Cross-polar Discrimination at ±60° (dB) | 3.6 | 4.2 | 4.2 |
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V11.1. All specifications are subject to change without notice. |
Dimensions (L×W×D) | 29.5×10.1×3.7 in (750×257×94 mm) |
Survival Wind Speed | > 150 mph (> 241 kph) |
Front Wind Load | 65 lbs (288 N) @ 100 mph (161 kph) |
Side Wind Load | 28 lbs (124 N) @ 100 mph (161 kph) |
Equivalent Flat Plate Area | 2.5 ft2 (0.2 m2) |
Weight * | 13.2 lbs (6.0 kg) |
Connector | 4 × 4.3-10 female |
Mounting Pole | 2 to 5 in (5 to 12 cm) |
* Weight excludes mounting |

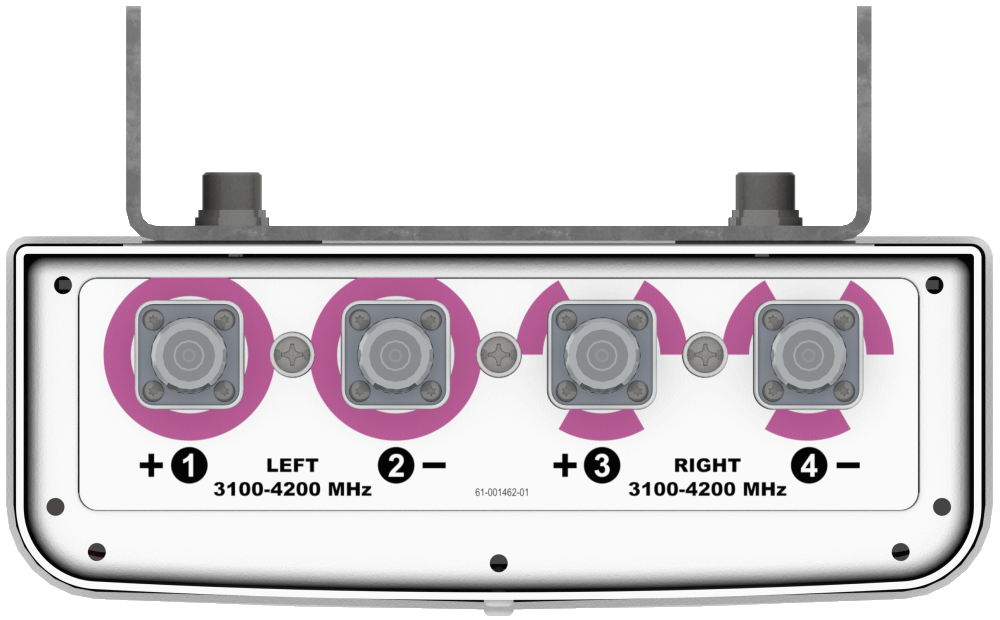

Bottom View | |
![]() |

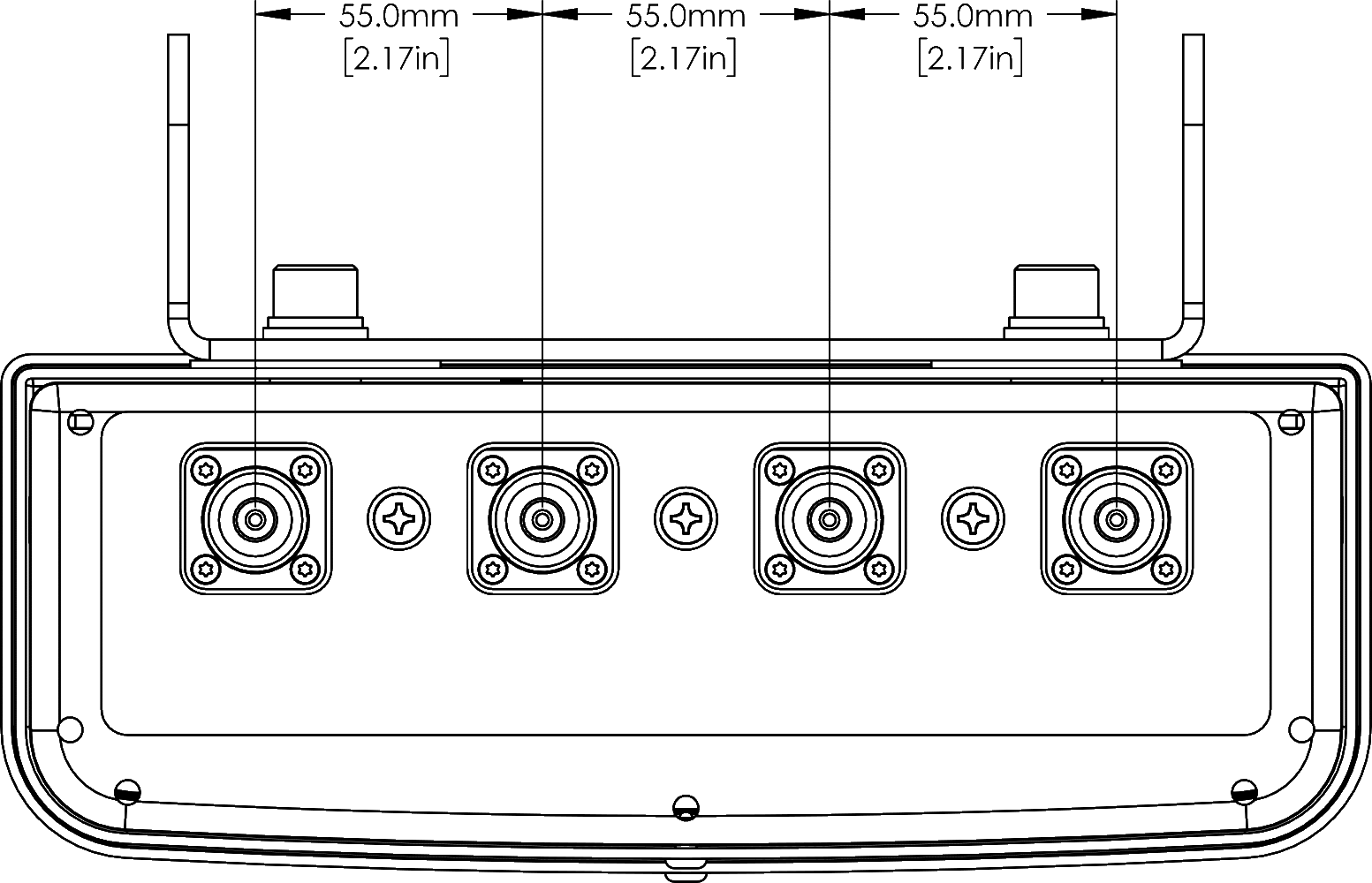

Connector Spacing | |
![]() |
MBK-03 | Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment |
QPA65F-H2AA-K | Two foot (0.75 m) QuadPort antenna with 65° azimuth beamwidth, 4.3-10 female connectors and MBK-03 mounting brackets |
MBK-03 | Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment |
