      Quad Port High-Band Antenna QPA65R-H2A




  PI QPA65RH2AA FRONT ISO PI QPA65RH2AA REAR ISO

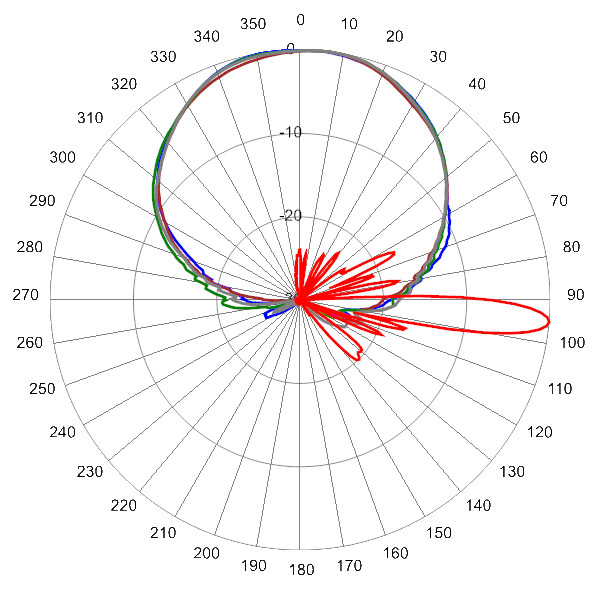

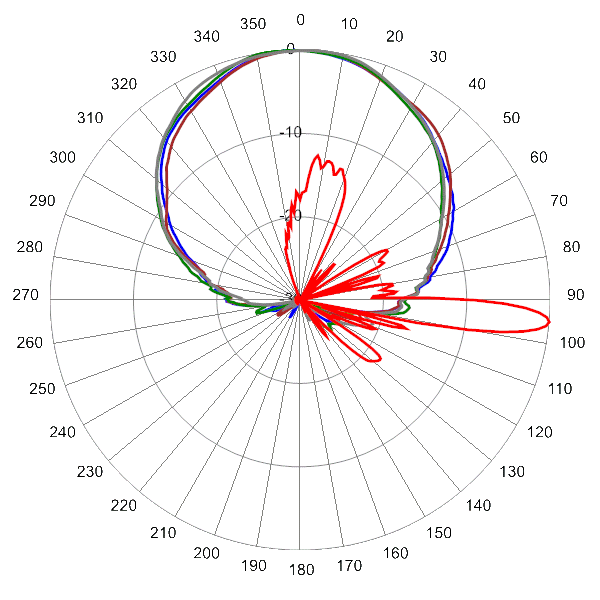

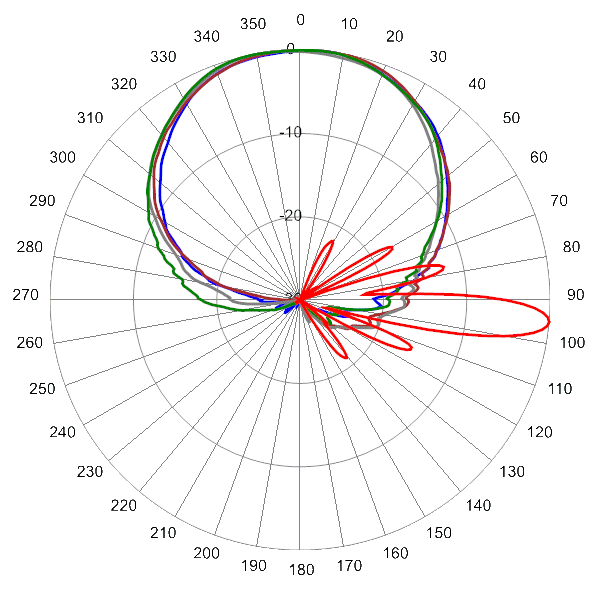

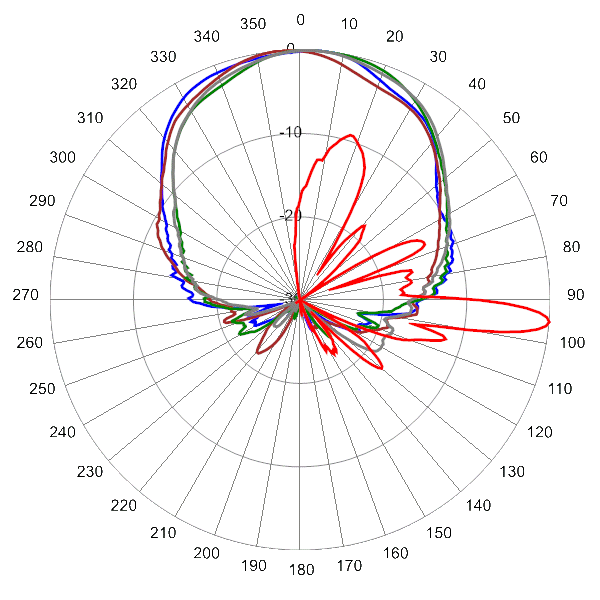

  • Two foot (0.75 m), WideBand, four port antenna with a 65° azimuth beamwidth covering 3300-4200 MHz frequencies
  • Four wide high band ports covering 3300-4200 MHz, with full spectrum compliance
  • Narrow enclosure with 10.1” (256 mm) width, reducing tower loading issues
  • The Low weight and Low profile of this 65° panel antenna, makes this an ideal solution for Fixed Wireless Access (FWA) and Small Cell/C-RAN Densification deployments
  • LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
  • LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance

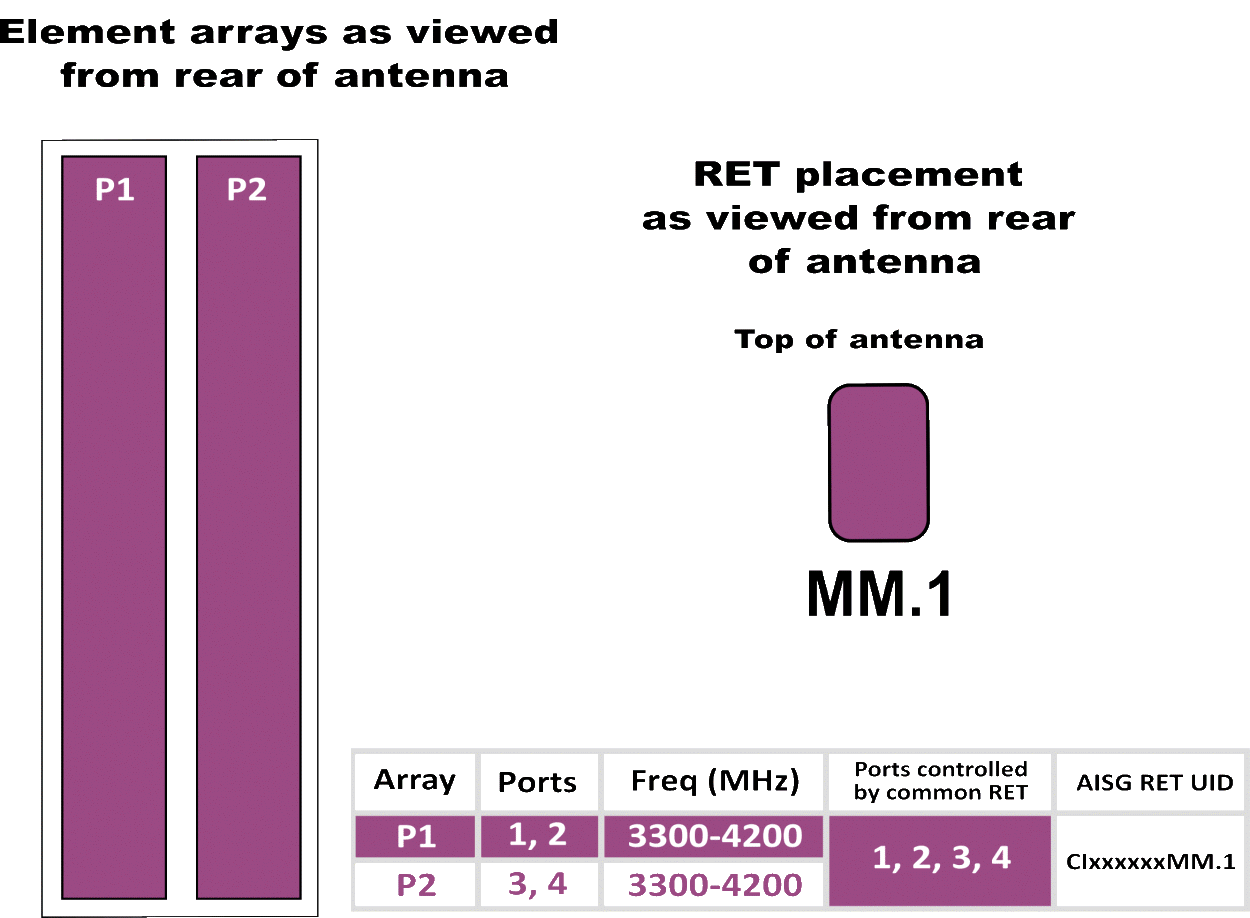

  • Equipped with 1 field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) controller

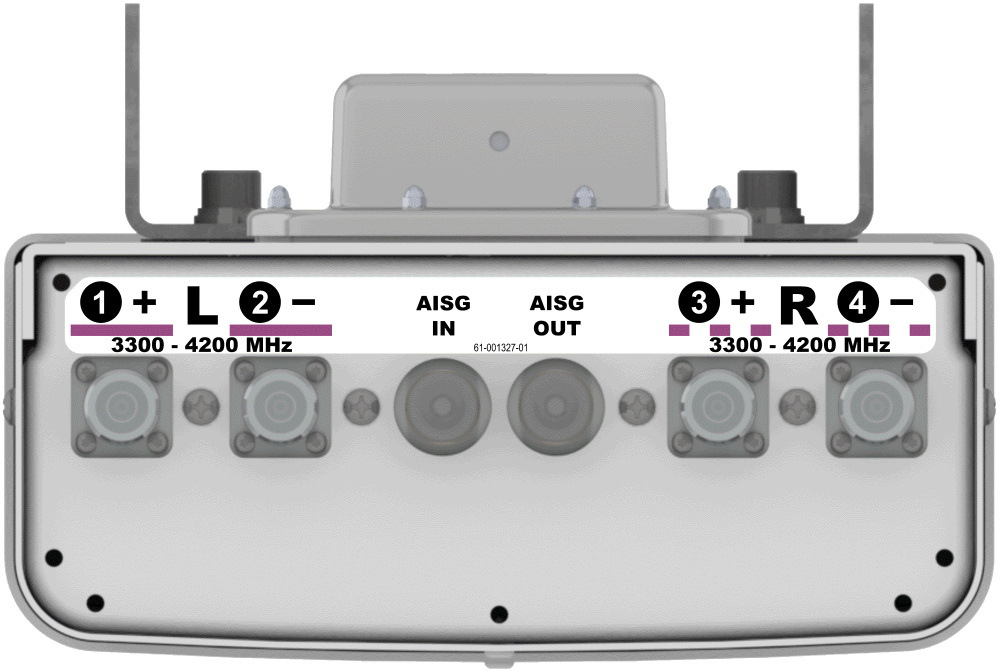

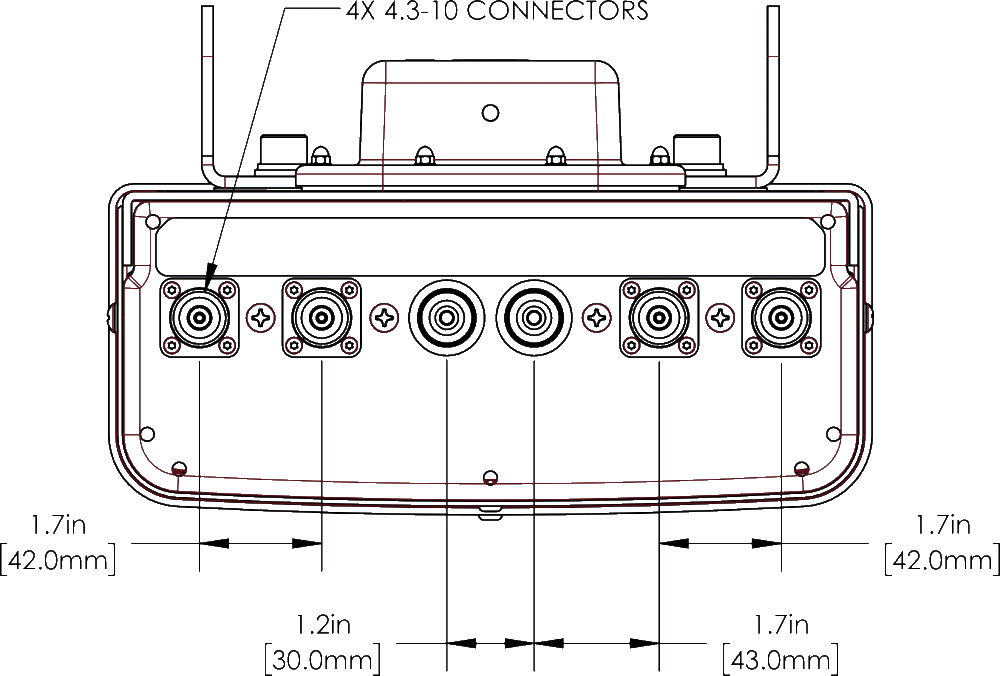

  • Equipped with 4.3-10 connector
BSA-RET400   Remote Electrical Tilt System (RET)
MBK-03   Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
AISGC-M-F-10FT   RRU AISG cable for single RET antenna
SCU-AISG2-P   Portable AISG 2.0 Site Control Unit
Configuration File
For Firmware select RET Actuator link below.
BSA-RET400
SA-DC0401
Configuration FileVersion
2
