Datasheet

Quad Port Low-Band Antenna

QPA65R-T6C

Six foot (1.8 m) WideBand, four port antenna with a 65° azimuth beamwidth covering 614-896 MHz frequencies
Four wide low band ports covering 614-896 MHz in a single antenna enclosure
Full Spectrum Compliance 614-896 MHz
Innovative Low Array configuration allows for 4T4R (4x4 MIMO), using full length arrays (non stacked)
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
Equipped with new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
Equipped with one Internally Integrated RET Controller (Type 17)

Overview

The CCI WideBand Antenna is a four port antenna, with four wide low band ports covering 614-896 MHz. The CCI WideBand Antenna provides the capability to deploy 4×4 Multiple-Input Multiple-Output (MIMO). The CCI WideBand antenna single RET configuration tilts all four ports together, allowing for electrical downtilt uniformity across all four ports.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the high band
Ready for Network Standardization on 4.3-10 DIN connectors
With CCI’s WideBand Antennas, wireless providers can connect platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × Low Band Ports for 614-896 MHz
Frequency Range	614-698 MHz	698-806 MHz	824-896 MHz
Gain	14.7 dBi	15.4 dBi	15.1 dBi
Azimuth Beamwidth (-3dB)	71°	61°	54°
Elevation Beamwidth (-3dB)	14.5°	12.8°	11.3°
Electrical Downtilt	2° to 12°	2° to 12°	2° to 12°
Elevation Sidelobes (1st Upper)	<-17 dB	<-17 dB	<-19 dB
Front-to-Back Ratio @180°	> 32 dB	> 33 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB	> 25 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	614-698 MHz	698-806 MHz	824-896 MHz
Gain over all Tilts (dBi)	13.8	14.5	14.5
Gain over all Tilts Tolerance (dB)	0.7	0.6	0.6
Gain at Low-Tilt (dBi)	14.0	14.8	14.7
Gain at Mid-Tilt (dBi)	13.8	14.5	14.6
Gain at High-Tilt (dBi)	13.5	14.2	14.1
Azimuth Beamwidth Tolerance (°)	9.2	8.1	7.1
Elevation Beamwidth Tolerance (°)	1.3	1.0	0.6
Electrical Downtilt Deviation (°)	1.0	0.9	0.8
First Upper Sidelobe Suppression (dB)	13.8	14.3	16.9
Upper Sidelobe Suppression Peak to 20° (dB)	16.0	15.0	17.1
Front-to-Back Ratio over ±20° (dB)	25.0	26.2	27.6
Cross-polar Discrimination at ±60° (dB)	13.6	12.8	10.5
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	71.2×25.5×8.1 in (1808×648×205 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	392 lbs (1742 N) @ 100 mph (161 kph)
Side Wind Load	149 lbs (664 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	15.3 ft² (1.4 m²)
Weight *	73.9 lbs (33.5 kg)
Connector	4 × 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting

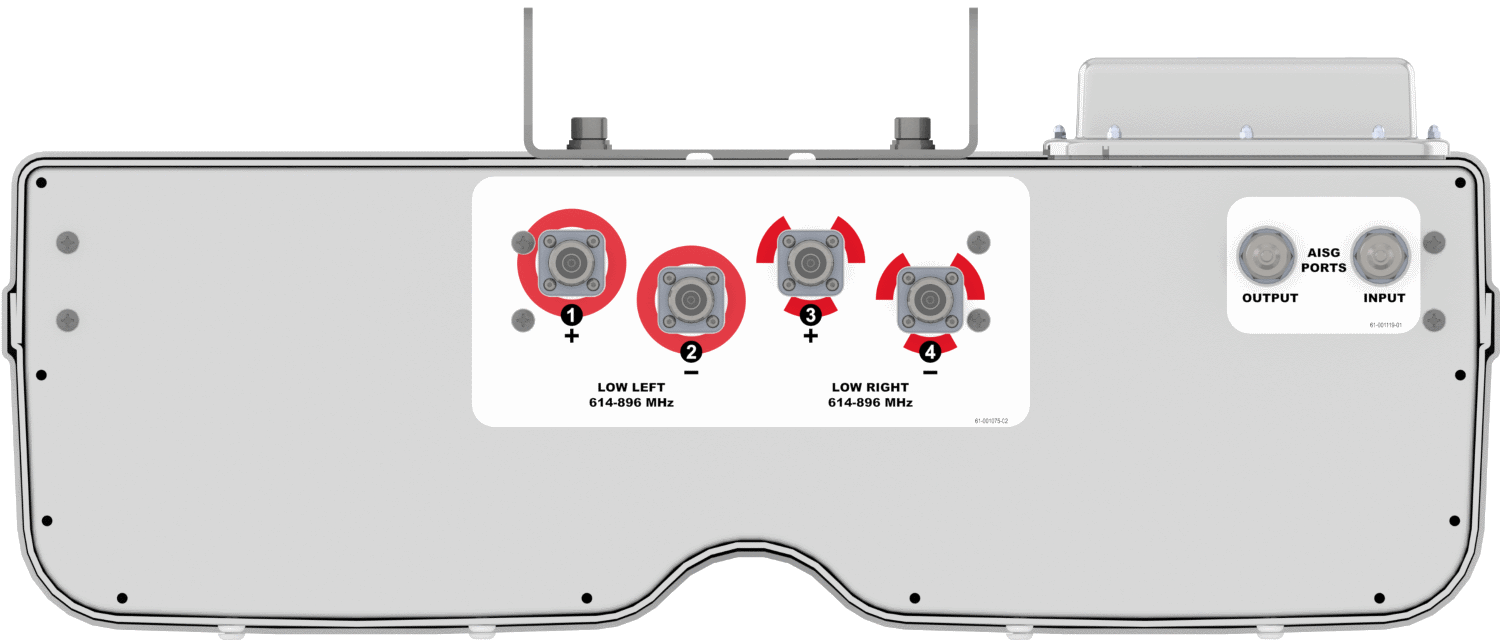

Bottom View

Connector Spacing

RET to Element Configuration

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

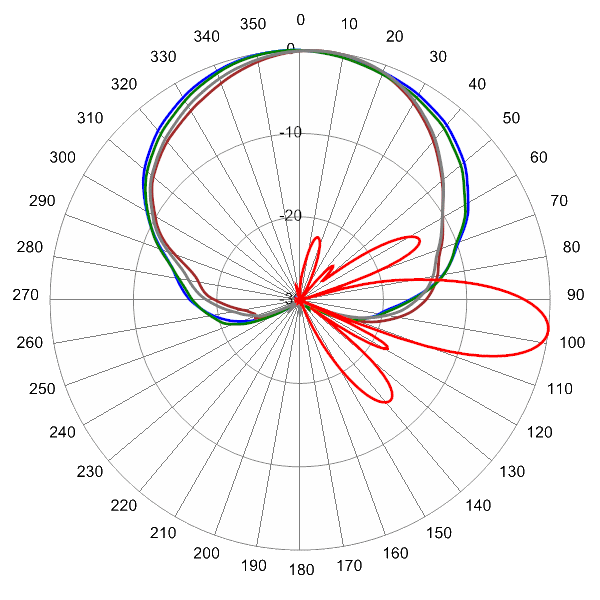

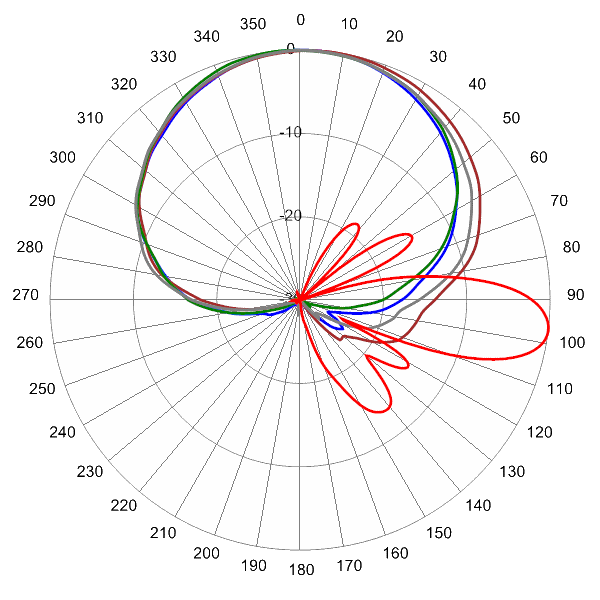

	614 MHz Azimuth & Elevation 7°	698 MHz Azimuth & Elevation 7°

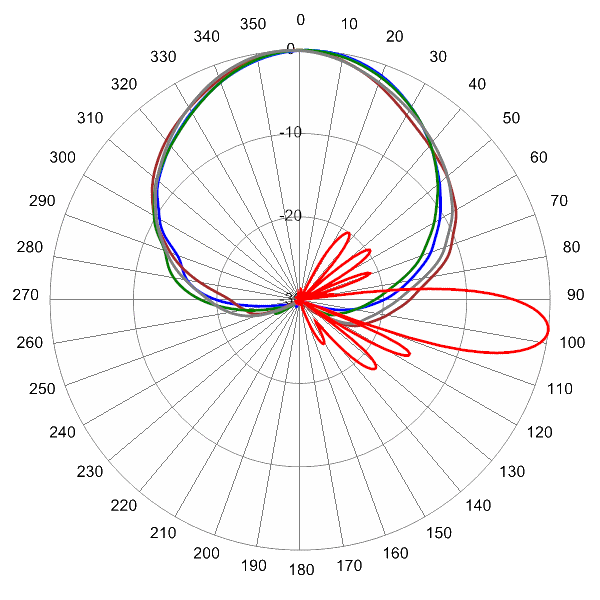

	824 MHz Azimuth & Elevation 7°

Model BSA-RET400		Remote Electrical Tilt System (RET)
MBK-01		Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
MBK-16		Mounting bracket kit (top and bottom) with fixed 0° mechanical tilt
SCU-AISG2-P		Portable AISG 2.0 Site Control Unit

Product Information

	Datasheet
	QPA65R-T6CA Connector Spacing Drawing
	QPA65R-T6CA RET to Element Configuration Diagram
	MBK-01 Installation Guide
	MBK-16 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

QPA65RT6C: Text/Planet Format - Default Azimuth

Configuration File

	RET Antenna configuration file update procedure

For Firmware select RET Actuator link below.

BSA-RET400 SA-DC0401
Configuration File	Version
QPA65-T6-YT-02.BIN	02

Parts & Accessories

QPA65R-T6CA-K	Five foot (1.5 m) QuadPort antenna with 65° azimuth beamwidth, 4.3-10 female connectors, 1 factory installed BSA-RET400 RET actuator (Type 17 internal) and MBK-01 mounting brackets
MBK-01	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment
MBK-16	Mounting bracket kit (top and bottom) with fixed 0° mechanical tilt
BSA-RET400	Remote electrical tilt actuator

Standards & Compliance

Safety	EN 60950-1, UL 60950-1
Emission	EN 55022
Immunity	EN 55024
Environmental	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Antenna Interface Standards Group (AISG), Federal Communication Commission (FCC) Part 15 Class B, CE, CSA US, ISO 9001
