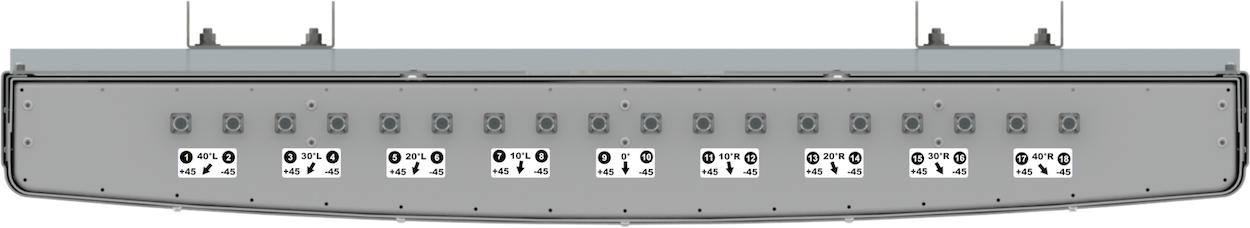

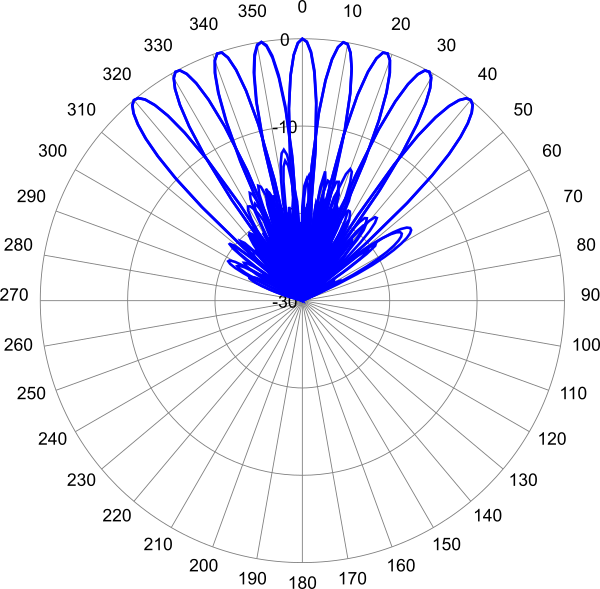

The CCI Nine-Beam Special Events Antenna is an LTE ready multi-beam antenna that supports multiple sectors (9) from a single antenna. This Nine-Beam Antenna is intended for use at sporting and entertainment venues where social media and the ability to share photos and videos demand high capacity and high data rates. The antenna provides capability for PCS 1900 MHz and AWS 1695/2180 MHz coverage in a compact, 3 ft (0.8m) high single enclosure. This nine beam antenna has one row of nine dual +45° and -45° cross-polarized beam pairs, each roughly 10 degrees apart that are used to segment large audiences into multiple sectors. The antenna enables maximum spectrum re-use by sectorization, providing greatly increased in network capacity. Our unique beam shaping technology provides fast roll off between beams, minimizing interference between sectors thus increasing the carrier to interference plus noise (CINR) ratio and lowering soft handover losses in LTE, UMTS/HSPA+ and CDMA/EVDO networks.
Such an approach enhances data transfer rates within LTE, UMTS and EVDO network sectors and addresses “hotspots” in mobile wireless operator networks.

The single panel design of the CCI Nine-Beam Special Event Antenna offers the opportunity to reduce antenna count and directly replaces multiple narrow beam antennas. The antenna minimizes the need for optimization as each beam is spaced optimally for maximum throughput thus providing significant CAPEX and OPEX cost savings.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
