PI BSA33R BU8A front iso PI BSA33R BU8A rear iso
AntennaDataSheetIcon

BSA33R-BU8B


BSA33R-BU8B

Eight foot (2.4 m), multiband, Sixteen port Dual Band Bi-SectorTM Antenna. Deploying two independent high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 698-896 MHz and 1695-2400 MHz frequencies.


  • Frequency Band 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
  • Number of Sectors 2 (BSA)
  • Height 8 ft. (2287 - 2590 mm)
  • Horizontal Beamwidth 30° to 40°
  • Number of Ports >12
  • Low Band Ports 8
  • High Band Ports 8

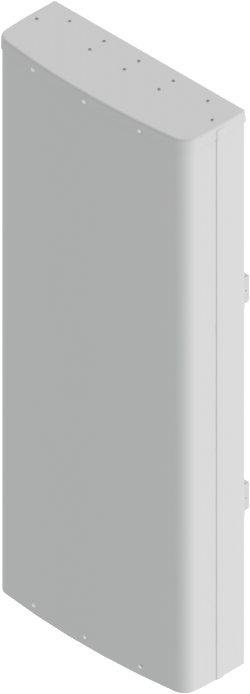

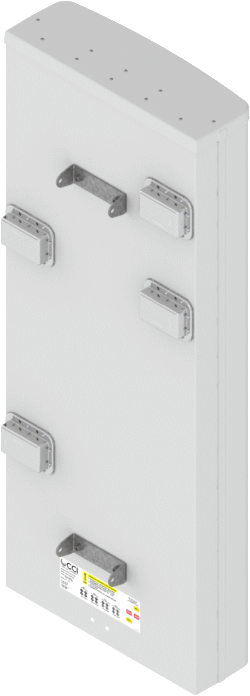

PI BSA33RBW6B front iso PI BSA33RBW6B rear iso
AntennaDataSheetIcon

BSA33R-BW6B


BSA33R-BW6B

Six foot (1.8 m), multiband, Sixteen port Dual Band Bi-SectorTM Antenna. Deploying two independent high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 698-896 MHz and 1695-2180 MHz frequencies.


  • Frequency Band 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1850-1995 MHz
  • Number of Sectors 2 (BSA)
  • Height 6 ft. (1677 - 1981 mm)
  • Horizontal Beamwidth 30° to 40°
  • Number of Ports >12
  • Low Band Ports 8
  • High Band Ports 8
PI BSA33R BW8A front iso PI BSA33R BW8A rear iso
AntennaDataSheetIcon

BSA33R-BW8A


BSA33R-BW8A

Eight foot (2.4 m), multiband, Sixteen port Dual Band Bi-SectorTM Antenna. Deploying two independent high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 698-896 MHz and 1695-2180 MHz frequencies.


  • Frequency Band 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1850-1995 MHz
  • Number of Sectors 2 (BSA)
  • Height 8 ft. (2287 - 2590 mm)
  • Horizontal Beamwidth 30° to 40°
  • Number of Ports >12
  • Low Band Ports 8
  • High Band Ports 8
PI BSA33R BW8B front iso PI BSA33R BW8B rear iso
AntennaDataSheetIcon

BSA33R-BW8B


BSA33R-BW8B

Eight foot (2.4 m), multiband, Sixteen port Dual Band Bi-SectorTM Antenna. Deploying two independent high performing pairs of CCI’s Patented Asymmetrical 33° Shaped Beams covering 698-896 MHz and 1695-2180 MHz frequencies.


  • Frequency Band 698-798 MHz, 698-896 MHz, 824-896 MHz, 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1850-1995 MHz, 2300-2400 MHz
  • Number of Sectors 2 (BSA)
  • Height 8 ft. (2287 - 2590 mm)
  • Horizontal Beamwidth 30° to 40°
  • Number of Ports >12
  • Low Band Ports 8
  • High Band Ports 8
PI BSA33RE5A FRONT iso PI BSA33RE5A REAR iso
AntennaDataSheetIcon

BSA33R-E5A


BSA33R-E5A

Five foot (1.5 m), Wideband, four port Bi-SectorTM Antenna. Deploying a high performing pair of CCI’s Patented Asymmetrical 33° Shaped Beams covering 1695-2690 MHz frequencies


  • Frequency Band 1695-1880 MHz, 1695-2180 MHz, 1695-2360 MHz, 1695-2690 MHz, 1850-1995 MHz, 2300-2400 MHz, 2300-2690 MHz, 2496-2690 MHz
  • Number of Sectors 2 (BSA)
  • Height 5 ft. (1372 - 1676 mm)
  • Horizontal Beamwidth 30° to 40°
  • Number of Ports 4
  • High Band Ports 4
